CNC Machined Front Box: How Geometry, Datums and Setups Decide the Result
A front box is a housing that carries a shaft, bearing or gear train behind a front face. This page explains what makes one machinable, where the limits sit, and how to judge a quote. Written for design engineers and buyers who need functional parts, not decorative ones.

In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
What a CNC machined front box actually does
A front box is the housing that closes the front of a drivetrain, gear reducer or pump. Its job is not structural bulk. Its job is to hold two or more bores in a fixed relationship so bearings, seals and shafts stay coaxial under load.
That single requirement drives every machining decision downstream. The bore diameter matters less than the distance between bores and their parallelism. A 0.02 mm center-distance error across a 120 mm span will load a bearing unevenly for its whole service life.
Front boxes show up in gearmotor end caps, robot joint housings, EV reduction covers, pump bodies and instrument enclosures. Wall thickness typically runs 4 mm to 12 mm on aluminum, thicker on cast iron. Below 3 mm the part starts to ring and deflect during boring.
One more thing. A front box is usually a cover as well as a bearing carrier. That means it needs a sealing face, a bolt pattern and often a cable or shaft pass-through. Each of those features competes for the same wall.
- 1Bore-to-bore distanceUsually the tightest callout on the print
- 2Sealing face flatnessDrives gasket compression and leak rate
- 3Bolt pattern positionMust line up with the mating half
Material choice sets the wall thickness you can get away with
Aluminum 6061-T6 is the default for front boxes under 300 mm. It machines fast, holds ±0.005 mm on a bored feature, and takes anodizing without dimensional drift beyond a few microns. 7075 gives higher stiffness if the box sees vibration, but it costs more and anodizes darker.
Cast aluminum ADC12 is common when the box starts as a die casting and only the bores and faces get machined. That is a different manufacturing route. If your volume is under a few thousand pieces a year, cutting the whole box from billet is usually cheaper than tooling.
Steel 1045 or 4140 suits front boxes in hydraulic pump and heavy gearbox work. Steel deflects less under bearing preload, but it needs more passes and a stress-relief step if you are removing a lot of stock. Expect the machining time to roughly triple against 6061.
Stainless 304 or 17-4PH appears in food, medical and marine front boxes. Both work harden, so keep the radial depth of cut above 0.5 mm and never dwell. Titanium TC4 is rare here, mostly aerospace actuator housings, where the weight saving pays for the extra cycle time.
- 16061-T6Default for housings up to 300 mm
- 2ADC12Only when the box begins as a casting
- 34140Heavy preload, pump and gearbox duty
- 417-4PHCorrosive or sanitary environments
Why datum selection decides the bore alignment
Most front box failures we see trace back to datum choice, not to machine accuracy. If the print calls the front face as datum A and the bore as datum B, the shop will face the part first, then bore from that face. That gives a bore perpendicular to the face inside 0.01 mm over 100 mm.
Flip it the other way and the result changes. If the bore is datum A and the mounting face is B, the face gets cut relative to the bore, which is correct for a part that bolts against a machined surface but wrong if the face is the sealing plane.
The practical advice: put the functional interface first. On a front box that is almost always the bore axis, because the bearing sets the shaft position. The mounting face follows. Mark the datums on the model, not just in a note block.
If the geometry is too complex to reach in one setup, ask for a datum target scheme. Three small pads on a rough face give the shop a repeatable rest without forcing a full face cut up front.
- 1Bore-first datumsCorrect when the shaft position is critical
- 2Face-first datumsCorrect when the seal plane is critical
- 3Datum targetsUse when no clean face exists
Roughing, stress relief and the boring sequence
A front box usually starts as a block or a casting. The first operation removes 60 to 80 percent of the stock. On aluminum that is a fast job with a 16 mm to 20 mm end mill at 0.5 mm radial engagement. On steel, use a 12 mm cutter and keep the stepover under 40 percent of diameter.
Do not bore to final size in the first setup. Rough the bore 0.3 mm to 0.5 mm undersize, let the part sit, then finish. Aluminum moves 0.02 mm to 0.05 mm after heavy stock removal, steel more. If the print is tighter than 0.02 mm on bore position, a half-day rest between rough and finish is cheap insurance.
Finish boring beats reaming when you need both size and position. A boring head lets the operator correct the axis after measuring. Reaming holds diameter well but follows the drilled hole, so any position error stays.
For bores under 20 mm, interpolate with a small end mill instead. That keeps one tool in the spindle, avoids a tool change, and lets you adjust size with cutter compensation. It costs a little cycle time and buys a lot of flexibility.
- 1Leave 0.3–0.5 mmStock on bores for the finish pass
- 2Rest between opsLets residual stress release
- 3Bore, don't reamWhen position tolerance is tight
Which tolerances are worth paying for
Not every dimension on a front box needs ±0.005 mm. Bearing bores and seal counterbores do. Bolt holes usually need ±0.1 mm, and clearance holes at ±0.2 mm are fine. Over-tolerancing the whole drawing raises cost without improving function.
Think in terms of what the part must do. A bore that presses a bearing needs an H7 fit, roughly +0.000 to +0.021 mm on a Ø30 mm bore. A bore that only locates a seal can run ±0.05 mm and still seal.
Flatness on the sealing face is often more important than diameter. A face that is flat within 0.02 mm over 100 mm will compress a gasket evenly. Cup it by 0.1 mm and the leak shows up at one corner.
Surface finish follows the same logic. Bearing seats want Ra 0.8–1.6 μm. Gasket faces want Ra 1.6–3.2 μm so the gasket can bite. Polish a gasket face to Ra 0.2 μm and it may weep.
- 1Bearing boreH7, Ra 0.8–1.6 μm
- 2Seal counterbore±0.05 mm is normally enough
- 3Gasket faceFlat 0.02 mm, Ra 1.6–3.2 μm
What actually drives the price of a front box
Cycle time is the biggest line item. A 150 mm aluminum front box with two bores takes roughly 40 to 60 minutes on a three-axis mill, and less on a five-axis machine if it eliminates a second setup. Steel takes two to three times longer.
Setup count matters more than most engineers expect. Each extra setup adds fixturing time and a datum transfer. A part that needs three setups can cost 30 to 50 percent more than the same part redesigned for two.
Tolerance and finish are the next lever. Going from ±0.1 mm to ±0.005 mm on a bore adds a finish pass and often a CMM check. That is real time. Ask whether the function needs it.
Volume changes the route, not just the price. One prototype and a 10,000 part run use different processes. No minimum order quantity means we can start with one piece and scale the method later.
- 1Cycle timeLargest single cost driver
- 2Setup countEach extra op adds fixturing and error
- 3Tolerance bandTight bores need finish passes
- 4VolumeChanges the route, not just the rate
When a CNC machined front box is the wrong answer
If the box is a thin shell with uniform 2.5 mm walls and no precision bores, sheet metal fabrication or die casting will beat machining on cost. Machining wins when there are functional bores, tight faces or low volume.
If the annual volume is above roughly 20,000 units and the geometry is stable, a die casting with machined bores is usually cheaper per part. We run both routes, so the comparison is honest.
If the part is larger than 4,000 mm in any axis, it falls outside our travel. That is rare for a front box, but large pump housings can approach it.
And if the design has a bore that is 6× diameter deep with a 0.8 mm wall around it, no process will hold it. Redesign the boss before you ask for a quote.
- 1Thin shell, no boresSheet metal is cheaper
- 2Very high volumeDie casting plus machining wins
- 3Over 4,000 mmOutside our machine travel

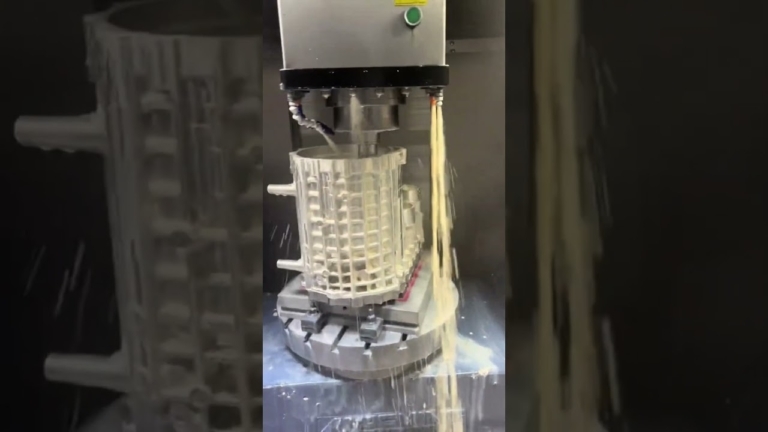

How we machine a front box, step by step
A representative route for an aluminum front box with two bores and a sealing face.
- 11. Review the model and DFMCheck wall thickness, tool reach and datum scheme. Flag any bore deeper than 4× diameter. Quote and DFM notes go back within 12 hours.
- 22. Face and square the stockCut the six faces to establish the primary datum. Leave 0.5 mm on the sealing face for the finish pass.
- 33. Rough the pockets and boresRemove 60–80 percent of stock. Aluminum at 0.5 mm radial engagement, steel at 40 percent stepover. Leave 0.3–0.5 mm on all bores.
- 44. Rest the partLet the blank sit so residual stress releases. Half a day is enough for most aluminum boxes. Skip this only if bore position tolerance is looser than 0.05 mm.
- 55. Finish the datum faceTake a light pass, 0.2 mm depth, to bring the sealing face flat. Measure before moving on.
- 66. Finish bore and counterboreBore to H7 on bearing seats, interpolate small bores. Check center distance with a CMM or bore gauge before unclamping.
- 77. Drill and tap the bolt patternPosition within ±0.1 mm. Deburr every hole. Chamfer tapped holes 0.5 × 45°.
- 88. Inspect and finish100 percent inspection before shipment. Anodize, bead blast or plate as specified. Reports on request.
Three-axis vs four-axis vs five-axis for a front box
Pick the setup from the feature pattern, not from machine availability.
| Setup | Best for | Watch out for |
|---|---|---|
| 3-axis | Flat boxes, bores on one face only | Second op re-datum shifts bores |
| 3-axis + tombstone | Boxes with four side faces to drill | Rotation error stacks across faces |
| 4-axis | Cylindrical or indexed housings | Bores on the ends need a separate op |
| 5-axis simultaneous | Angled bores, contoured ports, deep pockets | Higher rate; only pays on complex parts |
| 5-axis 3+2 | Boxes with 5 or more approach angles | Rigid, but tool reach must be checked |
| Mill-turn | Round front boxes with a flange | Not for square blocks with sharp corners |
The takeaway
If your front box carries bearings or seals, machine it and control the bore datums. If it is a cover with no functional bores, use sheet metal or casting and save the money.
