  What makes CNC machining of large aluminum parts different
• 2
  How 5-axis travel and rotary tables set the size limit
• 3
  Thermal growth, wall thickness, and fixture stiffness
• 4
  When one-piece machining stops making sense
• 5
  Alloy choice and finishing for long aluminum parts
• 6
  Choosing a setup for large aluminum parts

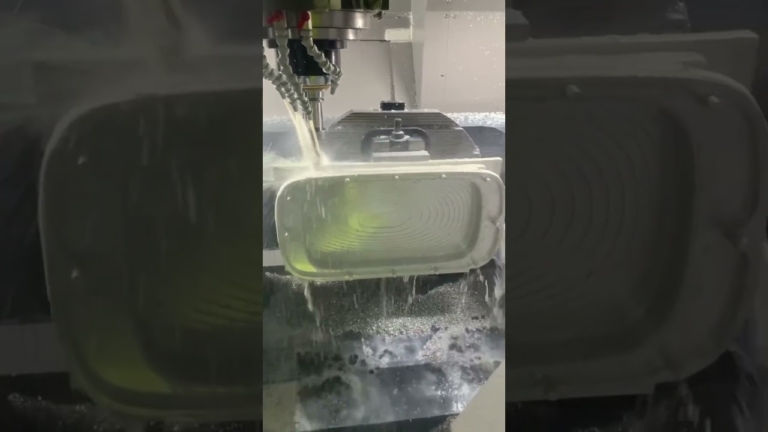

A 200 mm bracket and a 2,000 mm frame use the same spindle, but they do not fail the same way. On small parts the cutting forces dominate. On large aluminum parts the workpiece itself becomes part of the machine structure. If the casting or plate is not stiff, the tool pushes the part instead of the chip. You see chatter, taper, and a wall that measures differently every time you touch it.

Aluminum also moves. Its thermal expansion is roughly 23 × 10⁻⁶ per °C, so a 1,000 mm aluminum part grows about 23 μm for every 1 °C it warms. A spindle running for two hours, a warm fixture, and a cold morning floor all push that number around. Machining a long part at 20 °C and inspecting it at 24 °C is a real difference, not a rounding error.

The third factor is reach. A 4,000 mm part cannot be repositioned without losing datum. Every refixture adds a stack of errors: fixture location, clamp distortion, and re-probing. Five-axis work reduces the count of those events, which is why the process choice matters more than the tolerance callout on the drawing.

So the question is not whether a machine is big enough. It is whether the part can be held, cooled, and probed in a way that keeps the same reference from the first cut to the last one.

Travel is the first hard stop. Our large-format machines run a 4,000 × 400 × 150 mm envelope, which suits long extrusions, rails, and frame members. Medium platforms cover 750 × 1,150 × 550 mm and 600 × 600 × 600 mm, and compact cells handle 500 × 500 × 450 mm and 500 × 310 × 200 mm. A part that fits in plan but exceeds the Z travel still has to be split.

The second stop is the rotary table. A Ø400 mm table lets you machine four faces of a part in one setup, but the part swings inside the machine envelope as the table turns. A 900 mm long part on a Ø400 mm table will hit the column long before the linear axes run out. Check the swept circle, not just the table diameter.

Five-axis simultaneous motion solves a different problem than 3+2 positioning. Simultaneous cutting keeps the tool normal to a curved surface, which holds a consistent scallop height on large contoured skins. Indexed 3+2 is faster and stiffer for parts with flat faces and drilled holes at compound angles.

We run 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines, and 16 mill-turn centers. Matching the part to the right class of machine is usually worth more than pushing a tolerance tighter.

Roughing a large aluminum part removes a lot of material fast. A 20 mm depth of cut at high feed pulls heat into the part, and thin walls absorb it unevenly. The wall nearest the cut grows first, then the tool meets a surface that has already moved. Finish passes then cut a shape that changes again after the part cools on the bench.

The practical answer is to rough, let the part rest, then finish. For a long frame we may rough, wait, semi-finish, and take the finish cut in a separate session. That costs a setup, but it removes the spring-back that shows up as a bowed rail.

Wall thickness is the other lever. Below roughly 1.5 mm on a long aluminum wall, vibration becomes the dominant error, not the machine. Ribs, gussets, or a temporary bridge between walls can hold the section while the finishing tool passes. Designs that show a 1 mm wall on a 600 mm span often need a thicker section or a change in the joint.

Fixtures do the rest. Vacuum plates spread load across a large face and leave the top open for five-axis access. Bolted steel rails are stiffer but add clamp points that distort thin floors. For long parts we often combine a vacuum base with two or three low-profile toe clamps placed where the part is thick.

One-piece machining is the default when the part carries a datums chain, when joints would add weight, or when a sealed body has to hold pressure. A single setup keeps bore alignment and face parallelism in one coordinate system, which is hard to reproduce after welding or bolting.

Splitting wins when the finished envelope exceeds travel, when a thin long wall cannot be stabilized, or when the part has features on faces that need very different tool access. A two-piece design with a bolted or bonded joint can be machined on medium platforms and inspected flat before assembly.

Cost is not the main argument here. A split design usually adds assembly labor and a joint to control. It becomes attractive when it removes a five-axis operation, a custom fixture, or a risky deep pocket that would need a long reach tool.

There is also a material argument. Plate stock above a certain thickness is expensive and can carry residual stress from rolling. A thick 7075 plate machined down to a thin web may distort after each pass. Sometimes a casting or a fabricated assembly is the better starting point.

6061-T6 is the workhorse for large structural aluminum because it machines cleanly, welds, and holds a stable price. 6082 behaves similarly with slightly higher strength. 7075 offers higher strength but is less forgiving of thin sections and tends to move more after heavy material removal.

5052 and 5083 are common for formed panels and welded frames. They machine to a gummier chip and are usually selected for corrosion resistance rather than a fine surface finish. ADC12 applies to die-cast bodies that are then machined on critical faces.

Surface finish follows the toolpath. A Ra 1.6–3.2 μm as-machined finish is normal for structural faces. Ra 0.8–1.6 μm needs a finishing pass with a smaller stepover and a sharp insert. Ra 0.2–0.8 μm is reserved for sealing faces and bearing bores.

Anodizing adds a dimension change of a few micrometers per surface, which matters on a 2,000 mm part with a tight fit. Hardcoat is thicker and more uneven at edges. Tell us the finish before we set the final dimensions, not after.
