  Why a box is harder than a bracket
• 2
  How many setups does your box really need
• 3
  Wall deflection: the numbers that matter
• 4
  Thermal drift and datum transfer on long parts
• 5
  Material choice changes the machining plan
• 6
  What actually drives the price
• 7
  Step by step: releasing a large box for machining
• 8
  Which process fits your box
• 9
  What tolerance is realistic on a large box

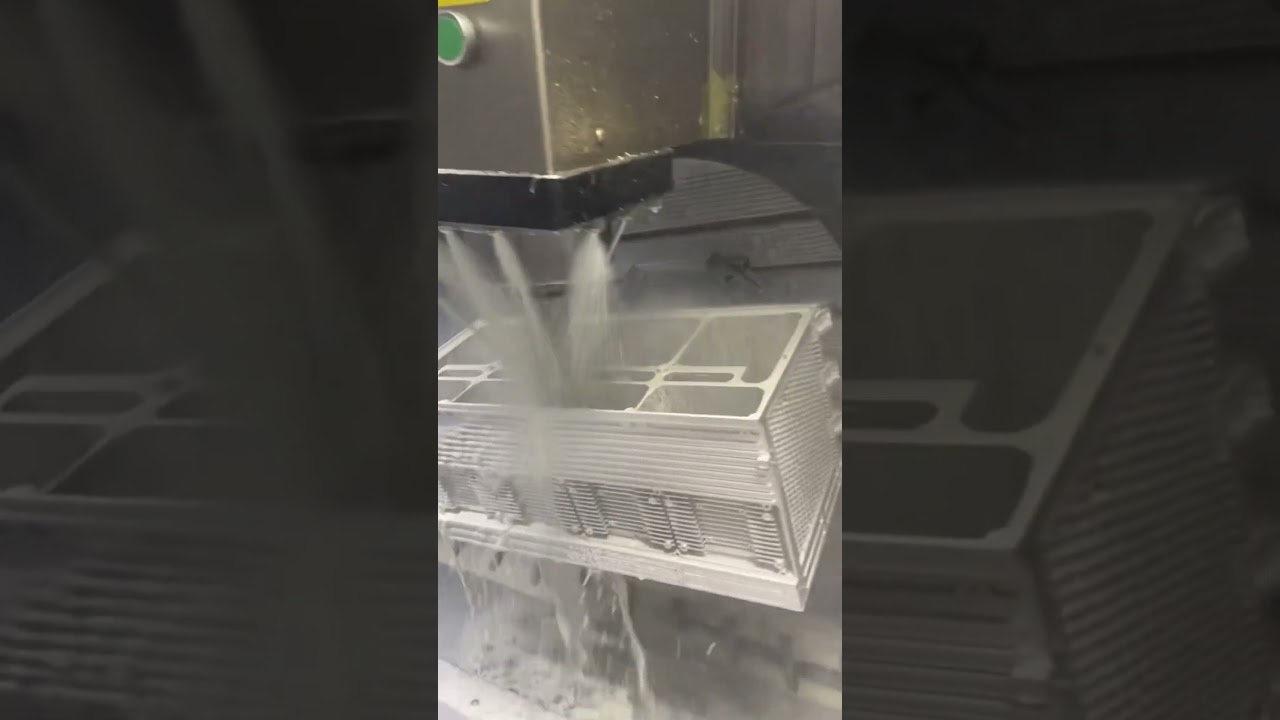

A bracket has one datum face and a few holes. A box has six faces that all reference each other, and the part is usually hollow. Every time you flip it, the previous cut becomes the new reference. Error stacks instead of cancelling.

The second problem is stiffness. A 300 mm square box with 3 mm walls behaves nothing like a solid block of the same envelope. Under a 12 mm end mill at normal feed, those walls deflect before the tool does. The cutter is not the weak link. The part is.

Third, size changes the rules. Above roughly 1,000 mm, thermal drift and machine geometry start to matter as much as the toolpath. A 20 °C shop and a 28 °C shop will not produce the same part from the same program.

So when we quote CNC machining of large boxes, the real question is not which machine. It is how many setups the geometry forces, and how much material has to come out before the part is stable enough to finish.

• 1
  Six faces, one referenceDatum strategy decides the tolerance stack.
• 2
  Wall stiffness, not tool stiffnessThin walls move before the cutter does.
• 3
  Size brings thermal effectsAbove 1 m, temperature is a tolerance item.

Count the faces that carry a tolerance. If a face only needs to look clean, it does not need its own setup. This one filter removes most of the cost from a large enclosure.

On a 3-axis machine, an open box typically needs four setups: top, bottom, and two sides, with the remaining two sides reached by long-reach tooling or left as-cast. Each flip adds a re-clamp error, usually 0.02–0.05 mm unless you indicate the part back in.

With a simultaneous 5-axis center, an open box with no undercuts can often be finished in two setups. The trunnion and rotary table reach four sides and the floor without re-clamping. The two remaining faces still need a flip, but the critical bore and its mating face stay in the same setup.

For closed boxes, or boxes with internal ribs and sealed cavities, no machine removes the inside. Split the design, or accept a cast or welded assembly. We have never seen a single-piece closed box machined from solid at a competitive price.

• 1
  Filter by toleranceOnly faces with a callout justify a setup.
• 2
  Two setups on 5-axisTypical for open boxes without undercuts.
• 3
  Closed boxes do not machineSplit the design or change process.

Deflection scales with the cube of wall height and inversely with the cube of wall thickness. Halve the wall thickness and the deflection goes up eight times. That is why a 5 mm wall cuts cleanly and a 2.5 mm wall on the same box chatters.

The practical lever is not feed rate, it is support. Flood the cavity with a low-melt wax or a fixture block, and the wall behaves as if it were solid. We use this on tall thin ribs where nothing else holds the finish.

Radial depth of cut matters more than axial depth on thin walls. Reducing radial engagement to 5–8% of tool diameter spreads the cutting force along the wall instead of pushing it sideways. Cycle time goes up, but scrap goes down.

If the drawing calls for a 1.5 mm wall across a 500 mm span, expect to pay for support fixturing, slower passes, and possibly a stress-relief step between roughing and finishing. Thin and large is the most expensive combination in the shop.

• 1
  Cube lawHalf the thickness, eight times the movement.
• 2
  Fill the cavityWax or fixture blocks turn a wall into a solid.
• 3
  Low radial engagement5–8% of tool Ø keeps force along the wall.

Aluminum expands about 23 μm per meter per degree Celsius. A 2,000 mm box that warms 5 °C between roughing and finishing moves roughly 0.23 mm. That is 46 times a ±0.005 mm tolerance. Rough, let it cool, then finish.

The same number applies to the machine. A large 5-axis center that has been idle overnight is not the same machine it will be after four hours of cutting. We warm up spindles and let the enclosure sit before the finish pass on tight parts.

Datum transfer is the other half. If you indicate off a rough-cast face on setup two, you inherit the casting tolerance. Machine a small datum pad on setup one and reference that instead. It costs a few minutes and removes the largest single source of positional error.

For boxes assembled from several machined plates, put the mating pattern in one setup on one plate and match-drill the rest. Do not machine each plate to nominal and hope the stack closes.

• 1
  Rough, cool, finishA 5 °C rise moves a 2 m part 0.23 mm.
• 2
  Machine a datum padNever indicate off a rough-cast surface.
• 3
  One pattern, one setupMatch-drill mating plates, do not machine to nominal.

6061-T6 is the default for large enclosures. It machines fast, holds a thread, and anodizes predictably. Its weakness is residual stress in thick plate: remove 60% of the material and the part will bow. Specify stress-relieved plate, or accept a straightening step.

7075 is stronger and machines to a better finish, but it is more expensive in large plate and less forgiving of thin walls. Use it where stiffness per unit weight is the driver, not where cost is.

Steel boxes up to 4,000 mm are feasible on our large-travel machines, but cycle times are three to five times aluminum, and the finish pass needs a rigid setup. 1018 and 4140 are common. 17-4PH is used where corrosion resistance and strength both matter.

Surface finish follows the same logic. As-machined Ra 1.6–3.2 μm is standard on a box exterior. Anodizing will not hide tool marks; it highlights them. If the box is visible, budget for a Ra 0.8–1.6 μm finish pass and bead blasting before anodize.

• 1
  6061-T6 defaultStress-relieve thick plate or expect bowing.
• 2
  7075 for stiffnessBetter finish, higher plate cost.
• 3
  Anodize shows marksFinish the surface before you coat it.

Setup count is the first driver. On a large box, each additional setup costs more than a full day of machining time, because the part is heavy, slow to clamp, and needs indicating. Reducing four setups to two can cut the quote by a third.

Material removal volume is the second. A box machined from solid plate at 60% removal wastes both material and spindle time. If the geometry allows, start from a casting or a welded frame and machine only the critical faces.

Tolerance density is the third. A box with 40 holes at ±0.1 mm is cheaper than the same box with four bores at ±0.005 mm and the rest at ±0.1 mm. The tight callouts dictate the setup plan for the whole part.

Inspection follows. Every one of those tight features has to be measured, and on a 2,000 mm part that means a large CMM or a portable arm. We inspect 100% before shipment and send reports on request, but the measurement time is real and it is in the quote.

• 1
  Setups firstCutting four setups to two can save a third of the cost.
• 2
  Start near net shapeCasting or welded frame beats machining from solid.
• 3
  Tolerance densityFour tight bores set the plan for 40 loose holes.
