CNC Machining Products: 7 Essential Rules That Cut Cost and Hold Quality

• 1
  Key takeaways
• 2
  What to compare before you place a PO
• 3
  Design for manufacturability decides the price of CNC machining products
• 4
  Material and stock form change the cost of CNC machining products
• 5
  Set tolerance bands you can actually inspect
• 6
  Batch size, setups and finishing in the process chain
• 7
  Prototype first, then scale CNC machining products
• 8
  Supplier transparency: what a good machine shop tells you
• 9
  Step by step: how to qualify a supplier for CNC machining products

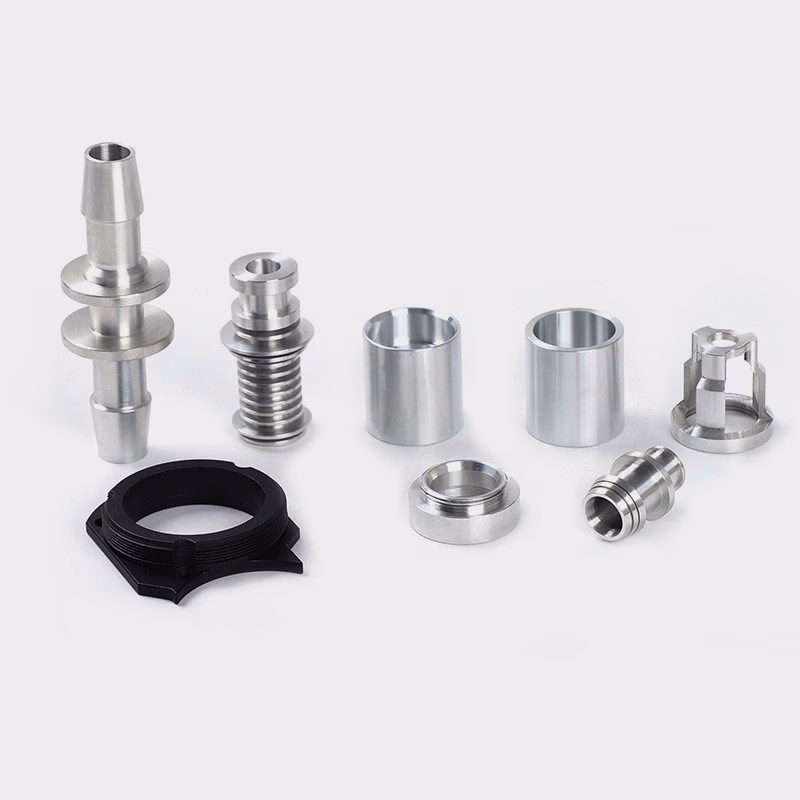

Most of the cost of CNC machining products is fixed before a single tool touches metal. Wall thickness, corner radii, hole depth and datum selection set how many operations the part needs. A 1 mm internal corner forces a small cutter, and a small cutter must run slower with lighter passes to avoid deflection. The same corner opened to 3 mm lets the shop use a stiffer tool and cut cycle time.

Deep pockets are the second common trap. A pocket 5× deeper than its width needs a long, thin tool that vibrates. If the drawing allows a drafted wall or a relieved floor, the shop can step down with a shorter tool and hold size without chatter. Ask your supplier to mark features that drive cycle time, not just features that are hard to hold.

Datum choice matters as much as geometry. When the design datum matches the machining datum, the shop avoids re-clamping and re-indicating the part. When they differ, you pay for a setup that exists only to translate dimensions. A short DFM call before drawing release usually removes one or two operations from the route.

• 1
  Corner radiiKeep internal radii at 1/3 or more of pocket depth where possible.
• 2
  Wall thicknessBelow 0.8 mm in aluminum, chatter and spring pass risk rise quickly.
• 3
  Thread depth1.5× diameter is normally enough; deeper threads add tapping time.
• 4
  Text and engravingLaser marking handles character heights down to 1.5 mm.

Material is often the largest single line on a machining quote, so the alloy choice deserves more than a default. For structural brackets and housings, 6061-T6 covers most needs at a lower price than 7075. Choose 7075 when you actually need the higher yield strength, for example a thin rib carrying bending load. For corrosion and food-contact duty, 316 or 316L stainless is the usual pick; 303 machines faster and costs less when corrosion is not critical.

Stock form is the quiet cost driver. A part cut from plate leaves a lot of chips on the floor. A part near a standard bar or tube size may need almost no roughing. When the geometry allows, specifying near-net stock or a casting blank removes roughing passes and can cut cycle time substantially. The trade-off is that near-net stock ties you to a supplier and a minimum quantity, so it pays off on repeat runs, not one-offs.

Heat treatment adds a scheduling step and a risk of distortion. If the drawing calls for 4140 at a specific hardness, plan the sequence: rough machine, heat treat, then finish machine to final size. Skipping the pre-heat-treat roughing step usually means the part moves after hardening and the final dimensions drift out of tolerance.

• 1
  Aluminum 6061-T6Good default for brackets, plates and housings.
• 2
  Aluminum 7075Use when strength-to-weight matters more than price.
• 3
  Stainless 303 vs 316L303 for machinability, 316L for corrosion and medical duty.
• 4
  Titanium and InconelReserve for high temperature or aggressive environments.

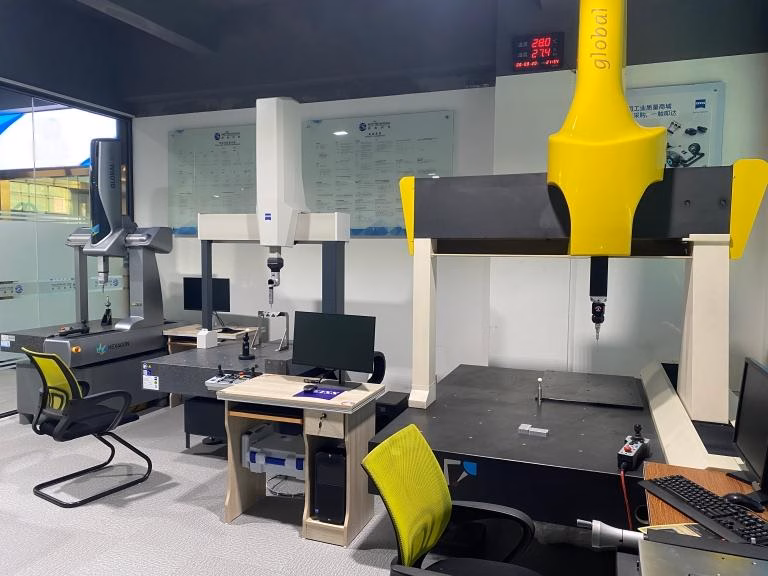

Tolerance is the line item that surprises buyers most. A general tolerance block of ±0.1 mm lets the shop use standard tooling and normal feeds. A callout of ±0.005 mm on a 200 mm aluminum part asks for temperature control, a stable fixture and a CMM check. That request is valid when the function needs it, and it is expensive when it does not.

The practical approach is to split tolerances by feature. Put tight bands only on the surfaces that mate, locate or seal. Leave clearance holes, outer profiles and non-functional faces on the general block. If a hole position matters for assembly, give a true position callout instead of tightening every dimension on the print.

Surface finish follows the same logic. Ra 3.2 μm is a normal as-machined result. Ra 0.8–1.6 μm needs a finishing pass with a smaller stepover. Ra 0.2–0.8 μm usually means additional operations such as fine boring, lapping or polishing. Each step down in roughness adds time, so mark only the sealing faces, bearing seats and optical surfaces.

• 1
  General block±0.1 mm is standard for non-critical features.
• 2
  Critical fitsReserve ±0.005 mm for mating and locating surfaces.
• 3
  As-machined finishRa 1.6–3.2 μm covers most functional parts.
• 4
  Fine finishRa 0.2–0.8 μm needs extra operations and inspection time.

Setup is a fixed cost per run. Whether you order 5 parts or 500, the shop still has to build the fixture, prove the program and make the first article. That is why unit price drops sharply from one piece to fifty and then flattens. Consolidating two similar parts into one program, or running a family of parts on the same fixture, spreads that fixed cost further.

Run too many parts and other costs appear: work in progress, storage, and the risk that a design revision makes the whole lot obsolete. A middle path works for most programs. Run enough to absorb setup, then hold the rest as a second release after the first build is validated in the field.

Post-processing belongs in the same plan. Anodizing, plating, powder coating and heat treatment are outside processes, and each adds days plus handling risk. If a part needs masking for a conductive anodize zone, say so on the drawing. Laser marking with a minimum character height of 1.5 mm is a clean way to add part numbers and traceability without a separate label operation.

• 1
  First articleApprove before the run continues past the setup piece.
• 2
  Fixture reuseSame fixture across part revisions cuts re-setup cost.
• 3
  Finishing sequenceMachine, deburr, then send out for coating or plating.
• 4
  Masking notesCall out any zone that must stay conductive or uncoated.

A prototype is not only a fit check. It is the cheapest way to find out whether a design can be machined at the tolerance you wrote. A single part made on the same machine type and the same fixturing concept as production tells you about tool access, cycle time and surface finish before you commit to a run.

Keep the prototype and production processes close. If the prototype is machined but the production part is cast and then machined, the prototype validates the fit but not the production process. That gap is where late surprises live, especially on thin walls and sealing faces.

Use the prototype to calibrate your own expectations. Measure the features you care about, note where the shop hit the nominal and where it drifted, and adjust the drawing before release. A revised drawing after the prototype is normal. A revised drawing after 2,000 parts is expensive.

• 1
  Same process familyPrototype on the process that will make production parts.
• 2
  Measure earlyCheck critical features on the prototype, not just fit.
• 3
  Revise before releaseDrawing changes are cheapest before the production PO.

Transparency is measurable. A supplier that shares the operation list, the fixture concept and the inspection plan is giving you the information you need to judge risk. A supplier that only shares a price is asking you to trust a number with no basis.

Capacity matters for schedule risk. GreatLight runs 127 high-precision CNC machines across three wholly-owned plants, including 16 simultaneous 5-axis machining centers, 16 mill-turn centers and a Ø400 mm rotary table. Maximum processing size is 4,000 mm, which covers most structural and housing work. Capacity is not a guarantee of your date, but it tells you whether the shop can absorb a surge.

Certifications set the floor for regulated work. ISO 9001:2015 covers general quality systems, IATF 16949:2016 covers automotive, ISO 13485:2016 covers medical devices and ISO 27001:2022 covers information security. If your part feeds a regulated product, ask which certificate applies and who audits it.

Confidentiality is part of the deal. Uploads should be treated as secure and confidential, and an NDA should be available on request before you send production drawings. This protects your design and your customer's program.

• 1
  Operation listShows setup count and where cost sits.
• 2
  Capacity fitMachine size and count must match your part envelope.
• 3
  Certification scopeMatch the certificate to your industry, not just the logo.
• 4
  NDA on requestSign before releasing production drawings.
