A cabinet is a stack of small fits. A hinge cup sits in a 35 mm bore. A shelf rests in a dado. A door closes against a reveal of 2 mm. Each of those fits has its own allowance, and the allowances add up along the carcass. If the bore is 0.3 mm off and the dado is 0.4 mm wide, the door still closes. If both drift the same way on every panel, the last cabinet in a run will not match the first.

That is the whole argument for machining precision in cabinet work. It is not about a single beautiful part. It is about the same part appearing 200 times with the same fit, so hardware behaves identically and installers do not shim anything on site.

Manual and semi-manual woodworking can reach this. A skilled operator with a well-tuned boring machine holds about ±0.3 mm on a hinge bore. That is fine for painted MDF boxes in a low-humidity room. It stops being fine when the cabinet uses metal frames, glass inserts, curved doors or a 0.5 mm shadow gap.

CNC changes the source of error. Instead of depending on operator feel and fixture repeatability, position comes from the servo loop and the toolpath. On our five-axis centers the working tolerance is ±0.005 mm on metal parts, and the same discipline applies to machined cabinet components in aluminum, brass and engineering plastics.

• 1
  Position repeatabilityThe same bore lands in the same place on panel 1 and panel 200.
• 2
  Toolpath controlEntry ramps and climb cuts are defined in CAM, not by hand.
• 3
  Single setupFive-axis work cuts several faces without re-fixturing the part.

Take a 600 mm wide drawer bank. The carcass side is machined, the runner is screwed on, the drawer box is assembled, and the front is fitted. Four dimensions carry tolerance: side panel thickness, runner mounting hole position, drawer box squareness and front panel flatness. If each is allowed ±0.2 mm, the combined variation at the front can reach ±0.8 mm in the worst case.

In practice the errors do not all peak together, but you feel the tail of the distribution. One drawer in twenty rubs. The customer notices that one.

Machining the runner holes on a CNC center with ±0.05 mm positional accuracy removes one term from that stack almost entirely. The remaining variation comes from panel flatness and assembly, which you can control with material choice and clamping.

This is why we ask for the hardware datasheet before quoting a cabinet component. Blum, Hettich and Grass specify hole patterns to a tenth of a millimeter. If the machining cannot hold that, the hardware will still work, but the adjustment range gets used up before the cabinet is installed.

• 1
  Ask for the hardware drawingBore diameter, depth and center distance decide the machining plan.
• 2
  Control one term wellA tight machined datum beats tightening every other step.

Most cabinet panels are flat work. A three-axis router with a vacuum bed cuts them quickly and cheaply. Holes are drilled from one side, dados are cut with a straight cutter, and the panel leaves the machine. For this work, five-axis adds cost without adding capability.

Five-axis earns its place when the part is not flat or not accessible from one direction. A curved door with a profile that wraps around the edge. A metal frame with bores on two faces that must stay concentric. An undercut handle recess that a straight tool cannot reach. A hinge plate with a relief pocket behind the mounting face.

There is a second reason: setup count. If a part needs four operations on a three-axis machine, each refixturing adds error. One five-axis setup with a Ø400 mm rotary table can machine four faces and hold the relationships between them.

We run 16 simultaneous five-axis machining centers, 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers. The mix matters because the right answer for a flat panel is not the right answer for a curved door frame.

• 1
  Flat panel, one faceThree-axis. Fastest and lowest cost per part.
• 2
  Curved or wrapped profileFive-axis, or a profiled cutter on a router.
• 3
  Multi-face metal frameFive-axis with a rotary table to protect concentricity.

Wood panels are cut on routers, not on metal machining centers. Where CNC metal machining enters cabinet making is in the parts that were once cast, welded or hand-finished: aluminum door frames, brass and stainless pulls, hinge plates, drawer runners, decorative inlays and structural brackets.

Aluminum is the common choice. 6061-T6 machines cleanly, takes anodizing well and holds a thin wall without warping if the toolpath is gentle. 6082 behaves similarly with slightly better corrosion resistance. 7075 is stronger but anodizes to a darker, less predictable color, so it suits structural brackets more than visible trim.

Stainless 304 and 316 are used for pulls and exposed frames where corrosion or cleaning chemicals matter. They machine slower and work-harden, so we rough with a constant engagement toolpath and finish with sharp, coated tooling. 316L is the pick for marine and medical-adjacent cabinetry.

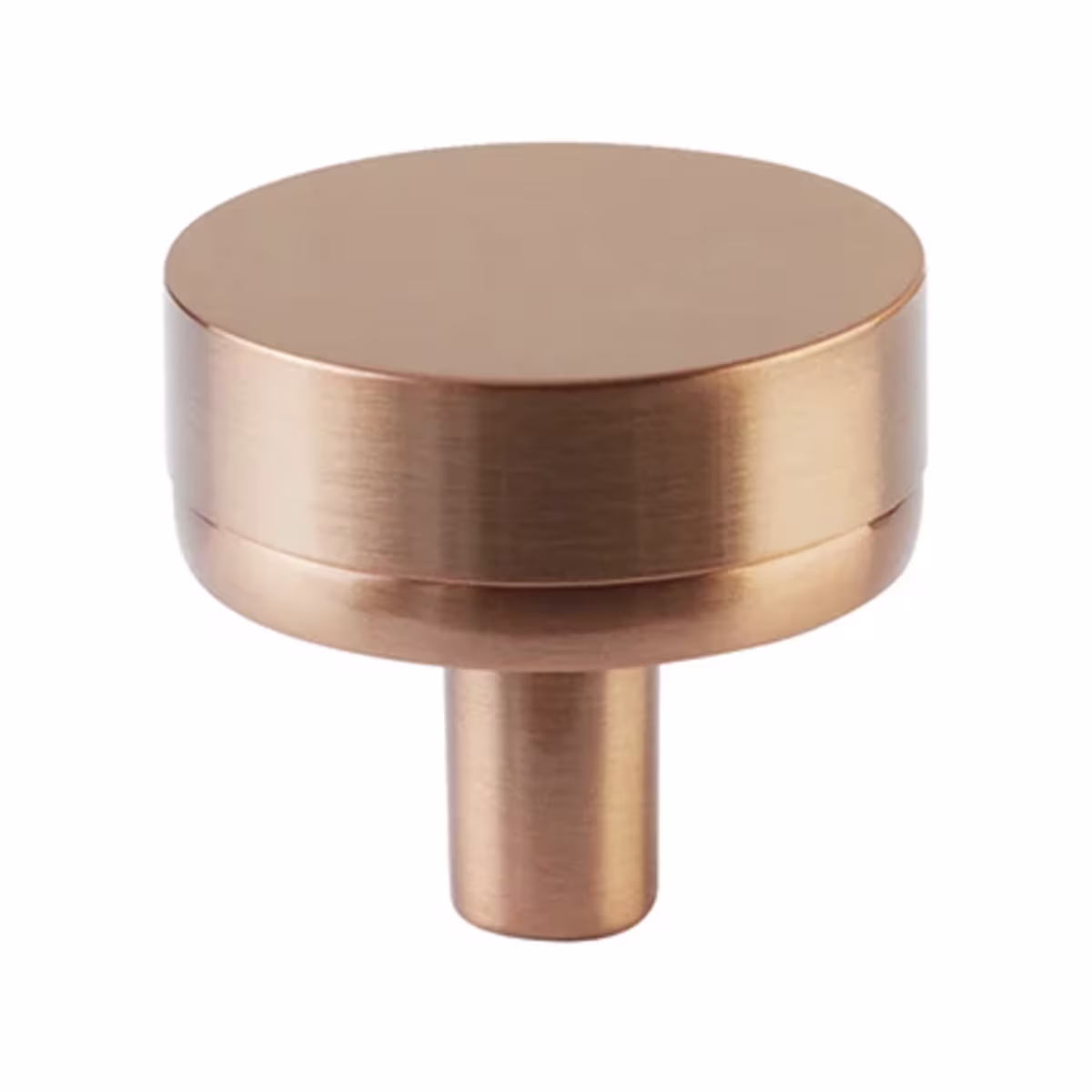

Brass C36000 is the easiest way to get a warm, machined look with fine detail. It cuts fast, takes a light brush finish and can be lacquered or left to patina. For a cabinet pull, the difference between a cast part and a machined part is usually visible in the edge quality and the symmetry of the mounting holes.

• 1
  6061-T6 aluminumFrames, brackets, hinge plates. Anodizes predictably.
• 2
  304 / 316L stainlessPulls and exposed frames in wet or chemical environments.
• 3
  C36000 brassVisible detail parts with fine edges and tight hole patterns.

A cabinet is touched every day. The finish on a pull or a frame edge is inspected at 300 mm, not at arm's length. That changes what the machine has to deliver.

As-machined surfaces sit around Ra 1.6–3.2 μm and show visible tool marks. For a hidden bracket that is fine. For a visible frame we typically finish to Ra 0.8–1.6 μm and then bead blast or brush to break the directional pattern. Where a part will be anodized in a dark color, a finer Ra 0.2–0.8 μm surface avoids the blotchy look that comes from uneven light scatter.

Edge quality is separate from surface roughness. A sharp, burr-free edge on a brass pull comes from toolpath strategy and a final light pass, not from polishing. Polishing rounds the edge and changes the geometry that the hinge or latch was designed around.

Laser marking works on anodized aluminum and stainless for part numbers or alignment marks. Minimum character height is 1.5 mm, which is the practical limit for legibility after finishing.

• 1
  Hidden partsRa 1.6–3.2 μm, as machined, no extra cost.
• 2
  Visible framesRa 0.8–1.6 μm plus bead blast or brush.
• 3
  Dark anodized surfacesRa 0.2–0.8 μm to keep color even.

It is worth saying plainly: most cabinet boxes do not need this. If the box is painted MDF, the doors are slab fronts and the hardware is standard 35 mm hinges, a well-set boring machine and a panel saw will produce a cabinet that installs cleanly. Adding CNC machining raises the part cost and the lead time without changing what the customer sees.

Precision also cannot fix a material problem. Solid wood moves with humidity. A door machined to ±0.05 mm in January will not be the same door in July. If the design uses wide solid wood panels, the movement will dominate the tolerance budget, and the machining accuracy is wasted.

Coated and veneered panels add another limit. Cutting a veneered panel with a down-cut compression cutter gives a clean top edge. Cutting it with the wrong tool gives tear-out that no tolerance can rescue.

The honest rule: spend on machining precision where two parts meet with a small gap, where hardware has a tight hole pattern, or where the part is visible and the edge is the product. Elsewhere, spend on material and finishing instead.

• 1
  Solid wood panelsMoisture movement exceeds machining tolerance.
• 2
  Painted MDF boxesStandard boring is usually enough.
• 3
  Veneered facesTool choice matters more than machine accuracy.
