How a CNC Roller Grinder Supports Grinding Various Shapes of Workpieces
A roller grinder holds a cylindrical part between centers and turns it while the wheel cuts. Change the wheel path or the work rotation and the same machine produces tapers, shoulders, profiles and eccentric diameters. This page explains the mechanics, the limits and the point where grinding stops making sense and milling takes over.

What the machine actually does

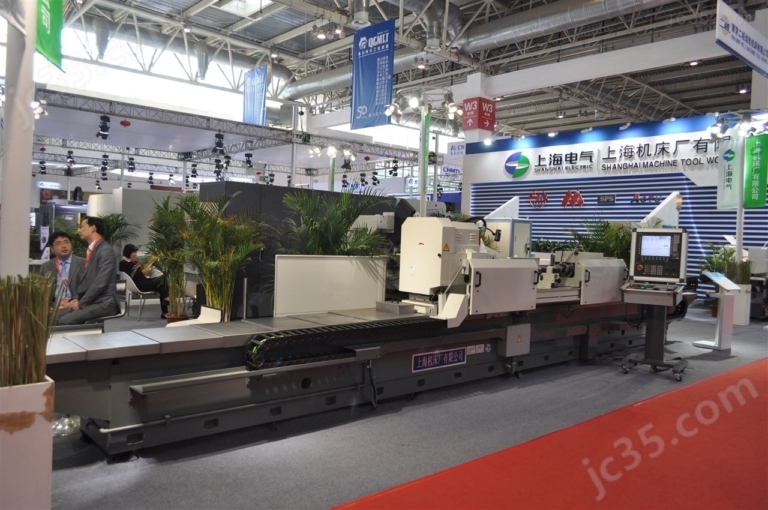

A roller grinder, often called a cylindrical or roll grinder, does one thing well: it rotates a workpiece about a fixed axis while an abrasive wheel removes material from the surface. The part sits between a headstock center and a tailstock center, or in a chuck for short rigid parts. The work spindle turns slowly, usually 20–150 rpm depending on diameter. The wheel turns fast, often 30–45 m/s at the rim.
That combination gives a continuous cutting edge. Every point on the circumference passes the wheel many times per minute, so the surface is cut by thousands of tiny grains instead of one insert. The result is a surface that milling cannot match on a round part: Ra 0.8–1.6 μm as a normal working finish, and Ra 0.2–0.8 μm when the wheel is dressed fine and the part is stiff.
Two motions decide the shape. The table moves the work past the wheel along the Z axis, and the wheel head moves in and out along X. A plunge cut feeds X straight in at one spot, which is how you grind a narrow shoulder or a groove. A traverse cut moves Z while X stays fixed, which is how you grind a long shaft in one pass after another.
Shape control comes from how those two axes are synchronized. Program a taper and the controller interpolates X against Z so the wheel traces a slanted line. Program a radius and the same interpolation follows an arc. The work rotation stays constant, so the part is still being ground on a turning axis. The wheel just cuts a different path.
- 1Work rotation sets the cutting speed20–150 rpm, lower for large diameters.
- 2Wheel speed stays fixed30–45 m/s at the rim, checked before each setup.
- 3Two axes make the shapeZ for length, X for depth; the controller links them.
Which shapes grinding handles well, and which it does not
Straight cylinders are the easy case. A shaft with a single diameter, held between centers, ground in traverse mode, is the most repeatable job on the machine. Roundness under 2 μm and diameter tolerance of ±0.005 mm are routine on a stiff setup with a balanced wheel.
Tapers and shoulders come next. A Morse or steep taper ground on the same setup as the mating bore gives a better fit than turning both parts on separate machines, because the same work axis is used. Shoulders, fillets and relief grooves are ground with a plunge cut using a dressed wheel form. The wheel profile is the shape, so the form has to be dressed accurately and re-dressed on a set schedule.
Profiled and eccentric parts are where the machine earns its keep. A cam, an eccentric shaft or a roller with more than one diameter can be ground by linking the two axes, but the part needs a driving method that keeps the angular position known. A face driver or a dog with a balance weight works. A plain chuck does not, because the part can slip as the cutting force changes.
Non-round sections are the limit. A square, a hex or a lobed profile cannot be produced by work rotation alone. Some grinders use a rotary dresser or a CNC dresser to make the wheel follow a non-round path, but the machine then behaves like a milling machine with an abrasive tool. For a true polygon, milling or a rotary transfer machine is faster and cheaper.
- 1Good fitCylinders, tapers, shoulders, fillets, multi-diameter rollers.
- 2Possible but fussyCams and eccentrics; needs angular indexing.
- 3Wrong processSquares, hexes, true polygons; use milling.
Setup and damping decide the result
Grinding removes very little material per pass, often 0.005–0.02 mm on a roughing pass and 0.002–0.005 mm on a finish pass. That means the setup has to be stable for a long time, not just strong for one cut. A part that flexes under a milling cutter may spring back quietly and still be ground out of tolerance, because the wheel pushes the part away and then the part pushes back.
The work holding method matters more than most people expect. Between centers, the part is supported by two points and driven by a dog. This is stiff and accurate, and it is the default for long shafts. A three-jaw chuck is quicker but less round, because the jaws distort thin walls. A collet is a good middle ground for short parts up to about 60 mm diameter.
Steady rests are the answer for long, slender work. A fixed rest sits behind the wheel and supports the part close to the cut. A follow rest moves with the wheel. Either one raises the stiffness of the whole system and lets you grind a shaft with a length-to-diameter ratio that would chatter without support. On a 4,000 mm shaft the rest placement is part of the process plan, not an accessory.
Coolant and wheel choice finish the job. Flood coolant keeps the contact zone below the point where the part burns, and it flushes the chips out of the wheel pores. A softer grade wheel cuts cooler on hard steel; a harder grade holds form longer on soft material. Dressing frequency is set by the tolerance, not by the clock. If the finish drifts, the wheel is dull, not the program.
- 1Depth of cut0.005–0.02 mm roughing, 0.002–0.005 mm finishing.
- 2Long partsUse a steady rest; plan its position in the setup.
- 3DressingOn a schedule tied to tolerance, not to hours.
Materials and hardness change the plan
Grinding is the process you reach for when the part is already hard. Tool steel at 58–62 HRC cannot be milled with a normal cutter, but it grinds well with an aluminium oxide wheel. That is the classic reason a hardened die insert or a cutting tool blank goes to the grinder after heat treatment.
Soft materials behave differently. Aluminium 6061 and 7075 load the wheel because the chips are ductile and smear into the pores. A coarse, open wheel and a generous coolant flow keep it cutting. Stainless 304 and 316 work-harden under the wheel, so a light pass with a sharp dress avoids the skin that makes the next pass rub instead of cut.
Titanium TC4 (Ti-6Al-4V) is a fire risk in fine grinding dust and needs a dedicated coolant and chip handling plan. Inconel is worse for wheel wear and better for nothing else in this process. For those two, milling with the right tooling is often the practical route unless the geometry demands grinding.
Copper, brass and beryllium copper grind cleanly but clog the wheel fast. A soft wheel and frequent dressing keep the surface open. Beryllium copper dust is a health hazard and needs control, so most shops prefer to mill it and grind only where the tolerance forces the choice.
- 1Hardened steelGrinding is the only practical finish.
- 2AluminiumOpen wheel, heavy coolant, watch loading.
- 3Titanium and InconelDust control first; consider milling.
Where the process stops being the right answer
Cost per part is the first limit. A grinder removes material slowly and a setup can take an hour. For a one-off bracket with a flat face, milling is finished before the grinder is dialed in. Grinding pays when the tolerance or the hardness demands it, or when the volume is high enough that the setup is amortized over a run.
Geometry is the second limit. The machine turns the part about an axis. Any feature that is not a surface of revolution around that axis needs a second setup, a form wheel or a different process. Cross holes, slots and pockets are milled features, even on a part that is otherwise ground.
Size is the third limit. Work diameter and length are bounded by the machine swing and the distance between centers. A part that fits a Ø400 mm rotary table on a mill may still be too long or too heavy for a grinder. Check the envelope before quoting the process.
Volume is the fourth. Grinding is a good fit for prototypes and for 10,000-part runs, because the setup cost is fixed and the cycle is predictable. In between, the decision is usually about tolerance, not about quantity. If ±0.005 mm is not required, milling with a good finish pass is almost always cheaper.
- 1One-off flat partsMill them; grinding setup is wasted.
- 2Hardened and roundGrind; milling cannot touch 60 HRC.
- 3Non-round featuresMill in a second setup.
Grinding or milling for the shape you need
Pick the process by geometry first, then by tolerance.
| Feature | Roller grinder | 5-axis milling | Typical tolerance |
|---|---|---|---|
| Straight cylinder | Best fit, high roundness | Works, slower finish | ±0.005 mm |
| Steep taper | Ground in one setup | Good with a ball tool | ±0.005 mm |
| Shoulder and fillet | Plunge with dressed form | End mill with corner radius | ±0.01 mm |
| Cam or eccentric | Needs angular indexing | Natural fit on 4th axis | ±0.005 mm |
| Square or hex | Not practical | Standard job | ±0.01 mm |
| Thin wall tube | Chatter risk, use a rest | Support with fixture | ±0.02 mm |
| Hardened steel 58 HRC | Grinding only | Needs carbide or EDM | ±0.005 mm |
The short answer
If the part is round, hardened, or held to ±0.005 mm, a roller grinder supports grinding it better than any milling setup. If the shape is non-round, soft, or needed in a single piece, choose 5-axis milling and skip the grinder.
Questions engineers ask before quoting
Can a roller grinder grind a part that is not perfectly round?
Only within the limits of the dresser and the axis control. A cam or an eccentric can be ground if the part is indexed and the controller links X and Z to the required path. A true polygon cannot, because the process depends on the work rotating about a fixed axis.
For a square or hex section, milling is the correct process. A form wheel can imitate a non-round shape on some machines, but the cycle is slow and the wheel wears unevenly, so the cost rarely makes sense outside a dedicated production line.
What tolerance and finish should we expect?
On a stiff setup with a balanced wheel and a stable temperature, ±0.005 mm diameter tolerance and roundness under 2 μm are realistic. Surface finish lands at Ra 0.8–1.6 μm as a normal working finish.
A fine dress and a light finish pass reach Ra 0.2–0.8 μm. That finish is measured on the ground surface, so it applies to the diameter, not to a milled shoulder on the same part.
How do we hold a long shaft without chatter?
Use a steady rest and place it as close to the wheel as the geometry allows. A fixed rest behind the wheel is the usual choice; a follow rest that tracks the wheel works on very slender parts.
Keep the wheel sharp and the depth of cut light. Chatter usually starts as wheel dulling, not as a machine fault, so check the dress before changing the setup.
Does grinding work on aluminium and stainless?
Yes, with the right wheel and coolant. Aluminium loads a fine wheel, so use a coarse open grade and plenty of coolant. Stainless 304 and 316 work-harden, so take a light pass with a freshly dressed wheel.
Neither material is as forgiving as hardened steel. If the tolerance allows, milling with a good finish pass is simpler and often cheaper.
Which materials are a poor fit for grinding?
Titanium and Inconel are the two to think about carefully. Titanium fines are a fire risk and need dedicated coolant and chip handling. Inconel wears the wheel quickly, which raises cost per part.
For both, milling with the right tooling is often the better route unless the geometry or the hardness leaves no other option.
When should we skip grinding and go straight to milling?
Skip it when the part is soft, non-round, or needed in small quantity. A flat bracket, a housing with pockets, or a one-off prototype is a milling job.
Grinding earns its place when the part is round, hardened above about 45 HRC, or specified to ±0.005 mm. That is the point where the extra setup time pays for itself.
