Alloy Impeller Machining on 5-Axis CNC: How the Process Actually Works

• 1
  Why an impeller is not a normal milled part
• 2
  Alloy choice changes the cutting strategy
• 3
  Tool access and the limits of a ball nose cutter
• 4
  Workholding, stock, and distortion control
• 5
  What you can and cannot measure on a finished impeller
• 6
  Where 5-axis alloy impeller machining stops making sense
• 7
  From CAD model to finished impeller
• 8
  When each machining route fits

An impeller is a set of twisted blades arranged around a hub. Every blade has a pressure face, a suction face, a leading edge, and a trailing edge. Those four surfaces meet at thin sections, so the part cannot be reached from three directions. The tool has to roll around the leading edge and stay clear of the next blade.

That is the core problem in alloy impeller machining. A three-axis machine can reach the top of the hub and the outside of the blades. It cannot reach the fillet where the blade root meets the hub without gouging the neighbouring blade. A fourth axis indexes the part so you can machine one blade at a time, but you still stop between blades and reset.

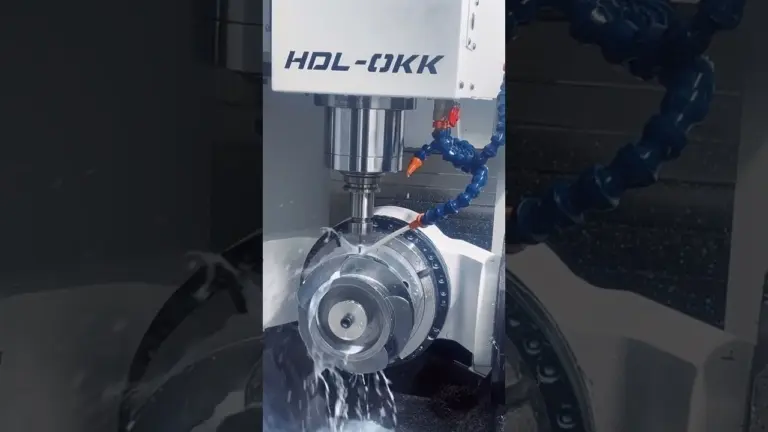

With simultaneous five-axis motion the tool tip stays normal to the blade surface while the table rotates. One continuous pass can follow the blade from root to tip, then retract and index to the next passage. The number of setups drops and the surface flow stays consistent across blades.

The trade is programming time and machine time. A five-axis path is slower to prove out than a three-axis path, and the post processor has to be tuned to the specific machine. For a single open bladed fan this can look expensive. For a closed or semi-open impeller with 12 to 30 blades, it is usually the only route that holds the drawing.

• 1
  Three-axisHub faces, bore, and outer blade tips only.
• 2
  Four-axisIndexed blade passes, visible step at index lines.
• 3
  Five-axisContinuous blade flow, root fillets cut in one setup.

Impellers are made from aluminium, stainless steel, titanium, and nickel alloys. The material sets the cutting speed, the depth of cut, and how much the blade will deflect under load. Aluminium 6061-T6 and 7075 machine fast and hold thin blades well, so they tolerate a lighter fixture. Titanium TC4 (Ti-6Al-4V) and Inconel cut at a fraction of that speed and generate far more heat at the edge.

The blade is thin, so cutting force matters more than on a solid block. A 1.5 mm blade in aluminium can be finished with a 6 mm ball nose tool at light radial engagement. The same blade in Inconel needs a smaller stepover and a stiffer setup, or the tool will push the blade away and the thickness will drift.

Heat is the second limit. Titanium and nickel alloys conduct heat poorly, so the edge keeps the temperature. We use high-pressure coolant through the tool and keep the radial engagement low. On aluminium we can run dry or with mist, which keeps chips clear of deep passages.

For impellers in the materials we stock, the usual shop choices are 6061-T6, 7075, 17-4PH, 316L, TC4, and Inconel. Each one has a working window we set in the CAM file before the first cut.

• 1
  Aluminium 6061-T6 / 7075High speed, light fixture, good for thin blades.
• 2
  Stainless 17-4PH / 316LModerate speed, watch work hardening at the root.
• 3
  Titanium TC4Low speed, high coolant pressure, small stepover.
• 4
  InconelLowest speed, rigid setup, expect long cycle time.

The tool decides what geometry you can cut. A ball nose cutter leaves a scallop between passes, and the height of that scallop depends on the stepover and the tool radius. A 6 mm ball nose at 0.3 mm stepover leaves a scallop around Ra 0.8 μm on aluminium with a clean tool. Push the stepover to 1 mm and the finish drops to Ra 1.6–3.2 μm and the polishing time goes up.

The shank is the second limit. A long tool reaches deep into a passage but bends. The rule we use is a length-to-diameter ratio under 5:1 for finishing passes. Beyond that, the tool deflects, the surface ripples, and the blade thickness varies from root to tip.

Corner radius at the blade root is the third limit. A sharp internal corner cannot be cut by a round tool. If the drawing calls for a 1 mm root fillet, the smallest tool that can reach it is a 2 mm ball nose, and that tool is too flexible for a long blade. Most impeller drawings work better with a 2–3 mm root fillet.

For passages narrower than the tool, we say so in the DFM report. Closing the passage or opening it by 1 mm often turns a part that needs EDM into one that can be milled.

• 1
  Finishing stepover0.2–0.5 mm for Ra 0.8–1.6 μm on aluminium.
• 2
  Tool L:DKeep under 5:1 for finishing; under 8:1 only for roughing.
• 3
  Root fillet2–3 mm is machinable; under 1 mm needs EDM.

An impeller has to be held without crushing the blades. We turn a stub on the billet or leave a sacrificial hub boss, grip that in a three-jaw chuck or a fixture plate, and cut the blades from the free side. The grip diameter is usually 30–50 percent larger than the final hub bore.

Stock allowance matters more than on a block part. We leave 0.5–1.0 mm on the blade surfaces for finishing and 2–3 mm on the hub faces. Too little allowance and the blade goes under size after heat treat or stress relief. Too much and the roughing pass takes longer than it needs to.

Distortion shows up after roughing. Removing material from between blades releases internal stress, and the hub can move 0.02–0.05 mm. We rough, let the part rest, then finish. On titanium and Inconel we sometimes add a stress relief step between roughing and finishing.

On our 5-axis centers with a Ø400 mm rotary table, the part rotates under the tool, so the fixture has to clear the table through the full range of tilt. We model the fixture in CAM before the first cut. That avoids the classic crash where the tool holder hits the table at 45 degrees of tilt.

• 1
  Grip pointSacrificial hub boss, 30–50% larger than final bore.
• 2
  Finish allowance0.5–1.0 mm on blades, 2–3 mm on hub faces.
• 3
  Rough-to-finish restLet the part stabilise before the finishing pass.

A CMM can measure the hub bore, the blade root, and the blade surfaces it can reach. It cannot easily measure a closed passage or the back of a shroud. For open and semi-open impellers we scan the blade profile on a CMM and compare it to the CAD model point by point.

Blade thickness is the number that matters most in service. We measure it at the root, mid-span, and tip, and we report the three values. A blade that is 0.05 mm thin at the tip will show up as a vibration problem long before it fails.

Surface finish is checked with a portable roughness tester on a flat witness area or on the hub. The blade surfaces themselves are usually left as machined at Ra 0.8–1.6 μm. If the drawing calls for Ra 0.2–0.8 μm, we add a polishing step and inspect after polishing.

Balance is a separate operation. A machined impeller is not automatically balanced. If the part spins above a few thousand rpm, the drawing should carry a balance grade and we will flag it in the DFM report.

• 1
  MeasuredHub bore, blade root, blade thickness at 3 stations.
• 2
  Hard to measureClosed passages, back of shroud, internal fillets.
• 3
  Separate stepDynamic balance, if the drawing requires it.

Machining from billet is the right answer for prototypes, low volume, and parts with a tight tolerance on the blade profile. It is not the right answer for every impeller. When the blade count goes above about 30, or the passage closes, the milling time grows faster than the part value.

A closed impeller with narrow passages is usually a casting. The tooling cost is high, but the per-part cost falls once volume passes a few hundred pieces. We will say so in the DFM report rather than quote a milling cycle that runs for days.

Large impellers above 4,000 mm cannot be machined on our centers. That is the maximum processing size. Beyond that the part has to be split or made another way.

Very thin blades in hard alloys are the other boundary. A 0.5 mm blade in Inconel will move under any realistic cutting force. If the design needs that, the answer is usually a different alloy or a casting with a machining allowance on the critical faces only.

• 1
  Above ~30 bladesMilling time grows faster than part value; consider casting.
• 2
  Closed passagesNo ball nose access; casting or EDM.
• 3
  Above 4,000 mmOutside our maximum processing size.
