CNC Machine Tool Lifecycle: How ID Analysis Tracks Each Stage

• 1
  What the CNC Machine Tool Lifecycle Actually Measures
• 2
  How ID Analysis Connects Events to Components
• 3
  Where the Data Changes a Real Decision
• 4
  Boundaries: When ID Tracking Is Not Worth It
• 5
  Rebuild, Retire, or Keep Running
• 6
  Which Components Earn an ID Tag

A cnc machine tool lifecycle is usually drawn as four stages: commissioning, normal production, degradation, and rebuild or retirement. That picture is fine for a slide, but it hides the part that matters. A machine does not age as one object. Its spindle, ballscrews, linear guides, tool holders and fixture plates each run on their own clock, and they wear at different rates under different loads.

This is where ID analysis comes in. Each critical component gets a unique identifier, and every event that touches it is written against that ID: the cut it just ran, the load it saw, the vibration signature it produced, the operator who changed a tool. The identifier is the thread that turns scattered records into a history.

The practical output is not a dashboard. It is an answer to one question: is this component still doing its job inside tolerance? A spindle that has run 9,000 hours at 12,000 rpm in aluminium behaves nothing like one that ran the same hours in 4140 steel. Hours alone tell you very little. Load-weighted hours tell you a lot.

So the first design decision in any lifecycle system is what to tag. Tag too much and the data entry burden kills the system within a year. Tag too little and you cannot explain a sudden drop in surface finish. Most shops settle on spindle, ballscrew, guide, tool holder and fixture as the core set.

• 1
  Tag the wear pairSpindle and ballscrew first; they drive tolerance drift.
• 2
  Record load, not just timeCutting hours weighted by material and depth of cut.
• 3
  One ID per componentNever reuse an ID after a rebuild; the history must stay separate.

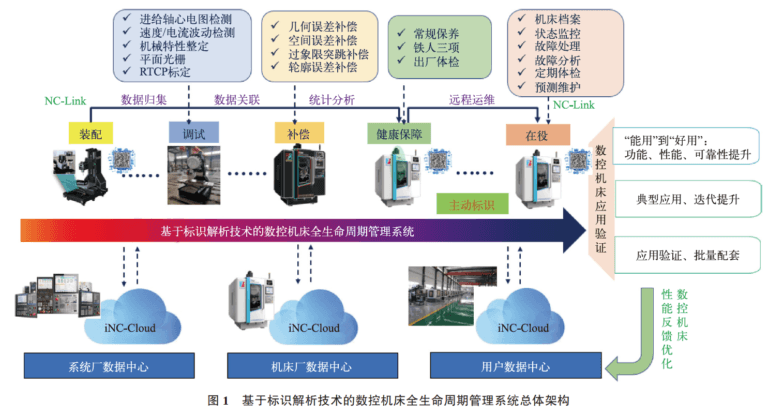

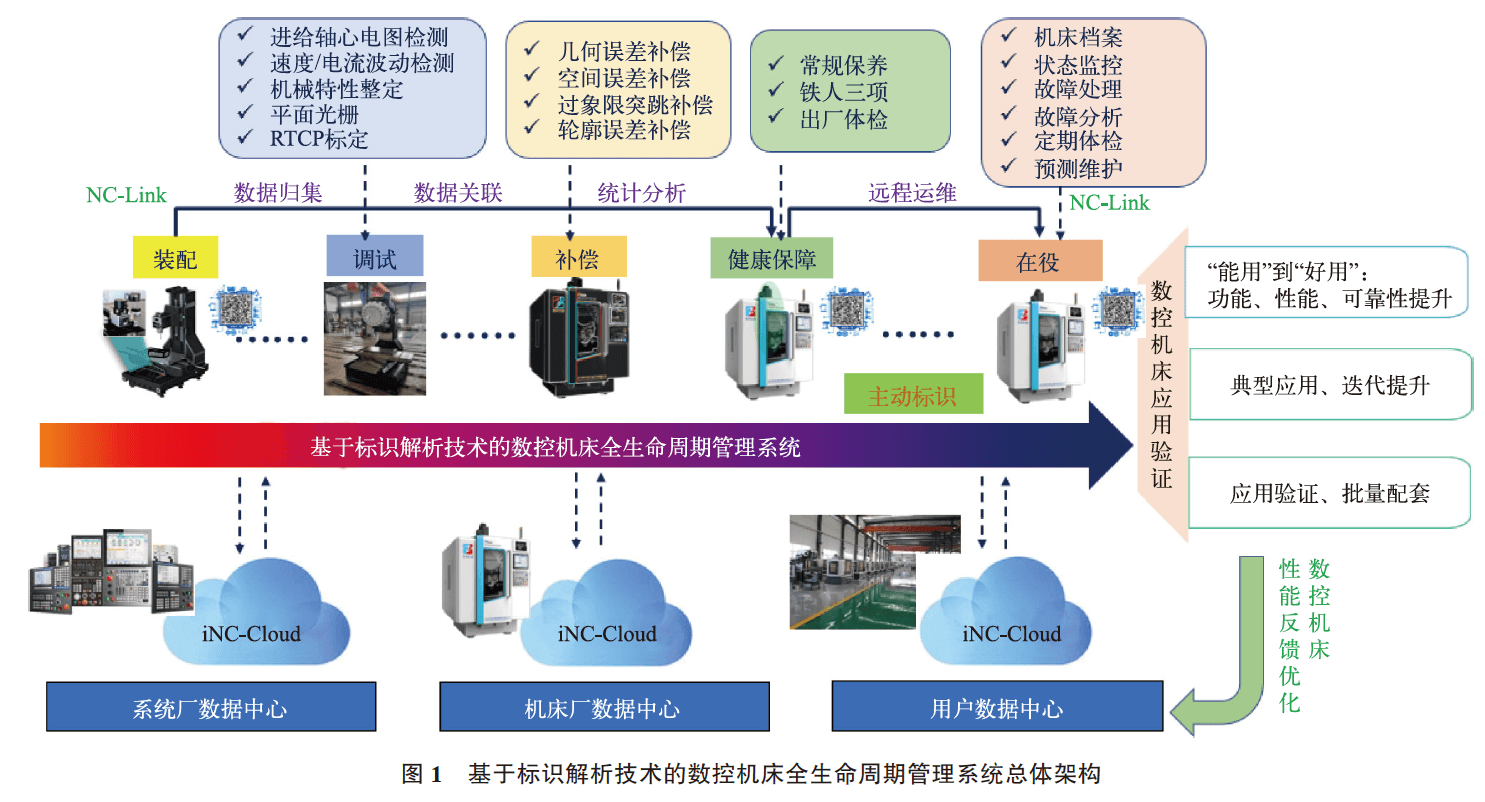

ID analysis works by binding three records together under one identifier: the machine event log, the inspection record, and the maintenance action. When a 5-axis job finishes and the CMM reports a positional deviation of 0.012 mm, that number has to land on the right component. Without IDs, it lands on the machine as a whole and the trail goes cold.

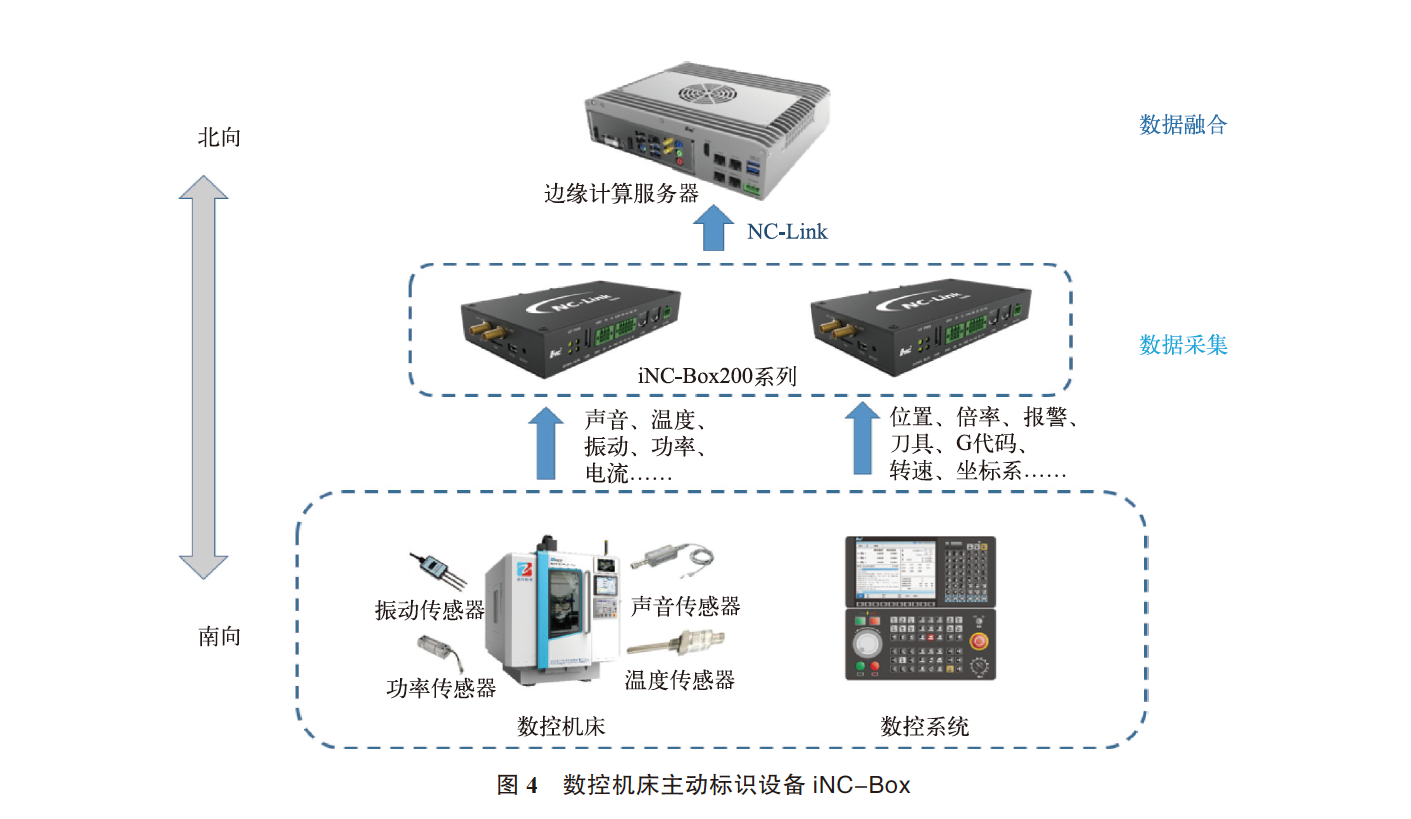

The binding can be manual or automatic. Manual is a barcode scan at tool change plus a shift log entry. Automatic reads spindle load and axis current from the CNC controller and timestamps them against the active program. Automatic is better data, but it needs the controller to expose the signals and someone to keep the mapping current.

Neither approach is free. A typical retrofit on a 3-axis mill takes a few days of integration before the first useful record appears. The payoff comes months later, when a repeatability problem shows up and the history points at one guide rather than the whole machine.

There is a limit worth stating plainly. ID analysis tells you what happened and roughly when. It does not tell you why on its own. You still need a human to read the pattern and decide whether the cause is wear, thermal drift, or a fixture that was never seated properly.

The value of a cnc machine tool lifecycle record shows up in three decisions. The first is tool replacement. Instead of changing inserts on a fixed count, you change them when the ID record shows surface finish drifting past Ra 1.6 μm on a specific material. That alone can cut insert spend noticeably.

The second is scheduling. If the history shows a spindle reaching its vibration threshold around 7,000 load-hours, you plan the swap into a slow week instead of losing a rush order. Planning beats reacting, and the record is what makes planning possible.

The third is the rebuild-or-replace call. A machine with 60,000 hours sounds finished until the component records show the spindle was replaced at 40,000 and the guides at 50,000. The frame is old; the motion system is young. That changes the economics completely.

Where the data does not help: cosmetic wear, paint, and enclosure damage. Chasing those with sensors wastes money. Keep the ID system on the parts that move and the parts that hold tolerance.

• 1
  Tool change by finishReplace when Ra drifts, not on a fixed count.
• 2
  Plan spindle swapsUse the load-hour threshold to pick a slow week.
• 3
  Separate frame age from motion ageA rebuilt motion system resets the clock on accuracy.

A lifecycle system is not free. Every tag adds a data entry step, and every data entry step competes with production time. On a two-machine job shop running one family of parts in 6061, the wear pattern is so stable that a paper log plus a monthly check is enough. Adding software there is cost without benefit.

The case flips when three conditions stack up. Multiple materials with very different cutting loads. Tight tolerance, say ±0.005 mm on a recurring feature. And machines shared across jobs where nobody remembers which spindle ran the hard stuff. Under those conditions the record pays for itself.

There is also a data quality boundary. If operators skip scans during a busy week, the history develops holes, and a history with holes is worse than no history because it looks authoritative. Either enforce the scan or accept that the timeline is approximate.

Finally, an ID record is only as good as the inspection behind it. If final inspection is a spot check rather than 100% on critical features, the deviation data feeding the lifecycle model is noise. Fix metrology first, then automate the tracking.

The end of a cnc machine tool lifecycle is rarely a single moment. It is a slow accumulation of small decisions, each one easier to make with a component record in hand. A machine that holds ±0.005 mm on aluminium but only ±0.03 mm on steel is not dead. It is a different machine, and it may still fit roughing work.

When a rebuild is proposed, the record should answer four things: which components are near threshold, how much of the value is in the frame, what the inspection trend looks like over the last 12 months, and whether spare parts are still available. If the guide rails are obsolete, the rebuild cost jumps regardless of wear.

Retirement usually comes down to cost per good part, not to hours. Track scrap rate against the lifecycle record. When scrap climbs and the cause traces to motion components that are already past threshold, the machine has told you what to do.

Keep the record after retirement. Old machines often come back as second-operation or prototype units, and the history is the only thing that tells you whether that is realistic.

• 1
  Reassign, don't scrapA drifted machine can still rough out parts.
• 2
  Check part availabilityObsolete guides change the rebuild math.
• 3
  Watch scrap rateCost per good part is the honest retirement signal.
