Build-to-print means a shop receives a model and a tolerance block, cuts metal, and ships. Design driven custom rapid prototyping ODM reverses that order. The manufacturing engineer reads the model first, asks what the part must do, then proposes the process, the stock, and the order of operations before any spindle turns.

The difference shows up in the first review. A print-driven shop quotes the file as drawn. A design-driven partner flags a 0.4 mm deep pocket with a 2 mm corner radius that needs a 1.5 mm end mill with 8:1 stickout, and suggests opening the corner to 3 mm or splitting the part. Both answers are valid geometry. Only one survives a production run without chatter.

This is not a service tier you buy. It is a working habit. The engineer who reviews your file also owns the setup sheet, so the advice is tied to a real machine, a real vise, and a real tolerance stack.

Most teams come to this page because a prototype failed late. Usually the failure was predictable in the model, not on the machine.

• 1
  Model review before quoteFeature-level feedback, not a price only.
• 2
  Process chosen from functionNot from whichever machine is free.
• 3
  Same engineer through first articleAdvice stays tied to the setup.

A review starts with three questions. What does the part locate against? Which dimensions carry load or seal? Which surfaces are cosmetic? The answers sort every dimension into critical, functional, or free. That sort drives tolerance allocation, and tolerance allocation drives process choice more than material or size does.

Next comes the datum plan. If the drawing calls a face as datum A but the part sits on three pads during machining, the setup and the inspection disagree. A design-driven review proposes a datum that both the machine and the CMM can reach. On a 5-axis part this often removes one refixture step.

Then the engineer walks the feature list against tool reach. A 6 mm deep slot at 2 mm width needs a 1 mm cutter at 6:1, which will deflect. Options are EDM, a rougher corner allowance, or a wider slot. We write the option with the cycle-time cost attached.

The output is short: a marked-up model, a setup sketch, and a note on which features carry risk. Nothing about it is proprietary. It is just the plan the shop will follow, written down before the quote goes out.

• 1
  Sort dimensions firstCritical, functional, free.
• 2
  Fix datums that both machine and CMM reach
• 3
  Check tool reach before promising a feature

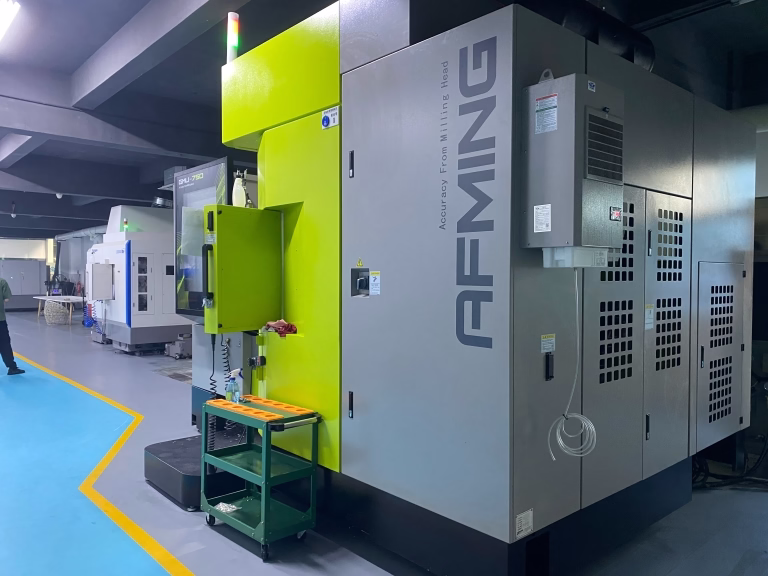

CNC suits prototypes where the material must be the final material. A 7075 bracket that will see flight loads should be cut from 7075, not printed in resin and tested in resin. The same applies to anything that seals, threads, or press-fits.

CNC stops being the right answer when geometry is organic or internal. A lattice, a conformal cooling channel, or a hollow shell with no tool access is a 3D printing job. Machining it means splitting the part, and a split part is no longer the part you are validating.

Vacuum casting sits between the two. It gives you urethane parts that look and feel like molded ABS or PC, in 10 to 50 units, without tooling. Use it for fit checks, user trials, and sales samples. Do not use it for load tests.

Sheet metal and die casting enter once the design is frozen. A stamped bracket and a machined bracket are the same drawing with different corner radii, draft, and wall thickness. If those are not in the model, the prototype has validated only half the design.

• 1
  Pick the process from functionLoad, seal, and thread mean CNC.
• 2
  Split parts mean lost validationOrganic geometry belongs in printing.
• 3
  Freeze design before toolingDraft and radii differ by process.

Tolerance is not a single number for the whole part. GreatLight works to ±0.005 mm where a dimension needs it, but applying that to every dimension multiplies inspection time and scrap risk. Put tight tolerance on the fits that matter and let the rest sit at general machining tolerance.

Surface finish follows the same logic. Ra 0.8–1.6 μm covers most sealing faces and bearing bores. Ra 0.2–0.8 μm needs a separate finishing pass, sometimes hand polishing, and it is hard to hold inside a deep pocket. Ra 1.6–3.2 μm is fine for brackets and housings.

Heat treatment and coating change dimensions. Anodizing adds roughly half the coating thickness per surface. Hardcoat adds more. If a bore is anodized after machining, the bore shrinks. Design-driven reviews call this out before the finish is chosen, not after the parts come back tight.

The cost curve is steep at the tight end. Going from Ra 1.6 to Ra 0.8 on one face is cheap. Going to Ra 0.2 across a whole part can double the cycle. Spend the money on the two surfaces that touch something else.

• 1
  Tolerance by featureNot by drawing block.
• 2
  Finish by functionSealing faces earn the extra pass.
• 3
  Plan coating into the bore sizeAnodize shrinks holes.

Aluminium 6061-T6 is the default for functional prototypes: good machinability, stable after stress relief, and it accepts anodizing. Use 7075 when strength matters more than corrosion resistance or weldability. 2024 machines well but needs care with sharp corners.

Stainless 303 and 304 cover most fluid and food-contact parts. 17-4PH (SUS630) enters when you need strength plus corrosion resistance and can accept heat treatment. Titanium TC4 (Ti-6Al-4V) machines slowly, so budget more cycle time and expect tool wear.

Engineering plastics behave differently from metals. POM and PA machine cleanly and hold tolerance. PEEK holds up at high temperature but costs far more per part and needs sharp, polished tooling. Carbon fibre composite machines as a laminate, so edges fray and holes can delaminate.

The material decision should come from the test the prototype must pass. If the test is dimensional, almost any material works. If the test is thermal, fatigue, or chemical, the prototype material has to match the production material or the result means nothing.

• 1
  6061-T6 for general function
• 2
  17-4PH for strength plus corrosion
• 3
  Match material to the testOtherwise the data is not transferable.

A prototype is only useful if you can trust the numbers on the inspection report. GreatLight inspects 100% of parts before shipment, with raw material checks, in-process monitoring, and final inspection. Reports go out on request. Ask for the report at the quote stage, not after.

First article inspection is the hinge between prototype and production. If the first article matches the model and the report, the process is repeatable. If it drifts, the fixture or the tool wore, and that is a process problem, not a design problem.

When the design freezes, the same setup can run low-volume production. No minimum order quantity applies, so a run can be one part or 10,000+. The fixtures built for the prototype carry over, which is where most of the time savings sit.

What usually breaks the handoff is a silent design change after the prototype. A moved hole or a thicker wall invalidates the fixture and the inspection plan. Keep the revision under control and the transition stays cheap.

• 1
  Ask for the inspection report early
• 2
  First article is the go/no-go
• 3
  Freeze revisions before the run
