Contract manufacturing runs one direction: the customer freezes a design, the shop quotes it, the shop builds it. Design driven ODM rapid tooling runs the opposite way first. The tooling shop reads the model, the material callouts and the tolerance stack before quoting, then sends back a manufacturability review. The review is the product. Steel cutting starts after it.

The practical difference shows up in the first two weeks. On a conventional job, a draft angle problem or an unreachable corner is found at first article, which means rework, a revised mold insert, and a new schedule. On a design driven job, that problem is found on the screen. Changing a 3D model costs a few hours. Changing a hardened insert costs weeks.

This is why the model is not a faster mold. It is a decision sequence. DFM first, prototype method second, production tooling third. Each step consumes the output of the one before it, so no step is started with an open question that could have been answered earlier.

A useful DFM review covers six things: wall thickness and its variation, draft on every vertical face, corner radii against the cutter that will reach them, hole depth-to-diameter ratio, the datum scheme used to inspect the part, and any feature that cannot be reached from a single setup. Each one maps to a specific failure at the machine.

Wall thickness drives warping and sink. On machined and cast parts the usual working range is 1.5–4 mm for aluminium and 1.2–3 mm for engineering plastics, with variation kept under about 15 percent across the part. A 0.8 mm wall next to a 5 mm boss is not a thickness problem. It is a cooling and stress problem.

Draft matters as soon as a mold or a die is involved. One degree is often enough on a smooth vertical wall. Textured surfaces need 1.5–3 degrees depending on texture depth. Deep ribs need more, because the part has to release without dragging.

Corner radii should match the tooling that will cut them. A 1 mm internal corner requires a 1 mm cutter, which cannot go deep without deflection. We see this most often in aluminium housings where a 0.5 mm radius was drawn on a 20 mm deep pocket. The fix is a larger radius or a different corner geometry, and it is better found before the CAM program is written.

• 1
  Draft on textured walls1.5–3 degrees, scaled to texture depth
• 2
  Wall thickness variationKeep under roughly 15 percent across the part
• 3
  Deep pocket cornersRadius must be reachable by a cutter with enough stiffness
• 4
  Datum schemeDecide it at DFM, not at final inspection

Rapid tooling is a family of routes, not one process. The choice depends on three inputs: how many parts are needed, how tight the tolerance is, and whether the material has to match production. Volume alone does not decide it.

Soft tooling in silicone suits 10–100 parts with complex geometry and no hard material requirement. It is fast and it tolerates undercuts that a steel mold cannot. What it does not do is hold ±0.05 mm over a long run, because the mold itself moves as it ages.

Aluminium bridge tooling covers roughly 500–5,000 parts and is the usual choice when a pilot build has to use the production material. Cycle times are longer than steel and the tool life is shorter, but the parts are real. For most engineering validation work this is the right middle ground.

CNC-machined prototypes skip the mold entirely. When a part is a one-off bracket, a manifold, or a housing needed for fit checks, machining from 6061, 7075, 304 stainless or PEEK is faster than building any tool at all. We hold ±0.005 mm on machined features, which is tighter than most molded parts need.

Production steel tooling is the last step, not the first. It is justified when geometry is frozen, volume is above roughly 5,000 parts, and the material is fixed. Starting there is the most expensive way to discover a draft angle problem.

The model breaks down when the design is already frozen and validated. If a customer arrives with a released drawing, a qualified supplier and a stable volume, there is nothing for the DFM stage to find. The extra review time is overhead. A straight build-to-print quote is faster.

It also breaks down when the design is still moving daily. Tooling decisions made against a model that changes every week get thrown away. In that state, machining prototypes or 3D printing is the correct route, and tooling should wait until the change rate drops.

A third boundary is tolerance. If the functional requirement is ±0.01 mm on a molded feature, no rapid tooling route will hold it repeatably. The honest answer is to machine the critical features after molding, or to move the part to a machined design. We say this before quoting, not after first article.

The last boundary is material. Some high-temperature resins and filled grades behave differently in a soft mold than in steel. Validation done in a silicone mold on a substitute resin proves geometry. It does not prove material performance.

A DFM recommendation is only useful if the shop can execute it. When the tooling cavity, the electrode work, the machining and the finishing all sit under one roof, the review is written with the real machine list in mind. That is a different review from one written by a broker.

At GreatLight we run 127 high-precision CNC machines, including 16 simultaneous 5-axis machining centers, 16 mill-turn centers, 12 four-axis mills and 27 three-axis machines. Maximum processing size is 4,000 mm, with a Ø400 mm rotary table for round work. Tolerance is held to ±0.005 mm, with surface finish from Ra 0.2–0.8 μm when a part calls for it.

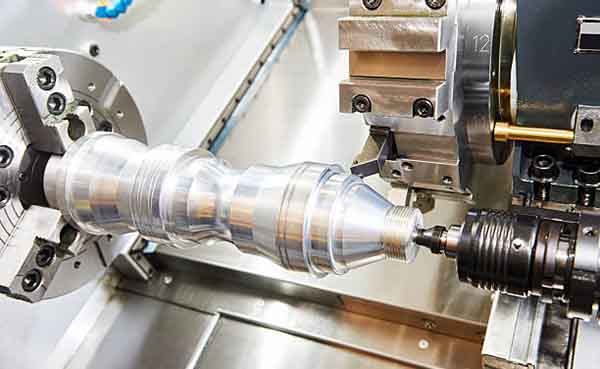

This matters at the DFM stage because the recommendation can be specific. A deep cavity with an angled floor can be proposed as a 5-axis operation instead of a split insert. A shaft with cross-drilled holes can be proposed as a mill-turn part instead of two setups. Those are capacity facts, not opinions.

The same logic applies to finishing. Anodizing, electroless nickel, zinc and silver plating, powder coating, black oxide, bead blasting and laser marking are all available, with a minimum laser character height of 1.5 mm. Knowing that limit during design avoids a cosmetic rework cycle later.

GreatLight was founded in 2011 and now operates three wholly-owned plants covering 7,600 m² with 150 technicians. Plants are in Dongguan, China and Singapore. Quotation and DFM analysis come back within 12 hours, production can start within 24 hours, and parts ship in 3–5 days. There is no minimum order quantity, from one prototype to 10,000+ part runs.

Inspection is where the DFM assumptions get tested. If the datum scheme was agreed at review, first article measurement is a confirmation. If it was not, first article turns into an argument about which surface is the reference.

We inspect 100 percent of parts before shipment, covering raw material check, in-process monitoring and final inspection, with reports on request. That sequence catches the failure modes that matter in a design driven job: a draft issue that shows as a surface mark, a wall thickness variation that shows as a dimensional drift, a corner radius that shows as tool wear.

The qualification rate is 99.99 percent. That number is a result of the earlier steps, not a substitute for them. A shop that inspects hard but reviews design late will still ship rework.

For regulated programs, the quality system matters as much as the measurement. GreatLight holds ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022. Aerospace, automotive and medical programs each bring their own documentation expectations, and it is worth confirming those at the DFM stage rather than at shipment.
