The gas you pick does two jobs. It shields the melt pool from oxygen and nitrogen in the air, and it helps control how the keyhole closes behind the beam. Inert gases do the first job well. Active gases do both, but they also react with the metal, so the choice depends on the alloy and the joint geometry.

Argon is the default for stainless steel, titanium, and most nickel alloys. It is heavier than air, so it blankets the pool and holds position well on flat and slightly inclined work. Ionization energy is moderate, which keeps the plasma stable at moderate power. For 304 or 316 stainless at 1–3 mm thickness, argon at 12–18 L/min through a 4–6 mm nozzle usually gives a clean silver bead.

Helium sits at the other end. It conducts heat away faster and produces a wider plasma, which raises penetration depth on thick sections. The trade-off is cost and flow demand. Helium needs roughly 1.5 to 2 times the flow of argon to do the same shielding job because it escapes the weld zone quickly. Argon-helium blends at 30/70 or 50/50 are common for aluminum above 3 mm and for copper where the reflectivity is high.

Active gases are narrower. Nitrogen works on some stainless grades and can improve toughness in duplex steel, but it forms nitrides in titanium and carbon steel, which shows up as porosity and discoloration. Carbon dioxide is used in some CO2 laser setups for cost reasons, but it oxidizes the weld cap on stainless. For titanium and its alloys, only argon or helium should touch the pool.

• 1
  Stainless steelArgon, 12–18 L/min, 4–6 mm standoff. Add a trailing shield above 3 mm thickness.
• 2
  AluminumArgon-helium blend, 15–25 L/min. Pure argon for thin sheet under 2 mm.
• 3
  TitaniumArgon only, 15–20 L/min. Full trailing shield and back purge below class 1.
• 4
  Carbon steelArgon or argon-CO2 mix. Keep oxygen out to avoid a porous cap.

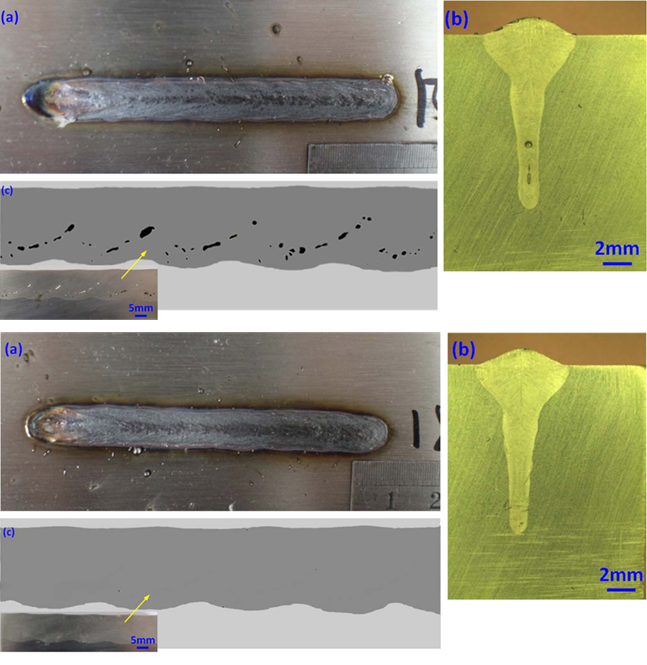

Flow rate is where most setups go wrong, and the failure mode depends on which way you miss. Too low and the shield breaks down at the edges of the pool. You see discoloration first, then porosity as the keyhole drags air down into the melt. Too high and the gas jet becomes turbulent. It pulls ambient air into the stream, which defeats the purpose and also blows spatter back onto the optics.

Start with a baseline of 15 L/min for a 4 mm nozzle and adjust in 2 L/min steps. Watch the bead color, not just the flow gauge. On stainless, a silver or light straw bead means the shield is holding. A blue or gray cap means oxygen is reaching the pool. On aluminum, look for a bright, uniform surface with no soot.

The nozzle diameter sets the ceiling. A 4 mm nozzle at 20 L/min is already moving fast, so the usable window is narrow. A 6 mm or 8 mm nozzle spreads the same flow over more area, which lowers jet velocity and widens the tolerance to machine motion. If your part has sharp direction changes or the head accelerates hard, a larger nozzle with moderate flow is more forgiving than a small nozzle with high flow.

Cross-drafts matter more than people admit. A 0.5 m/s draft from a fume extractor can strip the shield from a 15 L/min jet. Put the extraction pickup 200–300 mm behind the weld zone and angle it away from the head. Test with a smoke pencil before you dial in flow, not after.

Nozzle standoff controls how much the jet spreads before it reaches the pool. At 2 mm you get a tight, fast stream that shields well but is sensitive to spatter build-up. At 6 mm the stream has widened and slowed, which covers more area but leaves the leading edge of the keyhole more exposed. Most production jobs sit between 4 and 6 mm for a coaxial nozzle.

Angle matters for lateral blowing. A side nozzle at 30–45° to the beam axis, mounted behind the direction of travel, pushes the plume away from the optics and lays gas over the trailing edge of the pool where solidification happens. That trailing edge is where oxidation takes hold first, so gas coverage there buys you a cleaner cap. Leading blow is used on thin sheet where you want to push spatter ahead of the weld, but it offers less shield over the cooling bead.

Composite blowing uses a coaxial ring plus a side jet. The ring handles the keyhole and the side jet covers the trailing solidification zone. It costs more gas but is the standard approach for titanium and for stainless above 4 mm where a single nozzle cannot cover both zones.

One practical check: run a bead on scrap with the side jet on and off at the same power and speed. Compare cap color under the same lighting. If the difference is small, the coaxial shield is already doing the work and the side jet is just adding cost.

Aluminum is the hardest common metal to shield because it reflects the beam and conducts heat away fast. The keyhole is unstable, so the shield has to be wide and steady. Argon at 20 L/min through a 6 mm nozzle is a reasonable starting point for 2 mm 6061. Above 3 mm, switch to an argon-helium blend and expect to raise flow to 25 L/min to keep the same coverage.

Stainless is more forgiving. The oxide layer is thin and the melt pool is stable, so argon at 12–15 L/min usually holds. The risk is heat tint on the back side. If the part is thin, add a backing purge at 5–10 L/min or the underside will oxidize even with a perfect top shield.

Titanium is the strictest case. It absorbs oxygen and nitrogen above 400 °C and turns straw, then blue, then gray as the contamination rises. A coaxial nozzle alone is not enough. You need a trailing shield that covers the bead until it drops below the reactive range, plus a back purge for full penetration welds. Flow through a trailing shield is typically 10–15 L/min, separate from the main nozzle flow.

Copper and its alloys reflect most of the beam at 1 μm, so the weld pool forms late and the shield has to be in place before the keyhole opens. Pre-flow of 0.3–0.5 s helps. Argon-helium at 50/50 and 20–25 L/min is a common starting point for C110 and beryllium copper.
