Every fusion weld deposits molten metal that then cools. The heated zone tries to expand, the cold metal around it says no, and the hot zone yields in compression. On cooling, that yielded zone shrinks and pulls the surrounding material with it. The result is angular distortion, longitudinal bowing, or a cupped plate, depending on where the weld sits relative to the neutral axis.

Total shrinkage cannot be designed away. A 6 mm fillet on 6 mm plate pulls roughly 1.5–2.5 mm of transverse contraction per meter of weld, and that number barely moves no matter which machine you use. What you can change is where the contraction lands. Put it symmetrically, put it near the neutral axis, and the part stays flat.

Material matters. Carbon steel at 0.2% C tolerates heat well and responds to flame straightening. Austenitic stainless (304, 316L) has about 50% higher thermal expansion and roughly one third the thermal conductivity, so it warps more and cools slower. Aluminum 6061 conducts heat away fast, which means you need more current and you get a wider heat-affected zone for the same weld size.

Thickness sets the ceiling on how much you can control. Above 12 mm the section is stiff enough that distortion is small and local. Below 3 mm the plate buckles before any fixture can save it. The difficult band is 3–8 mm, and that is where the welding process to reduce welding distortion has to be planned bead by bead.

• 1
  Transverse contractionShrinks across the weld axis and produces angular distortion in T-joints.
• 2
  Longitudinal contractionShrinks along the weld axis and bows the whole assembly.
• 3
  Thermal gradientSteep gradients near the arc cause local yielding and residual stress.
• 4
  Restraint levelRigid fixtures convert shrinkage into residual stress instead of movement.

The cheapest fix happens at the drawing board. Oversized welds are the single most common cause of warped weldments. A 6 mm leg fillet carries the same load as an 8 mm leg in most static joints, but it deposits roughly 45% less metal and pulls far less. Design to the calculated throat, not to a habit number.

Choose the joint that puts weld metal near the neutral axis. A double-sided fillet on a symmetric T-section distorts less than a single-sided full-penetration weld on the same section. If a full-penetration weld is required for fatigue or pressure, keep it symmetric and put the root pass on each side alternately.

Intermittent or staggered welds cut heat input directly. A 50 mm weld on a 150 mm pitch on both sides of a stiffener is often enough for stiffness and cuts deposited metal by two thirds. Spot or plug welds work well on non-sealing panels. Use continuous welds only where corrosion, sealing or fatigue demands them.

For sheet metal under 3 mm, consider alternatives before you strike an arc. Rivets, clinching, adhesive bonding or a hybrid bond-and-spot approach keep heat out of the panel entirely. When welding is unavoidable on thin sheet, switch to a low-heat process such as pulsed MIG or laser, and accept a slower travel speed as the price of flatness.

• 1
  Size to the loadCalculate the throat. Do not add a leg size for comfort.
• 2
  Symmetry firstMirror the weld about the neutral axis when the geometry allows it.
• 3

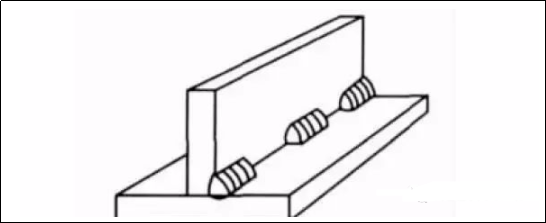

  Intermittent on stiffenersStaggered 50 mm welds on a 150 mm pitch cut heat input sharply.
• 4
  Backstep the long runsWeld in 150–250 mm segments, stepping opposite to the travel direction.

Heat input in kJ/mm is the number that predicts distortion better than amperage alone. It comes from voltage times current divided by travel speed, with a thermal efficiency factor of about 0.8 for MIG and 0.6 for TIG. Two welders running the same current can differ by 40% in heat input purely through travel speed.

For 3–6 mm carbon steel in a single-sided fillet, keep arc energy between roughly 0.6 and 1.0 kJ/mm. Above 1.2 kJ/mm the plate starts to cup noticeably. For 8–12 mm sections, 1.0–1.6 kJ/mm is normal and the stiffer section handles it. On 304 or 316L stainless, drop the upper limit by about 20% because of the lower conductivity.

Travel speed is your fastest lever. Raising travel speed from 300 mm/min to 450 mm/min at the same wire feed cuts heat input by a third. The risk is lack of fusion at the root, so raise travel speed together with a slight current increase, then verify with a macro etch on the first part.

Shielding gas selection shifts the arc shape but not the shrinkage. A 75% Ar / 25% CO2 mix gives a hotter, more penetrating arc than 100% CO2. If you are chasing flatness on thin steel, the CO2-rich mix is often the better trade because it spreads the heat and reduces the deep finger penetration that drives angular distortion.

Measure before you judge. Set the weldment on a surface plate or a certified granite table and map the deviation with a dial indicator on a 100 mm grid. Record maximum bow, twist and cup separately, because each has a different fix. A twisted frame is a fixture problem; a cupped panel is a heat input problem.

For thin sheet under 3 mm, a straightedge and feeler gauge is enough on the shop floor. For machined weldments that go to a 5-axis operation afterward, we map the part on the machine before the first cut, then take a light pass to establish the datum. Machining a distorted weldment without that step just transfers the error into the finished part.

Residual stress does not show up as a dimensional error until the part is cut or loaded. If the weldment will be machined or heat-treated later, consider a stress-relief cycle: 600–650 °C for one hour per 25 mm of section thickness on carbon steel, furnace cooled. That is not a distortion fix, it is insurance against movement after the final cut.

Track the data. Log heat input, interpass temperature and post-weld flatness by part number. After three or four runs, the pattern tells you whether to adjust pre-camber, change tack spacing or move to a lower-heat process. On a 4,000 mm weldment the difference between a good and a bad sequence can be 3 mm of bow, which is the difference between passing and rework.

• 1
  Map on a grid100 mm grid, dial indicator, record bow, twist and cup separately.
• 2
  Check before machiningEstablish the datum after welding, not before.
• 3
  Stress relief as insurance600–650 °C on carbon steel if later machining is planned.
• 4
  Log by part numberHeat input and flatness data drive the next pre-camber change.
