Bulk rapid tooling means building a mold or die fast, then running it for hundreds to tens of thousands of shots. The tool is not made for a decade of service. It is made so a design team can hold a launch date. Cavities are often cut from pre-hardened steel or aluminum, cooling is simplified, and ejector layout is kept to what the part geometry needs.

The output of this process is not a prototype. It is a bridge. Parts come off the tool at near-production quality, in production material, so a marketing sample or a regulatory submission can use real parts. That is the whole point. A machined prototype in the wrong resin proves very little about warpage or gate location.

Volume ranges matter. Below roughly 500 shots, 3D printing or vacuum casting usually costs less. Above roughly 100,000 shots, a hardened production tool wins on cost per part. Bulk rapid tooling lives in the middle, and a bulk rapid tooling maker should say so instead of quoting every job the same way.

The commercial side is simple. Aluminum or P20-class tools run faster and cheaper. Hardened H13 or S136 tools cost more and last longer. The right answer depends on your annual volume, your material, and how likely the design is to change after the first pilot run.

Cavity count drives everything downstream. A one-cavity tool is cheap but slow. A four or eight cavity tool raises tool cost and press tonnage, and it can magnify any imbalance in the runner. Ask the maker to show the runner layout before cutting steel. If they cannot, they are guessing.

Gate location controls weld lines, sink marks, and warp. A gate placed at the thickest section lets packing pressure reach the whole part. A gate placed for cosmetic reasons alone often produces a short shot or a visible flow mark. Good makers push back on gate placement requests that will not fill.

Family tools are common in rapid work. Several low-volume parts share one mold base, which cuts cost per part. The tradeoff is scheduling: all parts in the family must run together, and one bad cavity stops the batch. This suits a product line with stable, similar-sized parts and a shared material.

For metal parts, the equivalent decision is die layout. A progressive die with more stations costs more up front and runs faster. A single-station die is easier to change. Match the layout to how confident you are in the final drawing.

Ask what the cavity and core are cut from, and what hardness they were heat treated to. Aluminum 7075 tools suit low volumes and short cycles. P20 pre-hardened steel around 30 HRC handles moderate runs. Hardened H13 or S136 at 48–52 HRC is the choice when abrasive filled resins or high volumes are expected.

A maker who claims one tool grade fits every job is not engineering the tool. Glass-filled nylon eats soft steel. PVC releases acid that corrodes unplated cavities. These are not small details. They decide whether the tool survives 2,000 shots or 20,000.

Surface treatment matters too. Nitriding adds wear resistance to a steel cavity. Chrome plating protects against corrosive resins. Both add lead time and cost. Both are cheaper than cutting a replacement cavity in month three.

Request the tool drawing and the heat-treat certificate. If the maker cannot produce them, treat the tool life claim as marketing rather than data. Tool life is a prediction, and predictions need a basis.

Mold flow simulation answers three questions before steel is cut: will the part fill, where will it weld, and how much will it warp. For a simple bracket, it takes an afternoon. For a thin-wall housing, it saves a tool rebuild. Ask whether simulation is included or billed as an extra.

DFM feedback should arrive with the quote, not after the order. Draft angles, wall thickness, rib-to-wall ratios, and undercut locations are the usual problems. A wall that is too thick sinks. A wall that is too thin short-shots. A rib that is too tall drags.

The best DFM reports point to a specific feature and give a number. "Add 1.5° draft on this face" is useful. "Design looks good" is not. Push for the specific version.

Fast DFM matters because it happens before you commit. GreatLight returns quotation and free DFM analysis within 12 hours, which keeps the tool design loop short.

The first shot is not the first good part. Expect two to five tuning cycles for gate size, holding pressure, cooling time, and ejector balance. A maker who promises first-shot perfection on a complex part is either lucky or not measuring.

First article inspection should cover every critical dimension on the drawing, not a sample of easy ones. For tight features, ±0.005 mm is achievable on a good machining center. The question is whether the maker measures at that level and reports it.

Ask which instruments are used and when they were calibrated. CMM, optical comparator, and micrometer results should be traceable. Reports are available on request, and they should list the actual measured value next to nominal and tolerance.

In-process monitoring matters more than final inspection alone. If a cavity starts to wear, the parts drift before anyone notices. Checking dimensions at set intervals during the run catches drift early.

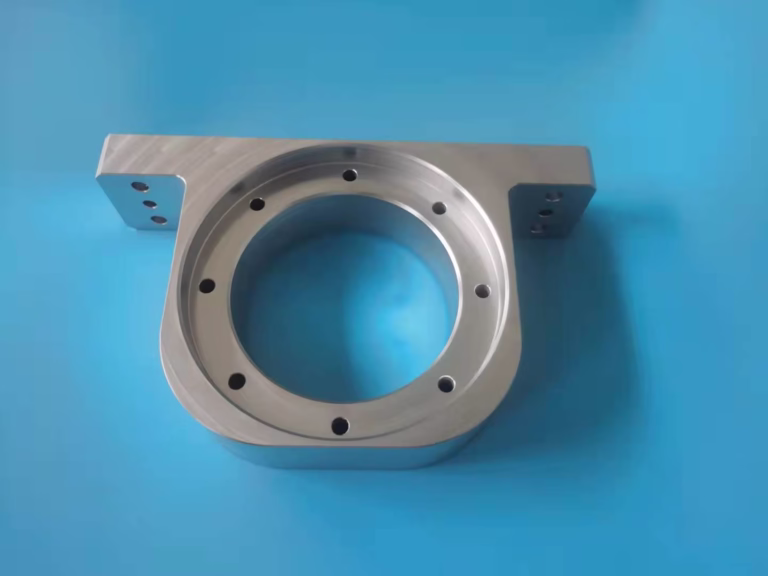

A bulk rapid tooling maker that also machines and finishes parts removes a handoff. The tool shop cuts the cavity. The machine shop cuts secondary fixtures and gauges. The finishing line anodizes or plates the pilot parts. One schedule, one quality report.

Ask about machine capacity. GreatLight runs 127 high-precision CNC machines across three plants, including 16 simultaneous 5-axis machining centers and a Ø400 mm rotary table. Maximum processing size is 4,000 mm, so large tool inserts and housings stay in-house.

Material range is a proxy for experience. If a shop only lists aluminum and P20, they have not run glass-filled PEEK or 17-4PH inserts. If they list 6061 through Inconel and PEEK, they have seen the hard cases.

Certifications should match your industry. ISO 9001:2015 covers general quality. IATF 16949:2016 is required for automotive. ISO 13485:2016 applies to medical devices. ISO 27001:2022 covers information security for uploads and drawings. For regulated products, a missing certificate is a hard stop.
