A Le Mans Hypercar rule set fixes the bodywork and the safety structure, but it leaves a long tail of small parts to the team: duct inserts, suspension brackets, sensor housings, cooling routing, and the thin walls around the cockpit. Those parts share one trait. They are complicated enough that a mold would take longer to cut than the part takes to design.

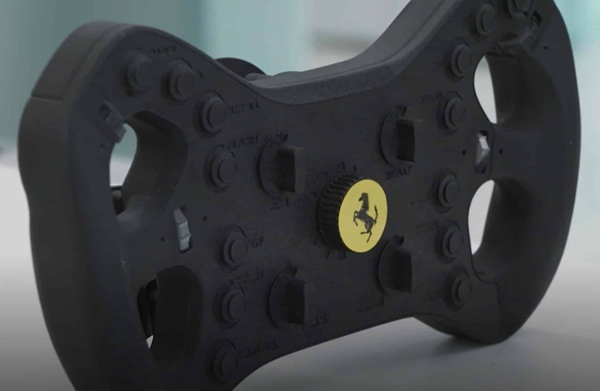

That is the gap additive fills. A turbine housing with an internal scroll, or a duct with a twist that no end mill can reach, prints in one piece. No draft angle, no split line, no ejector pins. The team gets a part in hand while the rest of the car is still in CAD.

The physics matter more than the speed. In a metal powder bed, a laser melts 20–60 μm layers. The melt pool cools at roughly 10⁶ K/s. That rate traps fine grains and produces a microstructure with high yield strength, which is why printed Inconel and Ti-6Al-4V show up in hot and highly loaded spots.

None of this makes additive better than machining. It makes additive better at a specific geometry, in a specific window, before the geometry is frozen.

• 1
  Undercuts and internal channelsReachable only by printing, not by a 3-axis cutter
• 2
  Wall thicknessDown to roughly 0.4 mm in metal, thinner in resin
• 3
  Lead timeDays, not the weeks a new mold needs
• 4
  Cost curveFlat across quantity, so one part is affordable

The 499P's aero package lives on balance. A 2% shift in how air leaves a wheel arch changes the whole car. Teams run dozens of duct variants through CFD and then need the best two or three in the tunnel. Printing a duct in nylon or resin overnight keeps that loop tight.

For the tunnel, printed ducts are usually smoothed and sealed. Raw powder-bed surfaces sit around Ra 8–12 μm, which is rough enough to trip the boundary layer. Bead blasting, tumbling, or a thin coat brings the wall to Ra 1.6–3.2 μm, close enough to the carbon part the car will actually race.

The handoff trick is to print the duct with a 0.3–0.5 mm skin of extra stock on the sealing faces. That gives the finishing shop something to skim. Without it, a printed face is never flat enough to seal against a mating panel.

This is the part of the program where additive clearly wins. A revision is a file change and a reprint. On a machined or molded duct, the same revision is a new tool.

• 1
  MaterialPA12 or glass-filled nylon for tunnel parts; resin for fit checks
• 2
  Wall1.5–2.5 mm typical for a full-scale duct
• 3
  Finish targetRa 1.6–3.2 μm after blasting or coating
• 4
  Common errorSkipping the sealing-face stock and losing the tunnel run

The 499P runs a twin-turbo V6 with an energy recovery system on the front axle. Heat shielding, turbo inlet geometry, and bracket work around the hybrid pack all need parts that survive 200–900 °C while staying light. Metal printing handles the geometry; the material choice handles the temperature.

Inconel 718 printed by laser powder bed fusion keeps useful strength past 650 °C. Ti-6Al-4V covers the 300–400 °C band at about 60% of the density of steel. For a bracket that sees 250 °C and a lot of vibration, printed titanium with a machined bolt interface is a common answer.

The catch is the interface. A printed bracket almost never bolts directly to the car. The bolt holes are drilled and reamed after printing, and the mating face is milled flat. Printed surfaces on a build plate are not flat enough for a preloaded joint, and the as-built hole is 0.1–0.3 mm undersized anyway.

That is why printed and machined parts travel together. The printer makes the shape; the mill makes the joint.

• 1
  Inconel 718Hot side, exhaust-adjacent geometry, to 650 °C and beyond
• 2
  Ti-6Al-4VStructural brackets where weight dominates the design
• 3
  AlSi10MgCoolant housings and air-side parts, lighter and cheaper
• 4
  Always machinedBolt holes, sealing faces, bearing bores

Suspension and chassis brackets on a Hypercar are not cosmetic. They carry corner loads, brake torque, and the shock pulses that come with kerbs. Printed titanium brackets appear in these positions because topology optimization can remove material where the load does not flow.

A typical printed suspension bracket comes off the machine at 70–85% of the mass of its machined equivalent. Some of that gain is geometry; some is the fact that a machined bracket starts from a billet and cannot have the same internal ribbing.

The engineering boundary is fatigue, not static strength. As-built surfaces have a rough, partially melted skin with small notches. Under cyclic load, those notches start cracks early. Any printed part in a load path needs its critical surfaces machined or at least shot-peened and polished.

So the rule is simple. Print the bulk, machine the surfaces that see stress cycles, and inspect the result before it goes anywhere near a race weekend.

• 1
  Mass saving15–30% versus a machined billet part
• 2
  Fatigue fixMachine or peen the surfaces that see cyclic load
• 3
  InspectionCT scan for internal porosity before use
• 4
  Tolerance after machining±0.005 mm achievable on critical bores

Additive is not a default. It is a method with a cost curve that barely moves with quantity, so it loses on volume. A part that will be made 500 times belongs on a mill or in a mold, not on a printer bed.

Prints also carry internal porosity, and that porosity is invisible from the outside. For a pressure boundary or a highly loaded part, you need CT or at least a density check. Machined stock has no such surprise.

Surface finish is the other limit. As-built metal lands around Ra 8–12 μm. If the drawing calls for Ra 0.8–1.6 μm, the printer is only the first step. Someone still has to cut it.

And the material list is shorter than the machining list. There is no printed 7075 that matches the wrought alloy, and no printed 17-4PH that matches a properly heat-treated bar. When the material property is the design driver, use the wrought stock.

• 1
  VolumeAbove a few hundred parts, molding or machining wins
• 2
  Pressure boundariesPorosity risk needs CT before service
• 3
  Fine finishAnything below Ra 1.6 μm needs a cutting pass
• 4
  Wrought alloys7075 and 17-4PH properties are not matched by print
