Five Axis Aluminum Alloy Hand Plate Processing

• 1
  What a hand plate actually demands from the machine
• 2
  How five-axis workholding changes the cut
• 3
  Where five axis aluminum alloy hand plate machining stops paying off
• 4
  Toolpaths and parameters that hold thin aluminum walls
• 5
  Three-axis vs five-axis for aluminum hand plates

A hand plate is rarely a flat rectangle. It usually carries a lip along one edge, a set of counterbored holes, a shallow pocket for a switch or a label, and a chamfer that has to feel smooth in the hand. Those features sit on different faces. A 3-axis mill can reach them only by repositioning the part several times, and each reposition adds a small stacking error.

Aluminum alloy makes the job easier in one way and harder in another. It cuts fast, so cycle time is short. It also moves. A 2 mm wall on a 150 mm plate will deflect under cutting force and then spring back, and the finished pocket comes out thinner than the program says.

Five-axis machining solves the reach problem by tilting the tool or the table. The spindle stays normal to a sloped surface, so a chamfer or a drafted wall can be cut with the side of the tool instead of its tip. That single change removes the need to refixture for the edge work.

The trade is stiffness. When the table tilts, the part hangs further from the spindle nose, and a long tool in a tilted orientation bends more. The fixture has to carry that load. This is why the first question about any hand plate is not the machine but the workholding.

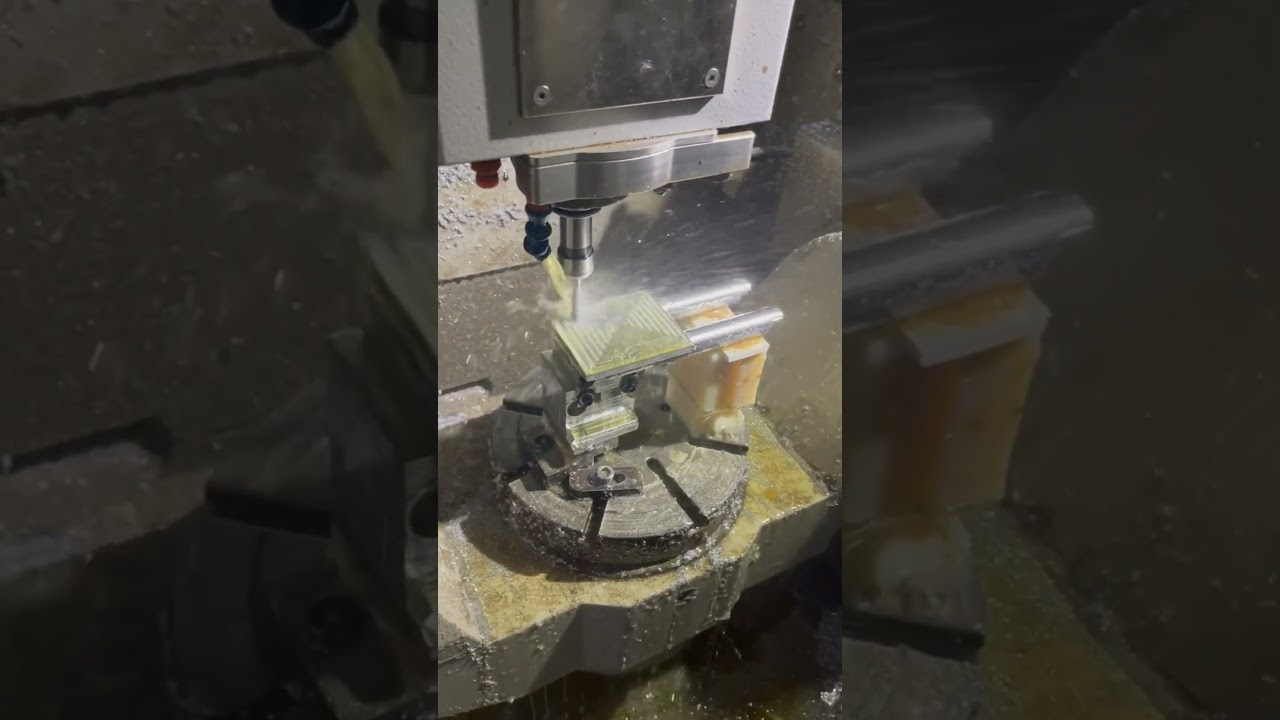

A flat plate with holes can be held on a vacuum plate or a pair of toe clamps. That is fine for a 3-axis job. Once the part needs its side walls cut at an angle, the clamps sit in the toolpath. Moving to a dovetail block or a self-centering vise on a Ø400 mm rotary table gets the clamps out of the way and lets the table index to the side faces.

For thin plates, we often leave a sacrificial web on the bottom, cut everything else, then face off the web in a light finishing pass. It costs one extra operation but it holds the part rigid for the whole job. A 1.5 mm web under a 2 mm wall is usually enough.

Tool length matters more than people expect. In a tilted orientation, every 10 mm of extra gauge length adds noticeable deflection. We keep the tool as short as the geometry allows and use a shrink-fit holder on deep pockets. A stub-length 6 mm end mill in a hydraulic holder will outlast a long 6 mm tool by a wide margin on the same feature.

Chip evacuation is the other silent problem. Aluminum makes stringy chips that pack into a pocket and recut. Through-spindle coolant or a strong air blast, plus a toolpath that lifts out of the pocket on retract, keeps the cutter clear. Recutting is the most common reason a good program produces a bad surface.

Five-axis is not automatically better. If every feature is on one face and the part fits on a 3-axis table, adding rotary motion only adds setup and programming time. The cut is the same. We quote both routes when the geometry allows it, and the 3-axis route often wins on flat plates under 300 mm with no drafted walls.

Wall thickness sets a hard floor. Below about 0.8 mm, a 6061 plate starts to chatter on a tilted cut regardless of the fixture, because the wall itself has no stiffness. At that point the part is a sheet-metal job, not a machining job. Bending a 1 mm 5052 panel and machining the holes costs less than milling the whole profile.

Alloy choice shifts the limit. 7075 gives higher strength but is more prone to chipping at sharp internal corners, so we add a small corner radius in the CAM model rather than let the tool leave a sharp notch. 6061 and 6082 are the forgiving choices for hand plates with thin ribs. 2024 sits between them and machines well but needs care with coolant and corrosion.

Tolerances need a reality check too. A ±0.005 mm callout on a hole diameter is routine for us. The same callout on the distance between two holes that sit on opposite ends of a 400 mm plate is a different matter, because thermal expansion of the aluminum does the work for you. On long features we discuss which dimension actually drives the assembly.

Constant-engagement toolpaths do most of the work. Instead of a full-width slot, the cutter takes a 8 to 12 percent stepover at a deeper axial cut. The radial load stays steady, so the wall sees a predictable force and the finish is consistent around a corner.

Spindle speed for aluminum runs high. On a 6 mm three-flute carbide end mill in 6061, we typically run 12,000 to 18,000 rpm with a feed of 0.08 to 0.15 mm per tooth. The exact numbers depend on the holder and the wall thickness, not just the alloy. A thin wall gets a lighter feed and a shallower axial cut.

Finishing passes should be light and fast. A 0.2 to 0.3 mm radial finish pass at high feed leaves a clean surface and puts less heat into the part. Heat is what makes a thin plate curl after it comes off the table. If a plate bows 0.1 mm after machining, it was hot during the last pass, not stressed in the blank.

Chamfers and radii are where five-axis earns its keep. A 0.5 mm chamfer around a curved edge is a two-second move with a tilted tool and a ten-minute job with a hand file. On any plate that a person touches, those edges are the difference between a part that ships and a part that comes back.
