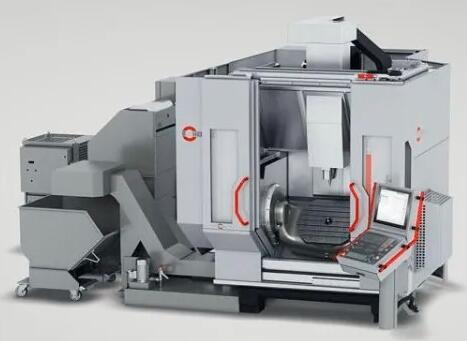

A five axis longmen machine carries the workpiece on a fixed or slowly moving table and moves the spindle on a gantry bridge. That layout removes the weight of the part from the moving mass. On a travelling-column mill, a 1,500 kg casting hanging off the column changes the dynamics every time the table moves. A gantry keeps the mass low and the loop stiff, which is why long aerospace ribs, EV battery tray dies and large mould inserts are usually cut this way.

The trade-off is floor space and cost. A machine that can reach 4,000 mm in X needs a foundation, a crane path and a temperature-stable bay. If your largest part is 800 mm, a 5-axis machining center with a Ø400 mm rotary table will hit the same tolerance for a fraction of the investment. Do not buy a gantry to look capable. Buy it when the part envelope forces you.

Structure decides the finish you can hold. Ask for the base and bridge casting weight, and how the builder handles thermal growth. A gantry that runs 8 hours a day will drift as the bridge warms. Symmetrical castings, a temperature-controlled spindle and linear scales on all axes are the usual answers. If a builder cannot explain the thermal strategy, the machine will hold ±0.005 mm in the morning and lose it by the afternoon.

• 1
  Choose gantry whenParts exceed roughly 1,500 mm in one axis, or weigh more than 500 kg
• 2
  Choose a machining center whenParts fit inside a Ø400 mm rotary table and travel under 750 mm
• 3
  Verify structureAsk for casting weight, rib layout and thermal compensation details

On a 5-axis gantry, the two rotary axes usually sit in the spindle head. That head has to reach into a deep pocket, tilt 90° and still hold position against cutting force. The C-axis torque figure and the A/B-axis clamping method tell you more than the linear rapid rates. A tilt axis with a hydraulic brake can be locked for heavy roughing; a worm-gear axis without a brake will creep under load and leave witness marks.

Ask whether the machine does true simultaneous 5-axis or only 3+2 positional work. Both are useful. Simultaneous motion is needed for contoured impeller blades, port geometry and blended fillets. Positional 3+2 is faster and stiffer for parts with many angled faces, such as a hydraulic manifold drilled from six directions. Many buyers pay for simultaneous capability and only ever use 3+2, which is fine, but the post-processor and the operator training must match the mode you actually run.

Controller behavior matters at the post-processor level. RTCP, or tool-center-point management, keeps the tool tip on path while the rotary axes move. Without it, every CAM output needs manual correction. Before you buy, send the builder a representative part file and ask for a dry-run video with the actual post-processor. A machine that cuts a demo block well but cannot post your part is not ready for your shop.

• 1
  RoughingNeeds a braked tilt axis and a torque curve that holds at low rpm
• 2
  FinishingNeeds RTCP, linear scales and a post-processor proven on your CAM
• 3
  3+2 vs simultaneousPick based on part geometry, not on brochure wording

A single positioning figure such as ±0.005 mm is a starting point, not a promise about your part. On a 4,000 mm machine, linear-axis accuracy and volumetric accuracy are different numbers. Volumetric accuracy accounts for squareness, straightness and the rotary axes working together. Ask for a volumetric or ballbar test on the actual machine, not a specification sheet from the catalog.

Repeatability is the number that affects production. A machine that returns to the same point within ±0.002 mm will hold a boring diameter shift after a tool change. A machine with good accuracy but poor repeatability will pass the first article and drift during a 200-part run. Run a test with a warm spindle, not a cold one. Thermal drift over the first hour is where most large gantries lose their reputation.

Surface finish follows rigidity and tool path. A stiff gantry with linear scales can hold Ra 0.8–1.6 μm on aluminium without hand polishing. If a builder promises Ra 0.2–0.8 μm on a deep cavity, ask which tool and which stepover. Fine finish on a long reach often comes from a small stepover and a long cycle time, which changes your cost per part. We quote finish by feature, not by a single blanket number.

• 1
  Ask forVolumetric test, ballbar report and repeatability data from the same machine
• 2
  Test warmRun the accuracy check after a 60-minute spindle warm-up
• 3
  Match finish to costRa 0.8–1.6 μm is a realistic as-machined target on aluminium

A five axis longmen machine is not a commodity. The spindle, the rotary head and the controller are the three parts that stop production. Before you sign, ask for the service response time for each. A builder who stocks spindles locally can swap one in days. A builder who ships every part from overseas can leave you down for weeks. That difference is worth more than a small price gap.

Ask how the machine is commissioned. A gantry needs leveling, geometry alignment and a volumetric calibration on your floor. If commissioning is not in the contract, you will pay for it separately or run an uncalibrated machine. Ask for the acceptance test procedure in writing, including the test part, the tolerance and who supplies the material.

Certifications tell you how the builder controls its own process. ISO 9001:2015 covers quality management. IATF 16949:2016 adds automotive requirements. ISO 13485:2016 applies to medical work. ISO 27001:2022 covers information security, which matters if you send proprietary CAD files. These certificates do not prove a machine is good, but they show the builder documents what it does. That habit shows up when you need a problem solved.

• 1
  Service responseGet written lead times for spindle, rotary head and controller parts
• 2
  CommissioningConfirm leveling, geometry and volumetric calibration are included
• 3
  Acceptance testDefine the test part, tolerance and material source in the contract

The purchase price is roughly half the story. A large gantry needs a foundation, a crane or forklift path, three-phase power of the right capacity and a temperature-stable bay. Add tooling: a 5-axis head needs balanced holders, and a large gantry often needs long-reach tools that cost more and cut slower. Budget for a probe, because setting a 4,000 mm part by hand wastes hours.

Consumables and maintenance follow. Linear scales, spindle bearings and rotary-axis brakes are wear items on a machine that runs two shifts. Ask for the maintenance schedule and the cost of a typical annual service. A builder who cannot give you a parts list with prices is a builder who will surprise you later.

Finally, weigh the risk of a single large machine. If it goes down, every large part stops. Some shops keep a smaller 5-axis machining center for the parts that fit, so a gantry spindle swap does not halt all work. That redundancy is a purchasing decision, not an engineering one, but the engineers should raise it before the PO is written.

• 1
  InstallationFoundation, crane path, power and climate control are real costs
• 2
  ToolingBalanced holders, long-reach tools and a probe add to the budget
• 3
  RedundancyPlan which parts can move to a smaller machine during downtime
