  What automobile frame parts processing actually involves
• 2
  Datum strategy: the decision that sets everything else
• 3
  Where distortion comes from and how to hold it
• 4
  Bore alignment across long spans
• 5
  When CNC is the wrong process for a frame part
• 6

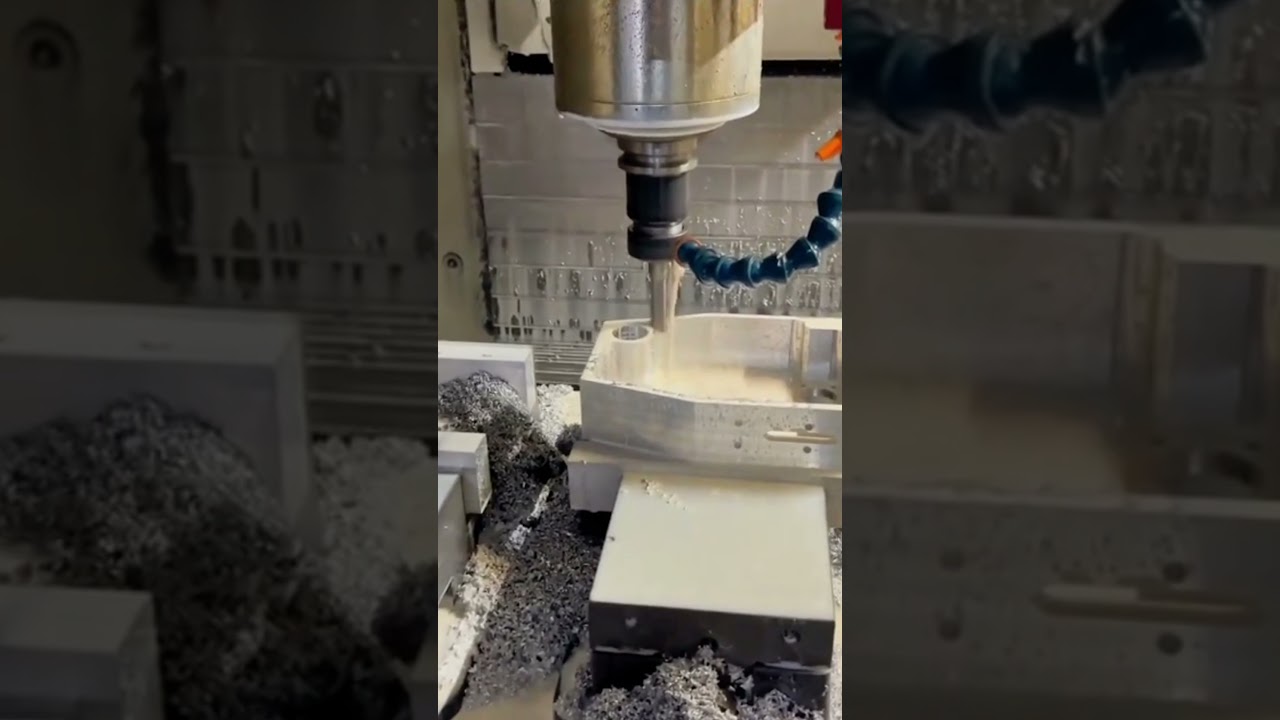

  Choosing the process for a frame part

A frame part carries load and locates other components. That double duty is why automobile frame parts processing is less about hitting one tight dimension and more about keeping several features in the right relationship to each other. A control arm bracket with a perfect Ø20 H7 bore is scrap if the two mounting faces sit 0.3 mm out of parallel.

Frame work splits into three families. Structural members such as rails, crossmembers and subframes are long and thin, so they move when you cut them. Mounting brackets and plates are small and stiff, so they hold size easily but stack up error fast across a weldment. Crash and energy-absorbing parts sit in between: controlled thickness, formed geometry, and a surface that must not tear.

Each family pulls the process in a different direction. Long rails want stress relief and light finishing cuts. Brackets want repeatable fixtures and hard stops so the tenth part matches the first. Crash structures want thickness control and edge quality, because a burr or a heat-affected zone becomes a crack starter under impact.

The common thread is datum discipline. Every feature on a frame part is measured from something, and if the drawing datum, the fixture datum and the machine datum are not the same three planes, the part will pass inspection on the bench and fail at assembly.

Pick datums that exist on the finished part, not on the raw stock. On a stamped or cast frame component, the raw surface may vary 1–2 mm from part to part. Clamping to it moves the whole coordinate system by that amount, and every hole shifts with it.

The usual fix is a two-stage setup. First operation establishes a reference face and two reference holes. Second operation clamps only on those references and cuts the functional features. This costs one extra fixturing cycle but removes stack-up from the raw surface.

For long rails, add a mid-support. A 1,500 mm rail clamped only at both ends will sag and chatter in the middle. A jack or support block under the center, set to the same height as the end clamps, typically removes 0.05–0.15 mm of bow after unclamping.

Document the datum on the setup sheet. When a revision comes through, the engineer needs to know which face was cut first. Shops that skip this step re-cut parts during every changeover.

Machining removes material, and material holds residual stress. When you cut one side of a plate, the balance changes and the part bows toward the cut side. The thicker the removed layer, the larger the movement.

Rough, then rest, then finish. Take 1.5–2.0 mm of stock in the roughing pass, leave 0.3–0.5 mm for finishing, and let the part sit for several hours before the finish cut. On 7075 and 4130 parts, this alone often brings flatness from 0.2 mm back to 0.05 mm without any straightening.

Heat is the second source. Aluminum conducts heat away quickly but expands about 23 × 10⁻⁶ per °C. A 40 °C rise across a 500 mm steel rail grows it roughly 0.23 mm. Flood coolant and moderate feed rates keep the part near room temperature, which is why finish cuts run lighter than roughing.

Thin walls behave differently. Below about 1.5 mm wall thickness on aluminum, cutting force pushes the wall away from the tool, so the tool cuts air and then grabs. Reduce radial engagement, use a sharper geometry, and accept a slightly lower removal rate.

Subframes and suspension cradles often carry two or more coaxial bores 600–1,200 mm apart. If they are cut in separate setups, the combined error is the sum of fixture error, thermal drift and machine positioning error.

Single-setup boring on a 5-axis or mill-turn center removes the refixturing term. The machine positions both bores from one coordinate system, so the remaining error is machine geometry plus tool deflection. That is how ±0.005 mm positional tolerance becomes realistic on a long part.

When the part is too large for one setup, line-boring on a horizontal machine with the part indexed is the next best option. Reamers and boring heads follow the existing hole, so the first bore must be correct. Check it before the second op starts.

Verify with a mandrel or a laser tracker, not just a CMM on the bench. A part that measures true in a temperature-controlled room can still fail when bolted into a fixture that pulls it out of shape.

Billet machining is expensive per part and it wastes material. It makes sense for prototypes, low-volume chassis, motorsport, and any geometry with undercuts or pockets that a die cannot form.

Above a few thousand parts per year, stamping, casting or extrusion usually wins on cost. A hydroformed rail or a die-cast node carries the same load with far less machining time. The right move is often a hybrid: cast or extrude the bulk, then CNC the mounting faces and bores.

Sheet metal fabrication covers brackets, gussets and covers well, especially when thickness is under 6 mm and the part is basically 2.5D. Laser cutting plus press braking holds ±0.1 mm on hole position, which is enough for most non-structural brackets.

Wall thickness has a floor. Below roughly 0.8 mm in aluminum, chatter and distortion multiply and inspection gets slow. If the design needs a 0.5 mm wall, a formed or cast part will be more repeatable than a machined one.
