Every G1 block carries an F value, and it is easy to read that number as the speed the tool will actually travel. It is not. The servo has to accelerate up to it and decelerate out of it, and the controller decides how much of the commanded feed it can hold through a direction change. On a long straight cut the difference does not matter. On a 30° corner entered at full feed, the machine may overshoot the corner point or round it off by 0.02–0.05 mm before it settles.

The symptom shows up as a bulge on the outside of a corner and a gouge on the inside, usually on the same part. Operators often chase it with a slower overall feed, which fixes the corner and doubles the cycle time. The better fix is local. Insert a deceleration move 0.5–2.0 mm before the corner, drop the feed to 30–50% of the cutting value, then bring it back after the corner. You spend a fraction of a second, not a fraction of the cycle.

Feed selection is the second place programs go wrong. A catalog feed for 6061-T6 in a 10 mm end mill assumes a radial engagement around half the cutter diameter. If your roughing pass runs at 8% radial engagement with a 1.5× diameter axial depth, the instantaneous chip thickness is much smaller than the table assumes. Run the catalog number and the tool rubs, work-hardens the surface, and wears on the flank instead of the tip.

The reverse also happens. A face mill at 70% radial engagement with a catalog feed will overload the insert and chatter. The practical rule we use: pick the feed from the chip load you want per tooth, then scale it by the ratio of your actual radial engagement to the reference engagement in the table. Keep changes between adjacent G1 blocks under about 30% when finishing a critical surface. Big jumps in F inside a finishing pass show up as witness marks.

• 1
  Corner ramp0.5–2.0 mm lead-in, feed to 30–50%, then restore
• 2
  Engagement scalingAdjust the catalog feed to your real radial width
• 3
  Feed jumpsKeep adjacent G1 blocks within about 30% in finishing

A curve made from many short G1 moves will never be smoother than the tolerance the controller uses to blend them. Set that tolerance too coarse and the axis cuts the inside of the arc, leaving facets you can feel with a fingernail. Set it too fine and the controller spends its look-ahead buffer on tiny moves, so the feed drops and the surface gets worse, not better. On a Ø100 mm bore, a 0.01 mm chord tolerance is usually invisible. On a lens-shaped aerospace contour at Ra 0.8 μm, it is not.

Where the geometry allows it, use G2 or G3. An arc command is one block the controller can plan around, and the axes stay in continuous motion. Where the surface is a spline, keep the G1 points but tighten the blend tolerance to roughly one third of your finish callout and check the actual point spacing in the CAM output. If the post is emitting points 0.05 mm apart on a 200 mm contour, the file is bloated and the machine will never reach the programmed feed.

Work holding is the mistake that gets blamed on the program. A vise holding a 6 mm wall section on 8 mm of jaw contact will move 0.03–0.08 mm under a 12 mm cutter taking a full axial depth. The program is correct. The setup is not. Check the contact area, not the clamping force. More torque on a short jaw contact just distorts the part before the cut starts.

Thin walls and tall bosses need support, not pressure. Add a sacrificial web, use soft jaws machined to the part profile, or split the operation so the flexible feature is cut last with light radial passes. On long parts up to 4,000 mm, support the overhang every 300–400 mm with adjustable stands that are preloaded to touch, not to push. A stand that lifts the part 0.05 mm will show as a taper on the next pass.

• 1
  Arc over chordsUse G2/G3 when the geometry is a true radius
• 2
  Point spacingInspect CAM output; dense points kill feed rate
• 3
  Jaw contactAim for at least 60% of the clamping height

Any cutter bends. A 10 mm carbide end mill at 3× diameter reach will push away from the wall by roughly 0.02–0.05 mm under a normal finishing load, and the wall comes out tapered rather than straight. Spring passes do not remove the taper if the load is the same on both passes. The fix is to finish with a smaller radial step, a sharper tool, and a shorter gauge length. If the feature is deep, step down in 0.5× diameter increments instead of taking one full-depth pass.

You can measure the effect cheaply. Cut a test wall, measure top and bottom with a micrometer, and compare the difference to the programmed value. A 0.04 mm difference across a 40 mm wall is deflection, not thermal drift. Then reduce axial depth by half and repeat. If the taper halves, you found it. If it does not change, look at the fixture instead.

Coolant problems are easy to misread because the finish looks fine at the start of a cut and degrades near the bottom. That pattern means the chips are not leaving. At 3× diameter depth, flood coolant from two sides often fails to reach the tip. Through-tool coolant at 40–70 bar, or air blast with a mist nozzle aimed at the cut, clears the pocket and keeps the edge cool. On aluminium, air blast alone is often enough and avoids the thermal shock that cracks carbide.

Chip recutting is the main cause of sudden edge failure in deep pockets. If you hear the spindle load rise and fall in a rhythm, the tool is cutting its own chips. Widen the radial engagement slightly, increase the feed per tooth, or change the entry path so chips exit the cut zone. Programming a helical entry rather than a straight plunge also stops the tool from sitting in a pile of chips at the bottom of the pocket.

• 1
  Deflection testCut a wall, measure top vs bottom, halve the depth
• 2
  Through-tool coolant40–70 bar clears chips past 3× diameter
• 3
  Helical entryAvoids chip packing at the pocket floor

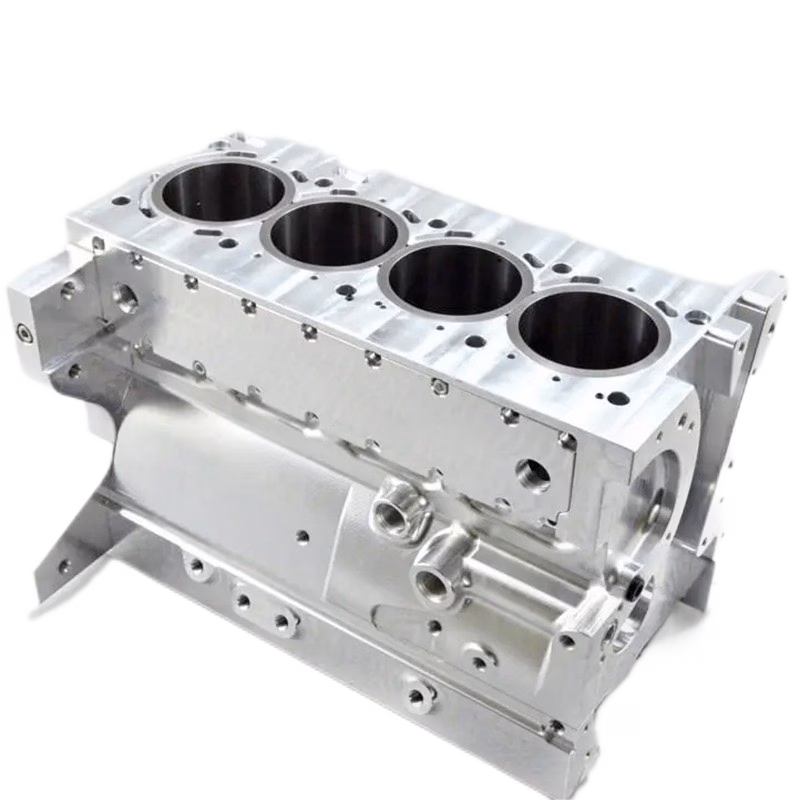

A finish callout of Ra 0.8 μm does not come from the last G1 pass alone. It comes from the whole sequence: what the semi-finish left, how the tool entered and exited, and whether the part moved between operations. If the semi-finish leaves 0.5 mm and the finish pass removes it in one go, the load is too high for a fine finish regardless of feed. Leave 0.2–0.3 mm on the wall and 0.1–0.15 mm on the floor, then take it in one clean pass.

Entry and exit matter more than most programmers expect. A tool that plunges straight into a finished wall leaves a mark that no polishing will remove without changing the dimension. Ramp in at 2–3° on a curved lead-in, and lead out past the wall edge before retracting. The same rule applies to the floor: a tool that stops in the corner and lifts leaves a dwell mark.

After machining, the surface you measured on the machine is not the surface that ships. Bead blasting, anodizing, and electroless nickel all change the finish and can change the dimension. Hardcoat anodizing builds 25–50 μm per side depending on the process, which matters on a ±0.005 mm bore. If the drawing calls for hardcoat and a tight bore, mask the bore or cut it undersize by the coating thickness.

Finally, plan the inspection before the program is finished. If the drawing calls a true position on a hole pattern, the program needs to leave enough material for the operator to dial it in, and the setup needs a datum that matches the drawing. A part that measures perfectly on the machine but fails at CMM usually has a datum mismatch, not a G1 error.

• 1
  Stock for finishing0.2–0.3 mm wall, 0.1–0.15 mm floor
• 2
  Lead in/outRamp 2–3°, exit past the wall edge
• 3
  Coating growthHardcoat adds 25–50 μm per side; mask tight bores
