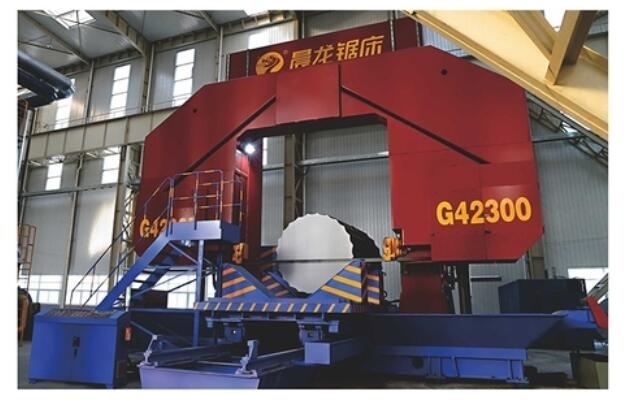

Gantry Horizontal Band Saw Machine: The Hero Behind An Effective Cut
A gantry horizontal band saw machine does one job: drop a straight cut through a large billet without wasting material or heat-treating the end face. This page explains the mechanics, the numbers that matter, and the point where a different process wins.
In this article
- 1
- 2
- 3
- 4
- 5
How a gantry horizontal band saw machine actually cuts
The blade on a gantry horizontal band saw machine is a continuous loop running horizontally between two wheels, tensioned to 2,000–3,000 bar on the gauge. The gantry is the frame that carries the blade and rides down two columns. Because the frame is supported at both ends, the blade stays square to the bed across the full stroke. That is the whole point of the design.
A vertical band saw turns the work or pushes it into a fixed blade. A horizontal machine does the opposite. The workpiece sits clamped on a bed, and the gantry descends through it. Gravity adds to the feed force, so the saw bites into the material instead of rubbing. On a 300 mm round bar of 4140, that difference shows up in cut time and in blade life.
The blade itself is bimetal or carbide-tipped, typically 27 mm to 41 mm wide for machines in this class. Wider blades track straighter and resist twisting, which matters when you are cutting a 400 mm section. Narrow blades cut tighter radii but wander on long, straight passes.
Feed force is controlled hydraulically or by a servo ball screw. A servo feed holds a programmed rate, say 60 mm/min, regardless of the changing cross-section as the blade moves through a round bar. Hydraulic feed is cheaper and more forgiving of hard spots, but it cannot hold a rate as tightly. For tool-room work, the servo version is worth the extra cost.
Speed, feed and blade pitch: the three numbers that decide the cut
Blade speed is set by material, not by the machine. Mild steel 1018 runs at 60–90 m/min. Stainless 304 drops to 30–45 m/min because it work-hardens. Aluminium 6061 runs fast, 300–600 m/min, and benefits from a coarse pitch so chips clear. Titanium TC4 and Inconel sit at 15–30 m/min with heavy flood coolant. Run stainless too fast and the teeth glaze over within a few cuts.
Feed rate, or the down-feed of the gantry, is the second lever. Too slow and the teeth rub instead of cut, which dulls them faster than cutting does. Too fast and the blade deflects, the cut goes crooked, and you may stall the motor. A practical starting point is 40–70 mm/min for 4140 at 300 mm diameter, then adjust by chip shape.
Chip shape is the best feedback you have. Thin, powdery chips mean the feed is too light. Thick, curled chips with a slight straw colour mean the cut is running well. Blue chips mean too much heat, usually from a speed that is too high. No chips at all means the blade is not touching the work.
Blade pitch is the number of teeth per inch. A 2/3 pitch blade has large gullets and clears chips from thick sections. A 6/10 pitch suits tube and thin plate where a coarse tooth would catch. The rule is simple: at least three teeth in the cut at all times. Fewer than three and teeth strip off one by one.
Setup and clamping on the gantry horizontal band saw machine
The clamp is where most crooked cuts start. A single vise on one side of the blade lets the material lift as the blade exits. Two clamps, one on each side, hold the bar flat and stop the lift. On a 4,000 mm bar, support the overhang with a roller stand set level with the bed. A bar that sags at the end will cut short on one side.
Blade tension is the second check. Too loose and the blade bows under load, so the top of the cut is wider than the bottom. Too tight and you risk cracking the blade or overloading the wheel bearings. Follow the machine's gauge, usually 2,000–3,000 bar, and re-check after the first cut on a new blade.
Coolant flow matters more on a horizontal saw than on a mill. The blade is buried in the cut, so chips have nowhere to go. Flood coolant at 20–40 L/min washes chips out of the gullets and cools the tooth tips. On stainless and titanium, use a higher concentration, 8–12%, to keep the cut lubricated.
Guide arms should sit as close to the work as the clamp allows. Every millimetre of unsupported blade is a millimetre that can twist. On a 300 mm round bar, set the guides within 50 mm of each side of the cut.
Where a horizontal band saw stops being the right machine
Band saws cut straight, but they do not cut features. No pockets, no radii, no threads. If your part needs a step, a slot or a bore, the saw is only the first operation. It prepares stock for a mill or a lathe, and it does that job well because it leaves a square face and a low-heat cut.
Heat is the real boundary. A band saw removes material slowly, so the workpiece stays cool, often under 80 °C at the cut face. That matters for pre-hardened steel or for parts that will be finish-machined to ±0.005 mm. A plasma or laser cut leaves a heat-affected zone that has to be machined away. The saw does not.
Kerf loss is another trade-off. A 1.6 mm blade removes 1.6 mm of material per cut. On an expensive bar of Inconel or titanium, that adds up over hundreds of cuts. A waterjet kerf is narrower, 0.8–1.2 mm, but the cut is slower and the operating cost is higher. For most steel and aluminium work, the band saw wins on cost per cut.
Very hard materials, above 45 HRC, will dull a bimetal blade quickly. Carbide-tipped or carbide-tooth blades handle that range, but they cost more and need a rigid machine. If the material is above 55 HRC, sawing is usually the wrong process.
Band saw compared with other stock-cutting methods
Pick the process by material, section and what the next operation needs.
| Process | Typical kerf | Best for | Watch out for |
|---|---|---|---|
| Horizontal band saw | 1.0–1.6 mm | Solid bar, tube, 50–800 mm sections | Slow on thin sheet; blade pitch must match |
| Vertical band saw | 0.6–1.2 mm | Contour cuts, tool steel blocks | Operator-fed; less square on long cuts |
| Abrasive chop saw | 3–5 mm | Small sections, site work | Heat-affected zone; no square face |
| Plasma cutting | 2–4 mm | Plate up to 50 mm, rough profiles | Dross and HAZ need machining off |
| Laser cutting | 0.2–0.5 mm | Thin sheet, complex outlines | Not for thick solid bar; HAZ on edges |
| Waterjet | 0.8–1.2 mm | Heat-sensitive alloys, thick plate | Slow; abrasive cost per part is high |
When to choose the saw, and when not to
If you need a square, low-heat cut on solid bar or tube from 50 mm to 800 mm, use a gantry horizontal band saw machine. If the part needs pockets, bores or threads, saw it first and send it to a mill. If the material is above 55 HRC, skip sawing and use EDM or grinding.
Questions engineers ask about band saw cutting
How square is a band saw cut, and does it matter downstream?
A well-set horizontal band saw holds squareness within 0.1–0.2 mm per 100 mm of cut on a solid bar. That is usually good enough for the first milling operation, where the face is cleaned up anyway.
If the cut face is a datum, check it before the next operation. A blade that has lost tension or guides set too far apart will push that error to 0.5 mm or more.
Can a band saw cut stainless without work-hardening the edge?
Yes, if you keep the blade moving and the feed steady. Stainless 304 work-hardens when the teeth rub instead of bite. Run 30–45 m/min with a positive feed and a coarse pitch so each tooth takes a real chip.
Never let the blade dwell in the cut. If the machine stops mid-cut, back the blade out and restart with a fresh approach.
What blade pitch should I use on tube and pipe?
Use a fine pitch, 6/10 or 8/12, so at least three teeth are in the wall at once. A coarse 2/3 blade on a 3 mm wall will catch and strip teeth.
For mixed work on solid bar and tube, a 4/6 variable pitch is a reasonable compromise.
How do I know when to change the blade?
Watch the cut time and the chip colour. A blade that has run 20% longer on the same material with the same settings is dull. Blue chips at a speed that used to run cool also signal wear.
Check tooth tips with a loupe. Rounded tips with no sharp edge will rub, raise the temperature, and start cutting crooked.
Does coolant type matter on a horizontal band saw?
Yes. Use a water-soluble flood coolant at 8–12% concentration for stainless, titanium and Inconel. For mild steel and aluminium, 5–8% is enough.
On cast iron, run dry or with a light mist. Cast iron chips are graphite-heavy and a flood tends to make a sludge that clogs the return.
How does a saw cut fit into a CNC machining job?
Sawing is the first operation. It gives the mill or lathe a square, cool block of stock to clamp. That reduces setup time and protects the finish on the first face.
At GreatLight we cut stock on horizontal band saws before 5-axis, 4-axis or mill-turn work. We hold ±0.005 mm on the finished part and check 100% before shipment.
