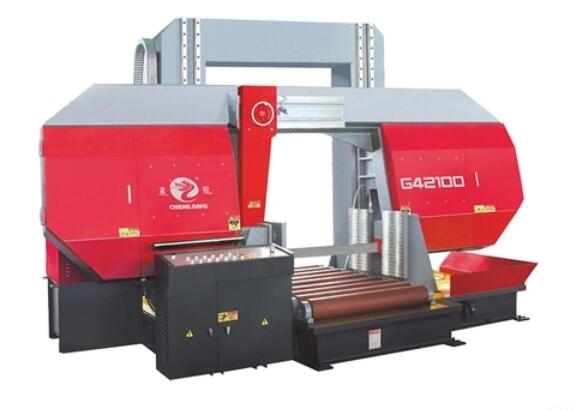

A gantry band saw machine hangs the blade guide assembly from a beam that spans two vertical columns. The workpiece sits on a fixed table below, and the beam travels down or the table rises to meet the cut. That is the whole idea. Because the guide arms are supported at both ends, the blade is held at the same distance from each side of the cut for the full pass.

Compare that with a cantilever saw, where the guide arm reaches out over the table from one side. The arm is stiff, but it still bends a little under load. On a 300 mm thick oak beam that bend shows up as a cut that drifts toward the unsupported side. The operator compensates by slowing the feed, which costs cycle time and still leaves a taper.

On a gantry machine the load path is symmetric. Blade tension pulls the two guide arms toward each other in equal amounts. The columns absorb the tension force in compression and the beam takes it in bending, so the guide spacing barely changes from entry to exit. The practical result is a kerf that stays parallel even when the section is deep.

None of this makes the blade rigid. A band saw blade is a thin steel strip, and it will still deflect if you push it. The gantry just removes one source of error, the frame, so the remaining error comes from the blade itself. That is a useful split, because blade error can be managed with tension, guide clearance and feed rate.

• 1
  Symmetric guide supportBoth guide arms take the same tension load, so spacing stays constant.
• 2
  Fixed table optionHeavy timber stays still; only the beam moves, which helps on long stock.
• 3
  Column stiffness mattersThin fabricated columns flex more than cast or stress-relieved weldments.

Blade tension is the main control you have. Typical carbon steel blades for wood run at 15,000 to 20,000 psi on a well-built frame; bimetal blades can take more. Below roughly 12,000 psi the blade starts to wander in the cut, especially when the operator feeds too fast. Above the manufacturer's limit the blade work-hardens at the back edge and cracks.

Tooth pitch sets how aggressively the blade bites. A 3 to 4 tooth per inch hook blade clears sawdust well in green or resinous timber up to 300 mm. A 6 to 10 tooth per inch blade leaves a smoother face but needs a slower feed, because the gullets fill faster. If the gullet packs, the blade heats, stretches and starts to lead to one side.

Feed rate and blade speed work together. Softwoods like pine cut cleanly at 1,000 to 1,500 m/min blade speed with a moderate feed. Hardwoods such as oak and maple run better at 800 to 1,200 m/min. Push past that and the blade rubs instead of cutting, which burns the face and dulls teeth in minutes.

This is where the idea of a precise wooden cutting expert comes from. Precision on a band saw is not a single number. It is the combination of a stiff frame, correct tension and a feed that matches the wood. Change one and the cut quality moves.

• 1
  Tension firstSet to the blade maker's spec, then check with a tension gauge, not by feel.
• 2
  Pitch by thicknessCoarse for deep green stock, fine for thin dry boards.
• 3
  Feed follows speciesSlow down for dense hardwood, speed up for softwood.

On a well-tuned gantry band saw machine, a 100 mm thick board can be cut to about ±0.5 mm on width and around 0.3 mm of taper over a 1,000 mm length. Go to 300 mm thickness and the realistic band is ±1.0 to ±1.5 mm, with taper rising to 1 mm or more if the blade is dull. These are working numbers, not catalog numbers.

Surface finish follows the same pattern. A sharp blade at the right feed leaves a face around Ra 6.3 to 12.5 μm, which is fine for a glue joint after light sanding. A dull blade or a feed that is too fast leaves chatter marks that need a planer pass. If the cut face has to be finish-ready straight off the saw, the blade is the limiting factor, not the frame.

Kerf width matters when the wood is expensive. A 1.0 to 1.5 mm kerf wastes far less material than a circular saw, which is why band saws dominate on veneer and instrument stock. On a 300 mm wide plank, saving 3 mm of kerf per cut adds up over a production run.

The frame does not fix a dull blade. If the cut starts to lead, the first move is to change the blade and reset tension, not to adjust the guides. Guides control position near the cut; they do not straighten a blade that has lost its set.

• 1
  Thin stock100 mm or less: ±0.5 mm width is achievable with a sharp blade.
• 2
  Thick stock300 mm: plan for ±1.0 to ±1.5 mm and allow a cleanup pass.
• 3
  Veneer workThin kerf saves material; a gantry keeps the thin blade stable.

The machine pays off where the section is wide or thick and the wood value is high. Furniture shops cutting 250 mm thick oak slabs for table tops use it because a circular saw would burn and waste material. Veneer and plywood plants use it to slice thin sheets with a narrow kerf. Timber frame shops use it to cut long beams where the table stays fixed and the beam does the work.

It also fits instrument and pattern making. A luthier cutting a book-matched top needs a straight, thin cut with minimal loss. A pattern shop cutting a mahogany blank for a foundry pattern needs a clean face and a predictable taper so the pattern can be sanded to size. Both jobs reward the symmetric support.

It is less useful for short, repetitive cross cuts. A radial arm saw or a sliding table saw will beat it on cycle time for 50 mm stock. The gantry machine takes longer to set up and the beam travel is not fast. If your job is small parts in volume, the frame stiffness is wasted.

The same logic applies to dry, thin boards under 50 mm. The blade has little to resist, so a lighter machine does the job. Reserve the gantry for the cuts where the frame is actually doing work.

• 1
  Good fitThick slabs, wide planks, veneer, timber frame beams, patterns.
• 2
  Poor fitHigh-volume small parts, thin dry boards, fast framing cuts.
• 3
  Watch the floorHeavy gantry machines need a level, thick slab to hold alignment.
