Steel as Soft as Clay: How Metal Spinning Moves Steel

• 1
  Key takeaways
• 2
  Why steel as soft as clay behaves under a spinning roller
• 3
  Temperature, force and the limits of the clay analogy
• 4
  When metal spinning beats CNC turning, and when it loses
• 5
  What spinning means for your drawing and your tolerance stack
• 6
  Step by step: from blank to finished spun shell
• 7
  Spinning versus CNC turning: quick selection guide

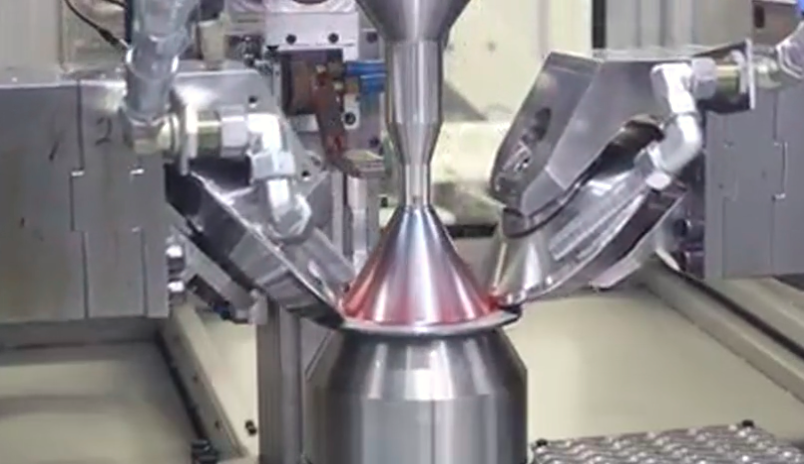

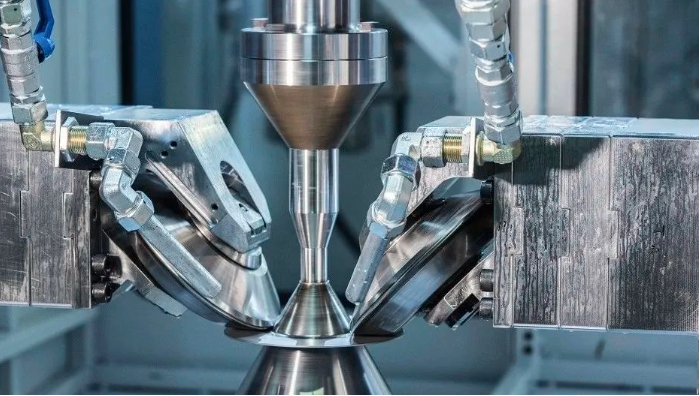

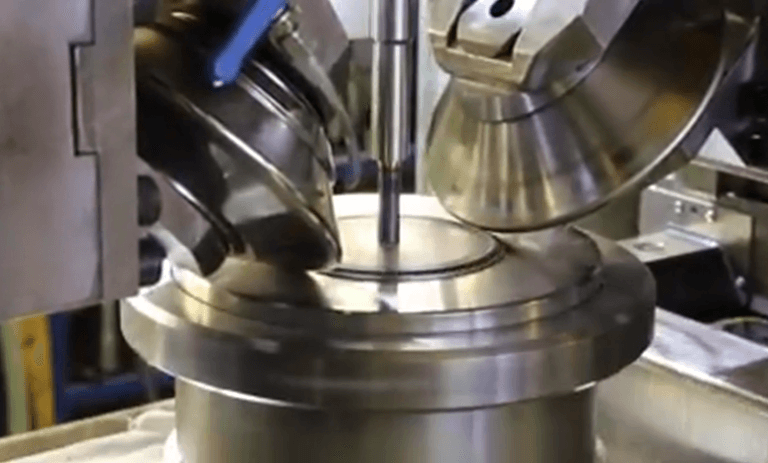

A spinning machine holds a disc or cup blank against a rotating mandrel. A roller, mounted on a hydraulically loaded arm, presses the blank against the mandrel wall and travels along the profile. The metal does not melt. It yields. Local strain at the contact point is high, so the blank thins and stretches over the tool instead of breaking.

At room temperature most carbon steels crack after a few percent of thickness reduction. Heat changes that. Between roughly 800 °C and 1,100 °C, ferrite and austenite slip systems activate, and the material can take 60–80% thickness reduction in one pass without edge tearing. That is the window people mean when they say steel as soft as clay.

The roller path matters more than raw force. Feed per revolution, typically 0.5–2 mm, controls how much material is displaced each turn. Push too fast and the wall wrinkles ahead of the roller. Push too slow and the blank cools, then cracks. Operators watch the spindle load, not just the temperature readout.

Blank preparation decides the outcome before the machine starts. A laser-cut or waterjet disc with a clean edge and uniform thickness gives predictable flow. A disc with a burr or a thickness step creates a hard spot, and that is where the first crack appears.

• 1
  Blank edgeDeburr and, if thick, chamfer before loading.
• 2
  Roller radiusLarger radius spreads load; smaller radius forms tight corners.
• 3
  LubricationGraphite or glass-based coatings limit galling on stainless.

Clay deforms at any speed and any temperature. Steel does not. The analogy holds only inside a narrow band. Below about 700 °C, 1045 or 4130 steel will tear at the roller contact. Above 1,200 °C, grain growth starts and the part leaves the machine with poor toughness, even if the shape looks correct.

Force scales with wall thickness and yield strength. A 2 mm wall in 1018 needs far less roller load than a 6 mm wall in 17-4PH. On thick blanks, shops often run a pre-form pass at lower reduction, then a finishing pass that brings the wall to size. Two lighter passes beat one heavy pass almost every time.

Cooling is part of the process, not an afterthought. Air cooling after the last pass leaves a normalized structure. Quench and temper afterwards restores hardness where the drawing calls for it. Skip the heat treat step and the spun cone may be dimensionally right but mechanically wrong for a pressure application.

Spinning also changes wall thickness on purpose. A cone spun from a flat disc ends with a thinner wall at the large end and a thicker wall at the small end, unless the roller path is programmed to compensate. Engineers who expect uniform wall from a uniform blank get surprised here.

• 1
  CrackingUsually too cold, too fast, or a burred blank edge.
• 2
  WrinklingFeed per revolution too high for the wall thickness.
• 3
  Orange peelCoarse grain from overheating or slow cooling.

For a thin-walled cone, dome or cylindrical shell, spinning removes almost no material. A Ø300 mm aluminum shell with a 1.5 mm wall starts as a 2 mm disc. Turning that same shell from bar stock wastes most of the billet and takes far longer. That is the core economic argument, and it holds for aluminum, copper, brass and mild steel.

Turning wins when the part is short, thick, and full of features. A flange with bolt holes, a stepped bore, a keyway and a threaded port belongs on a mill-turn center. Spinning produces a shell; it does not produce holes, threads or flats. Those features come after, on a CNC.

Titanium and Inconel sit in the middle. They can be spun hot, but the window is narrow and tooling wear is high. For small quantities of Ti-6Al-4V cones, many teams still choose 5-axis machining from solid, because the setup risk is lower and the lead time is known.

One more limit: spinning needs a mandrel matched to the inner profile. A new mandrel is a tooling cost and a lead time item. For a one-off part, that cost may exceed the machining cost. For a 500-piece run, it disappears into the unit price.

• 1
  Choose spinningThin wall, round, symmetrical, volume above a few hundred.
• 2
  Choose turningThick section, many features, one-off or prototype.
• 3
  Consider bothSpin the shell, then CNC the flange and bores.

If you design a spun part, put the tight tolerance on the machined features, not on the spun wall. The spun wall carries a thickness variation that follows the roller path, and holding ±0.05 mm there forces slow passes and higher cost. Give the wall a reasonable band and let the CNC operations carry the critical dimensions.

Grain flow is the quiet advantage. Spinning aligns the grain along the profile instead of cutting across it. For a pressure vessel or a rotating part, that continuous flow improves fatigue behavior compared with a turned shell of the same alloy. It is one reason spun parts show up in aerospace ducts and automotive wheel rims.

Watch the heat treat callout. A spun carbon steel part that is quenched and tempered after forming can reach the hardness on the drawing, but a part left as-spun will not. For 4130 or 4140 shells, specify the condition after forming, not just the alloy.

Finally, plan the secondary operations early. A spun cone that needs a Ø400 mm flange face, six bolt holes and a threaded port is really two processes. Quoting them together avoids a second setup charge and keeps the tolerance stack under control.

• 1
  TolerancePut ±0.005 mm on machined features, not on the spun wall.
• 2
  Heat treatSpecify the final condition after forming.
• 3
  Grain flowContinuous flow helps fatigue in rotating and pressure parts.
