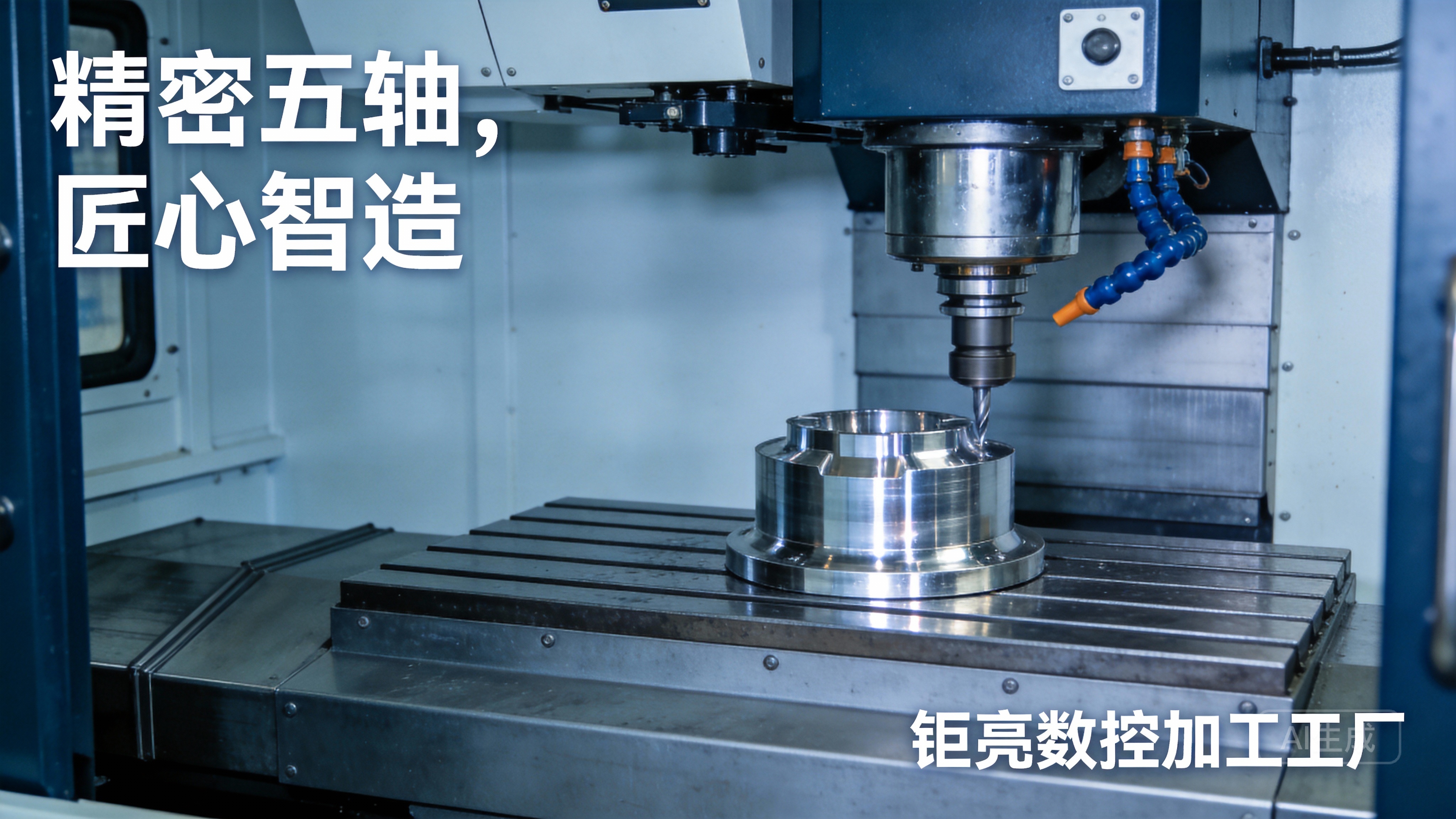

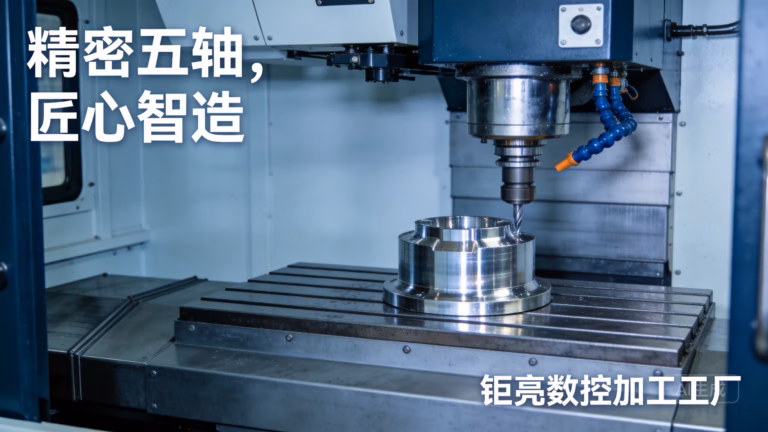

Get CNC Machining Custom Fast on a 4-Axis Mill

• 1
  How the fourth axis changes the cutting geometry
• 2
  When 4-axis machining delivers the best value
• 3
  Setup details that decide whether the job runs fast
• 4
  What “custom fast” actually requires from a supplier
• 5
  Choosing the right machine architecture for the part
• 6
  Where the calendar days go on a 4-axis job

On a 3-axis mill the tool moves in X, Y and Z while the part stays bolted to the table. Every face that is not reachable from the top or the side needs a new setup: unclamp, rotate the part, indicate it true, re-zero the work offset. The fourth axis adds a rotary table that turns the workpiece, usually around the X axis. That rotation is the A axis on most vertical machining centers.

Because the part turns instead of the operator, features on four faces can be cut in one program. A shaft with milled flats at 0°, 90°, 180° and 270° is a single continuous cycle. So is a manifold with ports on three sides, or a bracket with a clevis slot that runs across the part. The angular accuracy of those relationships is set by the machine, not by how carefully someone tapped the part with a dead blow hammer.

The rotary table also keeps the tool in cut longer. On a 3-axis job, spindle-on time might be 40 percent of the cycle because the rest is setup and re-clamping. Moving that same part to a 4-axis machine pushes spindle utilization well above that. You pay for cutting, not for indicating.

One limit matters from the start. A standard 4-axis rotary table indexes and interpolates around one axis only. If your part has features that need the tool to reach underneath at a compound angle, the fourth axis alone will not get there. That is 5-axis territory, and forcing the job onto a 4-axis machine means soft setups or a second fixture.

The fourth axis earns its keep on parts that are longer than they are wide. Shafts, spools, rollers, pins, drive screws, hydraulic spools and stepped axles all share that shape. Turn the part once, mill the flats, slots and cross-holes, then part it off. Add a sub-spindle or a mill-turn center and the second op disappears too.

Cylindrical and prismatic features mixed on the same part are the second sweet spot. Think of a sensor housing with a threaded boss on one end and two milled windows on the sides. On a 3-axis machine that is three setups. On a 4-axis machine it is one. Each setup you remove takes with it a stack of tolerance, a fixture cost and a queue slot on the shop floor.

Small and medium batches benefit most. At one or two pieces the setup time is amortized over very few parts, so the savings are modest. Somewhere around a few dozen pieces the math flips, and every additional part keeps paying back the same fixture. This is why the fourth axis is standard equipment in shops that run 50 to 5,000 piece orders.

Where it does not pay: flat plates with features on one face, thin-walled parts that cannot take chuck pressure, and parts smaller than roughly Ø20 mm × 30 mm. A 4-axis rotary table needs room to grip the work and clearance for the tool. Below that envelope a 3-axis vise job is faster and cheaper.

Material matters less than geometry here, but it is not irrelevant. Aluminium 6061-T6 cuts freely and tolerates the interrupted cuts that come with a rotating part. Stainless 316 and 17-4PH work harden if the tool rubs, so a rigid rotary table and constant feed matter more than on a static setup. Titanium TC4 (Ti-6Al-4V) is doable on a 4-axis mill with the right coolant strategy, but the cycle times are long and the ROI on the fourth axis comes from accuracy, not speed.

The rotary table is only as good as its workholding. For shaft work, a three-jaw chuck on the A axis plus a tailstock or steady rest keeps the part from whipping. For prismatic parts, a tombstone or an angle plate bolted to the rotary face gives you a flat reference to clamp against. The rule we use: if the part can move under a 0.5 mm depth of cut, the setup is wrong.

Zero point matters more than on a 3-axis job. The A-axis centerline must be established once and trusted for the whole program. Touch off the rotary center with a coaxial indicator, record it in the work offset, and verify with a test cut on scrap before the first good part goes in. A 0.02 mm error in the A-axis center is a 0.02 mm error on every feature you cut at an angle.

Tool reach is the next constraint. A part turned to 90° presents its side to the spindle, so the tool needs clearance on both sides of the cut. Long, slender end mills chatter. We prefer stub-length carbide with a high helix for aluminium and a moderate helix for stainless, and we keep the length-to-diameter ratio under 4:1 wherever the geometry allows.

Post-processing belongs in the plan, not in a separate purchase order. Anodizing, electroless nickel, black oxide and bead blasting all add calendar days if they leave the building. Keeping finishing in-house removes the handoff where lead times usually stretch. At GreatLight, finishing and inspection sit in the same production sequence as the machining.

Then comes verification. A 4-axis part with four angular features needs a CMM check on true position, not just a caliper across one flat. We inspect 100 percent of parts before shipment, with raw material check, in-process monitoring and final inspection. Reports are available on request. If the drawing calls out a datum system, the inspection report should reference the same datums.

Speed comes from removing handoffs, not from running the spindle harder. A quote that sits in an inbox for two days has already lost the race. We return a quotation and a free DFM analysis within 12 hours, and production can start within 24 hours of a released order. Parts typically ship in 3–5 days. Those numbers only hold when the shop owns the machines, the finishing line and the inspection bench.

Brokered work breaks that chain. When an RFQ is routed to a third-party shop, every question travels back and forth through a middle layer. A DFM note about a 0.5 mm corner radius that cannot be cut with a Ø6 mm tool arrives after the customer has already approved the drawing. In-house engineering catches it before the quote goes out.

Machine mix matters too. A shop with only 3-axis mills will quote your shaft as a multi-setup job and charge for the setups. A shop with a mix assigns the part to the architecture that fits. We run 127 high-precision CNC machines, including 12 four-axis mills, 16 simultaneous 5-axis machining centers, 27 three-axis machines and 16 mill-turn centers. Maximum processing size reaches 4,000 mm, and the rotary table is Ø400 mm.

Tolerance is where the promises usually break. A ±0.005 mm callout on a rotating part is achievable, but only with a rigid setup, a warm machine and a probe or CMM to verify. Surface finish follows the same logic: Ra 0.8–1.6 μm is a normal machined finish, Ra 0.2–0.8 μm needs a deliberate finishing pass and the right tool geometry. If a supplier quotes both without asking about the setup, ask them how they will measure it.

Finally, documentation. Aerospace, automotive and medical buyers need more than a good part. ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022 cover the quality and data-handling side. Uploads are secure and confidential, and an NDA is available on request for IP-sensitive designs.
