4 Axis CNC Machining Custom Fast: What Actually Decides Your Turnaround
This page explains how a 4-axis setup really works, where it saves you setups, and where it quietly costs you tolerance. Written for design and manufacturing engineers who need custom parts back quickly and do not want to rework them on arrival.

Key takeaways
What the fourth axis actually changes on the machine
A 4-axis machining center adds one rotary axis to the usual X, Y, and Z linear movements. In most shops that axis is the A-axis, rotating around X, and the workpiece is clamped to a rotary table or a trunnion. The tool still moves in three linear directions. What changes is that the part can now be indexed to a new angular position, or fed slowly while the table turns.
That single addition removes a lot of manual work. Side holes, slots wrapped around a cylinder, angled faces, and arc-shaped pockets can all be reached without unclamping the part and building a new fixture. Every unclamping is a chance to lose position. A typical 3-axis job with features on four faces might need three fixtures and three setups. The same part on a 4-axis machine needs one.
The rotary table on our 4-axis mills is Ø400 mm. That is the working envelope for anything we clamp to it. A 600 mm long shaft can be supported between the table and a tailstock, but the swing diameter is what limits how far off-axis the part can sit. If your part is wider than the table's cleared radius, it will hit the machine casting before the tool ever touches it.
The fourth axis is also a positioning device. Indexed 4-axis work moves the table, locks it, then cuts. Continuous 4-axis work turns the table while the cutter is engaged, which is how you generate a wrapped contour or a helical slot. These two modes have different accuracy behavior, and the drawing rarely tells you which one the shop will use. Ask.
- 1IndexedTable rotates, locks, then cuts. Best angular repeatability, simplest to inspect.
- 2ContinuousTable turns during the cut. Needed for wrapped contours and helix features.
- 3Both need a clean datumThe rotary centerline must be established from a machined surface, not a raw one.

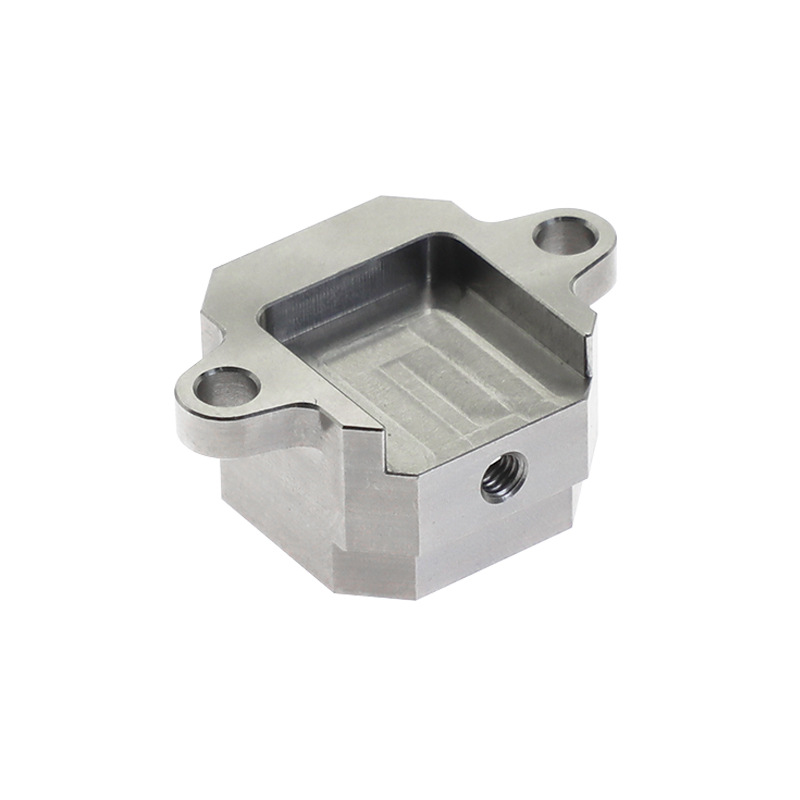

Which parts genuinely belong on a 4-axis machine
The strongest candidates share one trait: the features you care about are arranged around a single axis. Cylindrical housings with radial ports, drive shafts with cross holes, valve bodies with bores on several faces, and long extrusions with repeated side pockets all fit this pattern. The part can be indexed around that axis and every feature comes into reach of the tool from one direction.
Think about a manifold block with ports on four sides. On a 3-axis machine you machine the top, flip it, machine the bottom, then stand it on two more faces. Each flip needs a fixture and each fixture adds stack-up error. On a 4-axis machine the block is clamped once and the table indexes 90 degrees between operations. The port-to-port relationship is then controlled by the rotary encoder, not by how well you re-seated the part.
Now consider a part where the critical features point in five or more directions, or where two of them meet at a compound angle. A 4-axis machine can still make it, but only with extra angle plates, more setups, and a longer schedule. That is where a 5-axis machine becomes the cheaper option in total, even at a higher hourly rate. The rule we use: count the faces that carry toleranced features. Four or fewer, 4-axis. More than four, or compound angles, look at 5-axis.
Very small parts are a different story. Below roughly 20 mm in the largest dimension, the workholding and the probe touch-off can eat more time than the cut. A 3-axis machine with a soft jaw can often beat a 4-axis setup on both cost and lead time for small brackets and plates.
Rough or as-cast blanks also change the calculus. If the first operation has to clean up an irregular surface, you may need a separate pre-op before the part can be located on the rotary table. That pre-op is real time. We flag it during the DFM review rather than after the quote is accepted.
Where 4-axis tolerance is won and lost
The machine positioning accuracy is rarely the limiting factor. Our stated capability is ±0.005 mm, and on a well-prepared setup that is achievable on a 4-axis job. The tolerance is usually lost somewhere else: the datum, the fixture, or the thermal state of the part.
Radial error grows with distance from the rotary centerline. A feature 100 mm off-axis sees more positional error than the same feature 20 mm off-axis, because the same angular error becomes a longer arc. If you can place critical bores closer to the centerline, do it. It costs nothing in design and buys you tolerance on the floor.
On continuous 4-axis cuts, the tool is engaging a surface that is constantly changing its effective feed rate. The point on the part closest to the centerline is moving slowly; the point at the outside is moving fast. Where the tool meets the part, the surface speed varies across the cut. Harder materials like 17-4PH or Ti-6Al-4V show this quickly as chatter on the outer diameter. The fix is usually to reduce the feed and accept a slower cycle, not to push harder.
Thermal drift matters on long parts. A 600 mm shaft can grow enough during a two-hour roughing cycle to shift the last feature. We rough, let the part settle, then finish. That means two operations on the same setup, and it is the reason a 4-axis job with long parts does not compress to a single overnight run.
- 1Datum firstLocate from a machined face. Raw cast or saw-cut surfaces move the whole part.
- 2Stay near the centerlineAngular error turns into a longer arc the further out the feature sits.
- 3Rough, settle, finishUseful on parts over about 300 mm and on hard alloys.
Why custom 4-axis work can move fast here
Turnaround in Dongguan is not only about machine speed. The area around us has raw material warehouses, heat treatment shops, anodizing and plating lines, and courier depots within a short drive. A part that needs 6061-T6 bar stock, a stress relief, hardcoat anodizing, and a laser mark does not leave the district between steps. Each handoff that disappears takes a day with it.
Our own floor carries 127 high-precision CNC machines, including 12 four-axis mills, 16 simultaneous 5-axis centers, 27 three-axis machines, and 16 mill-turn centers. When a 4-axis job needs a second operation on a mill-turn center, it does not wait in a queue at another supplier. It moves across the aisle.
The commercial side is set up for short runs. There is no minimum order quantity, so a single prototype and a 10,000-part run use the same process. Quotation and a free DFM analysis come back within 12 hours, and production can start within 24 hours of approval. Parts ship in 3–5 days for the standard case. Historical late-delivery probability sits below 2%.
Speed still has a floor. A part that needs a custom fixture, a pre-op, and a heat treat cycle cannot be compressed to a single day no matter how many spindles are available. We would rather tell you that during DFM than miss a date you planned around.
- 1No MOQOne prototype or 10,000+ parts, same process and same setup logic.
- 2Free DFM in 12 hoursCatches datum problems, tool reach issues, and wall thickness before cutting.
- 33–5 day shippingStandard case, after approval. Non-standard steps like heat treat add time.
Which setup fits your part
Count the faces that carry toleranced features, then read the row.
| Part pattern | Best setup | Why | Watch out for |
|---|---|---|---|
| Features on 1–2 faces | 3-axis | Fewest setups, fastest to inspect | Nothing significant |
| Features on 3–4 faces around one axis | 4-axis, indexed | One clamping, encoder controls face-to-face angle | Rotary centerline must be set from a machined datum |
| Wrapped slot or helical contour | 4-axis, continuous | Table turns while cutting | Surface speed varies across the cut; chatter on hard alloys |
| Critical bore far from centerline | 4-axis, replan the datum | Angular error grows into a longer arc | Position error can exceed ±0.005 mm |
| Features on 5+ faces | 5-axis | Fewer setups than 4-axis with angle plates | Higher hourly rate, but often lower total cost |
| Compound angle between two bores | 5-axis | Tool axis tilts to the feature directly | Not reachable on 4 axes without extra fixturing |
| Part under ~20 mm | 3-axis with soft jaws | Workholding and probing dominate cycle time | Rotary table setup overhead is hard to justify |
| As-cast or rough blank | 3-axis pre-op, then 4-axis | Need a machined surface before locating on the table | Pre-op adds a day to the schedule |
The trade-off in one line
If your toleranced features sit around a single axis, 4-axis indexed work gives you the fastest route to correct parts; if they spread across five faces or meet at compound angles, stop fighting the fixture and move the job to 5-axis, where the total cost is usually lower even though the hourly rate is higher.
Questions engineers ask before sending a 4-axis job
Can a 4-axis machine hold ±0.005 mm on a part 400 mm long?
Yes, if the datum is machined and the part is not running hot. The limit is usually thermal growth and fixture stiffness, not the machine's positioning accuracy. On long parts we rough, let the part settle, then finish on the same setup.
If a feature sits far from the rotary centerline, budget the angular error as a linear one. A small angular error at 200 mm off-axis is a bigger number than the same error at 20 mm.
How do I tell whether my part needs 4-axis or 5-axis?
Count the faces that carry toleranced features. Four or fewer, arranged around one axis, go on a 4-axis machine. Five or more, or any compound angle between two features, is a 5-axis job.
The second test is tool access. If a tool cannot reach the feature without the part being repositioned, that repositioning is a setup, and setups are where tolerance and days go.
Does 4-axis machining cost more than 3-axis?
The hourly rate is higher, but the setup count is often lower. A part with four machined faces might need three 3-axis setups and one 4-axis setup. Once you add the fixture time and the inspection time for each extra setup, the 4-axis route is frequently cheaper.
It stops being cheaper when the part is small or when the blank needs a pre-op before it can be located on the table.
What file format and information do you need for a fast quote?
A STEP or native CAD file, a 2D drawing with datums and tolerances, the material and temper, the finish, and the quantity. If a feature is critical, mark it. We would rather ask one question during DFM than scrap a part.
Uploads are held confidentially and an NDA is available on request.
Can you start cutting before I approve the first article?
Production can start within 24 hours of approval. For a first-time 4-axis geometry we usually recommend a first article before the full run, because a datum change found after 200 parts is expensive for both sides.
For repeat parts with a proven program, we go straight to the run.
Which materials are common for 4-axis custom parts?
Aluminium 6061-T6, 7075, and 6082 for housings and brackets. Stainless 303 and 17-4PH for shafts and valve bodies. 4140 and 4340 for higher-strength shafts. Titanium TC4 and Inconel when the service temperature or weight rules out steel.
Finish options include anodizing, electroless nickel, black oxide, bead blasting, and laser marking at a minimum character height of 1.5 mm.
