Hard Mill vs Indexable Milling: How to Choose for Your Part
Both remove metal. They fail in different ways, at different volumes, at different costs. This comparison shows where the hard mill vs indexable milling decision changes the outcome, and which questions to ask before you commit a tool path.
Hard Mill vs Indexable Milling at a Glance
Values reflect common shop practice for steel and aluminum; your part geometry and machine can shift the break point.
| Factor | Hard milling (solid carbide) | Indexable milling | When it decides the job |
|---|---|---|---|
| Tool cost | Low per tool, no inserts | High body, low cost per edge | Prototype vs long run |
| Cost per cutting edge | One edge per tool | 2-8 edges per insert | Batch over 500 parts |
| Typical diameter range | Ø0.5-20 mm | Ø16-160 mm | Pocket corners and deep faces |
| Radial depth of cut | Up to 0.1 × D | 0.05-0.3 × D with chip thinning | Roughing stock removal |
| Roughing MRR | Moderate, limited by core | High on stable setups | Clearing 80% of a billet |
| Achievable finish | Ra 0.4-0.8 μm on walls | Ra 0.8-1.6 μm typical | Visible surfaces and bores |
| Tolerance you can hold | ±0.005 mm on contoured walls | ±0.02-0.05 mm on milled faces | Mating bores and bearing seats |
| Setup and tool changes | More tools, more offsets | One body, several edges | Spindle uptime and labor |
| Best batch size | 1 to 200 parts | 300 parts and up | Quote and scheduling |
| Typical scrap risk | Low, tool breaks are gradual | Insert breakage is sudden | Lights-out and unattended runs |
How Hard Milling and Indexable Milling Remove Metal

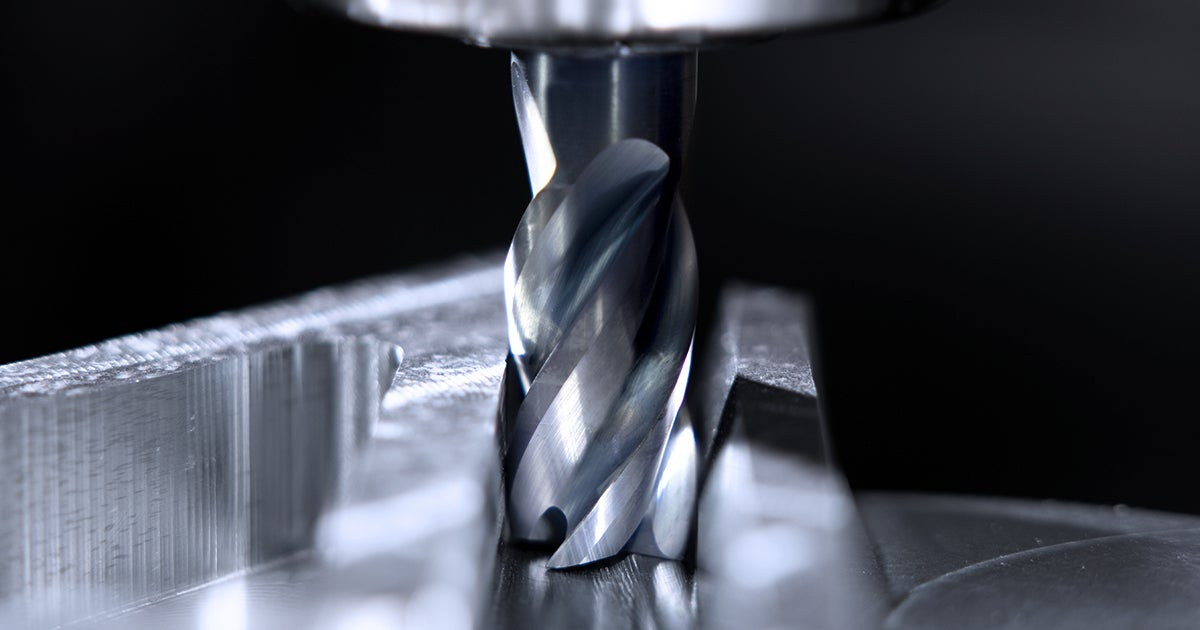

Hard milling uses a tool ground from one piece of solid carbide or high-speed steel. The cutting edge is part of the body. There is no insert screw, no pocket, and no seat to wear. That single piece of carbide can be ground to a 0.5 mm corner radius or a long reach neck that an insert cannot reach.

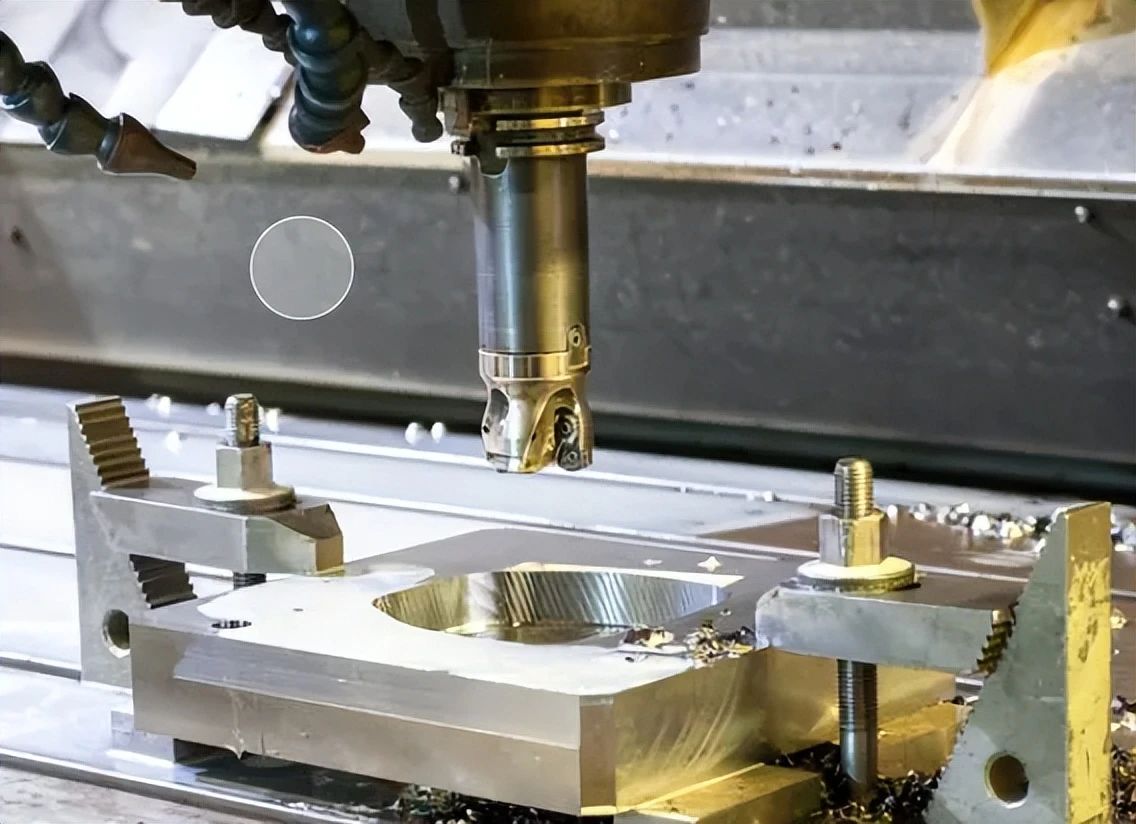

Indexable milling puts carbide inserts into a steel body. Each insert carries two to eight usable edges. When an edge dulls, the operator indexes it and keeps cutting. The body stays in the spindle. The edge is replaced, not the tool.
The difference shows up in stiffness. A solid carbide tool is uniform along its length, so it deflects in a predictable way. An indexable body has a pocket and a screw, and the insert sits slightly proud of the body, which changes the effective rake and the chip flow.
Neither is better in the abstract. The hard mill vs indexable milling question is really about where the stiffness, the edge cost, and the reach matter most for the part in front of you.
- 1Solid carbideOne piece, one edge, ground to any geometry
- 2IndexableSteel body, replaceable inserts, several edges per insert
- 3ReachSolid tools reach into deep pockets and small corners
- 4RigidityIndexable bodies are stiffer at large diameters
Which Process Holds Tolerance Better
On contoured walls and small bores, hard milling holds ±0.005 mm when the machine, the holder, and the tool are all clean. The reason is simple: one homogeneous tool with a ground edge produces a consistent cutting force pass after pass. There is no insert runout to stack on top of spindle runout.
Indexable milling typically holds ±0.02 to 0.05 mm on milled faces. That is enough for most brackets, housings, and weldments. The limit comes from insert seating. A chip trapped under an insert, or a screw torqued unevenly, moves the edge by a few hundredths of a millimeter.
Surface finish follows the same pattern. A solid carbide finisher can reach Ra 0.2-0.8 μm on a wall with a light finishing pass. An indexable face mill usually lands at Ra 0.8-1.6 μm, which is fine for a mounting face but not for a sealing surface.
If the part has a bearing seat, a hydraulic bore, or a mating spigot, plan a solid carbide finishing pass even when the rest of the part is roughed with indexable tooling. Mixing the two is normal practice, not a compromise.
- 1Hold ±0.005 mmUse solid carbide on the critical contour
- 2Ra 0.2-0.8 μmLight finishing pass, sharp edge, rigid holder
- 3Ra 0.8-1.6 μmIndexable face and shoulder mills
- 4Watch insert seatingClean the pocket before every index
Cost per Edge and the Break-Even Batch
A solid carbide end mill costs more up front than a single insert, but it is one purchase. An indexable body costs several times that, and then you keep buying inserts. The economics flip as the batch grows.
Rough numbers for a 16 mm cutter in 4140 steel: a solid carbide tool may survive 60 to 120 minutes of cutting before it needs regrinding or replacement. An indexable cutter with four edges per insert gives you four fresh edges from one insert, and four to eight inserts per body. That is 16 to 32 edges from one body.
The break-even usually lands somewhere between 200 and 500 parts, depending on material and how much of the cycle is roughing. Below that, solid carbide is cheaper per part because you are not paying for a body you will not wear out. Above that, insert cost per edge wins.
Fixtures and programming matter too. Indexable roughing removes stock fast, so the finishing tool spends less time in the cut. That shortens the cycle and reduces the wear on the tool that actually holds the tolerance.
- 11 to 200 partsSolid carbide, no body investment
- 2300 to 500 partsThe break-even zone, quote both
- 3500+ partsIndexable roughing plus solid finishing
- 4Hard materialsInconel and Ti-6Al-4V punish edges faster
Part Features That Force One Choice
Some features simply cannot be cut with one of the two. A 3 mm internal corner radius in a 40 mm deep pocket needs a long, slender solid carbide tool. No indexable cutter reaches there without rubbing the wall.
Large flat faces are the opposite case. A Ø80 mm or Ø100 mm indexable face mill covers a wide path in one pass. A solid carbide tool that size would cost far more and would need a much larger spindle interface to stay rigid.
Deep cavities with a high length-to-diameter ratio favor solid carbide, but only up to a point. Past about 4 × D, chatter becomes the limit and you need to reduce radial engagement or switch to a different strategy such as a smaller tool with a trochoidal path.
Thin walls are another constraint. Indexable cutters push harder, so a 1.5 mm wall in aluminum may deflect. Solid carbide with a light radial step-over keeps the wall straight and the finish even.
- 1Small corner radiiSolid carbide, long reach necks
- 2Wide flat facesIndexable face mills, Ø80-160 mm
- 3Deep cavitiesSolid carbide up to about 4 × D
- 4Thin wallsLight radial engagement, solid carbide
Tool Holders, Runout, and What Breaks First

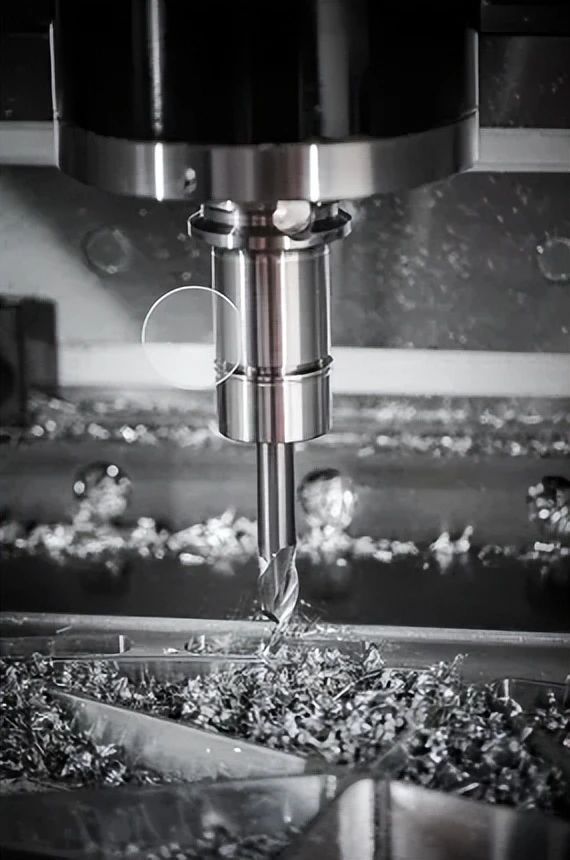

The holder decides how much of the tool's capability reaches the part. A shrink-fit or hydraulic holder with 0.003 mm runout lets a solid carbide tool cut at its rated feed. A worn collet chuck with 0.02 mm runout will chip the corners off a finishing tool in minutes.
For indexable cutters, check the insert pocket and the screw torque. A loose insert moves under load, and the failure is sudden. Solid carbide fails differently: the edge wears gradually, the cutting sound changes, and the surface finish drifts. That is easier to catch if an operator is nearby.
That difference matters for unattended runs. An indexable cutter can break an insert without warning, and the next pass cuts with a missing edge. Solid carbide gives you a warning window, which is why many shops keep it for the finishing passes on expensive parts.
Coolant and chip evacuation also differ. Indexable roughing makes large chips that clear easily with through-spindle coolant. Solid carbide in a deep pocket needs high-pressure coolant or air blast to avoid recutting chips, which doubles edge wear.
- 1Runout under 0.005 mmUse shrink-fit or hydraulic holders
- 2Check screw torqueEvery index, every time
- 3Listen to the cutSolid carbide warns before it fails
- 4Clear the chipsRecutting chips is the fastest way to kill an edge
The Practical Verdict
If the part is small, contoured, or held to ±0.005 mm, rough and finish with solid carbide. If the batch is 300 parts or more and most of the cycle is stock removal, rough with indexable tooling and finish with solid carbide. Mixing the two on one part is normal and usually the cheapest correct answer.
Questions Engineers Ask Next
Can I rough and finish with the same indexable cutter?
You can, but the finish will sit around Ra 0.8-1.6 μm and the tolerance will be looser than a solid carbide finisher. On a mounting face that is fine.
On a bore that takes a bearing or a seal, use a separate solid carbide finishing pass. The extra tool change is cheaper than a rejected part.
How do I know when to index an insert instead of pushing further?
Watch the chip color and the sound. A dull edge raises the cutting temperature, so the chips darken and the pitch of the cut changes.
Measure the surface finish on the first few parts after each index. If Ra drifts past your limit, rotate the edge before the next batch, not after a bad one.
Does hard milling work on hardened steel above 45 HRC?
Yes, with the right carbide grade and coating. The cut is light, the radial engagement stays low, and the machine needs good rigidity.
The trade-off is tool life. Expect to change or regrind the tool sooner than you would in 4140 at 30 HRC, and plan the cycle time around that.
Which process is better for titanium and Inconel?
Both struggle, for different reasons. Titanium and Inconel generate high cutting temperatures and work-harden quickly, so edges wear fast either way.
Indexable tooling helps on large roughing passes because one body gives you many edges. Keep the radial engagement low, use high-pressure coolant, and never let the tool dwell in the cut.
What runout should I target for a solid carbide finishing tool?
Under 0.005 mm at the cutting edge. Above that, one flute does most of the cutting and the tool wears unevenly.
Check runout at the tip, not at the holder face. A clean holder taper and a wiped collet are usually enough to get there.
Can GreatLight run both processes on the same order?
Yes. We have 127 high-precision CNC machines, including 16 simultaneous 5-axis centers and 16 mill-turn centers, and we hold ±0.005 mm with finishes down to Ra 0.2-0.8 μm where the part needs it.
Send the drawing and we return a quotation with a DFM analysis within 12 hours. Production can start within 24 hours, and parts ship in 3-5 days.
Send the Drawing, Get a Process Recommendation
Tell us the material, the tolerances, and the batch size. We will tell you where to use solid carbide, where indexable tooling pays off, and what the cycle looks like.
