A post-processor is the translator between CAM software and the machine controller. It decides how a toolpath is chopped into blocks, where the feed ramps sit, and how the gantry accelerates into a cut. A stock post ships with safe, generic values because the vendor cannot know your fixtures, your tooling, or your material. Those generic values leave time on the table on every part.

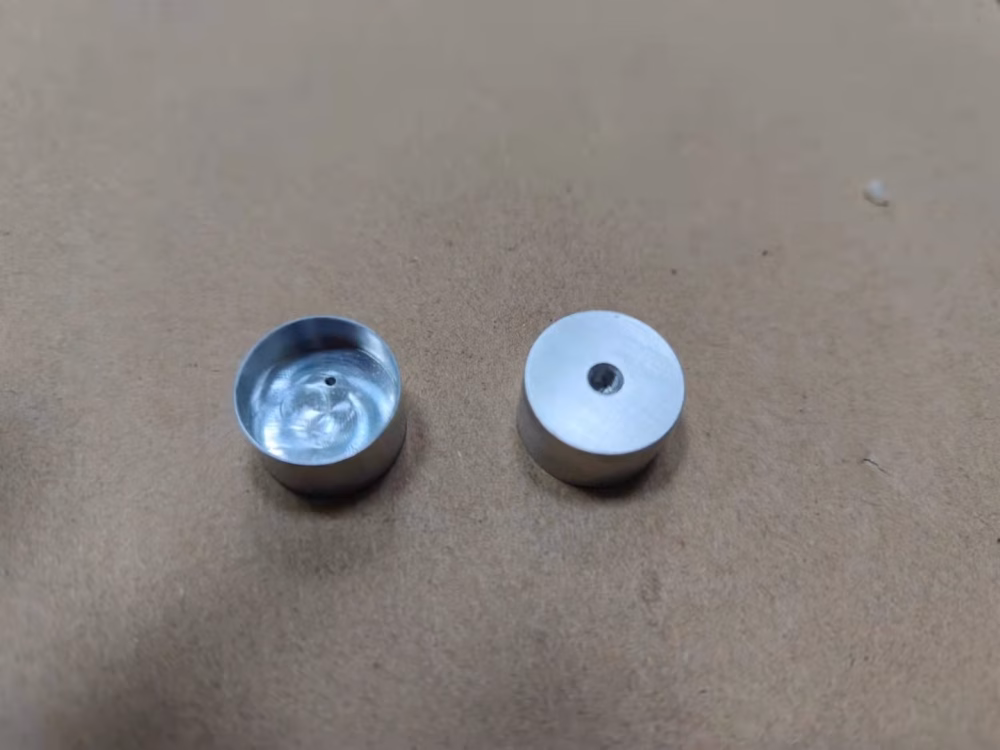

On a gantry router with a heavy Z axis, the cost of a bad ramp is not just slower motion. It is chatter at the entry point, tool wear, and rework on the first 20 mm of every pocket. Tuning the acceleration and deceleration ramps for the gantry axes is the highest-return change most shops never make. We see cycle-time reductions of 15-25% on complex 5-axis parts after a proper post rewrite, with no change to the cutting parameters themselves.

Plunge angle is the second setting worth touching. A vertical plunge into aluminium or hardwood loads the tool tip hard and leaves a witness mark. A ramped or helical entry spreads that load across the flute length. Match the ramp angle to the tool's helix and the material's chip clearance. For 6 mm carbide in aluminium, a 3° to 5° ramp usually enters cleanly without rubbing.

Spindle load limits matter too. The post should cap commanded feed against the spindle load the controller can actually hold through a corner. If the post ignores corner deceleration, the machine either stalls or the operator dials the feed override down, and the whole program runs slow.

• 1
  Ramp valuesTune gantry accel/decel before touching cutting feeds.
• 2
  Plunge angle3° to 5° for 6 mm carbide in aluminium; avoid vertical entry.
• 3
  Corner feedCap commanded feed so the controller holds load through corners.

The BMG 511 can cut a panel faster than an operator can load and clamp the next one. That gap is where throughput disappears. Treat the vacuum table as an engineered tool, not a switch. The goal is a setup that repeats to within a few hundredths of a millimetre without the operator measuring anything.

Dedicated sub-plates are the simplest version of this. Pre-drill each plate for the vacuum cups and locating pins a given part family needs, then swap the whole plate instead of re-arranging cups. A sub-plate swap takes under 30 seconds. Re-arranging cups and re-zeroing can take 10 to 20 minutes per job change. On a shop running 20 changeovers a week, that difference is a full shift of machine time.

Vacuum zone control is the other half. On thin panels, open zones that are not covered by the part leak air and drop holding force exactly where you need it. Seal unused zones, or use a gasketed grid matched to the part footprint. For parts under 6 mm thick, a dedicated fixture with a sealed pocket usually holds better than the full table.

Locating pins do the referencing. If every sub-plate drops onto the same two pins, the work coordinate system is repeatable and the operator never has to probe the corner. That is what makes a 30-second swap real instead of theoretical.

• 1
  Sub-platesPre-drilled for a part family; swap in under 30 seconds.
• 2
  Zone sealingSeal unused zones or thin panels lose holding force.
• 3
  Locating pinsTwo pins per plate keep the WCS repeatable.

Kiss and fly is a strategy where the tool contacts the material at full programmed feed, cuts, and lifts out at the end of the pass instead of dwelling or retracting slowly. The name is informal, but the mechanism is simple. Every dwell at a direction change costs time and rubs the tool. Removing the dwell removes both.

The catch is that kiss and fly only works when the machine can decelerate and re-accelerate without overshooting. On a stock post it often cannot, so the controller inserts its own slowdown and the strategy gains nothing. This is why secret 1 and secret 3 are linked. Tuned ramps make aggressive toolpaths safe; untuned ramps make them pointless.

Where it pays off most is on long, shallow passes in aluminium and on nested panel work. The tool stays in cut, chip evacuation stays steady, and heat leaves with the chip instead of soaking into the part. On deep pockets with small tools, the same strategy can chatter, so keep the dwell there and accept the slower cycle.

A practical starting point: full feed on finishing passes of 0.5 mm radial engagement, 8,000-12,000 rpm for 6 mm carbide in 6061, and no dwell at direction changes under 45°. Verify the first article before running the nest.

• 1
  Use it forLong shallow passes in aluminium and nested panels.
• 2
  Avoid it forDeep pockets with small tools; chatter risk is high.
• 3
  Starting point0.5 mm radial engagement, 8,000-12,000 rpm, 6 mm carbide.

Most shops have a tool library that is really a list. It records diameters and lengths, but not the feeds and speeds that actually work, not the holder, not the stick-out. The result is that two programmers use the same tool number with different parameters, and the machine behaves differently depending on who wrote the program.

The fix is family tooling. Group tools by the operation they serve, not by diameter. A face-mill family, a roughing family, a finishing family, each with fixed holder, fixed stick-out, and fixed starting parameters. When a programmer picks from the family, the variables collapse. Stick-out is the one people forget, and it is the one that changes chatter most.

Kit management is the second half. If a job needs four tools, they should be measured, loaded, and proven as a kit before the job hits the machine. Pre-setting the kit offline removes the in-cycle tool measurement that otherwise sits on the critical path. On a high-mix shop, offline presetting is usually the difference between a 40-minute and a 90-minute setup.

Keep the library versioned. When a parameter changes because a test cut proved it, record the change and the material it was proven in. Undocumented tweaks are how a good library decays into a list again.

• 1
  Family toolingGroup by operation, not by diameter.
• 2
  Fixed stick-outThe variable that most affects chatter.
• 3
  Offline presettingTakes tool measurement off the critical path.

A machine that cuts without checking its own work still needs a human to verify the first article, and that human is the bottleneck. Adding a probe to the BMG 511 turns inspection from a separate operation into a step inside the program. The probe measures the first part, the controller writes the offset, and the nest runs.

This is not about checking every part. It is about checking the features that drift. A datum face, a critical bore, a pocket depth that moves with tool wear. Probing those two or three features per nest catches a worn tool before it produces 40 scrap parts, which is the whole point.

Automation follows the same logic. An automatic tool changer with a proven kit, a probe, and a post that handles the probe cycles together form a closed loop. The operator loads material and unloads finished parts. Everything between is handled by the program and the controller.

The boundary is part geometry. Closed-loop inspection pays off on parts with stable features and reasonable volume. For one-off prototypes with no repeat, the probe setup can cost more than it saves. Match the investment to the job mix, not to the machine's capability.

• 1
  Probe what driftsDatum faces, critical bores, pocket depths.
• 2
  Closed loopProbe, ATC, and post working together.
• 3
  BoundaryOne-off prototypes rarely justify probe setup.
