Nine families cover almost every joint you will find on a machine tool, gearbox, hydraulic manifold, or pump housing. They split into static seals that never see relative motion, and dynamic seals that ride on a moving shaft or rod. Static seals take compression and stay put. Dynamic seals trade a small controlled leak for long life.

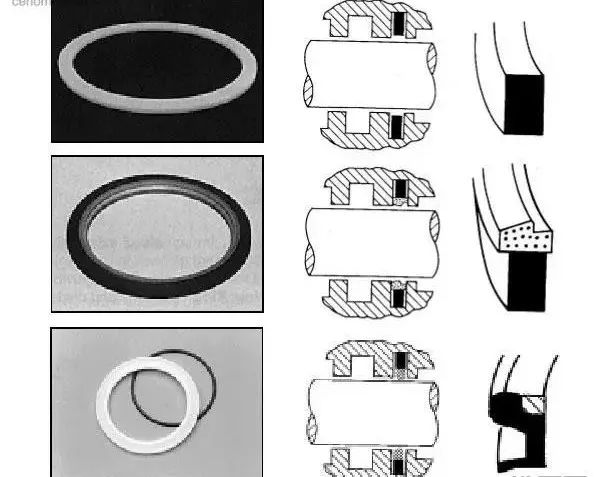

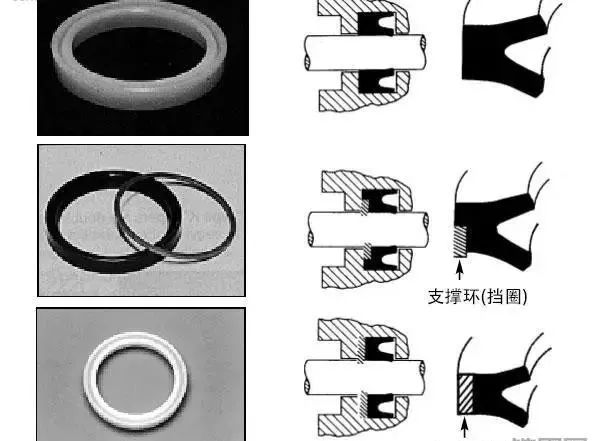

Counting them as one number is misleading. A hydraulic cylinder can hold six different seal types on a single assembly: dust ring, rod seal, buffer seal, guide ring, end cover seal, and piston seal. Each one solves a different problem, and swapping two of them will destroy the rod within a shift.

So the useful question is not the total count. It is which family fits your pressure, speed, temperature, and fluid. The sections below walk through each family in the order you would meet them on a drawing.

One more point before the details. Sealing is a system: seal, groove, shaft finish, and lubricant. A perfect O-ring in a rough, out-of-round bore leaks. A cheap lip seal on a polished, concentric shaft runs for years. Hold the metal to the tolerance, and the seal does its job.

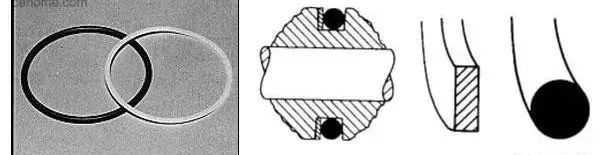

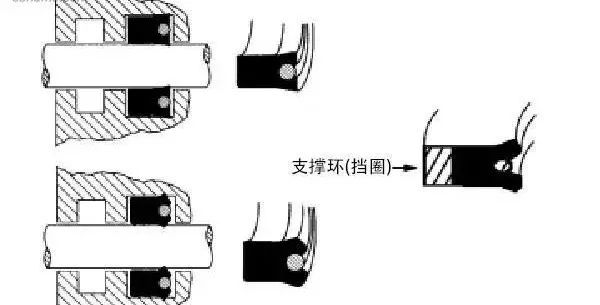

O-rings are the workhorse. They seal on compression, so the gland must squeeze the cross-section between 15% and 25%. At 15% squeeze you risk leakage on a cold start; past 25% the rubber takes a set and never recovers. Cut the groove to a depth that leaves the right squeeze for the actual cord diameter, not the nominal one.

Gaskets handle irregular flanges where an O-ring cannot follow the surface. Compressed fiber suits oil and coolant lines up to about 120 °C. Spiral-wound gaskets with a graphite filler take steam and high-pressure flanges. Torque them in a star pattern in three passes so the load spreads evenly.

Bonded washers, also called Dowty seals, combine a metal ring with a rubber lip. They seal a bolt head against a port face without a separate groove. They work up to roughly 400 bar in hydraulic porting, and they are reusable only if the rubber lip is still intact.

When static seals fail, the cause is usually the housing. A bore with a 1.6 μm Ra finish and a sharp edge shaves material off the O-ring during assembly. Break every edge to 0.2 mm and keep sealing surfaces at Ra 0.8–1.6 μm.

A rotary shaft seal, or radial lip seal, presses a flexible lip against the shaft. A garter spring keeps contact pressure steady as the lip wears. The lip must run on a ground, concentric shaft; runout above 0.1 mm total indicator reading opens a gap on one side and the seal weeps.

The sealing edge needs lubrication, not a dry start. Pack the lip with the system grease or oil before fitting. Most premature lip failures come from a dry first run, which burns the edge in seconds and leaves a hard, glazed band that never seals again.

Shaft hardness matters. Below 30 HRC the shaft wears before the seal does. Hardened and ground shafts at 45–55 HRC, with Ra 0.2–0.8 μm under the lip, give the longest life. Do not polish finer than Ra 0.2 μm: too smooth a surface cannot hold the micro-oil film the lip needs.

Speeds set the material. Nitrile (NBR) is fine to about 1 m/s at 100 °C. FKM covers 2–3 m/s and higher temperatures. For linear speeds above 3 m/s or dry running, move to PTFE lip seals or a mechanical seal.

Compression packing fills a stuffing box with stacked rings, tightened by a gland. It is the oldest dynamic seal and still the right answer for slurry pumps and valve stems where a little leakage is acceptable. Tighten the gland until the drip rate falls to 20–60 drops per minute. Zero drip means the packing is running dry and will burn the shaft.

Mechanical seals replace packing with two flat, lapped faces pressed together by a spring. One face rotates, one stays fixed. They leak almost nothing and handle pressures from vacuum to 20 bar or more. The faces must stay clean: a single particle between them scores both surfaces and starts a steady drip.

Face materials are chosen as a pair. Carbon against silicon carbide handles water and mild chemicals. Silicon carbide against silicon carbide suits abrasive slurries. Tungsten carbide is the choice for high pressure and poor lubrication. Never run identical hard faces dry.

Metal face seals, or duo cone seals, are the heavy-duty option for final drives and wheel hubs. Two hardened metal rings lap against each other with a rubber toric ring pushing them together. They tolerate mud, grit, and deep immersion, which is why tracked machines use them.

Labyrinth seals create a long, tortuous path instead of contact. There is no rubbing, so there is no wear and no speed limit. They are common on steam turbines and large gearboxes. The trade-off is a controlled leak, typically a few milliliters per hour, which must be drained away.

V-rings are all-rubber, axial sealing elements that stretch onto the shaft and fling contaminants outward as they rotate. They need no groove and no spring. Use them as a secondary dirt excluder ahead of a lip seal on a gearbox input shaft, not as the primary pressure seal.

Diaphragm seals separate a process fluid from a sensor or actuator with a flexible membrane. They suit sanitary and corrosive duty because there is no sliding contact. Choose the elastomer for chemical compatibility first, then check the stroke and pressure cycle life.

These three families are often the fix when a contact seal keeps failing. If dirt kills your lip seals every few months, a labyrinth or V-ring in front of it changes the maintenance interval without changing the shaft.
