How to Choose Coarse Teeth and Fine Threads for Machined Parts

• 1
  Key takeaways
• 2
  What Coarse and Fine Threads Actually Change
• 3
  When Coarse Teeth Are the Right Call
• 4
  When Fine Threads Solve a Real Problem
• 5
  How Material and Engagement Depth Change the Answer
• 6
  Three Mistakes That Show Up on the Shop Floor
• 7
  How to Choose Coarse Teeth and Fine Threads: Step by Step
• 8
  Coarse vs Fine Thread: Which One Fits the Joint

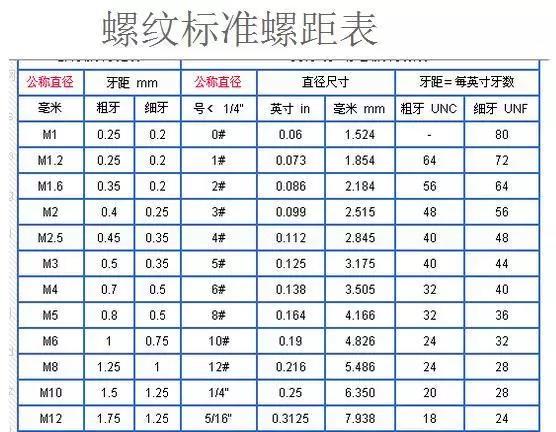

Thread pitch is the axial distance between two adjacent crests. In the metric system a coarse thread is the unmarked default, so M8 means M8 × 1.25. A fine thread adds the pitch, so M8 × 1 is fine. In inch sizes the same split appears as 1/2-13 UNC and 1/2-20 UNF. That is the whole naming difference. Everything else follows from how the thread flank geometry changes load transfer.

A fine pitch gives you a larger minor diameter. The core of an M8 × 1 is thicker than the core of an M8 × 1.25, so the fastener carries more tensile load before it yields. The coarser thread cuts deeper, which leaves a taller flank and more shear area per turn of engagement. Those two effects pull in opposite directions, and that is why the right answer depends on the joint, not on a habit.

Thread class is a separate decision. A 6H internal thread in metric and a 2B class in inch are the normal commercial fits, and they are what we cut unless a drawing calls out something tighter. A 6G or 3B callout adds cost and inspection time without adding much function for a standard bolted joint. Ask yourself whether the fit is controlling location or just clamping parts together.

One more thing before you pick. Threads are cut, rolled or formed, and the process sets the surface. We cut most internal threads on the mill or lathe and can roll external threads on turned parts. A rolled thread has a continuous grain flow that improves fatigue life. If a stud sees millions of cycles, that process choice matters more than the coarse or fine decision.

• 1
  Coarse pitchDeeper flank, fewer turns to full depth, easier to start by hand.
• 2
  Fine pitchLarger minor diameter, shallower flank, more turns per unit length.
• 3
  Thread class6H / 2B is the default. Tighter classes cost more and clean less dirt.

Coarse threads are the standard for general fastening, and there are good mechanical reasons. The deeper flank means a single turn of engagement takes more load, so a short engagement length still holds. In a blind hole in a casting, that lets you keep the hole shallow and save a drilling operation. It also tolerates contamination better, which is why coarse threads dominate structural bolts and site assembly.

Starting a coarse bolt is faster. Fewer turns to seat, less chance of cross-threading when an operator works overhead or in a tight bay. If a joint will be assembled and taken apart many times, coarse threads wear more slowly at the crest because the contact pressure per turn is lower. On a maintenance panel bolted weekly, that is a real advantage.

Coarse threads are also easier to repair. A stripped M10 × 1.5 hole can often be re-tapped to the next size, or repaired with a standard insert, without changing the mating hardware family. Fine threads leave less material for a repair because the original minor diameter was already close to the nominal size.

The limit is strength in the fastener itself. A coarse bolt has a thinner core, so it stretches and fails at a lower tensile load than the same diameter in fine pitch. In soft aluminium, coarse threads also pull out sooner because the shear area per unit length is smaller. Both problems are solved with engagement depth, not with a pitch change.

• 1
  Structural boltsCoarse is the default for steel-to-steel joints under static load.
• 2
  Blind holes in castingsShallower depth still holds; fewer drill changes.
• 3
  Repeated assemblySlower crest wear when a joint is opened often.

Fine threads shine where adjustment or vibration lives. A finer pitch gives more threads per millimeter, so a small rotation moves the nut a shorter distance. On a preload screw, a valve adjuster or a dial indicator mount, that finer resolution is the reason the thread exists. You are buying control, not raw strength.

Vibration resistance is the second reason. A fine thread has a smaller helix angle, so the friction cone that resists back-off is wider relative to the pitch. In a joint with no locking compound and no prevailing torque nut, a fine thread will loosen more slowly under cyclic load. That is why aerospace and automotive suspension hardware often uses UNF or fine metric pitches.

Thin walls and small bosses are the third case. Because the fine thread cuts less material, a boss with a 2 mm wall keeps more of its radial strength. If you are threading into a tube, a thin flange or a small aluminium housing, the difference between M8 × 1.25 and M8 × 1 can be the difference between a sound part and a cracked one.

The cost is real. Fine threads need more turns to assemble, they cross-thread more easily in the field, and they are less forgiving of debris. They also wear faster at the crest under repeated use. If a joint is opened weekly by hand, coarse is usually the better working choice even if fine looks better on paper.

• 1
  Adjustment screwsFiner resolution per turn of the fastener.
• 2
  Vibration without lockingShallower helix resists back-off longer.
• 3
  Thin wallsLess material removed, so the boss stays stronger.

Engagement length decides whether a thread pulls out before the bolt breaks. For steel into steel, 1 × Ø is usually enough because the bolt fails first. For steel bolts into aluminium, plan on 1.5 × Ø, and for soft castings or plastics go to 2 × Ø. A 1/4-20 UNC bolt in 6061-T6 at 1 × Ø will strip the aluminium before the bolt reaches its proof load.

Fine threads do not fix a short engagement. If a hole is only 0.8 × Ø deep, switching from M8 × 1.25 to M8 × 1 gains a little shear area but does not change the basic shortage. Add depth or add a thread insert. We machine and install helical inserts for aluminium parts where a joint will be serviced repeatedly.

Material hardness shifts the trade-off. In 17-4PH or 4140, coarse threads hold well and the bolt is usually the weak link. In ADC12 die casting or 6061, the parent metal is the weak link and engagement depth dominates. In titanium, galling is the practical risk, so a slightly coarser pitch and a lubricant beat a fine pitch that seizes on assembly.

Temperature and preload matter too. A fine thread reaches a given preload with lower torque, which is useful when you are torque-limited by a small wrench or a plastic housing. That same property makes fine threads more sensitive to torque scatter, so a torque-controlled joint usually wants a torque spec validated on the actual parts.

• 1
  Steel into steel1 × Ø engagement is normally enough.
• 2
  Steel into aluminiumPlan on 1.5 × Ø, or use an insert.
• 3
  Soft castings2 × Ø engagement, and consider a coarser pitch.

The first mistake is specifying a fine pitch to make a part look precise. A drawing with M6 × 0.5 on a general bracket adds tapping time, needs a smaller drill, and raises the risk of a broken tap. Nothing in the joint needed it. If the thread is only clamping, the default coarse pitch is the correct engineering answer.

The second is ignoring the tap drill. A 6H M8 × 1.25 wants a 6.8 mm drill, while M8 × 1 wants 7.0 mm. Pick the wrong one and the thread either binds or comes out loose. On a deep blind hole, add a few millimeters of clearance at the bottom so the tap does not bottom out and snap. We see this most on holes deeper than 3 × Ø.

The third is mixing systems on one part. A design that calls out 1/4-20 UNC in one place and M6 × 1 in another forces two tool changes and two sets of hardware at assembly. Pick a system and stay in it. If a bought-in component forces the other system, note it clearly on the drawing so the machinist does not guess.

• 1
  Fine pitch for appearanceAdds cost and tap risk with no functional gain.
• 2
  Wrong tap drill6.8 mm for M8 × 1.25, 7.0 mm for M8 × 1.
• 3
  Mixed thread systemsExtra tooling and a real assembly error risk.
