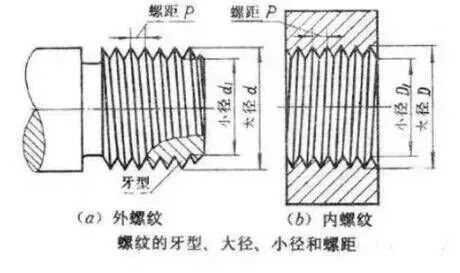

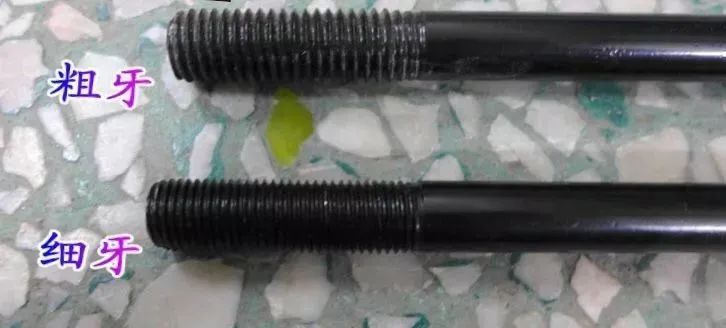

Pitch is the axial distance between adjacent thread crests. A coarse thread, also called a thick thread, has a larger pitch for the same nominal diameter. M10 × 1.5 is coarse. M10 × 1.25 and M10 × 1.0 are fine. Only the pitch changes; the major diameter stays at 10 mm.

That single number shifts three things at once: the thread depth, the minor diameter of the internal thread, and the helix angle. Coarse threads cut deeper, so the minor diameter of a tapped hole is smaller. Fine threads cut shallower, so the wall around the hole stays thicker.

The helix angle matters more than most drawings suggest. A coarse thread climbs faster per revolution. Under vibration, that faster climb helps a nut walk loose. The shallower climb of a fine thread resists that movement.

None of this is abstract on the shop floor. The pitch you specify decides which tap we pull, how many passes the thread mill takes, and whether the feature can be gauged with a standard plug gauge or needs a custom one.

Tensile strength of a threaded joint depends on the stress area, not the nominal diameter. For M10, the coarse 1.5 mm pitch gives about 58 mm² of stress area. The fine 1.25 mm pitch gives about 61 mm². The fine thread is slightly stronger in pure tension.

Stripping is a different story. Stripping happens when the internal thread in the softer material shears off. Coarse threads have a larger radial depth, so a steel screw in an aluminum boss engages more aluminum. For the same engagement length, the coarse thread usually strips later in soft material.

Engagement length drives both. As a rule of thumb, engagement of 1.5 × nominal diameter in steel and 2 × nominal diameter in aluminum reaches close to full thread strength. Below 1 × diameter, the thread, not the screw, becomes the weak link.

So the choice splits. If the joint is in tension and both members are steel, fine pitch wins slightly. If the female thread sits in aluminum, brass or plastic, coarse pitch usually wins because there is more material in the thread.

The helix angle of a fine thread is smaller, so the spiral leak path is longer and narrower. For pipe fittings, hydraulic ports and pneumatic manifolds, that is a real advantage. A fine thread with a proper sealant or an O-ring face seal holds pressure with less torque.

Adjustment is the second win. A fine thread moves less per turn, so you can set a position in smaller increments. On a jacking screw, a micrometer-style stop or a preload adjuster, a 1.0 mm pitch gives you 1 mm of travel per revolution instead of 1.5 mm.

Torque sensitivity rises as pitch drops. The same tightening torque produces higher axial preload on a fine thread because the thread is more efficient. That is good for clamping force and bad for soft materials. A fine thread in a thin aluminum boss can pull the threads out before the torque wrench clicks.

If the joint needs repeated disassembly, fine threads wear faster. Each cycle removes a little material from the flanks. Coarse threads have more flank area to lose and keep working after years of service.

Fine pitch means more thread turns inside the same hole depth. An M12 × 1.75 coarse hole 20 mm deep has about 11 turns. The same hole at M12 × 1.25 has about 16 turns. Every extra turn is another chance for a chip to pack and another pass for the tap or thread mill.

In hard materials such as 17-4PH or 4140, that extra count matters. Tap torque climbs, and a tap that breaks inside a deep hole is expensive to remove. We often switch to thread milling for fine pitches below M8 in stainless, because a broken thread mill is recoverable and the tool load is lower.

Gauging also changes. Coarse threads are checked with standard go/no-go plug gauges. Fine pitches are common enough in metric sizes that gauges are still off the shelf, but unusual combinations may need a custom gauge, which adds lead time.

Surface finish inside the thread follows the same logic. A thread milled at Ra 1.6–3.2 μm is normal as-machined. If the thread must seal, we aim for Ra 0.8–1.6 μm on the flanks and control the root radius to avoid a stress riser.

Aluminum and magnesium have low shear strength. Coarse threads are the safer default. In 6061-T6, an M6 × 1.0 coarse thread in a 10 mm deep hole handles typical clamp loads without inserts. An M6 × 0.75 fine thread in the same hole strips sooner if the operator over-torques.

Stainless steel work-hardens at the thread flanks. Fine pitches require more cutting passes, and each pass adds work hardening. For 316L and 17-4PH, coarse pitch reduces the number of passes and the risk of a galled or torn thread.

Titanium and Inconel are worse. Both are gummy and heat-sensitive. Coarse pitch, sharp taps, and generous lubrication are the usual answer. Fine threads in these alloys are possible, but they are usually reserved for sealing or adjustment, not for structural fastening.

Plastics and composites behave differently again. They are soft and creep under load. Coarse threads with a larger engagement length spread the load over more material. Where the boss is thin, a metal insert with a coarse internal thread solves both the stripping and the creep problem.
