How to Control the Precision of the Turn on Slender Shafts
Long, thin shafts deflect under cutting force, so the finished diameter drifts and the part bends. This guide shows the pass sequence, support setups, and measuring routine we use to hold size on parts with a high length-to-diameter ratio.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Key takeaways
What makes the precision of the turn drift on thin shafts
A shaft is called slender when its length-to-diameter ratio passes roughly 8:1. At that point the part stops behaving like a rigid bar. Cutting force pushes the workpiece away from the tool, the tool pushes back, and the two meet somewhere in the middle. The result is a diameter that changes along the length.
The pushback is not constant. It follows the stiffness of the part at each point. Near the chuck the shaft is stiff and cuts close to the programmed diameter. Near the free end it is soft and cuts oversize. That is why the same program produces a barrel or a taper instead of a cylinder.
Three inputs set how far the part moves: the radial cutting force, the unsupported length, and the shaft diameter. Length matters most because deflection rises with the cube of the span. Removing a steady rest for one operation can change the error by an order of magnitude.
Heat adds a second error. A shaft 300 mm long grows about 0.007 mm when it warms 2 °C. On a ±0.005 mm callout that is already outside the band. Rough and finish in the same setup, and let the part return to room temperature before the final pass.
- 1Radial forceSet by depth of cut, feed, and material hardness.
- 2Unsupported spanThe single largest lever you control.
- 3Thermal growthRough and finish in one setup to limit drift.
Rigidity choices that keep the precision of the turn stable
Start with the tool. A positive rake insert with a small nose radius, 0.2 to 0.4 mm, lowers radial force compared with a heavy roughing geometry. Keep the tool overhang under 25 mm on a 20 mm shank. Every extra millimeter of overhang bends the boring bar or holder and copies into the part.

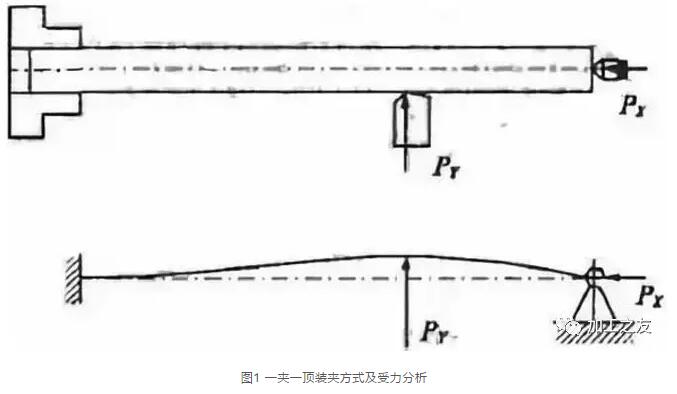

Support comes next. For L/D between 8:1 and 15:1, a tailstock center on a drilled center hole is usually enough. Past 15:1, add a steady rest. Place the rest within one-third of the shaft length from the free end so the longest span stays short.
The steady rest fingers must touch the finished or pre-turned band, not the raw stock. Running on a rough surface transfers every bump into the diameter. Leave a pre-turned band 0.05 mm oversize for the rest pads, then cut it in the final pass.
On our 16 mill-turn centers and Ø400 mm rotary table machines, we treat slender parts as a support problem first and a speed problem second. Reducing feed rate helps, but it does not replace a rest.
- 1Nose radius 0.2–0.4 mmLower radial force than a 0.8 mm roughing insert.
- 2Tool overhang under 25 mmMeasured from the holder face to the insert tip.
- 3Rest within one-third of the free endKeeps the longest unsupported span short.
Cutting parameters that reduce deflection
For 6061-T6 aluminum, a starting point on a 10 mm shaft is 200 m/min surface speed, 0.08 mm/rev feed, and 0.5 mm depth of cut per pass. For 304 stainless, drop to 120 m/min, 0.06 mm/rev, and 0.3 mm depth. These are starting points, not limits. Watch the chip and the diameter trend.
Take more passes at a smaller depth rather than one heavy pass. Three passes at 0.5 mm deflect the shaft far less than one pass at 1.5 mm, and the total cycle time difference is often under 20 seconds on a short part.
Use a constant surface speed mode with a spindle cap. As the tool reaches the small end of a taper, constant surface speed drives the rpm up and the part starts to chatter. Cap the rpm at the level where the part ran clean.
Flood coolant aimed at the insert tip does two jobs. It removes heat that would grow the shaft, and it washes the chip away before the chip rubs the finished surface. On stainless, a high-pressure stream through the tool is better than flood from above.
- 16061-T6: 200 m/min, 0.08 mm/rev, 0.5 mm DOCStarting point for a 10 mm shaft.
- 2304 stainless: 120 m/min, 0.06 mm/rev, 0.3 mm DOCWatch for work hardening if the tool rubs.
- 3Cap the spindlePrevents chatter as the diameter drops.
How to measure the result without chasing your own tail
Measure the shaft while it is still in the machine and still supported. If you pull it out of the rest, the part springs back and you measure a shape that no longer exists in the cut. Record the diameter at three points: near the chuck, at mid-span, and near the free end.
A micrometer with a 0 to 25 mm range and 0.001 mm resolution is enough for most shafts. Use a v-anvil or a three-point bore gauge only if you need to check lobing. A caliper is fine for rough checks but not for a ±0.005 mm callout.
The three readings tell you what to change. All three oversize by the same amount: adjust the tool offset. Near the chuck on size and the free end oversize: the part is deflecting, so add support or reduce depth of cut. All three undersize in the middle: the rest is pushing the part and needs less finger pressure.
Final inspection on our floor covers 100% of parts before shipment, with raw material checks and in-process monitoring upstream. Reports are available on request.
- 1Three-point checkChuck end, mid-span, free end.
- 20.001 mm micrometerMinimum resolution for a ±0.005 mm band.
- 3Read the shape, not just the numberTaper and barrel point to different fixes.
Step by step: how to control the precision of the turn
Follow the order. Skipping a step usually shows up as taper.
- 1Check the L/D ratio firstDivide the unsupported length by the diameter. Under 8:1, a normal chucking setup is fine. From 8:1 to 15:1, add a tailstock center. Above 15:1, plan for a steady rest before you cut anything.
- 2Prepare a center hole or a rest bandDrill a 60° center hole on the free end for tailstock support. If you will use a steady rest, pre-turn a band 0.05 mm oversize at the rest position and keep it smooth.
- 3Set the tool with minimum overhangKeep the insert tip within 25 mm of the holder face. Use a 0.2 to 0.4 mm nose radius. Indicating the tool on center within 0.02 mm avoids a built-in taper from the first pass.
- 4Rough with light passesTake 0.3 to 0.5 mm depth per pass on aluminum, 0.2 to 0.3 mm on stainless. Leave 0.3 mm radial stock for finishing. Do not chase cycle time with a heavy first pass.
- 5Let the part coolPause 2 to 3 minutes after roughing, or run a cool-down pass. A 300 mm steel shaft can grow 0.007 mm per 2 °C of temperature rise, which is enough to miss a ±0.005 mm callout.
- 6Finish with a small depth of cutCut 0.2 to 0.3 mm radial at 0.05 to 0.08 mm/rev and a spindle cap that avoids chatter. Aim for Ra 0.8–1.6 μm on most turned surfaces.
- 7Measure in the setupCheck diameter at the chuck end, mid-span, and free end with a 0.001 mm micrometer. Adjust offset for a uniform error, support for a taper.
- 8Unload and verify after springbackAfter the part leaves the rest, re-check the same three points. Springback of 0.002 to 0.005 mm is normal on slender shafts; if it exceeds that, the rest pressure or tailstock force is too high.
Which support method fits the job
Match the setup to the length-to-diameter ratio and the tolerance band.
| Support method | Best L/D range | Typical result | When it fails |
|---|---|---|---|
| Chuck only | Up to 8:1 | Size holds within 0.02 mm | Visible taper on longer parts |
| Tailstock center | 8:1 to 15:1 | Taper under 0.01 mm at light DOC | Chatter when depth exceeds 0.5 mm |
| Steady rest, one position | 15:1 to 25:1 | Size holds with 0.3 mm DOC | Fails if rest runs on raw stock |
| Rest plus tailstock | Above 25:1 | Best control on long slender shafts | Needs a pre-turned rest band |
| Follow rest on the carriage | Above 20:1 | Supports right behind the tool | Adds setup time per part |
Support first, then tune the cut
If a slender shaft comes out tapered, add support before you touch the feed rate. Tool offsets correct a uniform error, not a shape error.
Questions engineers ask about thin shaft turning
What length-to-diameter ratio needs a steady rest?
Below 8:1, a chuck and a good tool are usually enough. From 8:1 to 15:1, a tailstock center handles most work at light depth of cut. Above 15:1, plan on a steady rest, and above 25:1 use a rest together with tailstock support.
The numbers are starting points. Material stiffness, tool overhang, and the tolerance band all shift the line. A 17-4PH shaft at 12:1 is easier to hold than a 6061 shaft at the same ratio at high depth of cut.
Why does the diameter come out oversize at the free end?
The part is being pushed away from the tool, so the tool cuts less material at the soft end of the span. That is deflection, not a tool wear problem.
Fix it by adding support, reducing depth of cut, or using a smaller nose radius. Changing the tool offset will move the whole part and make the chuck end undersize.
Can high spindle speed replace a steady rest?
No. Spindle speed changes the cutting speed and the chip load, but it does not change how far a shaft bends under a given radial force. A soft part at 4,000 rpm still deflects.
High speed can make chatter worse because the part has less time to recover between insert impacts. Cap the rpm at the level where the part ran clean.
How much stock should I leave for the finish pass?
Leave 0.3 mm radial on aluminum and 0.2 to 0.3 mm on stainless and steel. That is enough to clean up the roughing marks without creating a heavy finishing load.
A finish pass at 0.2 to 0.3 mm radial and 0.05 to 0.08 mm/rev keeps radial force low. Deeper finishing cuts bring the deflection back.
Does coolant type change the result?
Yes, mainly through heat. Flood coolant aimed at the insert tip limits thermal growth and flushes chips before they rub the finished surface.
On stainless and titanium, high-pressure coolant through the tool works better than flood from above. The chip leaves the cutting zone faster, so it does not get re-cut.
What tolerance can you hold on a slender shaft?
On our machines, ±0.005 mm is the standard callout for turned diameters, with Ra 0.8–1.6 μm as a common finish band. Slender parts need support to reach that band, and the tighter the L/D ratio, the more setup it takes.
We check 100% of parts before shipment and can supply inspection reports on request. Send the drawing and we will return a quotation and a DFM analysis within 12 hours.
