A 3D printer already has linear motion, stepper motors, a controller board and a frame. That is most of what a light CNC router needs. The appeal of building a CNC machine out of a printer is that the mechanical platform is paid for, so the conversion cost sits mostly in the spindle, the controller and the tooling.

The trade is stiffness. A printer is built to move a 300 g hotend at 60 mm/s with almost no side load. A CNC cutter pushes back against the workpiece with 20 N to 80 N of force. The frame, the gantry and the Z axis all have to absorb that force without deflecting.

This is why the conversion is realistic for engraving, PCBs, signage and soft-material profiling, and unrealistic for steel, hardened aluminum or tight-tolerance production parts. Set expectations at the start. A converted printer is a light router, not a machining center.

If your part needs ±0.005 mm or a mirror finish, the conversion will not get there no matter how much time you put in. Use it for what it is good at, and send real metal work to a machine built for it.

• 1
  Good candidatesRigid aluminum extrusion frames, dual Z screws, linear rails, 32-bit boards with spare I/O.
• 2
  Poor candidatesAcrylic or thin sheet frames, cantilevered beds, bowden-only hotends with no Z clearance.
• 3
  Realistic budgetSpindle, VFD, controller, limit switches, tooling, dust shoe and enclosure add up fast.

Start by measuring deflection. With the machine powered off, push the tool head sideways with a luggage scale to about 20 N and measure movement with a dial indicator. If the gantry moves more than 0.2 mm, the frame is too soft for anything beyond foam and engraving.

Aluminum extrusion frames in the 3030 to 4040 range handle light cutting when the joints are braced. Add corner brackets and a rear stiffener plate before you mount a spindle. Steel frames are better, but they are rare on hobby printers.

Look at the Z axis. Most printers lift the gantry or drop the bed with a single lead screw. A spindle adds 1 kg to 2 kg of moving mass, and the Z axis has to hold that mass steady while cutting. Dual Z screws or a linear rail Z upgrade is close to mandatory.

Finally, check travel. You are adding a spindle and a tool holder, which eats 40 mm to 80 mm of Z clearance. If your printer has 200 mm of Z travel, expect 120 mm to 150 mm of usable cutting height after the conversion.

• 1
  Rigid extrusion frame3030 or 4040 aluminum extrusion with corner brackets and a rear stiffener.
• 2
  Dual Z screws or linear Z railNeeded to hold spindle mass without sagging during a cut.
• 3
  Spare controller I/OYou need pins for limit switches, a spindle relay and a probe.
• 4
  Tool clearanceReserve 40 mm to 80 mm of Z travel for the spindle and tool holder.

A CNC spindle spins at 10,000 rpm to 24,000 rpm and throws chips. Before you cut anything, plan the enclosure, eye protection and dust extraction. Wood dust and aluminum chips are both fire risks when they build up around a hot spindle.

Lock out the machine before you start. Unplug the power supply and discharge the stepper drivers. Do not cut the printer wiring loom; you may need those conductors later, and a cut loom makes the conversion hard to reverse.

Decide early whether the conversion is permanent. If you want to switch back to printing, design the spindle mount as a bolt-on plate that uses the existing hotend mounting holes. That keeps the printer usable and the CNC conversion reversible.

Set a hard rule about materials. Write down the materials you will allow on the machine and stick to it. The first time someone tries to cut 6 mm steel plate, the spindle stalls, the belt slips and the tool snaps.

• 1
  Enclosure and eye protectionPolycarbonate panels, safety glasses, hearing protection above 85 dB.
• 2
  Dust and chip extractionA dust shoe and a shop vacuum for wood; a chip tray for aluminum.
• 3
  Reversible mountUse existing hotend holes so the printer can go back to printing.
• 4
  Material ruleWood, foam, plastic and thin aluminum only. No steel, no titanium.

A 500 W to 800 W air-cooled spindle is the practical choice for a converted printer. It weighs 1 kg to 2 kg, runs on a small VFD and takes 6 mm or 8 mm collets. Water-cooled spindles are quieter but add a pump, a reservoir and more mass.

For tooling, start with single-flute and two-flute carbide end mills. Single-flute tools clear chips well in plastic and aluminum, and they keep cutting forces low. A 3.175 mm or 6 mm flat end mill covers most light work. Add a 30-degree V-bit for engraving and a 2 mm ball nose for 3D relief.

Workholding is where most conversions fail. Double-sided tape and clamps are fine for a first test cut, but they shift under side load. A sacrificial MDF spoilboard with threaded inserts and low-profile clamps gives you a repeatable setup.

Keep the tool overhang short. Every extra 10 mm of stick-out multiplies deflection. If a 6 mm end mill is chattering, do not slow the feed first; shorten the tool and check the collet torque.

• 1
  Spindle range500 W to 800 W air-cooled, 6 mm or 8 mm collet, 1 kg to 2 kg mass.
• 2
  Starter toolingSingle-flute and two-flute carbide end mills, 3.175 mm and 6 mm.
• 3
  Engraving and relief30-degree V-bit and a 2 mm ball nose for 3D work.
• 4
  WorkholdingSacrificial MDF spoilboard, threaded inserts, low-profile clamps.

Printer firmware runs a hotend, a heated bed and a part-cooling fan. It does not know what a spindle is. The cleanest path is a dedicated CNC controller such as a GRBL-based board, wired to the existing stepper motors.

Check the stepper current ratings first. Printer steppers are typically 1.0 A to 1.5 A per phase at 24 V. A GRBL board with TMC or DRV8825 drivers can run them, but set the current limit to match the motor rating. Too much current cooks the motor; too little causes lost steps under cutting load.

Wire limit switches on all three axes. Homing is not optional on a CNC machine because every job starts from a known zero. Use normally closed switches and shielded cable, and keep the switch wiring away from the spindle power cable.

Add a relay or a VFD control line so the controller can turn the spindle on and off. If you skip this, you will be reaching for a manual switch next to a spinning cutter, which is a bad habit.

• 1
  ControllerGRBL-based board, 24 V supply, drivers rated for the stepper current.
• 2
  Current settingMatch the driver limit to the stepper rating, usually 1.0 A to 1.5 A per phase.
• 3
  Limit switchesNormally closed, shielded cable, one per axis for homing.
• 4
  Spindle controlRelay or VFD line so the controller starts and stops the spindle.

Belt stretch is the first limit you will hit. A GT2 belt under 40 N of side load deflects enough to leave visible marks on an aluminum edge. Linear rails on all axes fix this, but by the time you buy rails, a spindle, a controller and a stiff frame, the cost approaches a small benchtop router.

Rigidity sets the second limit. The gantry on a printer is designed for vertical print loads, not the side load of a cutter. Chatter starts around 0.5 mm depth of cut in aluminum and gets worse as the tool wears.

Thermal drift is the third. Printer steppers and drivers are not built for continuous duty. After 45 minutes of cutting, the frame and the belts warm up and the zero shifts. Re-home between long jobs, or accept that the last part of a run will be off.

The last limit is the operator. Converting a printer does not teach you feeds, speeds, tool selection or workholding. Those take practice. If your parts need to fit together the first time, the learning curve is real.

• 1
  Belt deflectionVisible on aluminum edges at 40 N side load; rails fix it at a cost.
• 2
  Chatter thresholdStarts near 0.5 mm depth of cut in aluminum on a stock gantry.
• 3
  Thermal driftZero shifts after 45 minutes of continuous cutting; re-home between jobs.

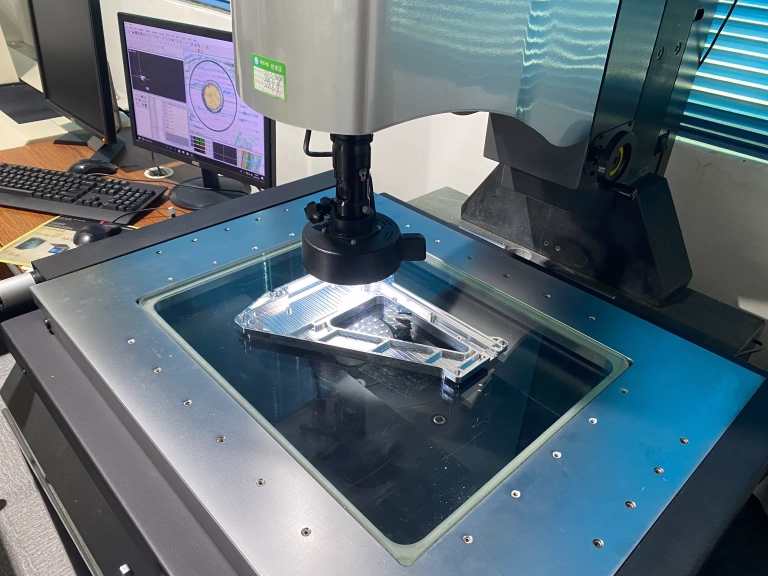

Send the job out when the material is a metal you cannot cut, when the tolerance is tighter than ±0.1 mm, or when you need more than a handful of identical parts. Those three conditions cover most real product work.

The other signal is finish. A converted printer leaves tool marks that need sanding, and sanding a complex profile by hand is slow and inconsistent. Anodizing, bead blasting and fine machining give a repeatable surface that a DIY setup cannot match.

Ordering does not have to be slow. Upload a STEP file and get a quotation with free DFM analysis within 12 hours. Production can start within 24 hours, and parts ship in 3–5 days. There is no minimum order quantity, so a single prototype is fine.

Keep the converted printer for what it does well: quick fixtures, templates, engraving and one-off soft parts. Use a machining service for the parts that carry load, seal, or fit into an assembly.

• 1
  Send it out whenHard metal, tight tolerance, more than a few identical parts, or a defined finish.
• 2
  Keep it in-house whenSoft material, loose tolerance, one-off template or engraving job.
