A CNC machine is a frame that moves a spindle along axes under computer control. When you make an Arduino CNC machine, the Arduino is the brain. It reads G-code, which is a list of coordinates and feed rates, and turns each line into electrical pulses. Those pulses go to stepper drivers, the drivers spin the motors, and the motors move the gantry or table. The cutting tool follows the path you drew in CAD.

Three axes covers most beginner work. X and Y move the tool across the work surface, and Z moves it up and down. A 3-axis router can cut profiles, pockets, and reliefs. It cannot reach undercuts or cut a part from five sides in one setup. That is what 4-axis and 5-axis machines add, and it is why a shop with 16 simultaneous 5-axis machining centers can finish a complex part in one pass.

The Arduino itself is not the limiting factor. A 16 MHz Uno can push step pulses fast enough for most hobby builds. The limits come from the frame, the spindle, and the mechanical play in the motion system. A well-tuned Arduino build with a rigid frame holds tighter tolerances than a badly tuned machine with a better controller.

Before you buy anything, decide what you want to cut. Wood, plastic, and foam need less rigidity and less spindle power. Aluminum needs a stiff frame, a 500 W to 1.5 kW spindle, and slow feed rates. Steel is out of reach for a hobby build. That single decision drives every part choice that follows.

• 1
  ControllerArduino Uno or Mega running GRBL 1.1. The Mega gives more pins for a 4th axis.
• 2
  DriversA4988 or DRV8825 for small motors; TB6600 or DM542 for NEMA 23.
• 3
  MotionBelt drive for speed, leadscrew or ballscrew for thrust and repeatability.
• 4
  Spindle500 W to 1.5 kW air-cooled or water-cooled, with a PWM or relay control line.

The electronics are the easy part. A CNC shield stacks on the Arduino and holds three or four stepper driver modules. Each module has a small potentiometer that sets motor current. Set it too low and the motor stalls mid-cut; set it too high and the driver overheats and shuts down. For a NEMA 23 motor rated at 2.8 A, start at 2.0 A and raise it only if you lose steps.

For the frame, steel box tube at 40 × 40 mm or 60 × 60 mm with 3 mm wall thickness is a good starting point for a 400 × 400 mm work area. Aluminum extrusion works for light cuts but deflects under load. The gantry is the weakest link on most DIY builds, so brace it or use two lead screws to keep it square.

Motors are rated by holding torque. NEMA 17 motors at 0.4 N·m suit small routers and 3D-printer-style builds. NEMA 23 motors at 1.2 to 3.0 N·m suit a heavier gantry and a larger spindle. More torque is not always better: a bigger motor has more rotor inertia, which limits how fast it can accelerate.

Do not skip the limit switches. They let GRBL home the machine to a repeatable zero point, which matters every time you power on. Without homing, you set zero by eye and your second part will not match the first.

Budget carefully. A rigid 400 × 400 mm build with a 1.5 kW spindle usually lands between 800 and 2,000 USD in parts. Cheap kits save money on the frame and the spindle, which are exactly the two things that decide what you can cut.

• 1
  Arduino Uno + CNC shieldThe cheapest reliable control stack; GRBL 1.1 runs on it out of the box.
• 2
  NEMA 17 or NEMA 23 steppersMatch torque to gantry mass, not to the biggest number you can find.
• 3
  24 V or 36 V power supplyHigher voltage gives better torque at speed; stay under the driver's rating.
• 4
  Limit switchesThree mechanical or inductive switches, one per axis, wired normally closed.

Cut the tube to length and drill the mounting holes on a drill press, not by hand. A hand drill wanders, and a frame that is not square will cut a parallelogram instead of a rectangle. Check the diagonals of the base with a tape measure. If the two diagonal readings differ by more than 1 mm over 400 mm, the frame is out of square.

Mount the linear rails or the V-slot wheels so the gantry travels without binding. Push the gantry by hand along its full travel. It should move with light, even resistance. A tight spot means the rails are not parallel. Loosen the mounts, let the gantry settle, and retighten.

The Z axis carries the spindle, so it sees the most vibration. Use a short, thick plate and a ballscrew or a lead screw with a 2 mm to 5 mm pitch. A fine pitch gives more thrust and better resolution but slower rapids. A 5 mm pitch on a NEMA 23 motor is a reasonable middle ground.

Bolt everything. Welding distorts thin tube, and you cannot adjust a welded frame when the rails do not line up. Use M5 or M6 bolts with washers and check the torque after the first hour of cutting.

• 1
  Check square before wiringDiagonal error over 1 mm in 400 mm will show up in every part.
• 2
  Leave adjustment slotsSlotted holes let you true the rails later without drilling new holes.

Missed steps are the most common failure. The machine loses position, and every cut after that point is shifted. Causes are driver current set too low, acceleration set too high, or mechanical binding. Raise the current in small steps, lower the acceleration in $$ settings, and check that the gantry moves freely by hand.

If the cut is the wrong size, the steps per mm value is wrong or the tool is deflecting. Check the math first, then measure a test cut. A 6 mm cutter sticking 40 mm out of the collet will bend under load. Shorten the stickout to 20 mm and the error usually drops.

Chatter and a rough finish come from a spindle that is not trammed, a loose Z plate, or a feed rate that is too high for the depth of cut. Reduce the depth of cut first. If the noise stops, you were asking the machine to remove more material than it can handle.

GRBL not responding is almost always a USB or baud rate problem. Confirm the port in the device manager, set the baud rate to 115200, and close any other program that is holding the port open. Reflash GRBL if the board does not appear at all.

• 1
  Lost positionRaise driver current, lower acceleration, check for binding.
• 2
  Wrong dimensionsRecalculate steps per mm, shorten tool stickout.
• 3
  Rough finishTram the spindle, tighten the Z plate, reduce depth of cut.

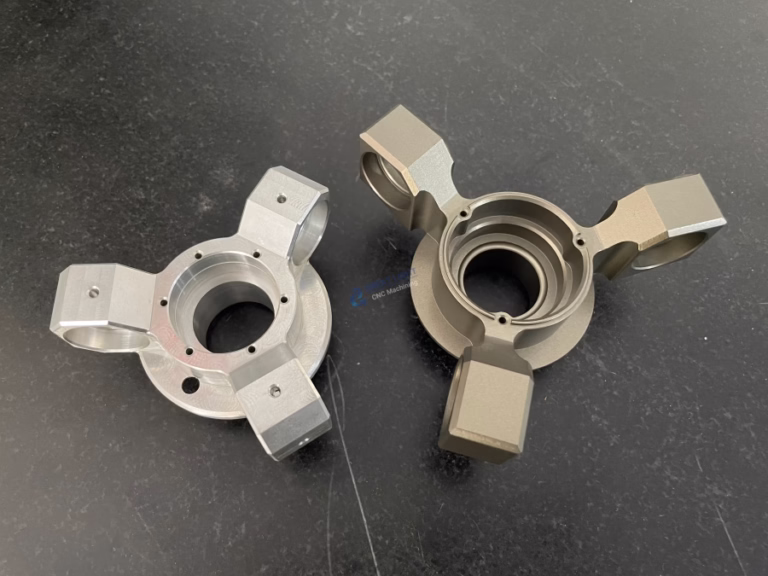

A DIY machine is a good learning tool and a poor production tool. If the part must meet a drawing with a tolerance callout, a shop with the right machine will usually be faster and cheaper once you count your own time. A 5-axis mill holds ±0.005 mm and can cut five sides in one setup, which removes the re-fixturing errors that a 3-axis build cannot avoid.

Material matters too. Aluminum 6061 and brass cut well on a hobby router. Stainless 316, 17-4PH, and titanium TC4 do not. They work-harden, need coolant, and demand a rigid machine with enough spindle torque to keep the tool engaged. A hobby build will burn tooling on those alloys.

Volume is the second trigger. Cutting one bracket on a hobby machine is fine. Cutting 200 brackets with the same tolerance is not. The setup repeats, the tool wears, and the parts drift. A production run with in-process monitoring and 100% inspection before shipment removes that risk.

The middle path works well. Build the machine, use it for fixtures, prototypes, and one-off shapes, and send the parts that need a tolerance callout to a machining service. Upload the CAD file and ask for a DFM review. You will usually learn which features were driving the cost.

• 1
  Tolerance callout on the drawingSend it out; a hobby build cannot hold ±0.01 mm reliably.
• 2
  Steel, titanium, or InconelThese need a rigid machine, coolant, and the right tooling.
• 3
  More than 20 identical partsSetup and tool wear make a production run cheaper per part.
