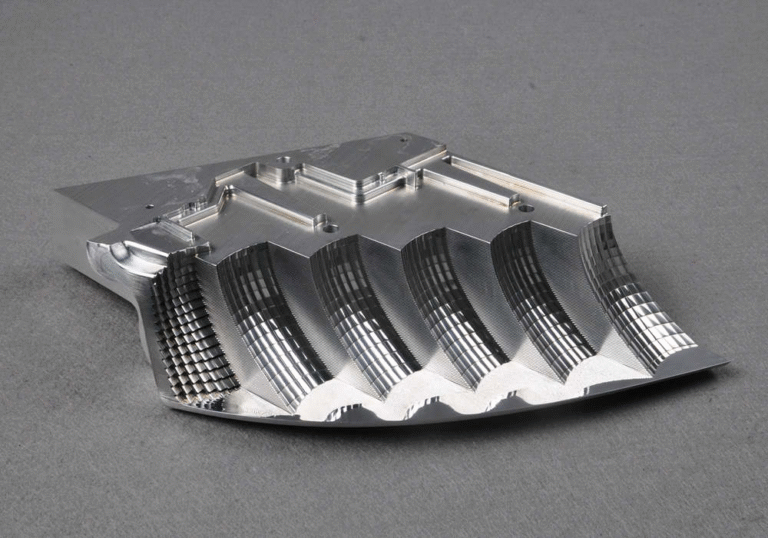

How to Optimize Aluminum Treatment Technology on CNC Parts

• 1
  Key takeaways
• 2
  Optimize aluminum treatment technology: tool geometry and coating
• 3
  Cutting parameters: start from chip load, not spindle speed
• 4
  Coolant delivery: where flood hurts more than it helps
• 5
  Fixturing and stress control on thin aluminum parts
• 6
  In-process checks that keep the run inside tolerance
• 7
  Step by step: optimize aluminum treatment technology on a new part
• 8
  Which aluminum grade and treatment path fits the part

Aluminum cuts easily, so most shops stop thinking about the cutter. That is where the waste starts. A polished 3-flute end mill with a 12–15° helix clears chips out of the slot before they can be recut. Two-flute tools work only when chip room is generous, such as wide face milling or deep open pockets.

Coating is a smaller lever than most catalogs suggest. Uncoated polished carbide handles 6061-T6 and 6063 well because aluminum does not react with the binder at normal temperatures. For 7075, ADC12, and high-silicon die-cast stock, a ZrN or DLC coating reduces built-up edge and keeps the edge sharp through long runs.

Watch the helix angle on thin-floor parts. A high helix pulls the part upward during the cut. On a 2 mm floor, that force is enough to spring the material and leave a taper. Switch to a lower helix or reduce axial depth before you touch the feed rate.

Hone the cutting edge radius. A 5–10 μm edge radius on a finishing tool cuts cleaner than a razor edge in gummy 5052 or 5083. A razor edge grabs the material and tears it, which shows up as a rough Ra reading after anodizing.

Set the chip load first, then calculate rpm. For a 10 mm 3-flute carbide cutter in 6061-T6, a chip load of 0.08–0.12 mm per tooth is a safe working range. Multiply by teeth and rpm to get feed. If the machine cannot reach that rpm, reduce the chip load instead of forcing the feed.

Cutting speed for aluminum sits between 300 and 600 m/min with carbide, and higher with PCD inserts on high-volume work. The upper end only holds if chip evacuation is reliable. Poor evacuation at 600 m/min turns into recutting, and recutting turns into a built-up edge.

Radial stepover drives tool life more than speed does. On roughing, keep radial engagement at 30–50% of cutter diameter with an axial depth of 1×D. On finishing, drop to 5–8% radial engagement for wall accuracy. High-efficiency paths use a light radial load and a full axial depth, which spreads wear along the flute.

Ramp into the cut instead of plunging. A 2–3° ramp angle lowers the entry shock and prevents the corner chipping that shows up on the first part of a 500-piece run. Plunge milling is fine for rough pockets when the tool is smaller than the pocket corner.

Aluminum conducts heat away fast, so the cutting zone rarely needs the volume of coolant that steel does. On roughing passes with a large axial depth, high-pressure air through the spindle clears chips and removes most of the heat. Adding flood coolant to that pass often just creates a wet chip pile that the tool recuts.

Switch to flood or minimum quantity lubrication for the finishing pass. At a 0.2 mm finishing allowance, thermal growth on the part is what breaks the tolerance. A steady flow keeps the part at a stable temperature through the pass, and MQL gives the same result with far less cleanup.

Control the concentration if you run a wet sump. A 6–8% concentration with a pH between 8.5 and 9.5 keeps aluminum from staining and stops the tramp oil from building a film on the part. Below 5%, you start seeing white spots on 6061 after a weekend in the machine.

Filter the swarf before it reaches the pump. Aluminum fines are light and float, so a simple skimmer and a 50 μm bag filter remove most of them. A pump full of fines changes the flow rate, which changes the cooling, which changes the dimension on the last hundred parts.

Aluminum moves when you remove material. A 6061-T6 block that starts at 25 mm and finishes at 4 mm will bow if you cut both faces in one setup without a stress-relief step. Rough to within 0.5 mm of final size, release the clamps, let the part sit for 30–60 minutes, then finish.

Vacuum fixturing beats vise jaws on thin plates. A 6 mm plate clamped in a vise at 2,000 N bows between the jaws, and the floor thickness varies across the part. A vacuum table with a 0.5 mm gasket groove holds the plate flat and lets you cut through without a support web.

Torque matters more than clamp force. On a 4 mm wall, clamping above 8 N·m distorts the part before the cutter touches it. Use a torque wrench on the vise and write the value on the setup sheet. The next operator needs to repeat it, not guess it.

For five-sided work, leave 3–5 mm of stock on the sacrificial face. A dovetail fixture or a low-profile clamp set holds the part rigid while the top and sides are cut. The remaining stock comes off in the last operation, after the part has stopped moving.

Check the first part fully, then sample at a fixed interval. For a run with a ±0.005 mm tolerance on a bore, measure every 20th part with a bore gauge that reads to 0.001 mm. Calipers are fine for reference dimensions but not for a tolerance that tight.

Track the tool wear, not just the parts. A 10 mm carbide cutter in 6061 loses roughly 0.02–0.03 mm of diameter over 100 pockets at a 30% radial stepover. If the bore drifts, the tool is usually the cause, not the program. Log the offset change with the part count.

Keep the part and the gauge at the same temperature. A part straight off the machine at 35 °C will measure smaller than it is at 20 °C. For a 100 mm aluminum feature, that difference is about 0.035 mm, which is larger than the tolerance on many jobs.

Record the surface finish on the setup sheet. Ra 0.8–1.6 μm covers most anodized cosmetic parts. If the finish drifts past 1.6 μm, check the chip load and the coolant before you change the tool. A dull tool and a light chip load look the same on the part but need different fixes.
