How to Properly Choose the Tooling Method for Milling
Tool path strategy decides cycle time, tool life and surface finish more than spindle speed does. This guide shows engineers and CAM programmers how to choose the tooling method for milling a given cavity, boss or face, with the parameters and checks that keep a run stable.
Key takeaways
What the tooling method actually controls
The tooling method is the trajectory the cutter center follows as it removes material. It is not the same as the cutting parameters. Two programs can run the same tool, the same spindle speed and the same feed per tooth, yet one finishes the pocket in 9 minutes and the other in 21 minutes. The difference is how the cutter enters, sweeps and exits.
Three things change with the path: the radial engagement of the cutter, the number of rapid moves, and the direction of the cutting force against the wall. Radial engagement drives tool load and heat. Rapid moves drive cycle time. Force direction drives wall deflection on thin ribs. When you choose the tooling method for milling, you are really choosing which of those three you are willing to trade.
A path that keeps engagement steady lets you raise feed per tooth without chatter. A path that keeps the cutter moving in one direction gives a more uniform finish. A path that minimizes lifts shortens the cycle. No single strategy wins on all three, which is why the choice depends on the part, not on a default setting in the CAM library.
Start from the part geometry, then the stock condition, then the tolerance and finish callout. The order matters. Engineers who pick the strategy first usually end up re-cutting pockets or hand-polishing walls that the path could have finished.
Read the geometry before you pick a path

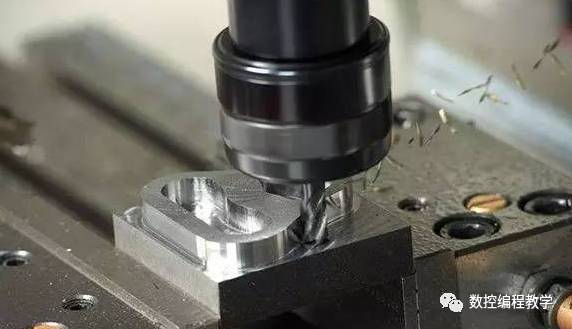

Measure the depth-to-width ratio of every pocket and slot. A pocket 40 mm wide and 12 mm deep behaves differently from one 40 mm wide and 90 mm deep. Shallow pockets allow a large stepover and a short cutter. Deep pockets force a long, slender cutter, and slender cutters deflect, so the path has to keep radial engagement low.
Look at the islands. An island in the middle of a cavity splits one continuous sweep into a set of closed loops. That single feature often decides whether a simple zigzag is workable or whether you need contour-following passes around each island. Count the islands and note their corner radii before opening the CAM operation.
Check the corner radii. A cutter must be smaller than the smallest internal corner radius if the corner is to be cut to size. If the drawing calls R3 corners, a Ø8 mm cutter cannot produce them; you either use a smaller tool or leave the corner for a separate operation. This check alone removes several strategies from the list.
Note any thin walls or floors. Below about 2 mm wall thickness in aluminum, the cutting force pushes the wall away from the cutter, and the finished dimension comes out oversize. Here a path with lower radial engagement and a climb direction against the wall is the safer choice.
Match the path to stock condition and material

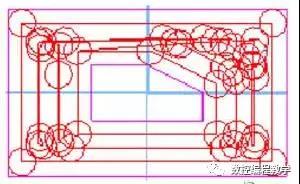

A casting or forging already has the near-net shape, so the stock is uneven. A constant-engagement path struggles here because the cutter meets different amounts of material around the part. For castings, a contour-parallel path that follows the finished wall and takes a light, even cut works better than a zigzag that plows through the high spots.
A solid block removes a large, uniform volume. That is where a zigzag or trochoidal path pays off, because the load per pass can be predicted and the feed can be pushed. On 6061-T6, a trochoidal roughing pass with 8–10% radial engagement and full axial depth is a common starting point; on 17-4PH stainless, drop the radial engagement and expect the tool to work harder.
Material hardness shifts the balance. Aluminum tolerates aggressive paths and high feed per tooth. Titanium and Inconel do not. In Ti-6Al-4V, heat stays in the cut zone, so the path should avoid dwelling in a corner and should keep the cutter moving to spread the heat. A path with many short reversals at the same spot will burn the tool edge.
Plastics behave differently again. POM and ABS cut cleanly but melt if the cutter rubs. A path that keeps a steady chip load and avoids a zero-feed dwell at direction changes gives a cleaner edge than a path optimized purely for cycle time.
Set the path from the tolerance and finish callout
If the drawing calls ±0.05 mm, a roughing pass plus a single finishing pass is usually enough, and the finishing path just needs to leave an even allowance. If the callout is ±0.005 mm, the wall needs a light finishing pass at a fixed radial engagement, typically 0.2–0.5 mm, so that cutter deflection is the same from the top of the wall to the bottom.
Finish callouts drive the stepover. To reach Ra 0.8–1.6 μm on aluminum, a stepover around 5–8% of the cutter diameter with a sharp, coated tool is a realistic starting range. To reach Ra 0.2–0.8 μm, the same stepover needs a finer feed per tooth and a tool with a wiper or a polished edge, and the path should avoid any reversal that leaves a witness mark.
Direction matters for appearance. A single-direction finish path gives a uniform lay pattern across the surface. A back-and-forth path gives a herringbone pattern that is visible after anodizing. If the part is a visible cover or a housing face, pick the path that keeps the lay in one direction even if the cycle is slightly longer.
On toleranced bores and bosses, leave the final pass for a separate operation. Cutting a bore to size in the same path that removed the bulk of the material mixes roughing deflection into the finishing cut.
Step by step: choosing the path in CAM
Run these checks in order. Each one can remove a strategy from the list before you spend time on simulation.
- 1Measure depth-to-width on every pocketNote the ratio. Below 1:1 a short cutter and a wide stepover work. Above 3:1 switch to a smaller cutter with reduced radial engagement, 5–8% of diameter, and expect two roughing stages.
- 2List corner radii and islandsCompare the smallest internal corner radius with your cutter radius. If the cutter is larger, the corner needs a separate smaller tool or a corner-relief pass. Count islands to see whether contour-following passes are required.
- 3Pick roughing strategy from stock typeSolid block: zigzag or trochoidal, 8–10% radial engagement in aluminum, full axial depth. Casting or forging: contour-parallel with a light, even cut. Avoid constant-engagement paths on uneven stock.
- 4Set stepover from the finish calloutRa 1.6–3.2 μm: 10–12% of diameter. Ra 0.8–1.6 μm: 5–8%. Ra 0.2–0.8 μm: 3–5% with a wiper or polished tool. Keep the same stepover along the whole wall.
- 5Choose the entry methodUse a helical or ramp entry for closed pockets, at 2–3° for hard materials and up to 5° for aluminum. Never plunge straight into a solid floor unless the tool is a center-cutting design and the depth is under 0.5 mm.
- 6Decide climb or conventionalClimb milling is the default for finishing on CNC machines with low backlash. Use conventional direction only where the machine has significant backlash or where the wall finish test shows it is better.
- 7Check thin walls and floorsUnder 2 mm wall thickness in aluminum, lower radial engagement to 3–5% and finish with a spring pass. Measure after the first part before running the batch.
- 8Simulate, then cut one pocketRun the full simulation for gouges and rapid collisions, then cut a single cavity in scrap or on the first part. Compare cycle time and wall finish against the plan before releasing the program.
Which path for which part
Use this as a starting point, not a rule. The right column is where each strategy stops working.
| Tool path | Best for | Typical stepover | Where it fails |
|---|---|---|---|

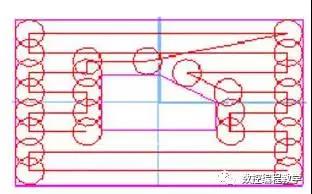

| Zigzag (line cutting) | Shallow open pockets, facing, large stock removal | 40–70% of diameter | Deep cavities with islands; many lifts |
| Contour-parallel | Castings, forgings, walls, near-net stock | 20–50% of diameter | Long thin pockets; high corner load |
| Trochoidal | Deep slots, hard materials, full-depth roughing | 8–10% of diameter | Shallow pockets; wasted motion |
| Plunge roughing | Deep cavities, long-reach tools, hard alloys | 10–30% of diameter | Soft materials; poor floor finish |
| Constant engagement | Hardened steel, titanium, Inconel | 5–8% of diameter | Uneven stock; complex CAM setup |
| Single-direction finish | Visible faces, anodized parts | 5–8% of diameter | Long cycle time on large faces |
Pick the path from geometry, not from the CAM default
Read the depth-to-width ratio, the smallest corner radius and the finish callout first. Those three checks will point you to one or two workable strategies, and the cycle time and tool life follow from there.
Common questions
Is trochoidal milling always faster than a standard zigzag?
No. Trochoidal paths keep a low radial engagement so the feed per tooth can go up, which helps in deep slots and hard materials where a full-width cut would break the tool.
In shallow pockets, the extra path length and the many direction changes cost more time than the higher feed saves. For a pocket under about one diameter deep in aluminum, a standard zigzag with a wide stepover is usually the faster choice.
How do I know if my cutter is too large for the corners?
Compare the cutter radius with the smallest internal corner radius on the drawing. If the cutter radius is larger, the corner will be left with an uncut radius larger than the callout.
You can either switch to a smaller cutter for the corner area or add a separate corner pass. Checking this before the program is released avoids a re-cut on the finished part.
Does climb milling always give a better finish?
On a machine with low backlash, climb milling usually gives a cleaner wall and longer tool life because the cutter starts the cut at the thickest part of the chip and the force pushes the work into the table.
On an older machine with noticeable backlash, climb milling can pull the table into the cut and leave marks. Test both directions on the first part and measure the wall.
What stepover should I use for a Ra 0.8 μm finish?
A stepover around 5–8% of the cutter diameter is a realistic starting range for aluminum, with a sharp coated tool and a moderate feed per tooth.
The exact value depends on the cutter geometry, the machine and the material. Cut one test wall, measure the finish, then adjust the stepover in small steps rather than changing several parameters at once.
Why does my deep pocket chatter even with a light stepover?
Deep pockets force a long tool, and a long tool bends. The deflection is largest at the bottom of the pocket where the tool has the least support.
Reduce the axial depth of cut, shorten the tool as much as the holder allows, and use a path with a steady radial engagement so the load does not spike at direction changes.
Should roughing and finishing use the same tool?
Usually not. Roughing removes volume and wants a sturdy tool with a strong edge. Finishing controls the wall and the finish and wants a sharp tool with a controlled radius.
Mixing both in one tool path carries roughing deflection into the finishing cut. Separate the operations and leave a small, even allowance for the finishing pass.
