Treatment Method of the Composite Car Treatment Center and Milling

• 1
  Key takeaways
• 2
  What the composite car treatment center and milling method actually does
• 3
  Reading the drawing before you choose the method
• 4
  Datum strategy and workholding for one-setup work
• 5
  Tool selection and cutting parameters that hold up
• 6
  In-process checks and where the method goes wrong
• 7
  Step by step: running a mill-turn part
• 8
  Mill-turn versus split routing

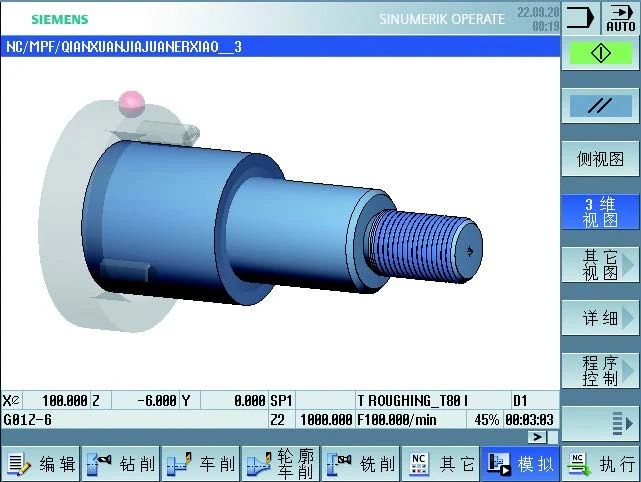

A composite car treatment center and milling machine holds a part in one workholding system and then performs both rotary and prismatic cuts on it. On our 16 mill-turn centers the part stays clamped while the B-axis head or the rotary table reorients it. That is the whole idea. Fewer setups mean fewer datum transfers, and each datum transfer is where tolerance stacks up.

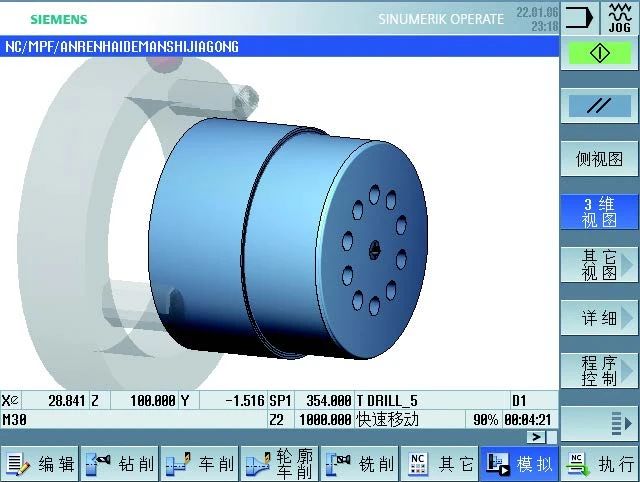

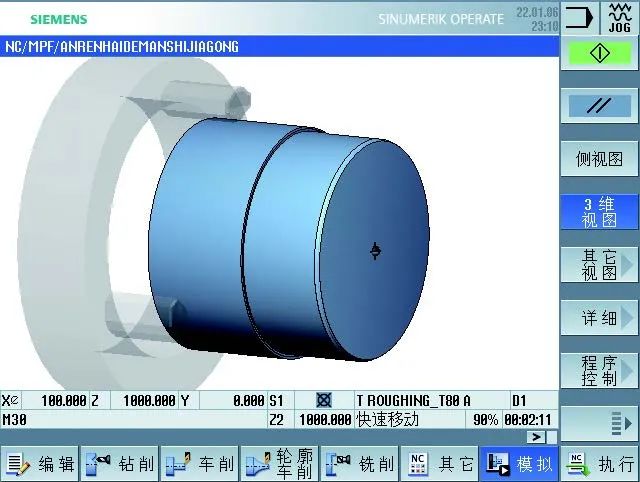

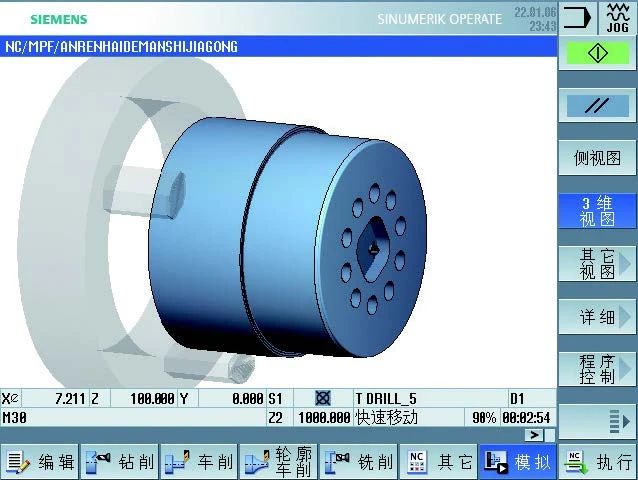

The method is not just a lathe with a live tool. A true mill-turn platform indexes the C-axis to a fraction of a degree and can hold the part while a milling spindle cuts flats, slots, ports, and bolt circles. On a Ø400 mm rotary table we routinely position to ±0.005 mm on hole locations after a single chucking.

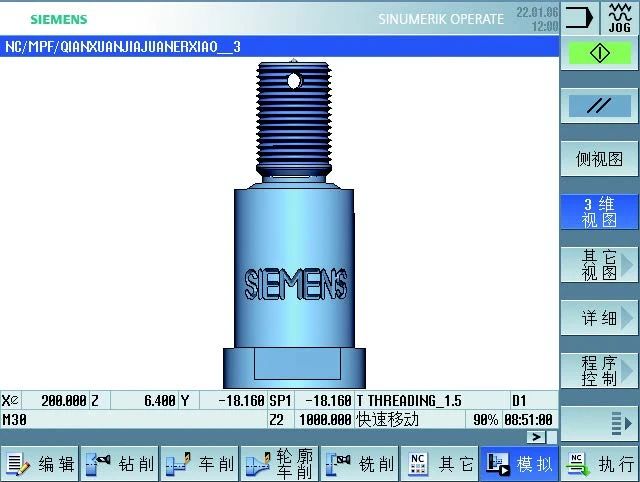

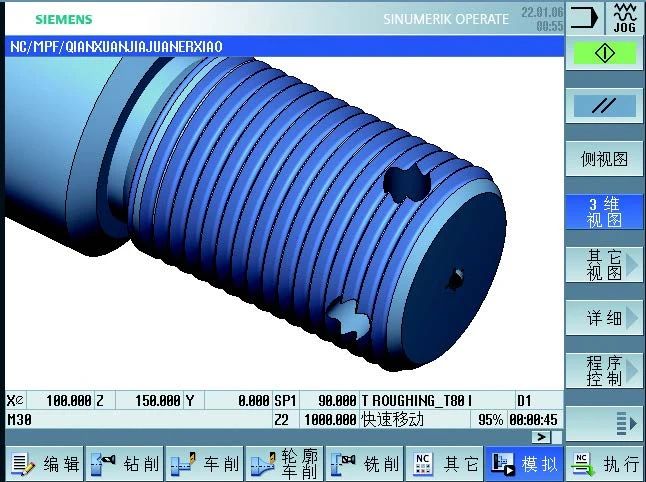

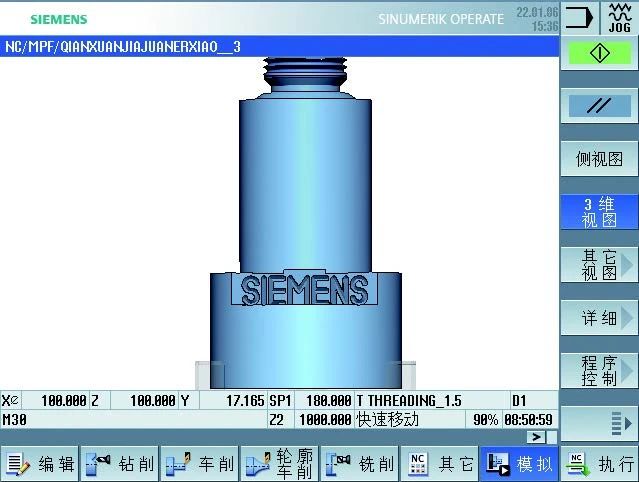

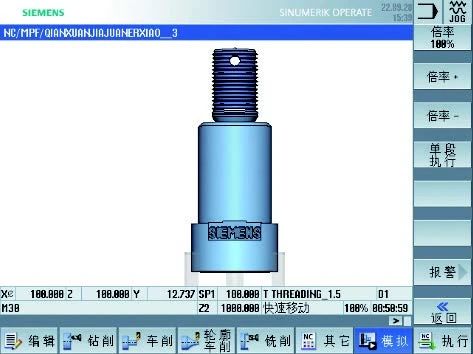

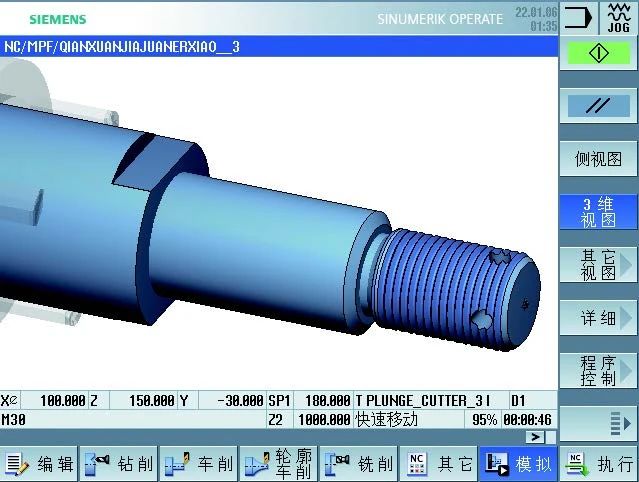

Composite here does not mean carbon fibre. It means combined turning and milling operations on one machine. In automotive work this covers transmission housings, brake caliper bodies, sensor bosses, and pump covers. If a part has a turned outer diameter plus milled features that must stay concentric, this is the process to consider first.

The trade-off is programming time. A mill-turn program is longer and the setup is less forgiving than a two-machine route. When the part is simple, splitting the work between a lathe and a mill is cheaper and faster. The method earns its keep when concentricity or angular position between turned and milled features is the hard requirement.

Start with the feature list, not the machine list. Mark every surface that is turned, every surface that is milled, and every relationship between the two groups. A bore that must sit square to a milled face is a mill-turn feature. A bore that only needs to be round is a lathe feature.

Look at the wall thickness next. Below 2 mm the part will deflect under jaw pressure, and no amount of spindle accuracy fixes that. We plan a soft jaw bored to the finished diameter, or we leave a sacrificial web that comes off in the last operation.

Tolerance direction matters as much as tolerance value. If the drawing calls ±0.005 mm on a bore diameter and ±0.05 mm on a bolt circle, the bore drives the method, not the pattern. Spending mill-turn time on a loose pattern is wasted cycle time.

Finally, check the material. Aluminium 6061 and 7075 cut freely at 8,000–12,000 rpm and reward a single-setup route. Stainless 316 and 17-4PH work-harden, so keep the milling passes light and never let the tool dwell in the cut. Titanium TC4 needs slower surface speeds and more coolant, and it will show any weakness in the fixture.

Pick the datum that survives the whole cycle. On a mill-turn part that is usually the turned outer diameter, gripped in bored soft jaws. The jaws are cut in place on the machine so they match the spindle centreline rather than a bench measurement.

For a second operation on the opposite face, do not re-chuck on the finished diameter with hard jaws. Use a collet or a pie jaw set, and mark the jaw position on the part so the angular orientation is repeatable. If the part has a milled flat that sets orientation, clock it with an indicator before clamping.

Chuck pressure is the variable most people ignore. On a thin-wall aluminium housing, dropping from 2.0 MPa to 0.8 MPa can move the finished roundness by 0.03 mm. We run a test cut, measure with a bore gauge, then adjust pressure and jaw contact area before the production run.

When the part is long, support it. A tailstock or a steady rest stops the taper that appears when a 4,000 mm maximum processing size part hangs out of the jaws. For parts under 500 mm long, a tailstock centre is usually enough.

Turning tools stay conventional: coated carbide inserts, positive rake for aluminium, tougher grades for stainless and titanium. Keep the turning insert for turning. Using a turning tool to face a milled pocket is how corners chip.

Milling tools need the shortest possible gauge length. A 12 mm end mill with 40 mm of stick-out deflects far less than the same tool with 80 mm. In a mill-turn spindle the tool is often held in a Capto or HSK holder, and the holder itself is usually the stiffest part of the chain.

For aluminium, run 8,000–12,000 rpm, 0.05–0.15 mm per tooth, and 6–10 mm depth of cut with a 12 mm tool. For 316 stainless, drop to 1,200–2,000 rpm and 0.03–0.06 mm per tooth, and keep the radial engagement below 30% of the tool diameter. For TC4, cut surface speed to 40–60 m/min and flood the cut.

Coolant strategy matters more in mill-turn than in either process alone. Through-spindle coolant clears chips from deep bores, and high-pressure coolant breaks the stringy chips that stainless produces. Dry cutting stainless in a mill-turn cycle is asking for a built-up edge and a scrapped bore.

Measure between operations, not only at the end. After the rough turn, check the stock left for finishing. After the milling passes, check the wall thickness at three points around the circumference. Thermal growth from a long milling cycle can close a bore by 0.01–0.02 mm, and it relaxes after the part cools.

The most common failure is finishing the turned diameter before the milling passes. Milling vibration and clamping loads then distort the finished surface, and the bore goes out of round. Finish turning last, after all interrupted cuts are done.

The second common failure is chip recutting inside a pocket. If the chips cannot exit, the tool rubs and the surface finish drops from Ra 0.8–1.6 μm to something visibly torn. Program a chip-break dwell or an air blast, and check the first part before releasing the cycle.

Third, watch the angular position of milled features after the part is re-chucked. A 0.5° indexing error on a Ø300 mm bolt circle moves the holes 2.6 mm off position. That is a fixture problem, not a machine problem.
