How to reduce the sword during CNC treatment

The "sword" is the slender tool or thin wall that starts ringing in the cut. This page shows how to reduce the sword during CNC treatment with concrete numbers, from holder selection to spindle speed. Written for machinists, process engineers and buyers who need parts that measure right the first time.

±0.005 mm16 five-axis centersRa 0.8–1.6 μm12-hour quote
How to reduce the sword during CNC treatment on an aerospace part
Quick answers

Key takeaways

Stiffness beats speedA short, thick tool in a shrink-fit holder removes most ringing before you touch the feed rates.
L/D 4 is the lineAbove 4× diameter overhang, expect to slow down, step down and change strategy.
Thin walls flex tooA 2 mm wall on a 100 mm pocket needs support, not just a different toolpath.
Measure the chatter markPitch of the marks tells you whether the problem is spindle speed or holder runout.
Fix the cheapest item firstHolder and stickout changes cost minutes; machine or fixture changes cost hours.
What the sword is

What the sword is during CNC treatment

Machinists use "sword" for the part or tool that behaves like a long blade: slender, overhung and happy to vibrate. It shows up as a ringing sound, a rippled floor on a pocket, or a taper on a bored hole. The cut is not failing because the machine is weak. It is failing because the loop between tool, holder, workpiece and fixture is too flexible at the frequency the cutter is exciting.

The first job is to find which side of that loop is soft. Touch the tool tip with a thumb and push gently while the spindle is stopped. Then push on the workpiece in the same direction. Whichever side moves visibly is your sword. That single test saves an hour of guessing.

Chatter amplitude depends on stiffness and on damping. Stiffness comes from geometry: diameter, overhang, fixture contact. Damping comes from material and interfaces: cast iron vs steel, shrink fit vs set screw, rubber-mounted vises vs bolted plates. You can rarely double the damping, but you can often double the stiffness with a holder swap. So start there.

Frequency matters too. A 12 mm carbide end mill at 3× diameter overhang might ring at 4,000–6,000 Hz. A thin wall on a large housing might ring at 700–1,500 Hz. The fix is different for each. High-frequency ringing usually comes from the tool; low-frequency ringing usually comes from the part or the fixture.

Tool and holder

Cut the overhang before you cut the feed

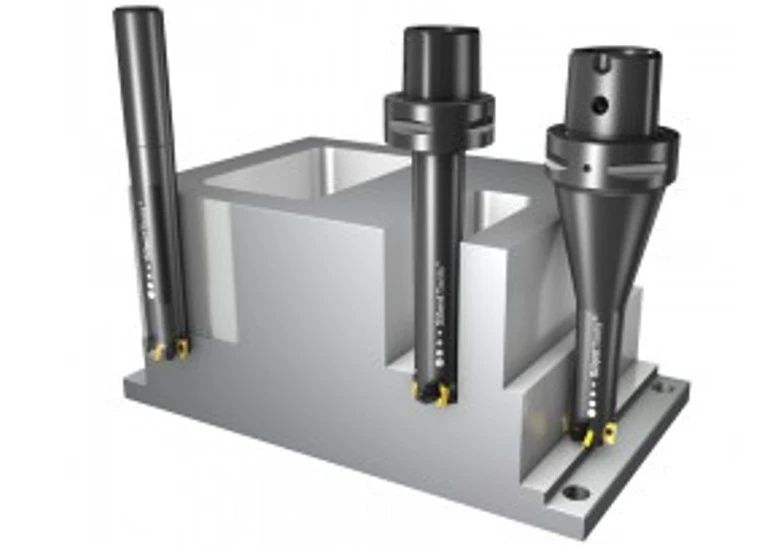

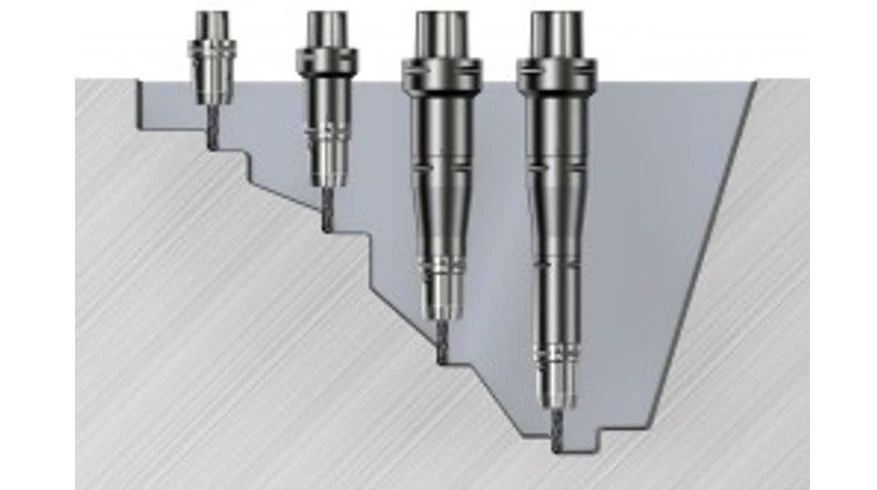

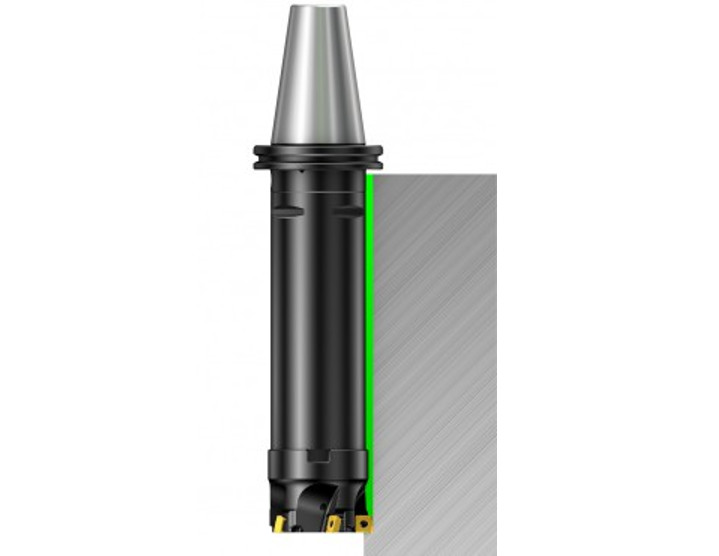

Tool overhang is the single biggest lever. Stiffness falls roughly with the cube of the length-to-diameter ratio. Going from 4×D to 3×D overhang can raise stiffness by more than 2×. On a Ø10 mm end mill that means pulling the tool from 50 mm gage length back to 35 mm, and if the geometry allows, back to 30 mm.

Holder type matters as much as length. A hydraulic or shrink-fit holder grips the full shank and adds damping at the interface. A side-lock holder with a set screw contacts maybe 30% of the shank and adds an unbalanced mass. For finishing passes under Ra 1.6 μm, use shrink fit or hydraulic; save collets for roughing where runout of 0.02 mm is acceptable.

Check runout with a dial indicator on the flutes, not on the shank. TIR above 0.01 mm at the tip will load one flute harder and start a chatter mode. We keep shrink-fit holders in the tool crib for exactly this reason; re-gripping a tool in a new holder takes two minutes and often removes the ringing outright.

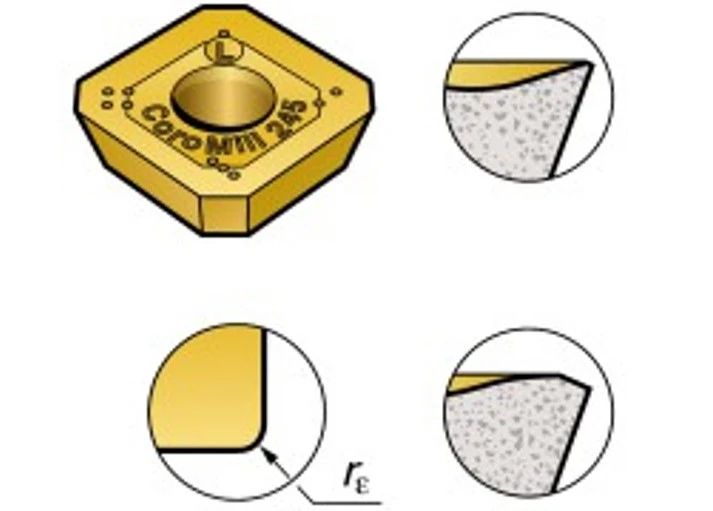

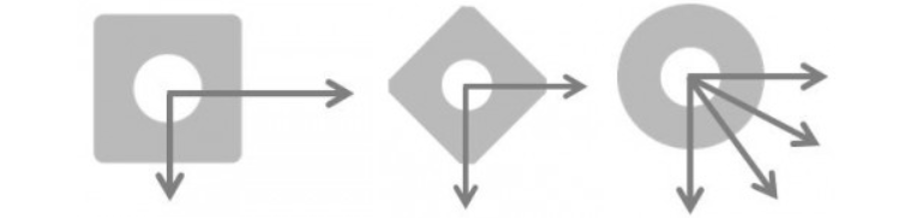

Tool geometry is the last tool-side variable. Variable helix and uneven index end mills spread the cutting force across a wider frequency band and push the stability limit higher. On 6061 and 7075 aluminium, a 3-flute variable-helix cutter at 8,000–12,000 rpm with 0.05–0.08 mm per tooth usually runs clean where a standard 2-flute does not.

Cutting parameters

Set speed, feed and radial engagement for stability

Stability lobes are real, but you do not need a tap test to use them. The practical rule: if chatter starts, change spindle speed by 10–15% in one direction before touching feed. Chatter is a resonance, and moving off the peak often costs less cycle time than halving the feed. On a 12 mm cutter ringing at 6,000 rpm, try 5,200 or 6,900 rpm.

Radial engagement drives the force. Reducing radial depth of cut (ae) from 50% to 25% of diameter roughly halves the cutting force and usually moves you into a stable zone. Increase feed per tooth to keep the chip load and the cycle time sensible. A typical move on 304 stainless: 0.06 mm/tooth at 50% ae becomes 0.09 mm/tooth at 25% ae.

Axial depth of cut (ap) behaves differently. For long-overhang tools, keep ap below 1×D and take more passes. A 4×D cutter at 0.5×D ap with 30% ae often runs quiet where 2×D ap chatters, even at the same metal removal rate. This is the classic high-feed, low-engagement trade for slender tools.

Coolant plays a small but real role. Through-spindle coolant at 40–70 bar clears chips from deep pockets and stops recutting, which is a common trigger for intermittent chatter. On titanium and Inconel, flood coolant alone often leaves chips in the cut and produces a rough, singing finish.

Workholding

Support the part, not just the clamp

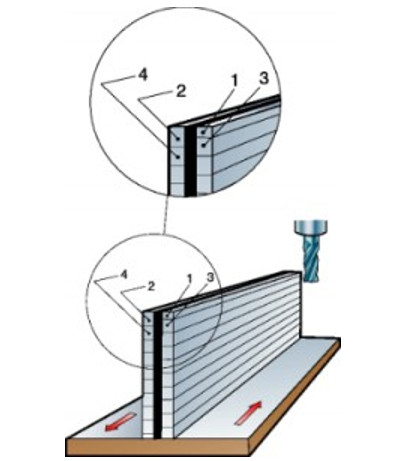

If the part moves, no tool change will help. Thin-wall housings and long shafts ring because the wall or the free end has nothing behind it. Add support at the point of cut: a jack screw under the floor of a pocket, a tailstock on a shaft, or a tuned mass clamped near the thin wall. Support within 20 mm of the cut is worth more than any fixture upgrade elsewhere.

Clamping force is a trade-off. Too little and the part lifts; too much and you distort a thin wall before the cutter arrives, so the finished wall springs back out of tolerance. For a 2 mm aluminium wall, clamp with a torque wrench and record the value that keeps the part down without marking it. Repeat that value on every part.

Fixture material and mass matter. Cast iron plates absorb vibration better than aluminium plates of the same size. A 25 mm cast iron sub-plate under a ringing pocket often removes the problem without touching the program. Bolting the plate to the table at four points, not two, also raises the stiffness of the whole loop.

For long parts, support both ends and the middle. A 4,000 mm shaft on centers will sag and sing in the middle. A steady rest or a second support block at mid-span typically drops the amplitude by 60–80% and lets you keep a normal feed.

Program and strategy

Change the toolpath before changing the machine

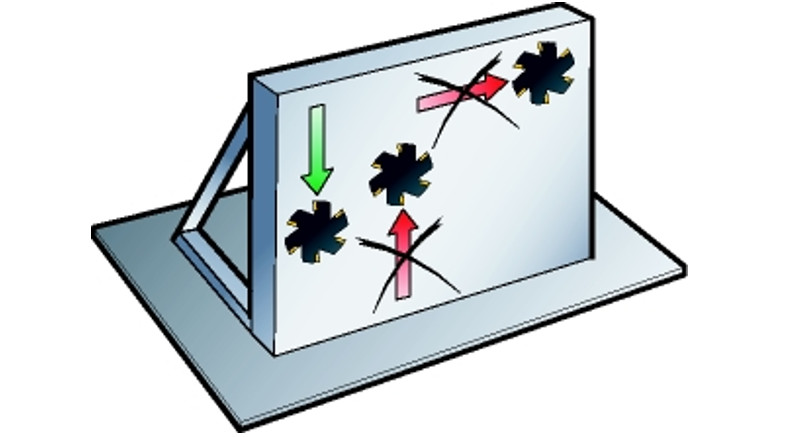

Toolpath strategy changes the force direction and the engagement angle. Trochoidal milling keeps a constant radial engagement and a constant chip load, which avoids the sudden full-width cuts that trigger chatter. On a deep slot in 4140 steel, trochoidal at 8% ae and 0.10 mm/tooth often runs at 2× the feed of a conventional ramp.

Climb milling is the default for finishing on CNC machines with backlash-free ballscrews. It puts the chip load on the thick part of the tooth and pulls the tool away from the wall, which reduces rubbing. Conventional milling on a slender tool will rub and sing, especially on stainless where work hardening follows the rub.

Entry and exit matter more than most people expect. Helical entry at 2–3° ramp angle, or a pre-drilled entry hole, avoids the full-width bite that starts the ringing. On exit, a small corner radius or a lead-out arc prevents the sudden force drop that leaves a mark on the wall.

Finally, split roughing and finishing. A roughing pass with a stiff, short tool removes most of the material; a finishing pass with a long, slender tool takes only 0.2–0.4 mm radial. That keeps the sword tool in light, stable cuts and the heavy cuts on a tool that can take them.

Follow in order

Step by step: reduce the sword during CNC treatment

  • 1
    1. Identify the flexible sideSpindle stopped. Push the tool tip and the part with light thumb pressure. Whichever deflects visibly is the problem side. Record the direction.
  • 2
    2. Shorten the tool overhangPull the cutter back to 3×D or less if geometry allows. Re-grip in a shrink-fit or hydraulic holder. Check TIR at the flutes; keep it under 0.01 mm.
  • 3
    3. Move spindle speed off the peakChange speed by 10–15% in one direction. On a ringing 12 mm cutter at 6,000 rpm, try 5,200 or 6,900 rpm. Listen and check the floor finish.
  • 4
    4. Cut radial engagement, raise feedDrop ae from 50% to 25% of diameter and raise feed per tooth about 50%. On 304 stainless, 0.06 mm/tooth becomes 0.09 mm/tooth.
  • 5
    5. Cap axial depth for slender toolsKeep ap under 1×D and take more passes. A 4×D cutter at 0.5×D ap usually runs quiet where 2×D ap chatters.
  • 6
    6. Add support near the cutJack screw, steady rest, tailstock or tuned mass within 20 mm of the cutting zone. Support both ends and the middle on parts over 1,000 mm.
  • 7
    7. Switch to trochoidal or high-feed pathsConstant engagement at 8–10% ae with helical entry at 2–3°. Splits roughing and finishing onto different tools.
  • 8
    8. Verify with a cut and a measurementRun one pass, measure wall thickness and surface finish. If Ra is still above target, go back to step 2 before touching the program again.
Choose by symptom

Which fix fits which chatter symptom

Match the symptom in column 1 to the cheapest effective fix.

SymptomMost likely causeFirst fix
High-pitched ring, fine marksTool overhang or holder runoutShorten overhang, use shrink fit
Low rumble, deep marksPart or fixture flexAdd support within 20 mm of cut
Chatter only on entryFull-width biteHelical entry at 2–3°
Chatter on one wall onlyClimb vs conventional directionSwitch to climb milling
Taper in a bored holeLong boring bar, low stiffnessReduce L/D, add damping bar
Rough finish on stainlessRubbing and work hardeningRaise feed per tooth, climb mill
Chatter at one spindle speedResonance lobeShift speed 10–15%
Chips recut in deep pocketPoor chip evacuationThrough-spindle coolant 40–70 bar

Fix stiffness first, parameters second

If you only change one thing, shorten the tool overhang and re-check runout. That single move removes most sword chatter before any parameter change is needed.

FAQs

Questions engineers ask about the sword

Can I reduce the sword during CNC treatment without buying new tools?

Often yes. Shortening the overhang, shifting spindle speed by 10–15%, and adding a support under the part cost nothing but setup time.

If those three moves do not help, the loop is too soft and a holder or tool change is usually the next cheapest step. Measure before and after so you know which change worked.

What overhang ratio should I target on a slender end mill?

Keep length-to-diameter at 4× or below for normal finishing. Between 4× and 6×, reduce ae to about 25% of diameter and keep ap under 1×D.

Above 6×, use a dedicated long-reach cutter with a relieved neck, or a damping bar on a boring operation. Standard end mills above 6× are running on borrowed time.

Does coolant pressure really change chatter?

It changes chip evacuation, and recut chips are a common trigger for intermittent chatter in deep pockets. Through-spindle coolant at 40–70 bar clears the pocket and stabilizes the cut.

Coolant does not add stiffness. If the ringing continues with clean chips, the problem is in the tool, part or fixture loop.

How do I tell tool chatter from part chatter?

Look at the mark spacing. Tool chatter usually leaves fine, evenly spaced marks that follow the flute path. Part chatter leaves marks that change with the wall thickness or the distance from the clamp.

Push test confirms it: if the tool tip moves more than the part, fix the tool side first.

Will a different tool coating help?

Coating changes wear and friction, not stiffness. A smoother coating can reduce rubbing on stainless and titanium, which helps finish, but it will not remove a resonance.

Spend the money on a stiffer holder before you spend it on a premium coating.

What surface finish can I expect once the chatter stops?

On aluminium and brass we hold Ra 0.8–1.6 μm routinely, and Ra 0.2–0.8 μm is possible with a fine finishing pass. On stainless and titanium, expect the upper end of that range unless you add a polishing operation.

The tolerance capability is ±0.005 mm, but chatter eats that budget fast. Fix the vibration first, then measure.

Send us the part that keeps ringing

Upload the drawing and we will review toolholding, workholding and cutting parameters, then quote the part. DFM feedback and quotation within 12 hours.
