How to Troubleshoot the CNC System of a Twin Spindle Machining Center

A twin spindle machining center fails differently than a single spindle one. When one spindle drifts, the other keeps cutting, so the scrap is quiet and expensive. This guide walks through the faults we see most often and the checks that isolate them fast.

Get Instant Quote Talk to an Engineer

Spindle + sync faultsAlarm code checksBacklash and driftTool changer issues

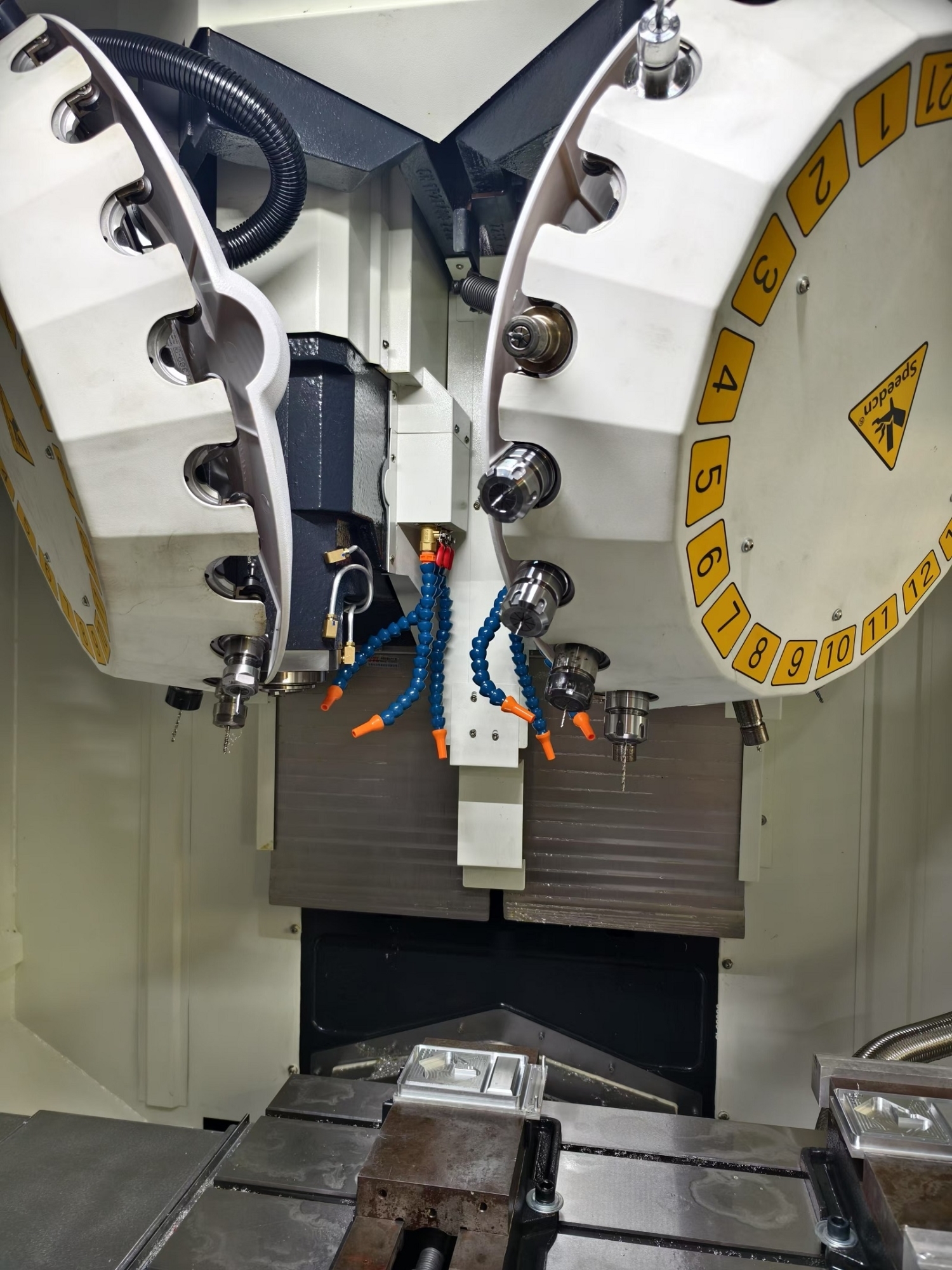

Twin spindle machining center used to troubleshoot the CNC system

On this page

1
Symptom to cause to action
2
Start with the cheap checks on a twin spindle machining center
3
Spindle faults on a twin spindle machining center
4
Synchronization and axis drift faults
5
Tool changer and control system faults
6
Step by step: troubleshoot the CNC system of a twin spindle machining center

Symptom map

Symptom to cause to action

Match the symptom you see on the HMI to the likely cause, then run the action before you touch parameters.

Symptom	Likely cause	First action
One spindle stalls under load	Spindle drive overload or belt slip	Check load meter and belt tension
Spindles lose sync on transfer	Encoder offset drift or lost home	Re-home both axes, verify offset
Tool changer alarm mid-cycle	Turret position sensor or air pressure low	Check sensor gap and line pressure
Finished size drifts over a run	Thermal growth in spindle and ballscrew	Warm up 20 min, log size at intervals
Axis creeps after stop	Backlash or servo gain mismatch	Measure backlash, re-tune gain
Alarm 401 or 414 on startup	Servo ready signal or DC bus fault	Check breaker, cables, drive LEDs
Rough finish on one spindle only	Runout, worn tool, or wrong RPM	Indicate spindle taper, replace tool

Before you open a cabinet

Start with the cheap checks on a twin spindle machining center

Most calls we get about a twin spindle machining center start with a description of the alarm, not the fault. The alarm tells you which subsystem noticed the problem. It rarely tells you which subsystem caused it. Before you pull a drive or swap an encoder, spend ten minutes confirming the machine state. Note the alarm number, the axis or spindle named, and the exact point in the cycle when it tripped.

Check the obvious first. Air pressure at the machine inlet should sit within the range your builder lists, usually 0.5–0.7 MPa. Low air trips tool changer and clamp alarms that look electrical. Coolant level and flow matter too, because a clogged line on one spindle will raise its temperature and shift its size while the other spindle stays on target.

Write down what changed. A new program, a new fixture, a fresh tool, or a weekend shutdown all shift the baseline. If the fault appeared right after a setup change, look at the setup first. If it appeared mid-run with no change, suspect wear, thermal drift, or a loose connection.

Do not clear the alarm and restart blindly. On a twin spindle machine, a restart can hide the fault for a shift and then scrap a full batch. Reproduce the fault once under controlled conditions so you know what you are chasing.

1
Log the alarmNumber, named axis or spindle, and cycle position.
2
Check utilities firstAir pressure, coolant flow, and incoming power.
3
Note recent changesProgram, fixture, tool, or long idle time.

Spindle faults

Spindle faults on a twin spindle machining center

A spindle that will not start is usually a command or interlock problem, not a dead motor. Check the spindle enable signal, the door interlock, and the clamp confirm input. Many twin spindle controls will not release either spindle until both part clamps report closed. If one clamp sensor is loose, both spindles sit dead and the alarm may point at the wrong side.

A spindle that stalls under load points to the drive or the mechanical path. Read the load meter during a cut. A steady climb toward the drive limit with a light cut means the tool is dull, the feed is too high for the material, or the belt is slipping. Check belt tension and pulley wear before you touch drive parameters.

Overheating on one spindle only is common on twin spindle machines because the two sides rarely see identical duty. Compare spindle temperatures after a warm-up cycle. A difference of a few degrees is normal. A difference that keeps growing points to a bearing preload issue, a blocked cooling jacket, or a failing drive fan.

Vibration that appears at higher RPM usually comes from the tool holder or the drawbar. Indicate the spindle taper with a test bar. Runout over 0.005 mm at the gauge line is worth correcting. Check drawbar force as well, since low clamp force lets the holder move under load and shows up as a poor finish on one side.

1
No startCheck enable, interlock, and both clamp confirms.
2
Stall under loadRead load meter, then check belt and tool.
3
One side hotCompare temperatures, check cooling jacket.

Sync and axis faults

Synchronization and axis drift faults

Twin spindle machines cut two parts at once, so the two spindles and their axes have to agree. When they lose sync, you get size differences between the two parts that grow over a run. Start by re-homing both axes and confirming the offset values against the setup sheet. A lost home position after a power dip is the most common cause.

Encoder offset drift is harder to see. The machine will run, but the phase between the two spindles shifts slowly. Check the offset value at the start and end of a shift. If it moves more than a few counts, inspect the encoder coupling and cable routing. Heat and vibration loosen couplings over time.

Axis creep after a stop usually means backlash or a gain mismatch. Measure backlash at the ballnut with a dial indicator, moving the axis in small increments. Compare the reading to the machine spec. If backlash is within spec, look at servo gain and the position loop. Two axes with different gain settings will fight each other on interpolated moves.

Thermal growth is the quiet fault. A spindle and ballscrew warm up over the first hour and push the tool deeper into the part. Log the finished size every 30 minutes for the first two hours of a run. If the size drifts in one direction and then settles, you have a thermal issue, not a mechanical one. Warm up before you chase it.

1
Size split between sidesRe-home, verify offset against setup sheet.
2
Slow phase shiftLog encoder offset start and end of shift.
3
Creep after stopMeasure backlash, then check servo gain.

Tool changer and control

Tool changer and control system faults

A tool changer alarm mid-cycle stops both spindles, so it gets attention fast. Check the turret or magazine position sensor first. A gap that has drifted out of range will trip the alarm at the same point in the cycle every time. Clean the sensor face and set the gap to the builder spec, usually 0.5–1.0 mm.

Air pressure is the second suspect. Low line pressure slows the changer arm and the clamp, and the control sees a timeout. Watch the pressure gauge during a tool change, not at idle. A drop of more than 0.1 MPa during the change points to a restricted supply line or a leaking cylinder.

Control faults that appear at startup often trace to the servo ready chain. Check the breaker, the drive LEDs, and the cable seating at the drive. A drive that shows no ready light has either lost its enable signal or has an internal fault. Swap the drive with the matching axis on the other side if the machine allows it, and see if the fault follows the drive.

Battery-backed memory and parameter loss will cause odd behavior after a long shutdown. If the machine has been off for weeks, check the control battery voltage and confirm the parameters match the backup. Reload from backup before you re-tune anything.

1
Changer alarm repeatsCheck position sensor gap, clean the face.
2
Pressure drop on changeWatch gauge during the change, not at idle.
3
Startup control faultCheck servo ready chain and drive LEDs.

Field procedure

Step by step: troubleshoot the CNC system of a twin spindle machining center

Work through these in order. Stop as soon as the fault reproduces, then fix that one cause.

1
Record the alarm and machine stateWrite the alarm number, the named axis or spindle, and the cycle position. Note air pressure, coolant flow, and whether the fault repeats at the same point. This takes two minutes and saves an hour.
2
Check utilities against specAir at 0.5–0.7 MPa, coolant flowing on both sides, incoming voltage within ±10 percent of nameplate. Fix any utility fault before you open the electrical cabinet.
3
Re-home both axes and compare offsetsRun the home routine for both spindles and their axes. Compare the offset values to the setup sheet. A mismatch over a few counts means the home position or encoder offset has moved.
4
Measure backlash and runoutIndicate backlash at the ballnut with a dial indicator, moving the axis in 0.01 mm increments. Indicate spindle taper runout with a test bar. Compare both to the machine spec before you adjust anything.
5
Log size and temperature over two hoursCut test parts and record finished size and spindle temperature every 30 minutes. A one-directional drift that settles points to thermal growth. A random spread points to mechanical or control issues.
6
Isolate the fault by swapping sidesWhere the control allows, swap the drive, sensor, or tool between the two spindles. If the fault follows the part, the part is bad. If it stays with the side, the fault is in the machine.
7
Fix one cause and re-verifyChange one thing at a time. Run a warm-up cycle, then cut a test part and check size and finish on both sides. Do not stack adjustments, or you will not know which one worked.

FAQs

Twin spindle troubleshooting questions

Why do the two spindles cut different sizes?

The most common cause is a lost home position or encoder offset drift on one side. Re-home both axes and compare offsets to the setup sheet.

If offsets match, check thermal growth. Log size and spindle temperature every 30 minutes. A drift that settles after an hour points to heat, not to a mechanical fault.

What does a spindle stall under load mean?

Read the load meter during a cut. A steady climb with a light cut means a dull tool, too high a feed for the material, or a slipping belt.

Check belt tension and pulley wear first. Only adjust drive parameters after the mechanical path is confirmed good.

How do I check backlash without a laser?

Mount a dial indicator against the slide or fixture, then command the axis in 0.01 mm increments in one direction and back. The difference between commanded and indicated movement is backlash.

Compare the reading to the machine spec. If it is within spec, look at servo gain and the position loop instead.

When should I call a service engineer?

Call when the fault follows a drive or control board after a swap, when parameters are lost with no backup, or when backlash exceeds spec and needs ballscrew work.

For spindle bearing replacement or geometry re-alignment, schedule the work rather than adjusting in production.

Can I run the machine with one spindle disabled?

Some controls allow single-spindle mode, but not all. Check the builder manual before you try it.

Running one side changes the thermal and load balance of the machine, so expect size drift until it stabilizes. It is a short-term option, not a fix.

How often should I check sync and backlash?

Check offsets at every setup change and after any power event. Log backlash monthly on a machine running two shifts.

If you machine tight-tolerance parts, log finished size at the start and end of every shift. Trends show up before the parts go out of spec.
