Is a CNC Machine a 3D Printer?
Short answer: no. A CNC machine cuts material away. A 3D printer adds it layer by layer. This page explains the mechanism behind each, the tolerances and materials you can expect, and how to decide which process fits a part.

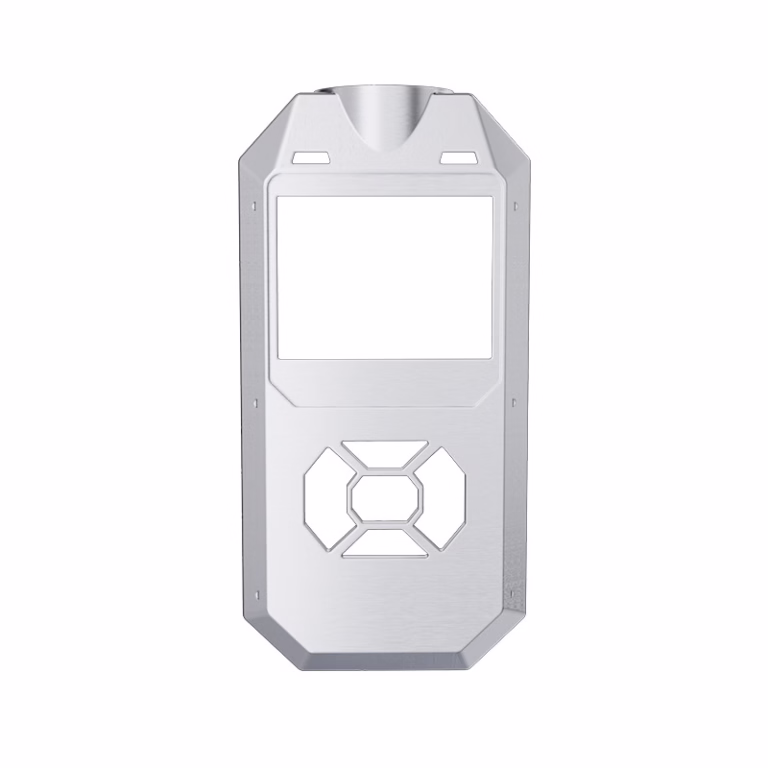

How a CNC Machine Removes Material
A CNC machine reads G-code and moves a spinning cutter along programmed paths. The cutter is harder than the workpiece, so it shears chips off the stock. Milling, turning, drilling and boring all follow that same idea: start with a solid block or bar, then take material away until the geometry is left.
Because the tool touches the part, the achievable result depends on rigidity. A heavy cast frame, preloaded linear ways, and a balanced spindle hold the tool steady under load. That is why a machined face can hold ±0.005 mm across a batch and why surface finish can be dialed in from Ra 1.6–3.2 μm as-machined down to Ra 0.2–0.8 μm with fine passes or lapping.
The cutting edge also sets a hard limit. An internal corner can only be as sharp as the tool radius. A Ø6 mm end mill leaves a 3 mm corner radius. Deep pockets need long tools, and long tools deflect. This is the trade an engineer makes: geometry that the cutter can reach, held by a setup stiff enough to keep it true.
How a 3D Printer Adds Material
A 3D printer does the opposite. It reads a sliced model and deposits or fuses material one layer at a time. FDM pushes a thermoplastic filament through a heated nozzle. SLA and DLP cure resin with a light source. SLS and SLM spread powder and sinter or melt it with a laser. In every case the part grows upward from a build plate.
Layer thickness is the master variable. A typical FDM machine runs 0.1–0.3 mm layers; resin systems go finer. Vertical walls come out in stair-steps that follow the slice height, so a curved surface is never perfectly smooth. The top and bottom faces of a print are usually flatter than the sides.
Support material is the second cost. Overhangs beyond roughly 45° need supports, and those supports must be cut or dissolved away. That leaves witness marks on the surface. Internal channels and lattice structures that a cutter could never reach are trivial to print, which is the real advantage of the additive route.
Why Printed Parts Behave Differently
A machined part is wrought material. A 6061-T6 billet has uniform grain and known properties in every direction. A printed metal part is built from melt pools, so it carries residual stress and often some porosity. Its strength can be anisotropic: strong along the build direction, weaker across layer boundaries.
The same holds for plastics. An FDM part is a stack of bonded beads, so it can delaminate along layer lines under tension. A machined POM or PEEK part is solid and homogeneous. For a bracket that sees load, that difference matters more than the CAD model looks.
Heat treatment, HIP, and machining after printing can close the gap. But those steps add cost and time, and they push the part back toward a subtractive workflow. If the drawing calls for a tight tolerance on a bearing bore, printing alone rarely gets you there.
When Each Process Reaches Its Limit
Subtractive has a floor on feature size and a ceiling on complexity. It cannot make a sealed hollow ball in one piece, and it struggles with thin deep ribs. It also wastes stock: a part cut from a 4,000 mm bar may leave most of that bar as chips.
Additive has a floor on accuracy and a ceiling on size. A desktop printer holds roughly ±0.2 mm, and industrial metal systems do better but still lag milling. Large prints warp as they cool, and tall thin parts can shift. Post-processing, support removal, and surface finishing are almost always required.
The practical boundary is often tolerance plus quantity. One complex prototype with internal channels: print it. Two hundred identical brackets held to ±0.05 mm: machine them. The process choice follows the drawing, not the other way around.
How to Choose for a Real Part
Start with the tolerance callouts. If the tightest dimension is under ±0.05 mm, or if a bore must fit a bearing, plan on machining. Printing can make the shape, but the fit will need a reamed or bored hole afterward.
Then look at the geometry. A part with internal cooling channels, a lattice core, or a sealed cavity is a print candidate. A part that is mostly flat faces, stepped shoulders, and drilled holes is a mill candidate. Most parts are a mix, and the mix decides the route.
Finally, weigh quantity and material. At one to fifty pieces, either route works and the decision is about features. At thousands of pieces, machining and die casting pull ahead on unit cost. Titanium and Inconel are machined at GreatLight on 5-axis centers when the part needs structural integrity.
A hybrid route is common and often best: print the near-net shape, then machine the critical interfaces. This captures internal features from printing and fit from cutting. It costs more than either alone, so reserve it for parts where both matter.
CNC Machining vs 3D Printing at a Glance
Values reflect typical shop capability; part geometry and material shift the numbers.
| Factor | CNC machining | 3D printing |
|---|---|---|
| Material direction | Removes stock from solid | Adds material layer by layer |
| Typical tolerance | ±0.005 mm achievable | Roughly ±0.2 mm on desktop FDM |
| Surface finish | Ra 0.2–3.2 μm depending on passes | Visible layer lines; needs finishing |
| Material range | Aluminium, steel, titanium, plastics | Thermoplastics, resins, some metals |
| Best geometry | Prismatic, tight bores, flat faces | Internal channels, lattices, hollows |
| Unit cost at volume | Drops with quantity | Stays flat per part |
| Setup effort | Fixtures, toolpaths, first-article check | Slicing and support strategy |
| Typical lead time | Parts ship in 3–5 days | Depends on print time and post-work |
The Verdict
If the drawing needs ±0.005 mm, a bearing fit, or a machined surface, choose CNC machining. If the part needs internal channels or a shape no cutter can reach, choose 3D printing and machine the critical faces afterward.
Common Questions
Can a CNC machine be used for 3D printing?
Not in the normal sense. A CNC machine is built for subtractive work: a spindle turns a cutter and the control moves it through the stock. It has no extruder, no powder bed, and no slicing software in the loop.
Some hybrid machines add a deposition head to a milling platform, so one frame can print and then cut. That is a specific machine class, not a standard CNC mill. A plain 3-axis or 5-axis mill cannot print.
Are 3D printers a type of CNC machine?
They share a control lineage. Both read a toolpath and drive stepper or servo motors on multiple axes. In that narrow sense a printer is computer numerical control.
But the process is additive, and the hardware is different. Calling a printer a CNC machine usually causes confusion in a shop, so it is clearer to keep the two terms separate.
Which process holds tighter tolerances?
CNC machining. A well-set mill or lathe can hold ±0.005 mm on a critical dimension, and we verify it with 100% inspection before shipment.
Printing is looser. Desktop FDM sits near ±0.2 mm, and industrial metal systems improve on that but still need machining on any mating surface.
Is a printed part as strong as a machined part?
Usually not. A machined 6061-T6 or 17-4PH part is wrought and homogeneous. A printed part is built from layers or melt pools, so it can be anisotropic and may carry porosity.
Post-processing such as HIP or heat treatment narrows the gap, but for a load-bearing bracket the machined version is the safer choice.
What is the largest part each process can make?
Our largest machining travel is 4,000 × 400 × 150 mm, with 750 × 1,150 × 550 mm and 600 × 600 × 600 mm envelopes on other centers. So a machined part can be large as long as the setup fits.
Print size is limited by the build chamber. Large prints also tend to warp, so tall thin geometry is risky without support and stress relief.
Can GreatLight run both processes for one project?
Yes. We machine on 127 high-precision CNC machines, including 16 simultaneous 5-axis centers, and we also offer custom 3D printing. A common flow is to print a prototype for form and fit, then machine the production parts.
Send the drawing and we return a quotation and free DFM analysis within 12 hours. No minimum order quantity, from one prototype to 10,000+ parts.
Send Your Drawing, Get a Straight Answer
Tell us the tolerance and the geometry. We will say whether the part should be machined, printed, or both, and quote it.
Quotation in 12 hoursFree DFM analysisNo minimum order quantityNDA on request
