Is Design Edge Compatible With a 98Z CNC Machine?

• 1
  What “98Z CNC machine compatible” actually means
• 2
  Why three and four axes hit a ceiling on complex parts
• 3
  How five-axis motion changes the answer
• 4
  Checking Design Edge geometry against 98Z CNC machine travels
• 5
  When a 98Z CNC machine is the wrong choice
• 6
  Matching part features to machine configuration

A 98Z CNC machine is a machining platform, not a file format. Compatibility is not a checkbox in CAD. It is a question of whether the cutting tool can reach every surface of the part, and whether the part can be held while it gets there.

Three things decide that. Axis count and configuration, the travels of the machine, and the stiffness of the setup. A design that needs a tool to reach an undercut on a three-axis mill is not incompatible because the model is wrong. It is incompatible because no setup exists that holds the part and points the cutter at that face.

So the honest answer to the compatibility question is almost never yes or no. It is a list of features that survive on the machine as configured, a list that needs a different axis arrangement, and a list that should be redesigned. Engineers who ask the question early save the most time, because a two-minute reach check beats a scrapped first article.

Vendor marketing often implies that any model runs on any modern machine. In practice, the same part can be easy on one platform and near impossible on another. The geometry does not change. The available motions do.

• 1
  Tool reachCan the cutter physically touch the surface from some legal orientation?
• 2
  WorkholdingCan the blank be clamped without blocking the cut or distorting it?
• 3
  Axis budgetDoes reaching the feature need more simultaneous motion than the setup allows?
• 4
  Tolerance stackDo the datums survive the number of refixtures the feature requires?

A three-axis mill moves the tool in X, Y and Z while the part stays still. That covers a huge range of work: plates, housings, pockets, bosses, bolt circles. The limit appears when a feature faces sideways. The tool then has to approach from an angle the spindle cannot reach without the part being turned by hand.

Turning the part by hand means a new setup. Each setup brings its own zero point, its own clamp marks and its own error. A part with five side features can need five setups, and the tolerance stack across those setups grows with every refixture. At ±0.005 mm, that stack is usually the thing that fails, not the machine.

A four-axis machine adds rotation around one axis. This helps a lot with cylindrical work: shafts, flanges, parts with features indexed around a bore. It still cannot tilt the part to present a compound-angle face to a short, stiff tool. Undercuts and angled pockets remain out of reach or need a special cutter.

The practical sign that a design has outgrown three or four axes is a drawing with many “do not blend” notes on side faces, or a tolerance that depends on two features machined from different directions.

• 1
  ReachSide and undercut faces need the part tilted, not just turned.
• 2
  Setup countEvery extra setup adds a datum and an error source.
• 3
  Tool lengthLong tools reach further but deflect; short tools need part rotation.

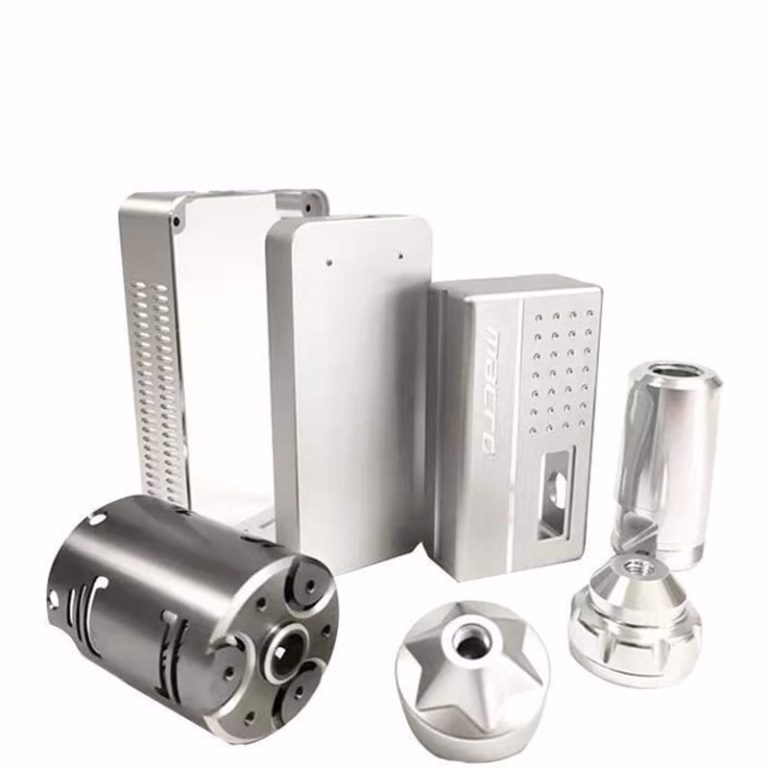

Five-axis machining adds two rotary motions, so the part can be tilted and turned. The tool stays short and stiff while the workpiece presents the face that needs cutting. That single change removes many of the setups that were forcing tolerance stack-ups on three-axis work.

For a part with features on five or six faces, five-axis work can bring the count down to one or two setups. Fewer setups mean fewer datums, less handling and a better chance of holding a tight true position between features. It also lets the shop use a larger cutter on deep pockets because the tool does not have to reach around a corner.

There is a cost. Five-axis programs are longer to prepare, and the machine moves more, so cycle time can rise on simple parts. The sweet spot is geometry with compound angles, sculpted surfaces, deep cavities with limited tool access, or tolerances that span several faces.

On a platform like a 98Z CNC machine, the same logic applies. The useful question is not whether the machine is five-axis, but how many of the part’s features can be reached in one setup once the rotaries are in play.

• 1
  Good fitCompound angles, deep cavities, multi-face tolerances.
• 2
  Poor fitSimple prismatic plates that a three-axis mill cuts faster.

Before any quote, compare the part envelope to the machine envelope. A 98Z CNC machine has finite travels, and a part that fits the table can still fail because the rotary needs clearance to swing. Check the diagonal, not just the length.

Then mark every face that carries a tolerance or a surface finish callout. If those faces point in more than three directions, plan for rotary work. If they point in six directions and the part is small, a five-axis setup is often cheaper than six three-axis setups.

Look for thin walls next. A wall under about 1 mm will move under clamping pressure and cutting force, no matter how good the machine is. This is a design limit, not a machine limit. Adding a rib or thickening the wall usually costs less than a custom fixture.

Finally, check the tool you would need. A deep, narrow pocket with a square internal corner cannot be milled by any machine. It needs a relief radius at least equal to the cutter radius, or it becomes an EDM job. That is the kind of item a DFM review catches in the first pass.

• 1
  EnvelopePart plus rotary swing must fit the travel box.
• 2
  Tolerance facesCount the directions that carry a tight callout.
• 3
  Wall thicknessBelow 1 mm, expect deflection and chatter.
• 4
  Internal cornersSquare corners need a relief radius or EDM.

Not every part belongs on a five-axis platform. A flat bracket with four holes and one pocket runs faster on a three-axis mill, and the setup is trivial. Putting it on a five-axis machine adds programming time without improving the result.

Very large parts can also fall outside the travel box. When a single feature is longer than the available travel, the work has to be repositioned, which brings back the multi-setup tolerance problem. Sometimes a different process, such as fabrication or casting plus finishing, is the better route.

Material matters too. Titanium and Inconel cut slowly and put heat into the tool. Five-axis motion helps because a short tool can be kept in the cut, but cycle times stay long. If the part is simple and the material is hard, a three-axis machine with a rigid setup may finish sooner.

The clearest rule: use the machine that reaches all required faces in the fewest setups without sacrificing stiffness. Axis count is a means, not a goal.

• 1
  Simple prismatic partsThree-axis is faster and cheaper to set up.
• 2
  Beyond travelsRepositioning reintroduces setup error.
• 3
  Hard alloysFive-axis helps reach, not speed.
