A double-pin machining center holds the workpiece between two opposing pins, or spindles, instead of a single vise. The left pin drives or indexes the part. The right pin supports it, or drives it in the opposite direction. On a mill-turn variant, both pins can rotate the part while a tool moves in X, Y, and Z.

That sounds like a small upgrade. It is not. The part now has two datums instead of one, and the machine controller has to keep them in phase. If the two pins rotate at slightly different speeds, the part twists. If they stop at different angles, every downstream feature is offset.

The control handles this through a synchronization command, usually a G-code that couples the two spindle axes into one logical axis. Once coupled, the pins behave as a single rotary axis. When you decouple them, each pin can index independently for a second-operation face.

For the programmer, the practical consequence is simple. You are no longer writing one toolpath on one part. You are writing two toolpaths that must agree on where the part's centerline sits.

• 1
  Single datum vs. dual datumOne pin means one reference. Two pins mean the controller must reconcile both.
• 2
  Synchronized rotationCoupled spindle axes let the part turn as one body for continuous features.
• 3
  Independent indexingDecoupled pins allow a second face to be machined without re-chucking.

Most of the code is standard. You still use G54 through G59 work offsets. You still call tools with T and M06. You still define feed and speed in the same way. A programmer who knows a three-axis mill can read a double-pin program without much trouble.

The new work is in the reference frame. Because the part is held at both ends, the centerline between the pins becomes the master datum. Every feature you cut has to be dimensioned from that line, not from the face of a vise jaw. In CAM, this usually means building a fixture model that includes both pin positions and letting the software post from that assembly.

The second piece of work is the handshake. Before the pins couple, the control needs to know both are at the same angular position. If the right pin is at 0° and the left pin is at 180°, coupling them will snap the part. A safe program always homes both pins, then indexes them to a common reference before the synchronization command.

On a machine with a Ø400 mm rotary table and a 4,000 mm travel, the same logic scales. Long parts need a tailstock-style support, and the pin alignment tolerance becomes tighter because any angular error multiplies along the length.

• 1
  Centerline is the datumDimension from the axis between pins, not from a jaw face.
• 2
  Home before you coupleBoth pins must reach a known angle before synchronization.
• 3
  Watch the multiplierOn long parts, a small angular error grows along the length.

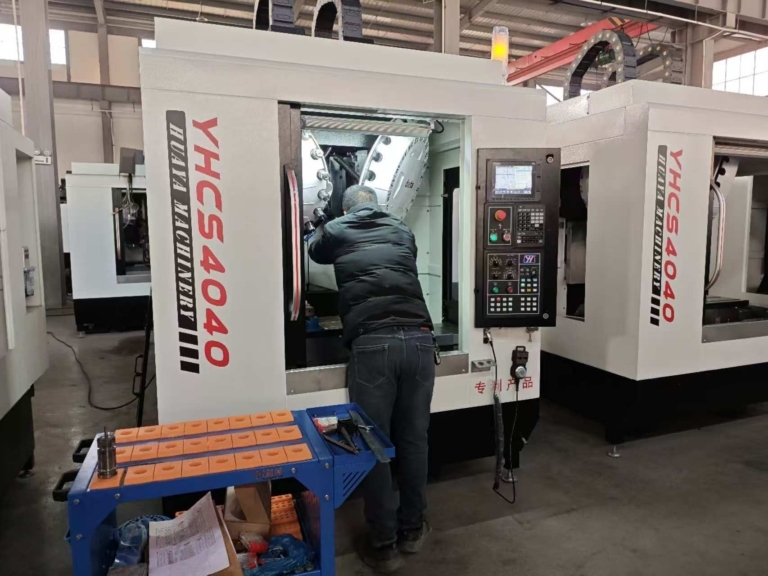

Programming is half the job. The other half happens at the machine. On a double-pin machining center, the operator sets two chucking points and must confirm they are concentric. A dial indicator on the part, turned by hand or by jog, shows runout at both ends. If the two readings differ by more than the drawing allows, the setup is wrong before the first tool touches metal.

Clamping force matters more than on a single-pin machine. Two chucks pulling against each other can bow a slender shaft. For a 20 mm diameter steel part, a light clamp and a driven tailstock usually beat a heavy clamp and a fixed support. The operator should check deflection with the part clamped but not cutting.

Tool setting is routine, but tool reach is not. On a mill-turn double-pin machining center, the tool may need to pass between the pins to reach a mid-section feature. That limits tool diameter and stick-out. An operator who ignores this will scrap the first part with a holder crash, not a cutting error.

Finally, thermal drift. Two spindles generate heat at both ends. On a run longer than a few hours, the pin centerline can move by a few microns. In-process probing between operations is the usual control, and it is cheaper than sorting parts after the fact.

• 1
  Check runout at both endsTwo readings, one part. They must agree within the drawing tolerance.
• 2
  Light clamp on slender partsOpposing chucks can bow a shaft before the cut starts.
• 3
  Plan tool reach earlyMid-section features may force a smaller tool and more stick-out.

The difficulty is not in the programming language. G-code is G-code. A programmer who understands work offsets, tool length compensation, and cutter compensation will not struggle with the syntax on a double-pin machining center.

The difficulty is in the setup and the first article. Two pins have to be aligned, two chucks have to be clamped without distorting the part, and the centerline has to be proven before production. That process can take hours on a new part. Once it is proven and the program is saved, the run is stable.

The second real difficulty is tool access. If the part needs a feature on the outer diameter between the pins, the tool has to reach it without hitting either pin. This constrains tool diameter, which constrains feed and speed, which extends cycle time. A part that looks simple on the drawing can become slow to cut.

The place where difficulty is overrated is the control. Modern CNC controls handle spindle synchronization as a standard function. The operator does not write the coupling logic by hand. They call it. The skill is knowing when to couple, when to decouple, and how to verify the angle before either happens.

• 1
  Syntax is not the barrierStandard G-code and work offsets cover most of the program.
• 2
  Setup is the barrierAlignment and first-article proving take the most time.
• 3
  Tool access sets cycle timeReaching between pins limits tool size and cutting parameters.

Material choice changes how forgiving the setup is. Aluminium alloys such as 6061-T6 and 7075 cut easily and deflect less under light clamping, so the pin alignment window is wider. Stainless grades like 303, 304, and 17-4PH need more cutting force, which pushes back through the part and makes clamp balance more important.

Titanium and Inconel raise the stakes again. TC4 (Ti-6Al-4V) and Inconel generate heat at the cut and have low thermal conductivity. On a double-pin machining center, heat at the cut can migrate to the pins and shift the centerline. Coolant delivery and dwell time between passes matter as much as the toolpath.

Plastics such as POM, PEEK, and PA are a different problem. They clamp easily but spring back. Two opposing chucks can ovalize a thin-walled plastic tube before the tool arrives. A lighter clamp and a support sleeve usually solve it, but the programmer has to leave room in the toolpath for the sleeve.

Across all materials, the rule is the same. Prove the setup on one part, measure both ends, and only then start the run. The cost of one scrapped first article is smaller than the cost of a hundred parts cut off-center.

• 1
  Aluminium is forgivingLower cutting force gives a wider alignment window.
• 2
  Titanium shifts the centerlineHeat at the cut can move the pin datum during a long run.
• 3
  Plastics spring backLight clamping and a support sleeve prevent ovalizing.

A double-pin machining center can hold ±0.005 mm when the setup is right. The limit is not the machine. It is the reference chain. Every feature is tied to the pin centerline, and any error in that line shows up as a position error on both ends.

The standard control is in-process probing. Probe the part after roughing, update the work offset, then finish. This corrects for thermal drift and for small shifts in clamping. It also catches a pin that has moved before the finish pass, which is cheaper than finding it at final inspection.

Surface finish follows the same logic. A stable setup with a rigid tool can reach Ra 0.8–1.6 μm on steel and aluminium. When the setup is not stable, chatter shows up first on the unsupported mid-section, not at the pins. That pattern is a useful diagnostic: if the middle of the part is rough, the problem is support, not speed.

Final inspection should measure both ends and the middle. A part that is round at the pins but oval in the center is a clamping problem. A part that is offset at one end is an alignment problem. The two failures look similar on a CMM report but have different fixes.

• 1
  Probe after roughingUpdate the offset before the finish pass to absorb drift.
• 2
  Chatter in the middleMid-section chatter points to support, not to cutting speed.
• 3
  Measure three placesBoth ends and the center tell you which fault you have.
