What Is the Double Pin Machining Center Price?

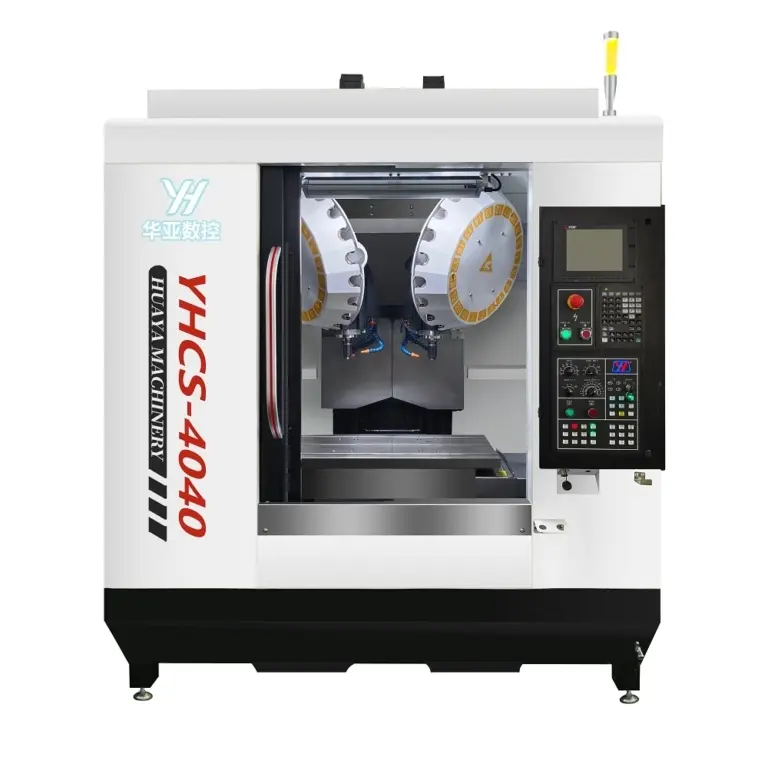

A double pin machine is a gantry-style center built to mill two bores, pins or bosses at the same time. This guide is for engineers and buyers comparing quotes. By the end you will know which four factors move the double pin machining center price and which numbers to ask for before you sign.
What drives the number
Four factors that set the double pin machining center price
Each row is a lever you can trade against the others.
| Factor | Low-cost choice | High-cost choice | What it changes |
|---|---|---|---|
| Travel envelope | 500 × 310 × 200 mm | 4,000 × 400 × 150 mm | Frame size, casting weight, floor space |
| Spindle and taper | Belt-driven, lower rpm | Direct-drive, higher rpm | Cutting speed, finish, spindle cost |
| Tool capacity | 8–12 stations | 24–40 stations | Cycle time, setup time, tooling cost |
| Pin-to-pin spacing | Fixed center distance | Adjustable head spacing | Fixturing, part mix, changeover time |
| Control and drives | Basic 3-axis control | 4 or 5-axis capable | Part geometry, programming effort |
| Automation | Manual load | Pallet changer or robot | Labor cost, unattended hours |
| Accuracy spec | Ra 1.6–3.2 μm as machined | ±0.005 mm, Ra 0.8–1.6 μm | Inspection, scrap rate, rework |
Travel envelope and frame size
The work envelope is the first number to fix. A double pin machining center that only needs to reach 500 × 500 × 450 mm can be built on a much lighter frame than one that has to span 4,000 mm. Casting weight, linear rail size and drive motor rating all scale with travel, and so does the price.
Spindle-to-table distance matters as much as X and Y. If your part is a long extrusion or a housing with tall bosses, the Z stroke and the gantry clearance decide whether the machine fits at all. A machine that is 100 mm short on Z cannot be fixed with tooling.
Ask for the travel figures in writing, not just the table size. Two machines with the same table can have very different usable travel once the tool changer and fixtures are mounted. That difference shows up in cycle time, not in the brochure.
Floor space and foundation are part of the cost too. A large gantry needs a leveled pad and often a pit. Budget for that before the machine lands, not after.
Spindle, tooling and pin-to-pin accuracy
The spindle is where cutting quality is made or lost. Taper size, bearing class and maximum rpm set the surface finish you can hold. For a finish in the Ra 0.8–1.6 μm range, a direct-drive spindle with a good bearing set is usually the safer pick over a belt-driven unit at the same price point.
Tool capacity changes both cycle time and the quote. A 12-station magazine means more manual changes on a part with many features. A 24 to 40-station magazine costs more up front but cuts non-cutting time on high-mix work.
Pin-to-pin spacing is the feature that makes a double pin machine different. If the two pins sit at a fixed center distance, the head can be simple. If that distance has to change between part families, the machine needs an adjustable head, and that is a real cost step.
Ask how the machine holds the distance between the two pins over a full shift. Thermal growth in the head and spindle moves that number. A machine with temperature compensation or a warm-up routine will hold ±0.005 mm more reliably than one without.
Volume, automation and payback
A double pin machine earns its keep by cutting two features per cycle. That advantage only shows up when the annual part count is high enough to keep the spindle busy. At low volume, a standard 3-axis mill with a two-station fixture often costs less to own.
Automation is the biggest optional line item. A pallet changer or robot cell can run unattended, but it adds cost, floor space and programming work. It pays back when labor is the bottleneck, not when the machine sits idle half the day.
Run the math on per-part cost, not machine price. Take cycle time, setup time, scrap rate and tool life, then compare the two options over one year of production. A cheaper machine with a higher scrap rate can cost more than a better one.
If your volumes are uncertain, start with a manual-load machine and leave room for a pallet system later. Retrofitting automation is possible if the control and the enclosure were specified for it at the start.
How to compare supplier quotes
Quotes for a double pin machining center price are hard to compare because vendors bundle different things. Ask for a line-item breakdown: machine base, spindle, tooling package, installation, training, warranty and spare parts. Without that, the lowest number often hides missing items.
Check the accuracy claim against the inspection method. A tolerance of ±0.005 mm only means something if there is a stated measuring routine and a report. Ask what is measured, on what instrument, and how often.
Certifications are a filter, not a price driver. ISO 9001:2015 covers quality systems, IATF 16949:2016 covers automotive, ISO 13485:2016 covers medical devices and ISO 27001:2022 covers information security. Match the certificate to your industry before you compare price.
Lead time and support belong in the same table as price. A machine that arrives fast but has no local service will cost more in downtime. Ask for response time, spare parts stock and training hours in the quote.
Step by step: build a comparable quote
Work through these before you ask for numbers.
- 1Fix the part envelopeList the largest and smallest parts you will run. Note X, Y, Z and the pin-to-pin distance. If Z clearance is tight, say so in the request.
- 2State the tolerance and finishGive a target like ±0.005 mm and Ra 0.8–1.6 μm. Vague specs let vendors quote different machines and the numbers stop being comparable.
- 3Estimate annual volumeParts per year and batch size decide whether a double-head machine or a standard mill is the better buy. Include growth for two years.
- 4List the tooling you needCount the features and the tools per cycle. A 12-station magazine may force manual changes; a 24-station magazine may remove them.
- 5Ask for a line-item breakdownRequest base, spindle, tooling, installation, training, warranty and spares as separate lines. Compare each line, not just the total.
- 6Check the accuracy methodAsk what is measured, on what instrument and how often. Request a sample inspection report with the quote.
- 7Confirm support and lead timeGet response time, spare parts availability and training hours in writing. Service gaps cost more than a small price gap.
Questions buyers ask
Can I get a price without giving part drawings?
A rough range is possible from travel, spindle and tool count alone. A firm number is not.
Send the part envelope, material, tolerance and annual volume. That is enough for a useful first pass.
Is a double pin machine always faster than a standard mill?
Only when two features can be cut in the same cycle without a fixture change.
On parts with one critical bore, a standard 3-axis or 4-axis mill is often the better fit and the lower cost.
Which tolerance should I specify?
Specify the tolerance your assembly needs, not the tightest number available.
Going from ±0.05 mm to ±0.005 mm changes inspection, scrap rate and machine cost. Tighten only where it matters.
Does the machine price include installation and training?
It depends on the vendor. Some bundle it, some quote it separately.
Ask for installation, leveling, training hours and the first-year service visit as separate line items.
How does volume affect the per-part cost?
High volume spreads setup and fixture cost over more parts, so the double-head advantage grows.
Low volume leaves the machine idle, and the per-part cost can be higher than outsourcing the work.
What certifications should a supplier hold?
Match the certificate to your industry: ISO 9001:2015 as a base, IATF 16949:2016 for automotive, ISO 13485:2016 for medical, ISO 27001:2022 for data handling.
Ask for the certificate scope and expiry date, not just the logo.
