A 3-axis vertical mill moves the tool along X, Y and Z. The table holds the work, the spindle comes down from one direction. That single direction is the whole cost story. If a feature faces the spindle, it cuts in the same cycle. If it faces sideways, someone has to flip the part and re-zero it.

Every flip adds a setup. Setup time covers clamping, indicating the datum, touching off tools and proving the first article. On a 200-piece order the setup cost spreads thin. On a 20-piece order it can be half the invoice. This is why the same drawing can come back at very different prices from two shops.

Material is the second lever, and it is smaller than most buyers expect. Switching from 6061-T6 to 7075 raises the bar cost, but it also raises tool wear and can force slower feeds. The gap between a soft aluminium and a 17-4PH stainless part is often larger than the gap between two suppliers.

Cutting time is the third piece and the easiest to control. Standard drill sizes, sensible depths of cut and radii that match the tool catalogue all shorten cycle time without touching quality. A drawing that respects the tooling a shop already owns is a drawing that quotes lower everywhere.

Standardize holes. If a plate needs six holes, try to use two diameters, not six. Each new diameter means a tool change and a new offset. At 5,000 parts, one avoided tool change saves real machine hours. The same logic applies to thread sizes and counterbore depths.

Give internal corners a radius. A 6 mm end mill leaves a 3 mm corner radius. Asking for a 0.5 mm sharp corner forces a smaller tool, a slower feed and sometimes a second operation. If the corner is not functional, open it up. If it is functional, say so on the drawing so the shop can plan the extra pass.

Keep walls thick enough to hold. Aluminium below 0.8 mm and steel below 1.2 mm start to deflect under normal cutting force. The machinist then reduces depth of cut, which stretches cycle time. Thin walls also distort during clamping, so the finished part may not match the measured first article.

• 1
  Datum planPick one face and one edge as datum, then reference everything from them. Shops that receive a clear datum plan quote faster.
• 2
  Tolerance mapMark only the features that mate with something. Everything else can carry a general tolerance.
• 3
  Finish calloutRa 1.6–3.2 μm is as-machined. Ra 0.8–1.6 μm needs a finishing pass. Ra 0.2–0.8 μm adds time and cost.
• 4
  Deburr noteState whether edges are broken or left sharp. It changes the last operation.

3-axis is the right process for prismatic parts: plates, housings, brackets, manifolds, heat sinks, fixture plates and any geometry that can be reached from one direction, or from a few flips on a vise. Those parts run fast and inspect simply.

It is the wrong process when a feature sits on a compound angle, when a deep cavity has undercuts, or when a part needs five faces machined without losing position. A 5-axis machine reaches those faces in one setup. Trying to force the part onto 3-axis means custom fixtures, and custom fixtures cost more than the machine time you saved.

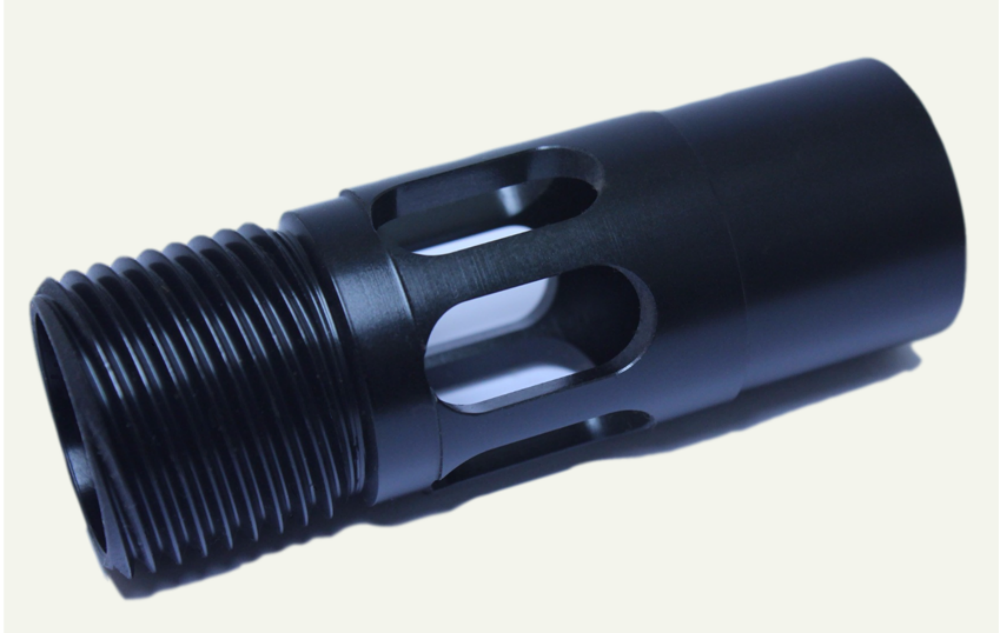

There is a middle ground. A 3-axis mill with a rotary table, or a 4-axis mill, handles parts that need an index between operations. Cylindrical features, cross-drilled shafts and parts with features on four sides fit here. If your part has one or two angled faces, ask the shop to quote both 3-axis with a fixture and 4-axis. The comparison usually settles the question in one line.

Send the model and the drawing together. A STEP file alone does not carry tolerances, surface finish or datum intent. The quote you get from a model-only RFQ is a guess, and guesses get corrected after the PO.

Machine list matters less than machine availability. A shop with 27 three-axis machines can schedule your run without pushing another customer out. Ask how many spindles are free in the window you need, not how many exist.

Certification scope matters. ISO 9001:2015 covers a quality management system. IATF 16949:2016 adds automotive controls such as PPAP and traceability. ISO 13485:2016 adds medical device controls. ISO 27001:2022 covers information security, which matters if your drawings are confidential. A supplier holding all four has been audited in all four areas.

Inspection should be defined, not promised. Ask what is measured, on what equipment, and whether the report travels with the shipment. At GreatLight, inspection covers raw material checks, in-process monitoring and a final check before shipment, with reports on request.

Confidentiality is a purchasing question, not a legal one. If you cannot send the drawing, you cannot get a real quote. Look for a shop that offers an NDA on request and states how uploads are handled.

• 1
  Free DFM before quoteA shop that flags a thin wall or an impossible corner before you order is saving you a rework cycle.
• 2
  Named materialAsk for the grade and temper, not just 'aluminium'. 6061-T6 and 6061-O behave differently.
• 3
  Finish subcontracted or in-houseOutsourced anodizing adds a transport leg and a second schedule to track.
• 4
  Repeat order priceAsk what the second run costs. It should be lower, because the fixtures already exist.
