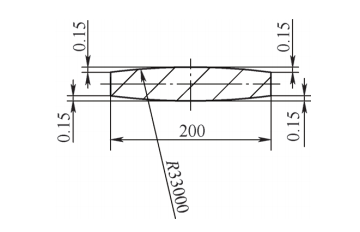

A drum-shaped flute is not a straight slot. Its floor curves along the shaft axis, and on a sun gear shaft or a long cam profile that curve may follow a radius of several hundred millimeters. A standard ball nose tool cannot sweep that arc in one continuous motion, because the flute is wider than the cutter and the flank angle changes along the length.

So the shop replaces the true curve with a chain of circular interpolations. Each pass cuts a short arc. The tool steps sideways by a fixed increment, and the union of those passes forms the drum surface. The error between the true arc and the approximation is the chord error, sometimes called scallop height when you measure it across the step direction.

The approximation is valid when the chord error stays inside the flute tolerance band. If the drawing gives ±0.05 mm on the flute floor, a chord error of 0.01 mm is comfortable. If the drawing gives ±0.01 mm, the same strategy needs a much smaller step-over, and the cycle time grows fast. That trade is the whole decision.

Nothing here is exotic. The method is common on long shafts, extruder screws, and drum-shaped guide grooves where a form tool would be too expensive or too slow to make. The skill sits in choosing the step-over and the cutter, then holding the shaft straight while you cut.

• 1
  Use approximation whenThe drum radius is large, the flute tolerance is ±0.02 mm or looser, and the part is one-off or low volume.
• 2
  Do not use approximation whenThe flute is a sealing surface with Ra 0.2 μm and ±0.005 mm form, or the volume justifies a form tool.

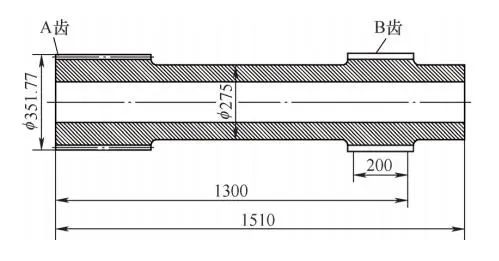

Long shafts need support at both ends and often in the middle. On a 1,510 mm sun gear shaft, the center holes at each end are the primary datum, and the actual clamping length runs longer than the part because the fixtures add length. If the machine travel cannot hold the whole assembly, you cut in two setups and blend the joint.

For parts inside our 4,000 × 400 × 150 mm travel, one setup is normal. We indicate the shaft along its full length and aim for runout under 0.02 mm at the middle station. A Ø400 mm rotary table handles the indexing when the flutes sit at an angle around the axis.

Warm-up matters more than people expect. Run the spindle and the axis drives for 20–30 minutes before the finishing passes. On a long part, thermal growth between a cold morning and a warm afternoon can shift the tool by 0.02–0.04 mm along the axis.

Clamp force is the other trap. Over-tighten a thin shaft and you bow it; the flute comes out straight on the machine and curved after unclamping. Use soft jaws or a steady rest, and check the free-state straightness after the first part.

• 1
  Indicate at three stationsBoth ends plus the middle. Log the numbers, do not just look at the dial.
• 2
  Warm up 20–30 minutesThen re-touch off the tool before finishing.

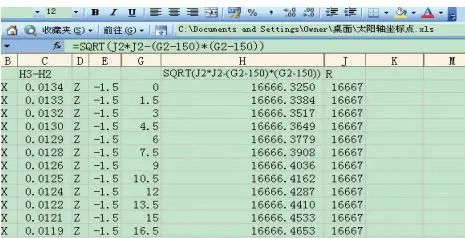

The chord error for a circular approximation is h = R − sqrt(R² − (s/2)²), where R is the drum radius and s is the step-over. For large R the shortcut h ≈ s² / (8R) is accurate enough to plan with. If R = 500 mm and you want h ≤ 0.01 mm, then s ≤ sqrt(8 × 500 × 0.01) = 6.3 mm. That is a wide step.

Cross-check the same number against the cutter. A Ø12 mm ball nose leaves a scallop between adjacent passes that depends on the effective radius at the contact point, not the drum radius. On a shallow flute floor the two numbers are close. On a steep flank the effective radius shrinks and the scallop grows, so tighten the step-over there.

The axial direction needs its own check. If the flute floor curves along the axis as well as across it, you are approximating a surface, not a line. Set the along-axis step from the same chord formula using the axial curvature radius, then take the smaller of the two steps.

Write the numbers on the setup sheet. When the operator has to stop mid-cycle for a tool change, the next operator needs to know the intended step-over and stock allowance without guessing.

• 1
  Plan with h ≈ s² / (8R)Accurate for R above roughly 10× the step-over.
• 2
  Then shrink the step on steep flanksEffective radius drops, so scallop height rises.

A constant step-over toolpath is easier to plan but not always the most accurate. On a drum flute, the flank angle changes along the length, so the effective cutter radius changes too. A constant step-over leaves more scallop at the steep end and less at the shallow end. Adaptive step-over, where the CAM tightens the increment as the surface tilts, costs cycle time but flattens the error distribution.

Direction matters for the floor finish. Climb milling on the finishing passes gives a cleaner floor on most steels and aluminium. Conventional milling can help when the cutter is long and chatter is the bigger risk, because the tooth enters on a thinner chip.

If the machine supports it, use a rotary table to index the flutes rather than re-clamping. Every re-clamp on a 1,500 mm shaft adds a chance of 0.01–0.03 mm runout error. Indexing in one setup keeps the flute-to-flute spacing tight.

For 5-axis work, keep the tool axis tilted slightly off the surface normal on the flanks, around 10–15°. This puts the contact point on a better part of the ball and reduces the effective scallop without changing the step-over.

• 1
  Adaptive step-overTighten the increment on flanks steeper than 30°.
• 2
  Index, do not re-clampUse the rotary table for flute spacing on long shafts.

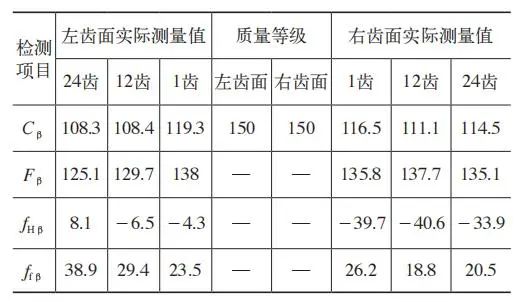

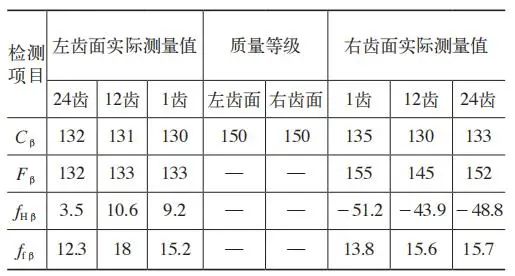

Inspect the flute floor radius with a profile trace or a radius gauge at three stations. A ball nose that deflects under load cuts shallow in the middle of a long pass, so the radius reads large at the ends and small in the center. That pattern points to tool deflection or a loose steady rest.

Check the flute width with a pin gauge or a bore gauge, depending on the geometry. Width drift along the axis usually traces back to thermal growth or to the shaft bowing under clamp force. Measure the part both clamped and free, at least on the first article.

Scallop marks that run across the flute instead of along it mean the step-over was too wide for the flank angle. Reduce the step-over on the flanks, or tilt the tool axis 10–15° to move the contact point.

Chatter on the floor is a stiffness problem, not a speed problem. Shorten the tool overhang, add a steady rest, or reduce radial engagement to 0.2 mm before you touch the spindle speed. Chasing chatter with speed alone rarely fixes it and often burns the cutter.

• 1
  Radius large at ends, small in middleTool deflection or loose support.
• 2
  Scallop across the fluteStep-over too wide on the flank.
• 3
  Width drifts along the axisThermal growth or clamp-induced bow.
