Manufacturing CNC machining services start with a CAD model and a drawing, not with a machine. The supplier converts the 3D file into G-code, picks the stock, sets the workholding, and removes material until the part matches the print. Milling covers pockets, slots, faces and threads. Turning covers round features, grooves and face work. Mill-turn centers do both on one platform, which removes a re-fixture and the stack-up error that comes with it.

The scope usually ends beyond the cut. Drilling, tapping, reaming, surface finishing and inspection belong to the same order. If a shop mills the part but sends it out for anodizing, you inherit a second schedule and a second quality record. Ask who touches the part and where it travels.

Material choice drives most of the risk. Aluminium 6061 and 7075 cut fast and hold tight tolerances. Stainless 316L and 17-4PH move more under heat and need slower feeds. Titanium Ti-6Al-4V and Inconel wear tools quickly, so cycle time and cost climb. Plastics such as POM and PEEK machine cleanly but deflect under clamping pressure, which shows up as a tapered wall.

For most buyers the real question is not whether a shop can cut metal. It is whether the shop can hold the same result on part 1 and part 500. That is a process question: tool life tracking, in-process checks, and a fixture that does not rely on the operator's hand.

±0.005 mm (±0.0002 in) is a real capability, not a slogan. It applies to specific features on a specific machine, with the right fixture and a stable thermal environment. A blanket tolerance note on the title block pushes the whole part into the expensive bracket. Put tight tolerance only on the features that mate, seal or locate. Everything else can sit at ±0.05 mm and cost far less.

Surface finish follows the same logic. Ra 1.6–3.2 μm is a normal as-machined result. Ra 0.8–1.6 μm needs a lighter finishing pass and sharper tooling. Ra 0.2–0.8 μm needs controlled parameters and often a secondary operation. If the surface is only cosmetic, bead blasting or brushing will reach the look at a lower cost than a fine boring pass.

Watch how tolerance stacks across setups. A part held in three fixtures accumulates error at each flip. A 5-axis machine that reaches five faces in one setup removes two of those links. That is the main reason to pay for 5-axis on a complex housing, and the main reason not to pay for it on a simple bracket.

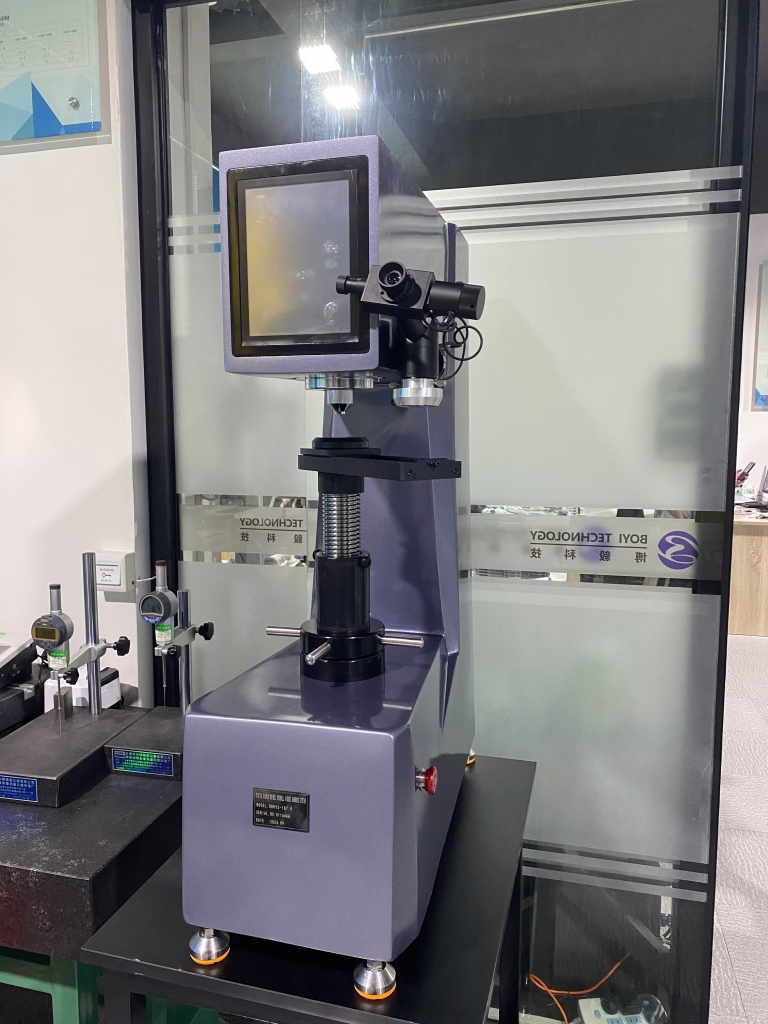

Inspection closes the loop. A shop that inspects 100% before shipment and can send reports on request gives you a traceable record. Ask what instrument measured the critical feature: caliper, micrometer, height gauge, or CMM. The answer tells you how seriously the tolerance was treated.

• 1
  Tight only where it mattersSealing faces, bearing bores, mating pilots.
• 2
  Loose everywhere elseCovers, standoffs, clearance holes, non-critical edges.
• 3
  One setup beats threeFewer fixtures, less stack-up, tighter true position.

Machine count is a rough proxy for throughput, but machine mix matters more. A shop with 16 simultaneous 5-axis centers, 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers can route a job to the right platform instead of forcing it onto the biggest one. GreatLight runs 127 high-precision CNC machines across three wholly-owned plants and 7,600 m², with 150 technicians.

Size limits decide whether the job is even quotable. Maximum processing size is 4,000 mm, with large travel at 4,000 × 400 × 150 mm. Medium platforms cover 750 × 1,150 × 550 mm and 600 × 600 × 600 mm. Compact platforms cover 500 × 500 × 450 mm and 500 × 310 × 200 mm. A Ø400 mm rotary table handles round work that needs angular features.

Lead time claims deserve a second look. A quotation and free DFM analysis within 12 hours is a process signal: someone reads the file. Production starting within 24 hours means material is stocked or sourced fast. Parts shipping in 3–5 days fits prototypes and small production runs. Historical late-delivery probability below 2% is the number to compare between suppliers.

Be careful with a shop that quotes the same lead time for one part and 5,000 parts. The first is a scheduling question. The second is a capacity and material question. If the answer does not change, the quote was not built from your file.

No minimum order quantity matters more than it sounds. A supplier that runs one prototype to 10,000+ part runs lets you validate a design before committing to tooling. For a first article, the setup cost dominates the price. For a 10,000-part run, cycle time and material dominate. Ask which one your quote is built on.

Read the quote line by line. Does it list material grade, stock size, machine, tolerance band, finish and inspection? A single number with no breakdown cannot be compared against another supplier. A quote that lists the finishing operation separately tells you the shop knows where the cost sits.

Confidentiality is a practical item, not a legal formality. Uploads are secure and confidential, and an NDA is available on request. If your part is a pre-launch product, ask how files are stored, who can open them, and whether the shop holds ISO 27001:2022 for information security. That certification is about data handling, not machining.

Certification scope is easy to misread. ISO 9001:2015 covers quality management. IATF 16949:2016 covers automotive production. ISO 13485:2016 covers medical devices. A shop may hold several. Ask which one applies to your part and whether the certificate covers the site that will cut it.
