3D CNC Machining Services for Complex Parts

The tool path moves through three linear axes at once, so the cutter follows a contoured surface instead of a stack of 2.5D steps. A ball nose end mill sweeps across a curved rib. A bull nose cutter follows a lofted boss and leaves a controlled scallop height. That is the base layer of any three-axis job.

Adding rotary axes changes the setup count, not just the geometry. On a 3+2 machine the table tilts to a fixed angle, locks, and then cuts. A full contouring machine keeps all five axes live through the move, so the tool stays normal to the surface on a blade or a scroll.

Both are sold as 3D CNC machining services. The distinction matters when you quote a part. A locked-angle job can hold tighter wall thickness on a deep pocket. A live-axis job removes hand blending on a compound curve. Choose by feature, not by machine name.

• 1

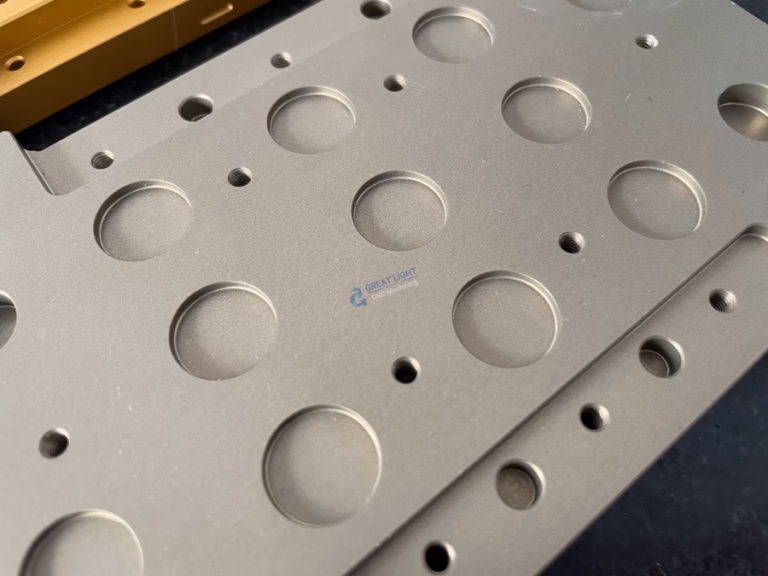

  3-axisFlat plates, pockets, holes, simple radii. Fastest cycle, lowest rate.
• 2
  3+2Angled faces and multi-side holes in one fixture. Rigid and repeatable.
• 3
  5-axis contouringBlades, impellers, organic shells, undercut walls. One setup, no re-fixturing.

Our floor has 127 high-precision CNC machines, including 16 five-axis machining centers, 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers. The largest travel is 4,000 × 400 × 150 mm. Medium frames run 750 × 1,150 × 550 mm and 600 × 600 × 600 mm. Compact cells cover 500 × 500 × 450 mm and 500 × 310 × 200 mm, with a Ø400 mm rotary table for round work.

Long, thin parts are the hard case. A 4,000 mm rail will deflect under its own weight unless it is supported between operations, so we plan rest pads and a stress-relief step into the routing. Short, deep cavities are the other extreme. Reach and tool stiffness set the limit, not the table size.

If your part sits near an envelope edge, send the 3D model before the drawing is frozen. Adding 2 mm of clearance on a boss is cheaper than redesigning a fixture after the first article.

A tight number on a print is a claim. Hitting it across a curved surface is a system. We work to ±0.005 mm ( ±0.0002 in ) on features that sit on a single setup. Cross-setup features inherit the fixture error, so we try to keep critical faces in one clamping position.

Surface finish is chosen, not defaulted. As-machined faces land at Ra 1.6–3.2 μm. A finishing pass takes that to Ra 0.8–1.6 μm. Mirror work on a mold cavity reaches Ra 0.2–0.8 μm, usually with a smaller step-over and a longer cycle.

Thermal drift is the quiet failure mode. Aluminium expands roughly 23 μm per meter per °C, so a 5 °C shop swing moves a 1,000 mm part by more than the tolerance band. We rough, let the part rest, then finish. On long parts the finishing pass happens after the blank has cooled to room temperature.

Every part is inspected before shipment. Raw material certs come in first, in-process checks catch drift, and final inspection confirms the drawing. Reports go out on request.

Aluminium is the default for complex 3D work. 6061 and 6061-T6 cut clean and hold thin walls. 7075 offers higher strength for brackets but chips harder and stresses more, so we plan roughing passes to release it. 2024, 5052, 5083, 6063, 6082 and ADC12 are all in stock rotation.

Stainless is slower and louder. 303 and 304 machine predictably. 316L is common for medical and marine parts. 17-4PH (SUS630) gives high strength after aging, and 440C suits wear surfaces. Expect a longer cycle and more tool changes than aluminium.

Titanium and nickel alloys are a separate cost tier. TC4 (Ti-6Al-4V) and Inconel need low cutting speeds, rigid setups and sharp tooling. They are usually justified only when the service condition demands them. Steels run from 1018 and 1045 through 4130, 4140, 4340 and tool steel. Plastics such as PEEK, POM, PC and HDPE cut easily but need sharp tools and light clamping to avoid marking.

Not every complex shape belongs on a mill. If a part has a hollow internal channel that no tool can reach, no axis count will fix it. Metal 3D printing or vacuum casting handles those geometries, and we route them there instead of burning setup hours on a doomed job.

Very high quantities favor a different process. Above roughly 10,000 units a year, die casting or a dedicated stamping tool usually beats subtractive machining on unit cost. We quote both paths when the volume suggests it.

Sharp internal corners are a quiet budget killer. A cutter has a radius, so a print that calls for a true 90° internal corner forces either a redesign or EDM. Adding a 1 mm corner radius at design stage often removes a whole secondary operation.

There is also a size floor. Tiny features below a certain scale are better served by micro-machining or printing. Send the model and we will say which route fits, even when that route is not ours.

Send a STEP file or a 2D drawing. We return a quotation and a free DFM analysis within 12 hours. The DFM note flags thin walls, unreachable corners, tolerance stacking and any feature that will need a second setup.

Once the print is approved, production can start within 24 hours. There is no minimum order quantity. One prototype and a 10,000-part run go through the same first-article check.

Parts ship in 3–5 days for most geometries. Our historical late-delivery probability sits below 2%. Materials are bought against the cert, in-process checks run at set intervals, and the final report travels with the shipment.

Uploads stay secure and confidential. An NDA is available on request if your program needs one before drawings are shared. Finishing is handled in-house: anodizing including hardcoat and conductive, electroless nickel, zinc, silver and gold plating, powder coating, black oxide, bead blasting, tumbling, brushing, polishing, and laser marking down to 1.5 mm character height.
