Mastertig 3000 MLS: 7 Reasons Cost-Conscious Shops Choose It

• 1
  What matters before you buy
• 2
  What to check against your own workload
• 3
  Arc stability and duty cycle: the two numbers that decide your cost per weld
• 4
  Material range and setup time: what you gain and what you still cannot do
• 5
  Consumables, torch parts, and the long-run price of ownership
• 6
  Service access and how the welder fits a shop that outsources machining
• 7
  Seven checks before you sign the purchase order

Arc stability is not a marketing term. On 1.5 mm stainless tube, a wandering arc means the operator chases the puddle, the heat input climbs, and the part distorts. You then spend bench time straightening something that was straight before welding. The Mastertig 3000 MLS holds a steady arc from roughly 5 A upward, which is where thin-wall work actually lives. On 0.8 mm sheet you can run 15–30 A with a 1.6 mm tungsten and keep the bead narrow.

That low-amp window is the difference between welding a part and scrapping it. Aluminum thin sheet behaves the same way: below 20 A the arc tends to jump between the oxide layer and clean metal, leaving soot and cold lap. A power source with a clean low-current range removes that variable. For a shop doing sensor housings, instrument panels, or thin-wall manifolds, this alone justifies the spend.

Duty cycle tells you how many operators the machine supports. A 200 A rating at 60 percent duty cycle means six minutes of arc in every ten. If your jobs are short tack-and-move operations, that is fine. If you run 300 mm seam welds back to back, you will hit the thermal cutout and stand there waiting. Match the rating to your longest continuous bead, not to your average weld.

We see shops buy on peak amps and then discover the constraint is duty cycle at the current they actually use. If your work sits at 120–160 A, check the duty rating at that point, not at the headline 300 A figure. The machine that wins on the spec sheet can lose on the shop floor.

• 1
  Thin sheet, 15–30 A1.6 mm tungsten, sharp point, short arc length.
• 2
  Long seams above 200 ACheck duty cycle before committing one machine to the job.

The material list matters only if you actually weld those materials. Steel and stainless are routine. Aluminum needs AC with a balance control that lets you break the oxide without cooking the tungsten. Titanium needs a trailing shield and a clean gas line, and the power source is a small part of that setup. The Mastertig 3000 MLS covers these cases, but it will not replace a dedicated orbital setup for tube welds or a seam welder for long straight runs.

Where the machine pays back is mixed-batch work. A shop that welds a stainless bracket in the morning and an aluminum housing in the afternoon loses less time on changeover when the parameters are stored and recalled by number. On a basic set, the operator resets current, balance, preflow, and postflow by hand each time. That is five to ten minutes per changeover. Across twenty changeovers a week, you are looking at a full shift per month.

Setup time also shows up as training cost. A clear front panel with labeled menus means a new hire produces acceptable welds in days rather than weeks. The savings are real but easy to overstate. Nobody becomes a TIG welder in a day. What the machine does is remove parameter guessing so the operator can focus on torch angle, travel speed, and filler feed.

Be honest about the ceiling. If your work is heavy-section aluminum above 8 mm, you may need preheat and more current than this class of machine delivers comfortably. If your work is 0.5 mm foil, you may need a micro-TIG setup with a different arc characteristic. Selection is about the middle band of the work, not the extremes.

• 1
  Good fitMixed steel, stainless, and aluminum up to 6 mm.
• 2
  Poor fitHeavy-section aluminum or sub-0.5 mm foil work.

The purchase price is the smallest number in the ownership equation. Tungsten, cups, collets, gas lenses, and torch bodies are what you buy every month. A machine that uses standard torch parts keeps those costs predictable and keeps you out of a single-source supply chain. When a proprietary cup costs three times a standard one and ships in two weeks, the margin on small jobs disappears.

Gas consumption is the other recurring line. A gas lens setup uses slightly more flow but gives better coverage on stainless and titanium, which reduces rework. Pulse mode can lower average heat input and let you use less current on thin material, though it does not reduce shielding gas flow. Track your actual consumption for a month before you assume any machine will cut your gas bill.

Torch ergonomics matter more than people admit. A heavy torch with a stiff cable causes wrist fatigue, and fatigue causes inconsistent travel speed on the last third of a seam. For a shop running eight-hour shifts, a lighter torch body and a flexible cable improve bead consistency without any parameter change. That is a real cost, even if it never appears on an invoice.

The same logic applies when you outsource machined parts. A supplier with documented process control and a clear inspection report costs less over a year than the cheapest quote that ships a mixed batch. We hold ±0.005 mm on machined features and inspect 100 percent before shipment, which is the machining equivalent of a stable arc: fewer surprises downstream.

• 1
  Track consumables monthlyTungsten, cups, collets, and gas lenses per job type.
• 2
  Avoid single-source torch partsStandard interfaces keep replacement costs and lead times low.

Downtime is the cost that nobody budgets for. A machine that needs a factory return for a board fault can be gone for weeks. A machine with local board-level repair and accessible diagnostics is back on the floor in days. When you compare two power sources, ask who repairs them, how far away that person is, and what a spare board costs. The answers often decide the purchase.

Spare parts availability matters too. If the torch, foot pedal, or cooler connector is a standard item stocked by local distributors, you are never waiting on an international shipment for a $40 part. That is boring, and it is the difference between a machine that runs for a decade and one that becomes a shelf ornament.

Most fabrication shops do not machine their own parts. They weld a fabricated frame, then send the precision components out. That split is normal and often cheaper than keeping a CNC department busy at 40 percent utilization. The welder and the machining supplier are two parts of one delivery schedule, and both need to hold their tolerances.

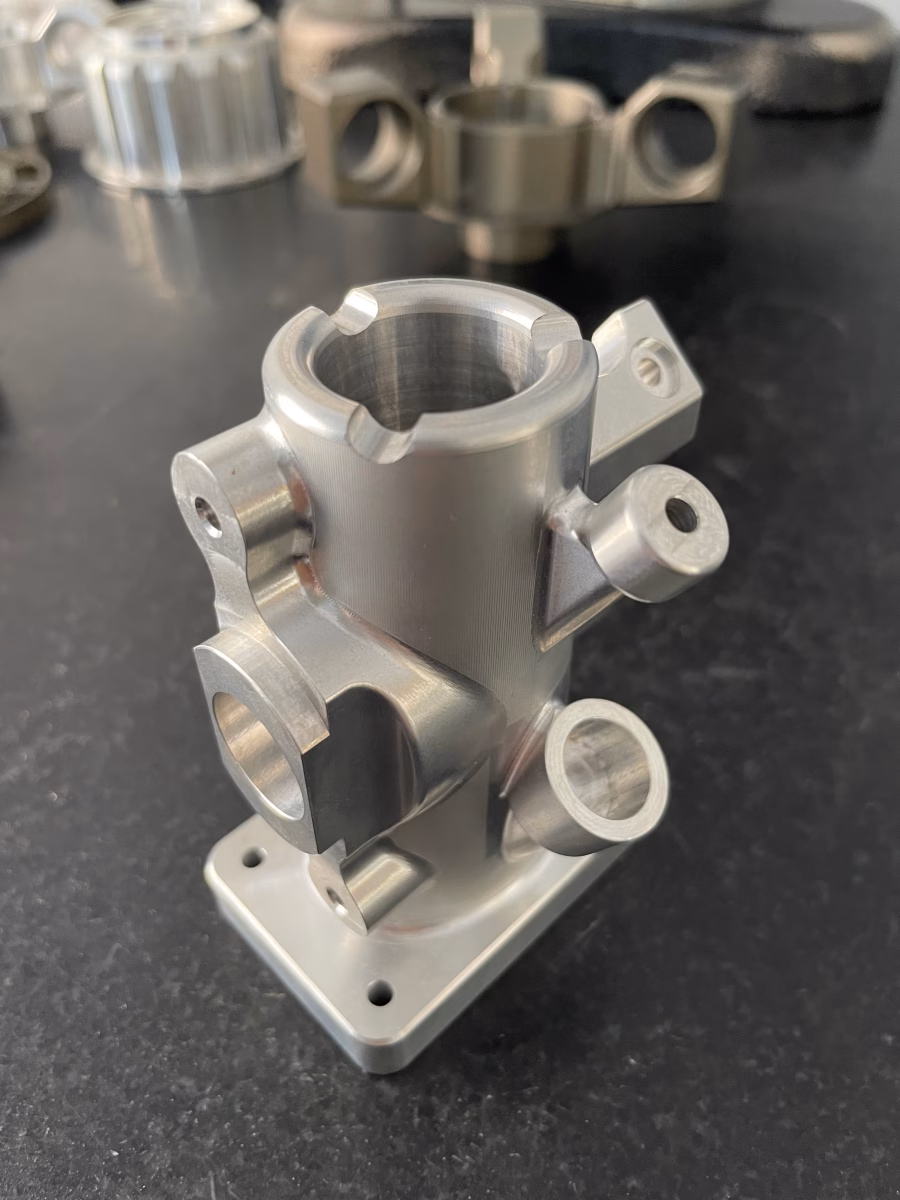

We machine parts for shops that weld them in-house: brackets, manifolds, sensor bodies, and frame components in 6061, 304, 17-4PH, and Ti-6Al-4V. Tolerances sit at ±0.005 mm on critical features, with finishes from Ra 0.8–1.6 μm on sealing surfaces. If the weld fixture is machined to the right tolerance, the weld itself gets easier.

• 1
  Ask about repair turnaroundBoard-level service nearby beats a factory return.
• 2
  Match weld fixtures to machined partsA fixture held to ±0.005 mm reduces fit-up time at the bench.
