Deformation by Milling: Tracing and Controlling It in Thin-Walled Aluminum Alloy Parts

• 1
  Deformation symptoms, likely causes, and shop-floor fixes
• 2
  Residual stress is the root of most deformation by milling
• 3
  Tool choice and parameters that keep the wall stable
• 4
  Clamping and support methods for thin-walled parts
• 5
  How to measure and confirm the fix worked
• 6
  Step-by-step method to control deformation by milling

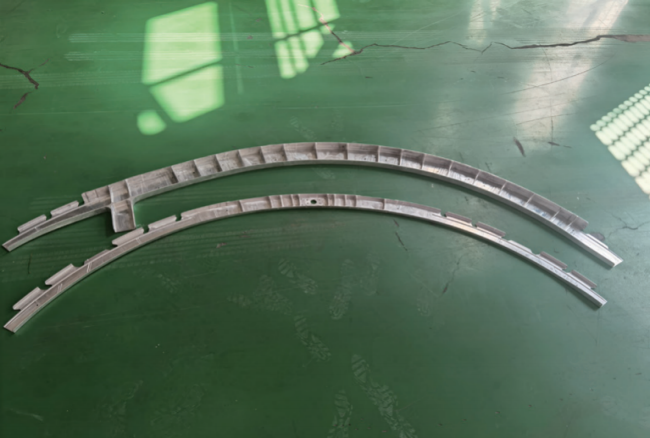

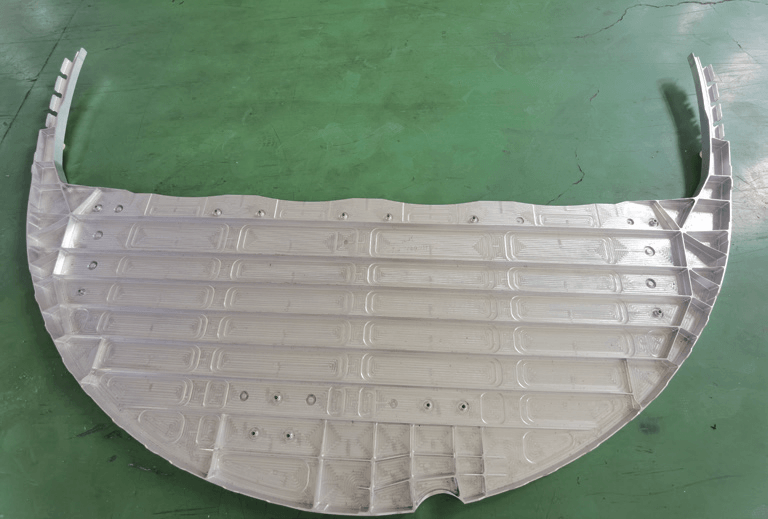

Aluminum plate and extrusion arrive with internal stress left over from rolling or extrusion. When you remove material from one side only, that balance is broken and the part curls toward the remaining stock. This is the single most common source of deformation by milling in thin-walled aluminum alloy parts, and no amount of careful finishing will fix a blank that was never stress-relieved.

The tell is timing. If the part measures good in the fixture and moves after unclamping, or if it moves again after a few hours on the bench, you are looking at stress release or thermal drift, not a tool problem. Measure before and after unclamping, then again after 4 hours. That three-point record separates the two causes faster than any simulation.

6061-T6 is more stable than 7075-T6 in thin sections, but both will move if you take 3 mm off one face and 0.5 mm off the other. For walls under 1.5 mm, rough both sides symmetrically, leave 0.4–0.6 mm per face, and let the part rest before finishing. A rest period of 12–24 hours is common practice for tight flatness.

• 1
  Stress-relieve before roughingFor 7075 and 2024, a stress-relief cycle on the blank pays for itself.
• 2
  Remove material symmetricallyAlternate faces so the stress balance never tips to one side.
• 3
  Measure three timesIn fixture, after unclamping, and after 4 hours.

Thin walls deflect under cutting force, so the goal is to lower radial engagement and keep the tool stiff. A 3-flute carbide end mill with a 2.5–3 × D flute length and a 10–12 mm shank handles most aluminum walls from 0.8 mm to 3 mm. Avoid long, slender tools unless the geometry leaves no choice; every extra 10 mm of gauge length costs stiffness fast.

For 6061 and 6082, a starting point is 350–500 m/min surface speed, 0.05–0.10 mm/tooth feed, 0.3–0.5 mm radial depth, and 3–6 mm axial depth. For 7075, drop the surface speed to 250–350 m/min. These are starting ranges, not laws. If the wall sings, cut the radial depth before you cut the feed, because feed keeps the edge engaged and reduces rubbing.

Climb milling is the default for thin walls on a rigid machine. It pushes the cutter into the material and keeps the wall in compression during the pass, which is more stable than conventional milling. On older machines with backlash, test both directions on a scrap wall before committing.

Heat is the quiet variable. Aluminum conducts heat away from the cut well, but a thin wall has little mass to absorb it. Flood coolant at 3–5 bar, or through-spindle coolant if available, keeps the wall closer to room temperature. Without it, a 1 mm wall can grow 0.02–0.05 mm during a long finishing pass and shrink back after the part cools.

• 1
  Keep the tool shortA 3 × D flute length is a good ceiling for walls under 2 mm.
• 2
  Cut radial depth firstIf chatter appears, reduce ae before reducing feed.
• 3
  Hold the temperatureFlood or through-spindle coolant at 3–5 bar.

A vise tightened to 40 N·m on a 1.2 mm wall will distort it before the tool touches it. Use low-pressure clamping, side clamps, or a vacuum fixture where the geometry allows. The rule is simple: the part should hold its own shape before you clamp, and the clamp should only stop it moving, not change its form.

For floors and pockets, support is more important than clamping force. A tuned support block, a bed of sacrificial material, or a vacuum plate under the floor reduces the unsupported span. When the floor is under 1 mm, a two-stage approach works well: rough to 1.5 mm with support in place, then finish with light passes and the support still active.

Side clamps and toe clamps work for parts where the top face must stay open. They apply force along the wall rather than across it, which is the direction the wall can resist. For long thin ribs, a soft jaw machined to the part profile spreads the load and prevents the dot-contact marks that come from hard jaws.

If the part must be flipped, plan the flip before you cut the first side. Leave a tab or a boss that locates in the second fixture, and remove it last with a light pass. Parts that lose their reference when flipped are the ones that come back out of tolerance.

• 1
  Clamp to hold, not to formIf the part changes shape when clamped, the fixture is wrong.
• 2
  Support the floorA vacuum plate or tuned block cuts vibration and spring-back.
• 3
  Plan the flip earlyKeep a locating tab until the last operation.

Measure the part in three states: clamped, free after 10 minutes, and free after 4 hours. Write the numbers down. If the free-after-10-minutes reading is good but the 4-hour reading drifts, the problem is thermal or stress-related, not the fixture. If it drifts immediately after unclamping, the fixture or the clamping force is the cause.

For thin walls, use a micrometer with a light friction thimble or a bench comparator with a low-force probe. A heavy-handed caliper can flex a 1 mm wall by 0.01–0.02 mm and give you a false reading. Check the wall at three heights and three positions along its length; a single mid-wall reading hides bowing.

If the drawing calls for ±0.005 mm, confirm the machine and the shop temperature can hold it. Aluminum expands about 23 × 10⁻⁶ / °C, so a 1.5 °C shop swing moves a 200 mm part by roughly 0.007 mm. For tight work, measure after the part and the gauge have soaked at the same temperature for at least 2 hours.

Keep a short record per part number: blank source, stress-relief cycle, roughing allowance, rest time, and final readings. After three or four runs, the pattern tells you which variable to adjust. Without the record, every run is a guess.

• 1
  Use a light-touch gaugeA friction thimble or low-force comparator avoids false readings.
• 2
  Check the shop temperatureA 1.5 °C swing moves a 200 mm aluminum part about 0.007 mm.
• 3
  Keep a per-part recordBlank, stress relief, allowance, rest time, readings.
