Micromachining Technology Based on Laser Composite: How It Works

• 1
  What micromachining technology based on laser composite actually removes
• 2
  The heat-affected zone is the constraint that shapes everything
• 3
  Which materials suit the hybrid process and which fight it
• 4
  What accuracy you can hold, and where the process stops
• 5
  When a hybrid route beats plain CNC or plain laser
• 6
  Process comparison for micro features

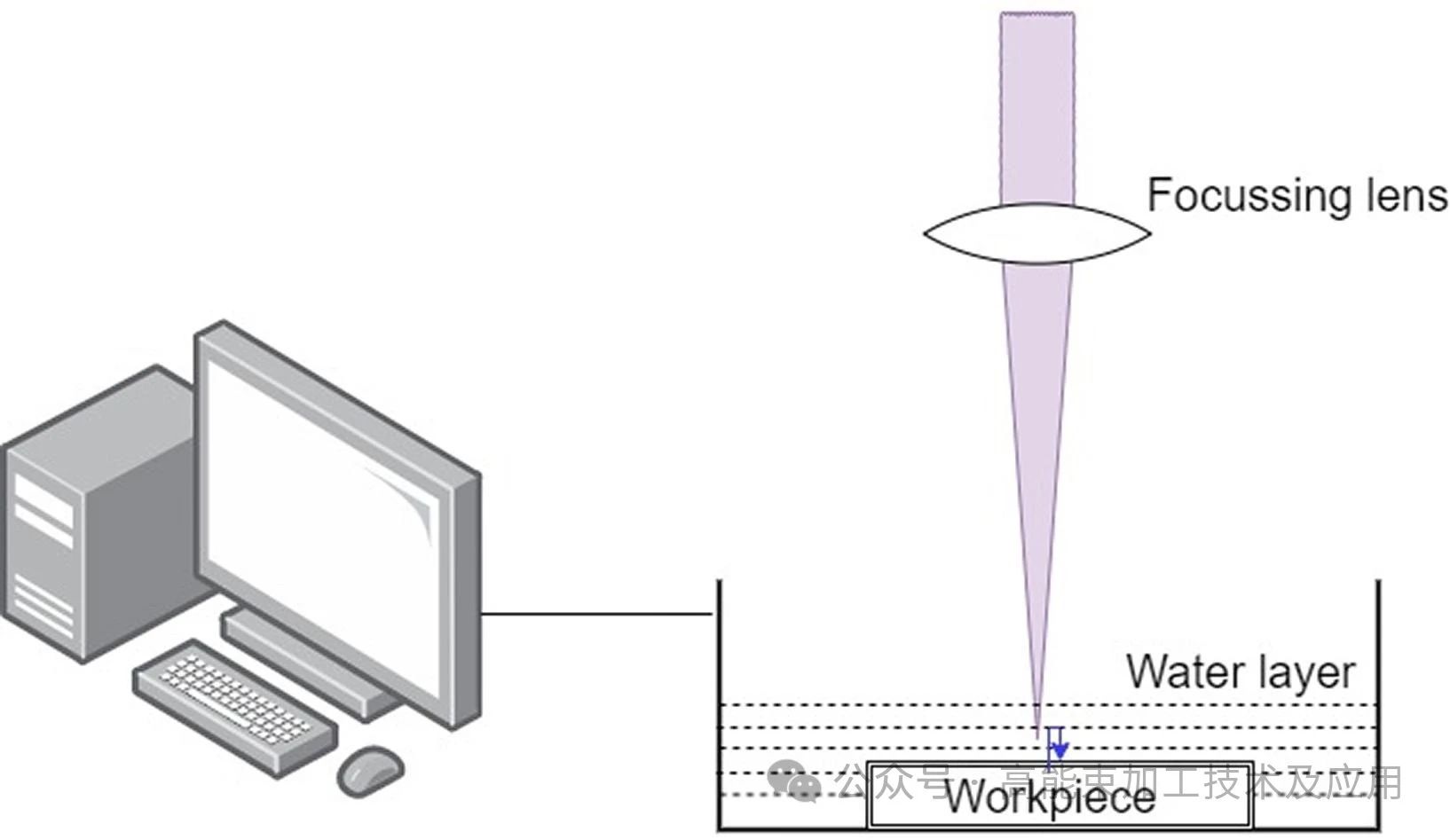

Take one part, two energy sources. A focused laser beam vaporizes or softens a shallow layer of material, and a mechanical tool or a second beam follows to shear off what is left. The laser does not finish the cut. It changes the material state in a narrow band so the following pass needs less force.

That distinction matters for tool life. Pure mechanical micromilling of hardened steel or Inconel wears a 0.5 mm cutter in minutes. Pre-softening a 20–40 μm layer drops cutting force enough that the same cutter survives a full batch. The laser is a preconditioning step, not a drill.

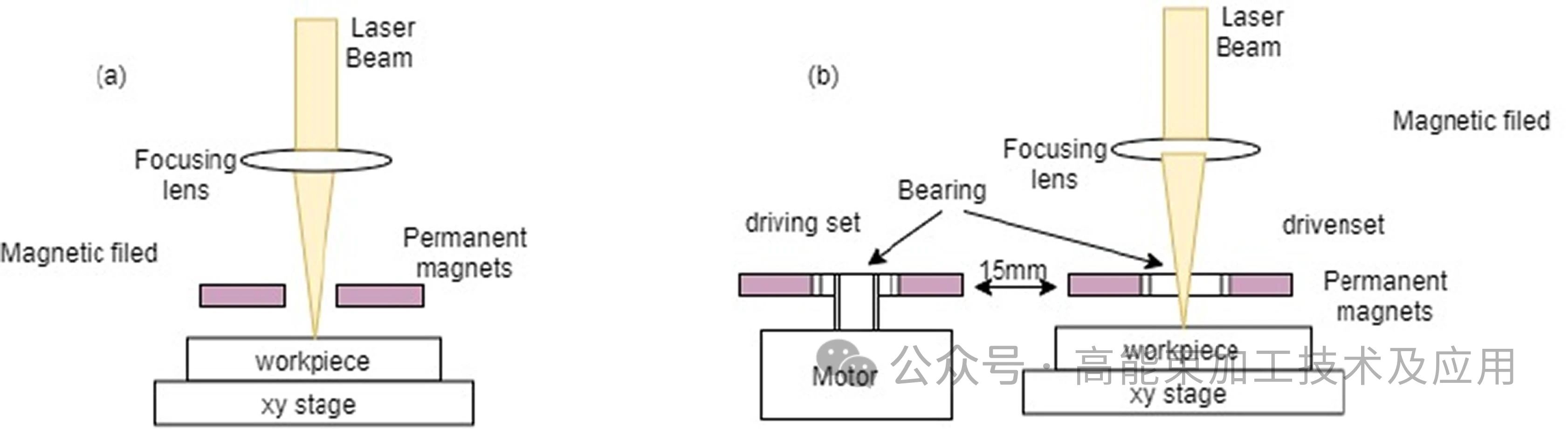

The composite name covers several pairings: laser plus micromilling, laser plus electrochemical dissolution, laser plus ultrasonic abrasion. Each uses the same idea. Thermal energy weakens the bond, mechanical energy removes the weakened volume. Neither source alone reaches the same feature size at the same quality.

Feature sizes land in the 10–100 μm range for slots and holes, with wall thickness down to about 50 μm on stainless. Below 10 μm, the physics changes and you are in lithography territory, not workshop micromachining.

• 1
  Laser roleSoftens or vaporizes a thin layer, typically 5–40 μm deep
• 2
  Mechanical roleRemoves the weakened volume with lower force and less tool wear
• 3
  Typical feature range10–100 μm slots and holes

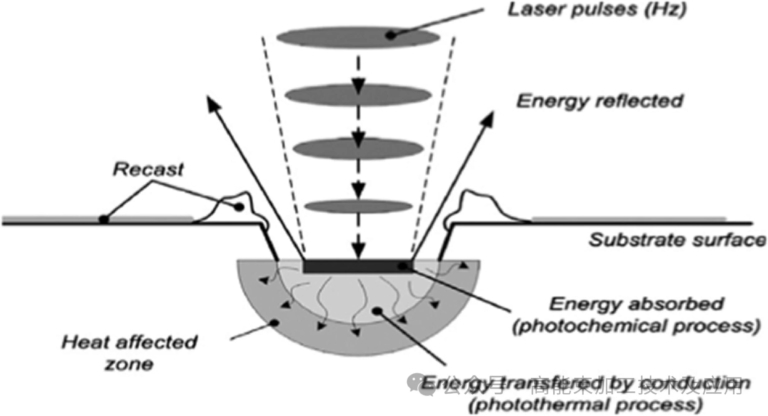

Every laser pass leaves a heat-affected zone. In steel it is usually 2–10 μm deep, in aluminium it spreads wider because the thermal conductivity is high. That zone has different hardness, different residual stress, and often microcracks at the boundary. If the following mechanical pass removes the whole zone, the part is clean. If it leaves 1 μm behind, fatigue life drops.

This is why hybrid processes are usually planned backwards. You start from the final surface, add the depth the mechanical pass will take, and set laser parameters so the damaged layer sits inside that allowance. Get the order wrong and you polish a cracked surface instead of removing it.

Pulse duration is the main lever. Nanosecond pulses give a wider zone and some melt recast. Picosecond pulses cut the zone to 1–3 μm and leave almost no recast layer. Femtosecond pulses go below 1 μm but the removal rate falls hard, so they are reserved for thin foils and medical features where a recast layer is unacceptable.

Cooling matters too. A gas assist of nitrogen or argon at 8–15 bar clears ejected material and limits oxidation. Without it, the zone grows and redeposited debris becomes a second problem to machine away.

• 1
  NanosecondWider zone, visible recast, highest removal rate
• 2
  Picosecond1–3 μm zone, minimal recast, common for production
• 3
  FemtosecondSub-micron zone, slow, for foils and implant features

Stainless 316L and 17-4PH behave well. The laser couples predictably, the softened layer is shallow, and a 0.3–0.8 mm end mill can clear it without chatter. Titanium TC4 (Ti-6Al-4V) also works, but the zone is harder and you need more overlap between passes to avoid leaving unsoftened islands.

Aluminium is the awkward one. High reflectivity means the laser couples poorly at first, and once it does couple, heat spreads fast. A 20 μm zone in steel may become 60 μm in 6061. It is still machinable, but the mechanical allowance has to grow, which limits how fine the final feature can be.

Copper and brass are worse for the opposite reason. Reflectivity at common fiber laser wavelengths sits above 90%, so absorption is unstable. Beryllium copper is used in some micromachined connectors, but the parameters are narrow and scrap rates are higher.

Polymers and carbon fibre composites are a different story. The laser cuts cleanly, but the mechanical pass tends to fray edges. For these, laser alone with a clean-up pass is often better than a true hybrid sequence.

• 1
  Good fit316L, 17-4PH, TC4, tool steel
• 2
  Workable with care6061, 7075, Inconel
• 3
  Poor fitCopper, brass, most polymers and CFRP

On a well-controlled hybrid cell, position tolerance of ±0.005 mm is achievable on features above 30 μm. Below that, the wall stiffness drops and the mechanical pass deflects. You can still cut the feature, but the tolerance band widens to ±0.01 mm or more.

Surface finish depends on which pass is last. A laser-finished surface sits around Ra 1.6–3.2 μm with some recast. A mechanical finishing pass brings it to Ra 0.2–0.8 μm. If the drawing calls for a sealing surface or a sliding fit, the mechanical pass is not optional.

Aspect ratio is the real limit. Hybrid micromachining holds about 10:1 depth-to-width on holes. Past that, debris cannot escape and the laser beam diverges inside the hole. Deep micro-holes are better done by EDM or by drilling from both sides.

Throughput is modest. Removing a 50 μm layer over a 5 mm × 5 mm area takes seconds, not milliseconds. For a few hundred features per part, that is fine. For a perforated screen with 50,000 holes, the cycle time becomes the deciding cost.

• 1
  Tolerance±0.005 mm above 30 μm features
• 2
  FinishRa 0.2–0.8 μm after the mechanical pass
• 3
  Aspect ratioAbout 10:1 on micro-holes

Choose hybrid when the feature is small, the material is hard, and the surface cannot carry a recast layer. Medical needles, fuel injector nozzles, and micro-mold inserts fit this pattern. The laser handles the geometry, the mechanical pass handles the metallurgy.

Stay with plain CNC when the smallest feature is above 200 μm and the material cuts normally. Adding a laser to that job increases setup time and cost without changing the result. A 0.5 mm end mill on 6061 will hold ±0.005 mm all day.

Stay with plain laser when the part is a thin foil, when the edge quality requirement is loose, or when the material is a polymer. Introducing a mechanical pass on a 50 μm foil usually causes more damage than it removes.

The honest trade-off is cost per feature. Hybrid cells have high hourly rates, so the process pays off on parts with many fine features, not on one or two. If your drawing has three micro-slots and everything else is standard, machine the standard work first and consider whether the slots can be a separate operation.

• 1
  Pick hybridHard material, sub-200 μm features, recast not allowed
• 2
  Pick CNCFeatures above 200 μm, normal machinability
• 3
  Pick laser onlyThin foils, polymers, loose edge quality
