  Gantry vs C-frame: what changes on the shop floor

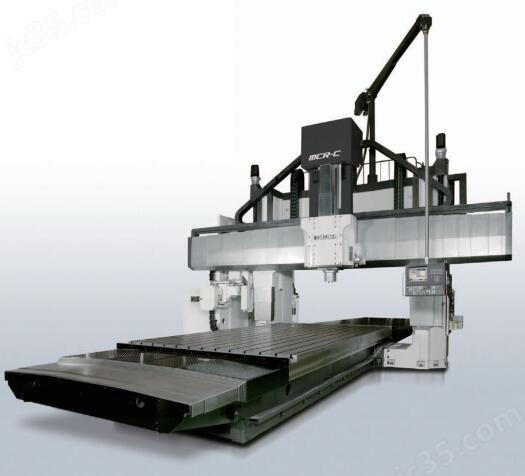

With a vertical machining center the column carries the spindle and the table moves under it. A gantry machine turns that around. The table stays bolted to the bed, and a bridge travels along two rails on either side of it. The part never moves during the cut.

That sounds like a small change. It is not. A fixed table means the mass of the workpiece never accelerates. A 3,000 kg casting sitting on the bed does not have to be pushed and stopped thousands of times per hour. The servo only moves the bridge, the ram, and the spindle. Cutting force has to swing a much smaller mass, so the machine can hold feed rates on heavy stock without the chatter that shows up when a table is overloaded.

The rails also spread the load. In a C-frame mill the column is a cantilever. Push the spindle hard and the column bends, then springs back. A bridge is supported at both ends, so the same force produces far less deflection. That is the main reason a gantery can hold ±0.005 mm over a long part while a C-frame machine of similar spindle power drifts out of tolerance near the ends of travel.

The trade is floor space and part access. Rails need room on both sides. The bridge sits above the table, so a crane or a forklift has to reach in from the front or the end. Loading a heavy part takes planning, not just a lift and a drop.

Heat is the quiet variable on any machine. The spindle motor, the ballscrews, the way covers, and the cutting zone all add heat at different rates. A gantry has more structure to heat up than a compact mill, and that structure is long. A 0.01 mm growth over 2 m of rail is normal on a cold morning, and it will move your bore positions.

Two sources matter most. First, the spindle. Run a 15 kW spindle at 80% load for an hour and the nose grows before the frame does. Second, the rails and the bridge. If one rail sits in a draft from a door and the other does not, the bridge twists slightly and the Z axis leans. The cut stays parallel but the part goes out of square.

The fix is boring and effective. Warm the machine before the first good part. Run a 20 to 30 minute warm-up cycle that exercises X, Y, and Z across the full travel at moderate feed. Let the spindle reach a stable temperature. Then probe the fixture and set your work offset. On a gantery, skip the warm-up and your first part is your setup part.

For tight work, check the part after roughing and again after a cool-down. If the numbers move, the machine is telling you where the heat is going. Adjust the sequence, not the feeds.

The bridge sits above the work, so the distance from the spindle nose to the rails sets how much torque the cut applies to the structure. Keep the ram short. A long ram on a tall part acts like a lever and the bridge has to resist that moment. Raise the part on a riser or a tombstone when you can, and keep the ram inside its stiff zone.

Fixture the part to the table, not to the bridge. The table is the heavy reference. Shim and indicate before you clamp. A part that rocks by 0.03 mm will not hold ±0.005 mm no matter how good the machine is. On long weldments, support the middle as well as the ends, and check for spring after the clamps are tight.

Tool selection follows the same logic. A gantry has travel and spindle power, but it is not a speed machine. Use shorter gauge-length holders, keep the tool overhang under four times the diameter where the geometry allows, and let the machine take a heavier radial cut instead of a long, thin one. The frame can absorb the load. A long end mill cannot.

Plan the order of operations so the heaviest material removal happens first, while the part is still thick and stiff. Then finish after a cool-down. On a 4,000 mm part, that sequence is worth more than any single feed tweak.

A gantry is not a general-purpose mill. It earns its keep on parts that are long, heavy, or both. Think mold bases, machine frames, large brackets, and structural plates. If your part fits in a 600 mm cube, a C-frame or a 5-axis trunnion machine will cut it faster and cost less to run.

Access is the second limit. The bridge blocks the top of the work. If the part needs five faces machined in one setup, a gantry with a tilting head can do it, but a dedicated 5-axis machine with a rotary table usually does it with less fixturing. Choose the gantry when the part is too long to rotate and the faces are reachable from above.

Volume matters too. A gantry is a large machine. It takes a large cut to justify the setup time, the warm-up, and the floor space. For one prototype, the same geometry is often cheaper to rough on a smaller mill and finish on a grinder or a jig borer.

The honest rule: use a gantery when the part is longer than about 1,200 mm, heavier than a few hundred kilograms, or needs a flat face held over a long span. Below that, the bridge buys you nothing.
