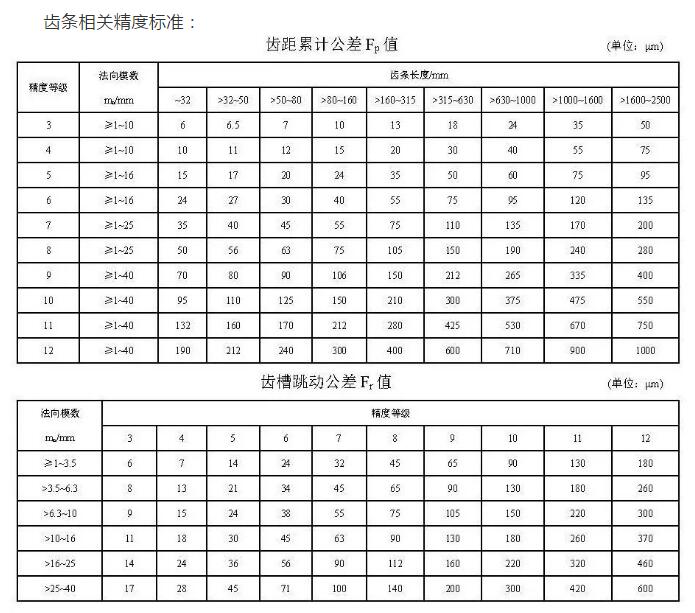

A material table rassel standard is a consolidation step, not a discovery step. Someone takes measured values from controlled cutting trials, national and international material specifications, and shop-floor experience, then merges them into one sheet that a programmer or estimator can read in under a minute. The word rassel in the name points at that compilation role: values are gathered, checked against each other, and standardized so two people reading the same row reach the same conclusion.

The rows are alloys and polymers. The columns are the numbers that change a machining decision: hardness range, tensile strength, thermal conductivity, thermal expansion, recommended surface speed, feed per tooth, and the achievable tolerance and surface finish band. For a 6061-T6 block the useful entry is not just "aluminium". It is the tempered condition, because T6 behaves differently from 5052 or 7075 under the same cutter load.

That is the whole idea. The table is a decision aid that shortens the gap between a drawing and a setup sheet. It does not replace a test cut, and a good table says so on its face.

A practical sheet also records what the data assumes: tool material, coolant, machine rigidity, and whether the cut is roughing or finishing. Drop those assumptions and the numbers travel badly between shops.

• 1
  RowsAlloy or polymer grade, including temper or condition
• 2
  Mechanical columnsHardness, tensile strength, elongation
• 3
  Thermal columnsConductivity and expansion, which drive distortion
• 4
  Cutting columnsSurface speed, feed per tooth, depth of cut band

Tolerance is not a property of the machine alone. It is the machine plus the material plus the heat the cut puts into the part. Aluminium 6061-T6 at roughly 95 HB cuts fast and carries heat away quickly, so a 4,000 mm long extrusion stays close to nominal. Titanium TC4 (Ti-6Al-4V) sits near 36 HRC, conducts heat poorly, and pushes most of the cutting energy into the tool edge. The same 0.5 mm radial step that runs cool in aluminium will run hot in titanium.

Distortion follows the same logic. A thin stainless 316L wall absorbs heat locally, expands, and then moves when it cools. A part that measured in tolerance on the machine can be out of tolerance after it reaches room temperature. Shops handle this by leaving stock, roughing, letting the part rest, then finishing. The pause is not superstition; it is the material telling you when it has stopped moving.

Surface finish is the third consequence. Ra 0.2–0.8 μm is reachable on aluminium and brass with a sharp cutter and a light finishing pass. On 17-4PH or Inconel, the same target usually needs slower speeds, more passes, and a tool change budget. A table that lists one finish number for every metal hides that cost.

The engineering meaning is simple: read hardness and conductivity first, then decide whether the tolerance you promised is a machining problem or a material problem.

A material table rassel standard is at its best during quoting and process planning. It gives an estimator a defensible starting point for cycle time, and it gives a programmer a feed and speed window that will not break a tool on the first pass. For repeat work in a known alloy, the table plus a proven program is enough.

It is weaker in three situations. First, near-net or cast stock: ADC12 die casting and magnesium AZ91D carry porosity and skin that a wrought-alloy row does not describe. Second, heat-treated or welded assemblies, where the heat-affected zone has its own hardness. Third, very thin walls, deep pockets, and long slender parts, where stiffness, not material data, drives the result.

There is also a documentation angle. A quoted tolerance of ±0.005 mm is only meaningful next to the material, the feature size, and the inspection method. Push a table row past those conditions and the number becomes marketing rather than engineering.

When a feature falls outside the table's assumptions, the honest move is a test cut or a first-article inspection. That costs a little time and saves a scrapped batch.

• 1
  Good fitWrought alloys, standard geometry, repeat production
• 2
  Poor fitCastings, welds, heat-affected zones
• 3
  Poor fitThin walls, deep pockets, long slender parts
• 4
  Always verifyFirst article or test cut on a new combination

Compilation is a chain of custody. Raw values come from tensile and hardness tests on certified stock, from cutting trials on real machines, and from published standards. Each entry should be traceable to a source and a date. When a supplier changes a mill or a heat-treat lot, the entry may need revisiting.

The second layer is internal verification. At GreatLight, raw material is checked on arrival, cutting parameters are monitored in process, and parts are inspected before shipment. Reports are available on request. That loop is what turns a static table into a living reference: measured results feed back and correct the row.

The third layer is scope control. A table that claims to cover every alloy at every hardness invites misuse. A narrower table with defined conditions is more useful, because the reader knows when to stop trusting it.

Standards help here. ISO 9001:2015 and IATF 16949:2016 both push for documented process control, which in practice means the numbers on the sheet have to match what the machines actually do.

• 1
  SourceCertified stock test data and controlled cutting trials
• 2
  DateEvery entry carries a revision mark
• 3
  FeedbackIn-process monitoring corrects the row
• 4
  ScopeStated conditions, stated limits

The table also decides which machine gets the job. A part with features on five faces and a tight true-position callout belongs on a 5-axis center, where one setup removes the stack-up error of four. A simple turned bushing with a cross-hole is cheaper on a mill-turn center. Reading the material row tells you the cutting load; reading the geometry tells you the machine.

For hard, low-conductivity alloys, the choice often lands on fewer setups and more rigid workholding, because every re-clamp adds a chance to lose the datum. For soft, gummy plastics such as POM or HDPE, the risk moves to chip evacuation and burr formation, and the answer is sharper tooling and higher rake angles.

Material data also feeds finishing decisions. Anodizing adds a few micrometres of build-up on aluminium; hardcoat adds more. If a bore is held at ±0.005 mm before coating, the coating has to be part of the plan, not an afterthought.

The table cannot make that call for you. It gives you the inputs. The process decision is still an engineering one.

• 1
  5-axisMulti-face features, tight positional tolerance
• 2
  Mill-turnTurned body with cross features
• 3
  Hard alloysFewer setups, rigid workholding
• 4
  PlasticsSharp tooling, chip evacuation, deburring plan
