A drawing tells you a shape, a tolerance and a finish. It does not tell you how the shop gets there. That gap is what knowledge of machining processes fills. It is the set of relationships between the machine, the fixture, the cutting tool and the workpiece that decide whether a feature comes out on size.

The four parts together are called the process system. Change any one of them and the result moves. A 16-station 5-axis cell can hold ±0.005 mm on a well-fixtured aluminum part, then miss that same tolerance on a thin stainless wall because the workpiece deflects under the cut.

This matters at the design stage. If you know which features are stiff and which are flexible, you can place datums where the part is strong. You can also avoid asking for a tight tolerance on a surface that has no stable support behind it.

Most tolerance failures we see are not machine failures. They are fixture failures, tool wear, or a finishing pass that was asked to do too much work. Understanding that ordering is the whole point.

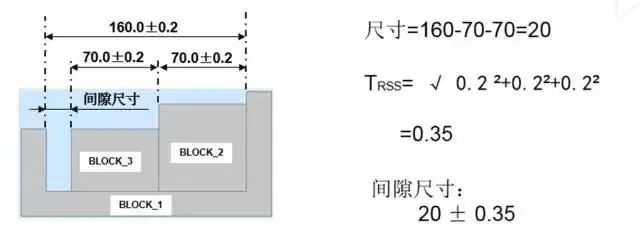

Every cut has a stack of errors. The machine contributes geometric error. The fixture contributes location error and sometimes deflection. The tool contributes runout and wear. The workpiece contributes its own elastic movement. These do not cancel; they add.

Take a 4,000 mm long extrusion machined on a large-travel machine. The bed is flat to a few microns over short distances, but thermal growth over a long cycle is larger. On a part that long, we plan the sequence so the critical features are cut early, before the machine warms up further.

On smaller work, the dominant term changes. A 500 × 500 × 450 mm envelope part in 7075 aluminum is stiff, so tool runout and chip evacuation usually drive the result. Keep runout under 0.010 mm and the tolerance becomes predictable.

The practical rule: match the process to the feature, not the whole part. A part with one tight bore and twenty loose holes is a different job than a part where everything is tight. Quoting them the same way is how schedules slip.

• 1
  Rigid part, rigid fixtureMachine geometry and tool wear dominate. Predictable.
• 2
  Thin wall or long overhangDeflection dominates. Add supports or reduce depth of cut.
• 3
  Hard materialTool wear accelerates. Expect more passes and more inspection.

Clamping looks simple until it distorts a part. A vise closed too hard on a thin rectangular block bows it. The cut is accurate while the part is clamped and wrong once it is released. Engineers then measure the free part and blame the machine.

The fix is to support the part where the cutting force pushes, and to clamp against a hard stop rather than relying on friction. For a first operation on a casting, three-point support plus a light clamp beats a heavy vise every time.

Datum choice follows the same logic. Pick a face that will still be there in the final part, and machine the mating datum in the same setup where possible. If a part needs two setups, the second datum should be machined in the first operation so the two setups share a reference.

We mark datum targets on the process sheet and check the free-state dimension, not just the clamped one. That single habit catches most of the bowed-part complaints before they leave the shop.

Roughing exists to remove material fast. It leaves 0.3–0.8 mm of stock for later passes. It also leaves residual stress in the surface layer, because the tool is pushing metal, not just shearing it. Skip the semi-finish and that stress shows up as movement after finishing.

Semi-finishing brings the surface to within 0.1–0.2 mm and stabilizes the geometry. For a part with a ±0.02 mm tolerance, this step is often what makes the finish pass repeatable. For a ±0.1 mm part, it may be unnecessary.

Finishing cuts light. Depth of cut of 0.1–0.3 mm, higher spindle speed, lower feed per tooth. The goal is a clean shear with minimal deflection and minimal heat. This is where Ra 0.8–1.6 μm becomes achievable on most aluminum and steel parts.

Superfinishing is a separate decision. On a sealing face or a bearing bore, a fine finish of Ra 0.2–0.8 μm may be needed. On a bracket, it is wasted cycle time. Specify finish only where friction, sealing or fatigue life demands it.

• 1
  RoughHeavy depth of cut. Stock left for later passes.
• 2
  Semi-finishUniform stock. Releases stress before the tight cut.
• 3
  FinishLight cut, high speed. Sets tolerance and Ra.

Surface finish is a record of the last pass. Feed per tooth and tool nose radius set the theoretical Ra. Tool wear, chatter and built-up edge add to it. If a part comes out rough, the first check is not the spindle speed; it is the tool edge.

A worn insert raises cutting force. That force deflects the part and the tool, which changes both size and finish. On a long run of 10,000 pieces, we track tool life by part count and replace on schedule rather than on feel. The schedule comes from the material and the depth of cut.

There is a point where tighter tolerance costs more than it returns. Going from ±0.05 mm to ±0.005 mm on a large aluminum part may require a temperature-controlled room, a dedicated fixture and slower passes. If the function allows ±0.02 mm, take it.

We tell customers when a callout is not worth the cost. That conversation is part of the service. A drawing that reflects the real function is cheaper to make and easier to inspect.
